If you have not found what you are looking for or you
have further questions, please feel free to call us at
217-753-7797 or fax us at 217-753-7789. It will help
us process your request more efficiently and effectively
if you can provide as much detailed information about
your requirements/application as possible.
Thanks for considering Hobbs meters from
Honeywell!
Sensing and Control
MANUFACTURING
Honeywell Hobbs’ commitment to the customer in
past years and present is what has helped us develop
our world-class manufacturing systems. Some of the
methods by which we continuously improve our
products and processes are as follows:
•
•
•
•
•
•
•
Six Sigma methodology is a strategy used to accelerate
improvements in our processes, products and services, and
to reduce manufacturing costs and improve quality. It
achieves this by relentlessly focusing on eliminating waste
and reducing defects and variations.
Continous Flow Process utilizing “Rabbit Chase” concepts
are used in the focused factories in order to achieve the
lowest total cost, defect-free product.
Single Minute Exchange of Dies (SMED method) provides
reduced time in molding cell.
Statistical Process Control is used for measuring critical
dimensions and controlling manufacturing processes.
Poka-Yoke method and computerized test equipment are
utilized to eliminate scrap and rework.
Kanban cards are used to pull raw material and piece parts
through the factory.
Bar coding and electronic data interchange (EDI)
are available.
QUALITY SYSTEMS
It is the goal of Honeywell Hobbs to meet customer value-needs through continuously improved products and processes. That is the
basis by which we work to create a partnership with our customers. Evidence of our commitment is proven by a goal of a Shipped
Product Quality Level (SPQL) of 100 ppm. We utilize Advanced Quality Planning and QS9000 based quality systems.
© 2003 Honeywell International Inc. All Rights Reserved.
Sensing and Control
www.honeywell.com/hobbs
email: www.honeywellhobbs.marketing@honeywell.com
Honeywell
P.O. Box 19424
Springfield, IL 62794-9424
USA
Catalog 20-1103, GLO Printed in the USA
Other AC and DC Meters Available
The Hobbs brand is well known
worldwide for the development of
quality electro-mechanical products.
The invention of the first electrically
wound automobile clock in 1938
created what is now known as
Honeywell Hobbs. John Weston
Hobbs was the inventor that cultivated
this electrically-wound vehicle clock
into a company that has over the
years expanded to include hour
meters, pressure and vacuum
switches, halogen lamps, transmission
shifters, and other custom
electro-mechanical products.
Honeywells’ broad customer and
market base includes industries such
as automotive, agricultural, material
handling, construction, marine,
medical, heavy truck, lawn and
garden, recreational, generators,
compressors and aviation.
Honeywells’ commitment to
continuous improvement and total
quality management will allow for
further expansion of its product lines
and customer base while maintaining
the highest standards of excellence.
Round Flush with Retainer Mount
Custom Instrument
Panel Clusters
Let Hobbs custom design your display panel
saving you time and money. We can
assemble a panel to your specifications that
frees up your engineering resources,
reduces parts counts and reduces your
vendor base.
Round Slotted 3 screw
Contact Hobbs for more
information and specifications
on above meters.
Warranty and remedy
Honeywell warrants goods of its
manufacture as being free of defective
materials and faulty workmanship. Contact
your local sales office for warranty
information. If warranted goods are
returned to Honeywell during the period of
coverage, Honeywell will repair or replace
without charge those items it finds defective.
The foregoing is Buyer’s sole remedy and is
in lieu of all other warranties,
expressed or implied, including
those of merchantability and fitness
for a particular purpose.
While we provide application assistance,
personally, through our literature and the
Honeywell web site, it is up to the customer
to determine the suitability of the product in
the application.
Specifications may change at any time
without notice. The information we supply
is believed to be accurate and reliable as
of this printing. However, we assume no
responsibility for its use.
Sales and Service

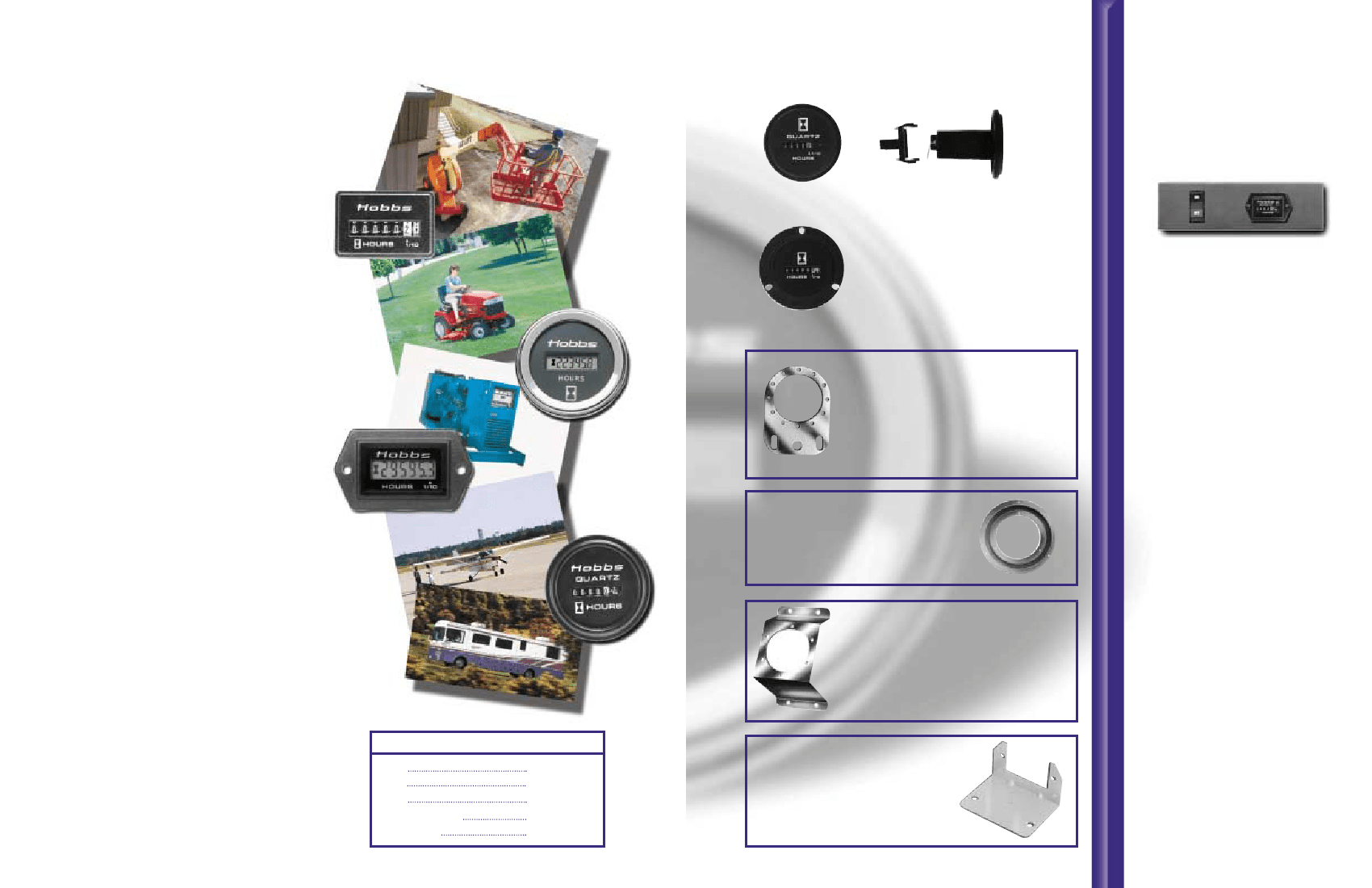

Hour Meter Accessories
Mounting brackets.
For mounting hour
meters in any location when panel installation is
not practical. Multiple holes allow positioning
for easy reading. Foot of bracket can be bent
when necessary. Part Number M-329
(2 13/16” x 4”) for meter only. Part Number
M-558 (4” x 5 1/8”) when meter and damper
are used together.
Damper.
Protects meter from severe
vibration. Use on panel or with Part Number
M-558 bracket. Part Number M-3888
(3 7/8” dia.) for three-screw type DC meters.
Panel mounting bracket.
Designed to bolt to
a flat surface area 2 13/16” x 5 1/4”. Provides
easy-to-read meter position. Part Number M-486
for three-screw type DC meter only.
Honeywell serves its customers through a
worldwide network of sales offices and
distributors. For application assistance,
current specifications, pricing or name of
the nearest Authorized Distributor, contact a
nearby sales office or
INTERNET: www.honeywell.com/hobbs
E-mail:
honeywellhobbs.marketing@honeywell.com
Contents:
• LCD
• D.C.
• A.C.
• Accessories
• Warranty
P.
P.
P.
P.
P.
3-5
6-7
8-11
11
11
Angle bracket.
For two-screw flange
AC and DC rectangular meters only,
when panel mounting is not practical.
Part Number 23944.
Warranty Periods:
The products listed are warranted
for the periods shown:
98000 Series..................2 years
85000 Series..................2 years
20000 Series..................2 years
11
www.honeywell.com/hobbs
2

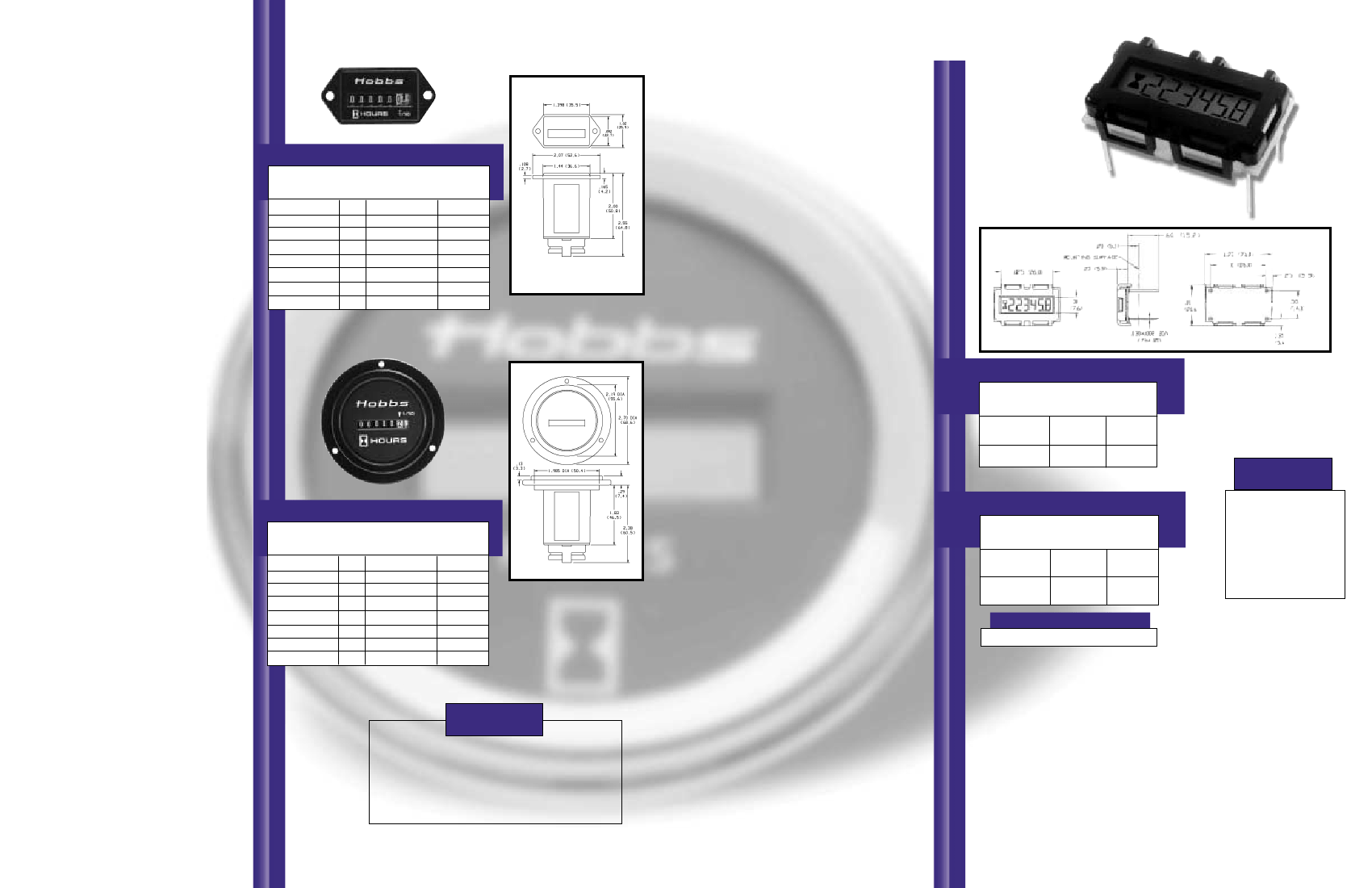

28100 Series
Unlike conventional AC hour meters that are
limited to one primary voltage andfrequency, the
Hobbs Multi-Range Quartz hour meter will
operate over a full range of voltages and
frequencies. The meters will work accurately
over a voltage range of 90 VAC to 264 VAC
and at frequencies of either 50 Hz or 60 Hz.
This unique feature means that one hour meter
will work for virtually any application anywhere
in the world!
AC Multi-Range Meters
98000 Series
The Hobbs 98000 Series LCD hour
meters provide a large easy-to-read
display in a conventional size
package. The hour meters are
available in a variety of mounting
styles and voltage ranges that will fit
virtually any application.
Specifications:
• Run Accuracy ±200ppm; ±0.02%
• Start Time: maximum 1second
• 6 Digit Display
• Digit Height: 6mm
• Power draw: .8 mA at 12 VDC
(Power Terminal)
• Termination: 1/4” blade
3/16” blade optional
• Temperature Range:
Operating: -40˚C to +85˚C
• Vibration: 20 g’s per SAE J1378
• Shock: 55 g’s per SAE J1378
• Operating ranges:
4.5 to 16 VDC (optional)
9 to 64 VDC
>64 VDC Contact Factory
• Display:
0 to 99,999.9 Hours
0 to 999,999 Counter
• Transient Voltage Protection
Load Dump
Inductive
EMI
Reverse Polarity
LCD Hour Meters
Retainer Mount
Operating
Voltage
90-264 VAC
Part #
28100
Retainer Mount:
Panel cutout 1.45 x .95
rectangular opening.
Two .150 holes spaced 1.750*
Specifications
• Operating Voltage: 90 to 264 VAC
• Frequencies: 50 to 60 Hz
• Temperature Range: -40˚F to +185˚F
Features
• Records time 0 to 99,999.9 hours
• Accuracy ±0.02%
• UL Recognized
• CSA (UL)
• CE Mark
• Totally sealed from dirt and moisture
• Termination
- 1/4” spade
Benefits
• Reduced parts count
• Reduced inventories
• Fewer purchase orders
• Eliminate production line errors
• Reduce service parts
Options
• Wire leads
• Custom lens
• Terminals (up, down, straight)
WARNING!
Applied voltage not to exceed 264 Vac RMS. This meter
was not intended to be used in applications where
excessive transient voltages are present. It is the
responsibility of the customer to determine the suitability
of this device for use in their system.
* Panel cutout dimensions are ± .010 tolerance
All dimensions shown in inches and (metric)
2 Screw Standard Bezel
Operating
Voltage
9 to 64 VDC
9 to 64 VDC
9 to 64 VDC
Terminals
2 terminal
3 terminal
with enable
4 terminal
resettable
Part #
98310
98320
98300
2 Screw Standard:
Panel cutout 1.45 x .95
rectangular opening
Two .150 holes
spaced 1.750*
2 Screw
Standard Bezel
Operating
Voltage
90 to 264 VAC
Part #
28101
2 Screw Standard:
Panel cutout 1.45 x .95
rectangular opening.
Two .150 holes spaced 1.750*
2 Screw Deluxe Bezel
Operating
Voltage
90 - 264 VAC
Part #
28103
2 Screw Deluxe:
Panel cutout 1.45 x .95
rectangular opening.
Two .150 holes spaced 1.750*
2 Screw Deluxe Bezel
Features
• Totally sealed from moisture
and dirt
• Direct replacement for
current hour meter
• No battery backup needed
• Fits in existing panel openings
• Custom bezels and
dial artwork available
• Snap-in retainer mount
combines easy installation with
rugged design
• Compact Depth
• Rugged Design
• Pulse Counter Option
• Reset Option
• Run Indicator
Operating
Voltage
9 to 64 VDC
9 to 64 VDC
9 to 64 VDC
Terminals
2 terminal
3 terminal
with enable
4 terminal
resettable
Part #
98313
98323
98303
2 Screw Deluxe:
Panel cutout 1.45 x .95
rectangular opening
Two .150 holes
spaced 1.750*
Round Black Bezel
Operating
Voltage
90 - 264 VAC
10
Part #
28104
Flush Mount (Retainer) 2.24”:
Panel cutout 2.00
diameter opening*
3 Screw
Operating
Voltage
90 - 264 VAC
Part #
28105
3 Screw Mount:
Panel cutout 2.00 diameter opening
Three .125 holes equally
spaced on 2.42 bolt circle diameter*
* Panel cutout dimensions are ± .010 tolerance
All dimensions shown in inches and (metric)
3

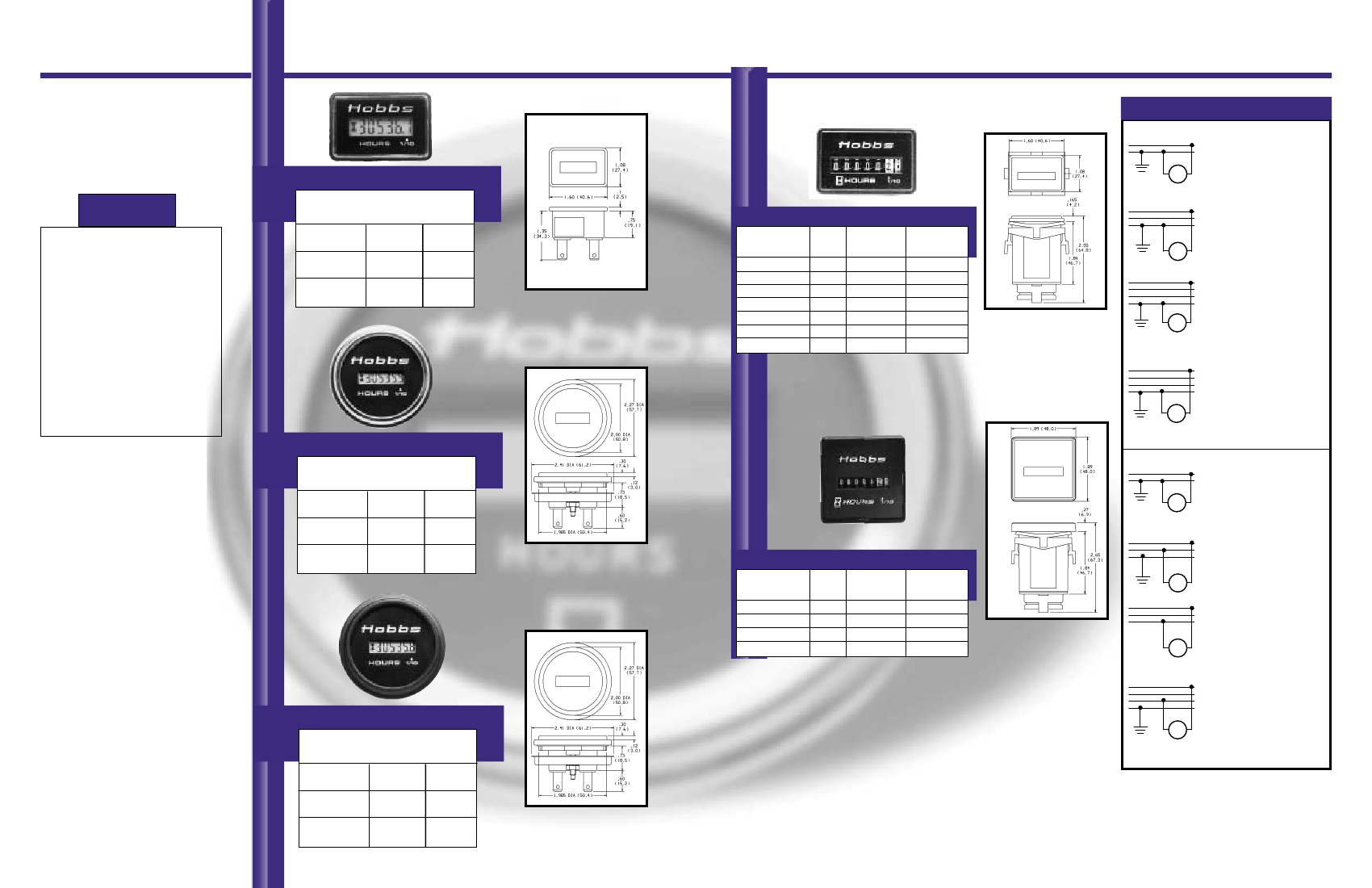

98000 Series
LCD Hour Meters

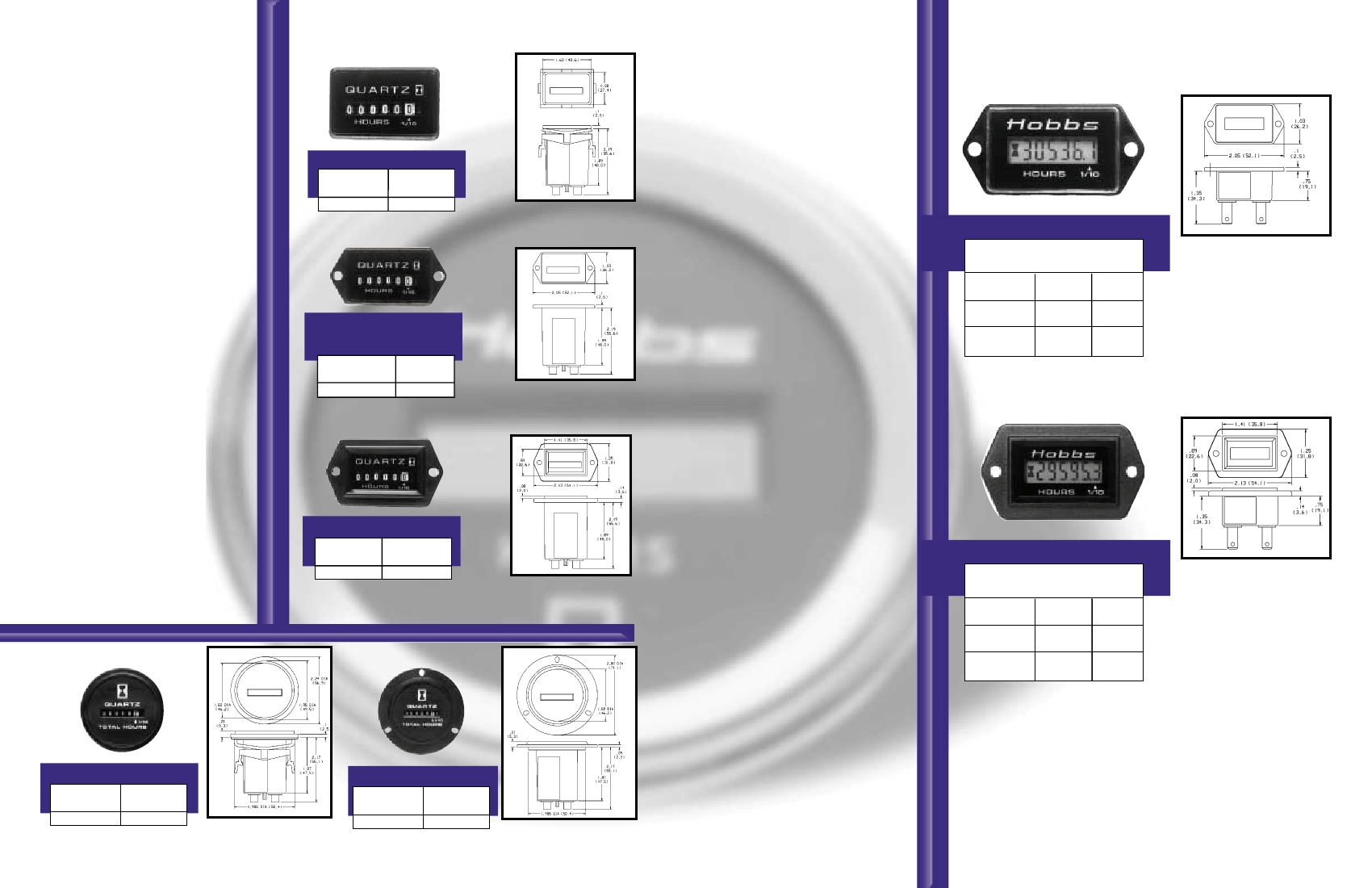

20000 Series Deluxe AC Hour Meters
20000 Series Wiring Diagrams
120VAC Meter Applications
N
Single phase, 2 wire,
120V system:
Connect
power wire to one terminal
and neutral wire to opposite
terminal.
Single phase, 3 wire,
120/240V system:
Connect
any one power wire to one
terminal and the neutral wire to
the opposite terminal.
Three phase, 4 wire wye,
120/208V system:
Connect
any one power wire to one
terminal and the neutral wire
to the opposite terminal.
Three phase, 4 wire delta
with a high leg,
120/240V system:
Connect
any one of the two available
120V power wires to one
terminal of the meter and the
neutral wire to the opposite
teminal. Do not connect the high
leg (208V) to the meter.
Retainer Mount
LCD Meter
APPLICATIONS
•
•
•
•
•
•
•
•
•
•
•
•
•
Garden Tractors
Generators
Utility Vehicles
Construction Equipment
Material Handling Equipment
Recreational Vehicles
Medical
Electronic Panels
Rental Equipment
Boom Lifts
Pressure Washers
Sweepers
Test Equipment
Operating
Voltage
9 to 64 VDC
9 to 64 VDC
9 to 64 VDC
HM
Terminals
2 terminal
3 terminal
with enable
4 terminal
resettable
Part #
98311
98321
98301
Retainer Mount:
Panel cutout 1.45 x .95
rectangular opening*
Rectangular Retainer Mount
Operating
Voltage
108-132
108-132
108-132
108-132
216-264
216-264
216-264
VAC
VAC
VAC
VAC
VAC
VAC
VAC
N
HM
Hertz
50
50
60
60
50
50
60
Termination
Screw*
Blade**
Screw*
Blade**
Screw*
Blade**
Screw*
Part #
20174
20183
20116
20182
20171
20170
20177
N
Rectangular Retainer:
Panel cutout 1.45 x .95
rectangular opening*
HM
N
HM
Round Chrome Bezel
Operating
Voltage
9 to 64 VDC
9 to 64 VDC
9 to 64 VDC
240VAC Meter Applications
* Panel cutout dimensions are ± .010 tolerance
All dimensions shown in inches and (metric)
Terminals
2 terminal
3 terminal
with enable
4 terminal
resettable
Part #
98314
98324
98304
Flush Mount (Retainer) 2.27”:
Panel cutout 2.00
diameter opening*
HM
N
Single Phase, 2 wire,
240V system:
Connect
power wire to one terminal
and neutral wire to opposite
terminal.
Single phase, 3 wire,
120/240V system:
Connect
meter across two high sides of
the line. Do not connect the
neutral wire to the meter.
Three phase, 3 wire delta,
240V system:
Connect meter
across any two power lines.
Square Retainer Mount
Operating
Voltage
108-132
108-132
216-264
216-264
VAC
VAC
VAC
VAC
Hertz
50
60
50
60
Termination
Screw*
Screw*
Screw*
Screw*
Part #
20176
20115
20173
20179
HM
N
Square Retainer: Panel
cutout 1.45 x .95
rectangular opening*
HM
Three phase, 4 wire delta
with a high leg,
120/240V system:
Connect any one power wire to
one terminal of the meter.
Connect one of the remaining
two power lines to the opposite
terminal. Do not connect the
neutral wire to the meter.
* UL Listed, CSA Certified and CE Mark
** UL Recognized, CSA Certified and CE Mark
N
HM
Round Black Bezel
Operating
Voltage
9 to 64 VDC
9 to 64 VDC
9 to 64 VDC
Terminals
2 terminal
3 terminal
with enable
4 terminal
resettable
Part #
98312
98322
98302
* Panel cutout dimensions are ± .010 tolerance
All dimensions shown in inches and (metric)
CAUTION: Always make sure power is removed from equipment before working on
electrical circuits! Only qualified personnel should make electrical connections.
Damage to equipment and/or serious bodily injury can result from improperly made
electrical connections, or a failure to adhere to normal electrical safety guidelines.
Flush Mount (Retainer) 2.27”:
Panel cutout 2.00
diameter opening*
4
9
20000 Series
When there’s a need to keep track of run
time, quality-minded companies choose
Hobbs! Whether it’s for testing purposes,
leasing applications, maintenance reasons,
and/or warranty programs, you want an
accurate and reliable hour meter. The
Hobbs 20000 Series
hour meter delivers!
To ensure our high standards of quality, all
parts are in-process inspected. Every meter
must pass 100% function and timing
accuracy tests before shipping. These
“Deluxe” AC meters are also totally sealed
and
benefit from an uncommon design which
integrates the motor and frame into one
substructure.
Specifications
• Records up to 99,999 hours
Automatic recycle to zero
• 24,120 and 240 VAC models available
(Range ±10%)
• 50 and 60 Hertz versions
• 3.0 watts power rating
• Operating temperature: - 65°F to +154°F
(-54°C to +68°C)
• Accuracy: ±.02%.
• Weight: 3 oz
• Screw termination or 7” lead wires
• Lens material:
3-screw mount: Glass
All others: Polycarbonate
• Case material: Polycarbonate
• Number size: 0.12” (3mm)
• UL Listed (File # E47098): Screw terminals
• UL Recognized: Wire lead versions
• CSA Certified (File # LR42455)
• Conforms to MIL-M-3971 *
• CE Mark
Features
• Polycarbonate, shock resistant, tamper
proof case
• Totally sealed *
• Single phase, synchronous, permanently
lubricated motor
• Custom logo dials, 1/4” blade terminals,
special wire lengths.
Deluxe AC Hour Meters
LCD Hour Meter Module
The Hobbs LCD hour meter module is a
custom engineered elapsed time meter
designed to be mounted directly to your
printed circuit board (PCB). It can be used
in a variety of AC or DC applications that
require an hour meter, counter or odometer
for preventive maintenance, warranty
verification, renting and leasing.
Specifications
• 6 digit/6mm display
• ±0.02% Accuracy
• Vibration tested per MIL-M-3971D at
10 g’s and SAE J1378 at 20 g’s
• Shock tested per MIL-M-3971D at 75 g’s
and SAE J1378 at 55 g’s
• Operating temp. range -40˚C to +85˚C
• Operating voltage range 9 to 64 VDC
(optional 4.5 to 16 VDC)
• Transient Voltage Protected
Over Voltage
Load Dump
Inductive
EMI
Reverse Polarity
• Power Consumption
.8 ma max at 12V (power terminal)
• Start time: maximum 1 second
All Hobbs modules have crucial
components exposed. The module
must be sufficiently protected if
used in an environment other than
specified. Consult Hobbs
marketing department when
suitability of application is
questioned.
Rectangular 2 Screw
Operating
Voltage
108 to 132 VAC
108 to 132 VAC
108 to 132 VAC
108 to 132 VAC
216 to 264 VAC
216 to 264 VAC
216 to 264 VAC
216 to 264 VAC
Hertz
50
50
60
60
50
50
60
60
Termination
Screw *
7” Leads **
Screw *
7” Leads **
Screw *
7” Leads **
Screw *
7” Leads **
Part #
20028
20034
20001
20035
20029
20036
20007
20037
Two-Screw Mount: Panel cut out
1.45 x .95 rectangular
opening. Two .150 holes
spaced 1.750.*
D.C. Version
Operating
Voltage
9 to 64 VDC
with enable & reset
4.5 to 16 VDC
Termination
4 pin
4 pin
Part #
98706
98707
LCD Module
APPLICATIONS
•
•
•
•
•
•
•
Medical
Vending Machines
Floor Cleaning Equip.
Electronic Panels
Instrument Panels
Recreational
Office Equipment
Round 3 Screw
Operating
Voltage
108 to 132 VAC
108 to 132 VAC
108 to 132 VAC
108 to 132 VAC
216 to 264 VAC
216 to 264 VAC
216 to 264 VAC
216 to 264 VAC
Counter Version
Operating
Voltage
9 to 64 VDC
with reset
9 to 64 VDC
without reset
Hertz
50
50
60
60
50
50
60
60
Termination
Screw *
7” Leads **
Screw *
7” Leads **
Screw *
7” Leads **
Screw *
7” Leads **
Part #
20016
20042
20017
20043
20018
20044
20019
20045
Termination
4 terminal
3 terminal
Part #
98704
98705
Three-Screw Mount: Panel cut out
2.00 diameter opening. Three
.125 holes equaly spaced on
2.42 bolt circle diameter.*
* UL Listed, CSA Certified and CE Mark
** UL Recognized, CSA Certified and CE Mark
AC
APPLICATIONS
•
•
•
•
•
•
Business machines
Control panels
Lighting systems
Generators
Compressors & pumps
Refrigeration
•
•
•
•
•
•
Air conditioning
Furnaces
Lab test equipment
Sun tanning equipment
Oxygen concentrators
Many more!
Options:
If you need it, let us know.
YOUR satisfaction is our goal!
Features
• Large easy-to-read numbers
• Silent operation
• Low power demand
• Resettable and nonresettable
• 10 years data retention (without power)
over entire temperature range
• UL Recognized, CSA approved
• Pin termination .03 in diameter
• Hours from 0 to 99,999.9
• Counter from 0 to 999,999 pulses
• Voltages greater than 64 VDC
contact factory
Options
4.5 to 16 VDC
* Panel cutout dimensions are ± .010 tolerance
All dimensions shown in inches and (metric)
* Applicable on shown “screw terminal”
meters. Contact Hobbs for specifications
on other available models.
8
* Panel cutout dimensions are ± .010 tolerance
All dimensions shown in inches and (metric)
5
DSP and ARM Processors
京公网安备 11010802033920号
EEWORLD
