IRG5K50P5K50PM06E
IRG7T200CH12B
V
CES
= 1200V
I
C
= 200A at T
C
= 80°C
t
SC
≥ 10µsec
V
CE(ON)
= 1.90V at I
C
= 200A

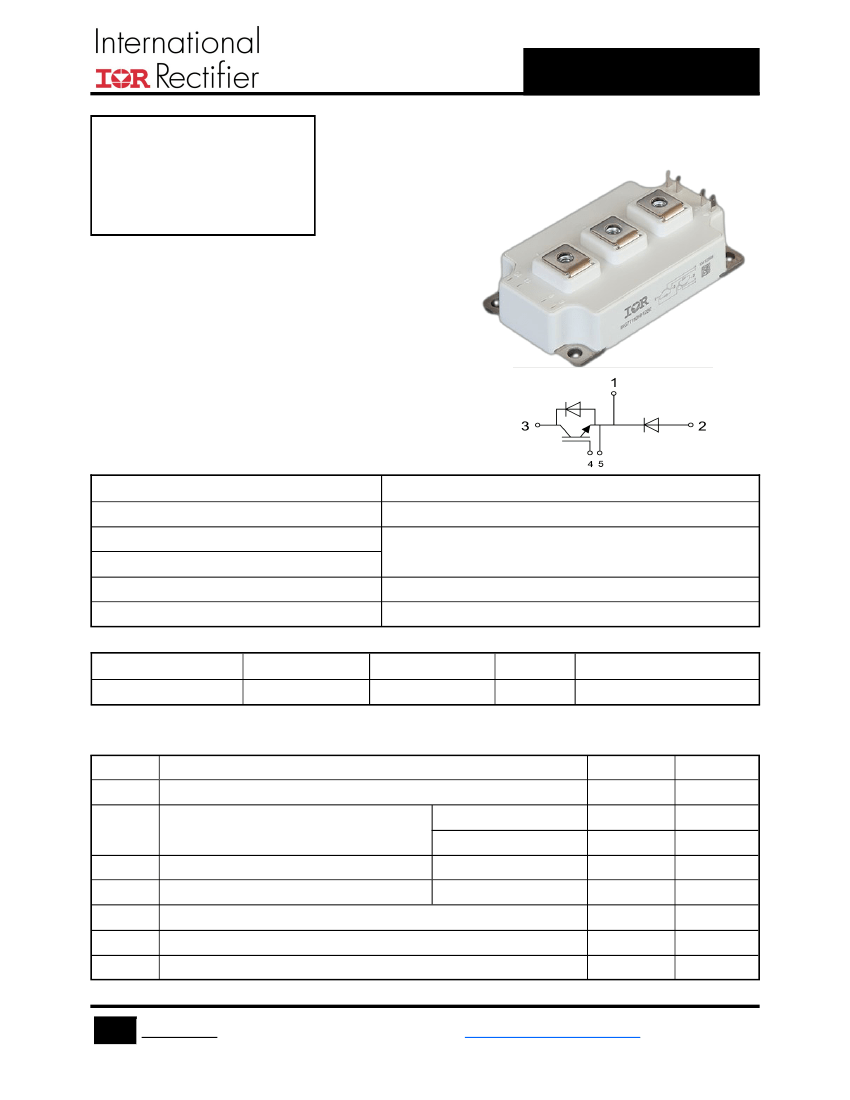

High-Side Chopper IGBT with Low-Side Diode
POWIR 62
™
Package
Applications：
Industrial Motor Drive
Uninterruptible Power Supply
Welding and Cutting Machine
Switched Mode Power Supply
Features
Low V
CE(ON)
and Switching Losses
RBSOA Tested
10µsec Short Circuit Safe Operating Area
POWIR 62
™
Package
Lead Free
Benefits
High Efficiency in a Wide Range of Applications
Rugged Transient Performance
Industry Standard
RoHS Compliant, Environmental Friendly
Base Part Number
IRG7T200CH12B
Package Type
POWIR 62
™
Standard Pack
Box
Quantity
45
Orderable Part Number
IRG7T200CH12B
Absolute Maximum Ratings of IGBT
V
CES
V
GES
I
C
I
CM
P
D
T
J
T
JOP
T
stg
Collector to Emitter Voltage
Continuous Gate to Emitter Voltage
Continuous Collector Current
Pulse Collector Current
Maximum Power Dissipation (IGBT)
Maximum IGBT Junction Temperature
Maximum Operating Junction Temperature Range
Storage Temperature
T
C
= 80°C
T
C
= 25°C
T
J
= 175°C
T
C
= 25°C, T
J
= 175°C
1200
±20
200
390
400
1060
175
-40 to +150
-40 to +125
V
V
A
A
A
W
°C
°C
°C
1
www.irf.com © 2014 International Rectifier
Submit Datasheet Feedback
October 1, 2014
IRG5K50P5K50PM06E
IRG7T200CH12B
Electrical Characteristics of IGBT at T
J
= 25°C (Unless Otherwise Specified)
Parameter
V
(BR)CES
V
GE(th)
V
CE(ON)
I
CES
I
GES
R
Gint
Collector to Emitter Breakdown
Voltage
Gate Threshold Voltage
Collector to Emitter Saturation Voltage
Collector to Emitter Leakage Current
Gate to Emitter Leakage Current
Internal Gate Resistance
1.25
Min.
1200
5.0
5.8
1.90
2.20
2
400
6.5
2.20
Typ.
Max.
Unit
V
V
V
V
mA
nA
Ω
Test Conditions
V
GE
= 0V, I
C
= 2mA
I
C
= 10mA, V
CE
= V
GE
T
J
= 25°C
T
J
= 125°C
I
C
= 200A,
V
GE
= 15V
V
GE
= 0V, V
CE
= V
CES
V
GE
= ±20V, V
CE
= 0
Switching Characteristics of IGBT
Parameter
t
d(on)
Turn-on Delay Time
Min.
Typ.
355
320
200
210
525
560
170
190
24.6
33.0
12.7
17.2
1800
22.5
1.56
0.94
nF
V
CE
= 25V, V
GE
= 0V,
f
＝1MHz,
T
J
= 25°C
I
C
= 400A,V
CC
= 960V,
V
P
=1200V, R
G
= 15Ω,
V
GE
= +15V to 0V,
T
J
= 150°C
μs
V
CC
= 600V, V
GE
= 15V,
T
J
= 150°C
Max.
Unit
ns
Test Conditions
T
J
= 25°C
T
J
= 125°C
T
J
= 25°C
T
J
= 125°C
T
J
= 25°C
T
J
= 125°C
T
J
= 25°C
T
J
= 125°C
T
J
= 25°C
T
J
= 125°C
T
J
= 25°C
T
J
= 125°C
T
J
= 25°C
V
CC
=600V,
I
C
= 200A,
R
G
= 10Ω,
V
GE
=±15V,
Inductive
Load
t
r
Rise Time
ns
t
d(off)
Turn-off Delay Time
ns
t
f
Fall Time
ns
E
on
Turn-on Switching Loss
mJ
E
off
Q
g
C
ies
C
oes
C
res
Turn-off Switching Loss
Total Gate Charge
Input Capacitance
Output Capacitance
Reverse Transfer Capacitance
mJ
nC
RBSOA
Reverse Bias Safe Operating Area
Trapezoid
SCSOA
Short Circuit Safe Operating Area
10
2
www.irf.com © 2014 International Rectifier
Submit Datasheet Feedback
October 1, 2014
IRG5K50P5K50PM06E
IRG7T200CH12B
Absolute Maximum Ratings of Freewheeling Diode
V
RRM
I
F
I
FM
Repetitive Peak Reverse Voltage
Diode Continuous Forward Current, T
C
= 25°C
Diode Continuous Forward Current, T
C
= 80°C
Pulse Diode Current
1200
400
200
400
V
A
A
Electrical and Switching Characteristics of Freewheeling Diode
Parameter
V
F
Forward Voltage
Typ.
2.00
2.20
70
110
10.6
22.3
3.7
8.1
Max.
2.70
Unit
V
Test Conditions
T
J
= 25°C
T
J
= 125°C
T
J
= 25°C
T
J
= 125°C
T
J
= 25°C
T
J
= 125°C
T
J
= 25°C
T
J
= 125°C
I
F
＝200A,
di/dt=1100A/μs,
V
rr
= 600V,
V
GE
= -15V
I
F
= 200A ,
V
GE
= 0V
I
rr
Peak Reverse Recovery Current
A
Q
rr
Reverse Recovery Charge
µC
E
rec
Reverse Recovery Energy
mJ
Absolute Maximum Ratings of Brake-Chopper Diode
V
RRM
I
F
I
FM
Repetitive Peak Reverse Voltage
Diode Continuous Forward Current, T
C
= 25°C
Diode Continuous Forward Current, T
C
= 80°C
Pulse Diode Current
1200
400
200
400
V
A
A
Electrical and Switching Characteristics of Brake-Chopper Diode
Parameter
V
F
Forward Voltage
Typ.
2.00
2.20
70
110
10.6
22.3
3.7
8.1
Max.
2.70
Unit
V
Test Conditions
T
J
= 25°C
T
J
= 125°C
T
J
= 25°C
T
J
= 125°C
T
J
= 25°C
T
J
= 125°C
T
J
= 25°C
T
J
= 125°C
I
F
＝200A,
di/dt=1100A/μs,
V
rr
= 600V,
V
GE
= -15V
I
F
= 200A ,
V
GE
= 0V
I
rr
Peak Reverse Recovery Current
A
Q
rr
Reverse Recovery Charge
µC
E
rec
Reverse Recovery Energy
mJ
3
www.irf.com © 2014 International Rectifier
Submit Datasheet Feedback
October 1, 2014
IRG5K50P5K50PM06E
IRG7T200CH12B
Module Characteristics
Parameter
V
iso
R
θJC
R
θJC
R
θJC
Isolation Voltage
(All Terminals Shorted),
f = 50Hz, 1minute
Junction-to-Case (IGBT)
Junction-to-Case (Freewheeling Diode)
Junction-to-Case
(Brake-Chopper Diode)
Case-To-Sink
(Conductive Grease Applied)
Power Terminals Screw: M6
Mounting Screw: M6
Weight
3.0
4.0
230
0.141
0.204
0.204
Min.
Typ.
Max.
2500
Unit
V
°C/W
°C/W
°C/W
R
θCS
M
M
G
0.1
5.0
6.0
°C/W
N·m
N·m
g
4
www.irf.com © 2014 International Rectifier
Submit Datasheet Feedback
October 1, 2014
IRG5K50P5K50PM06E
IRG7T200CH12B
400
360
320
280
240
VGE =15V
TJ =125°C
TJ =25°C
400
360
320
280
240
TJ =125°C
VGE =17V
VGE =15V
VGE =13V
VGE =11V
VGE =9V
IC (A)
160
120
80
40
0
0.0
0.4
0.8
1.2
1.6
2.0
VCE (V)
2.4
2.8
3.2
3.6
IC (A)
200
200
160
120
80
40
0
0.0
0.6
1.2
1.8
2.4
VCE (V)
3.0
3.6
4.2

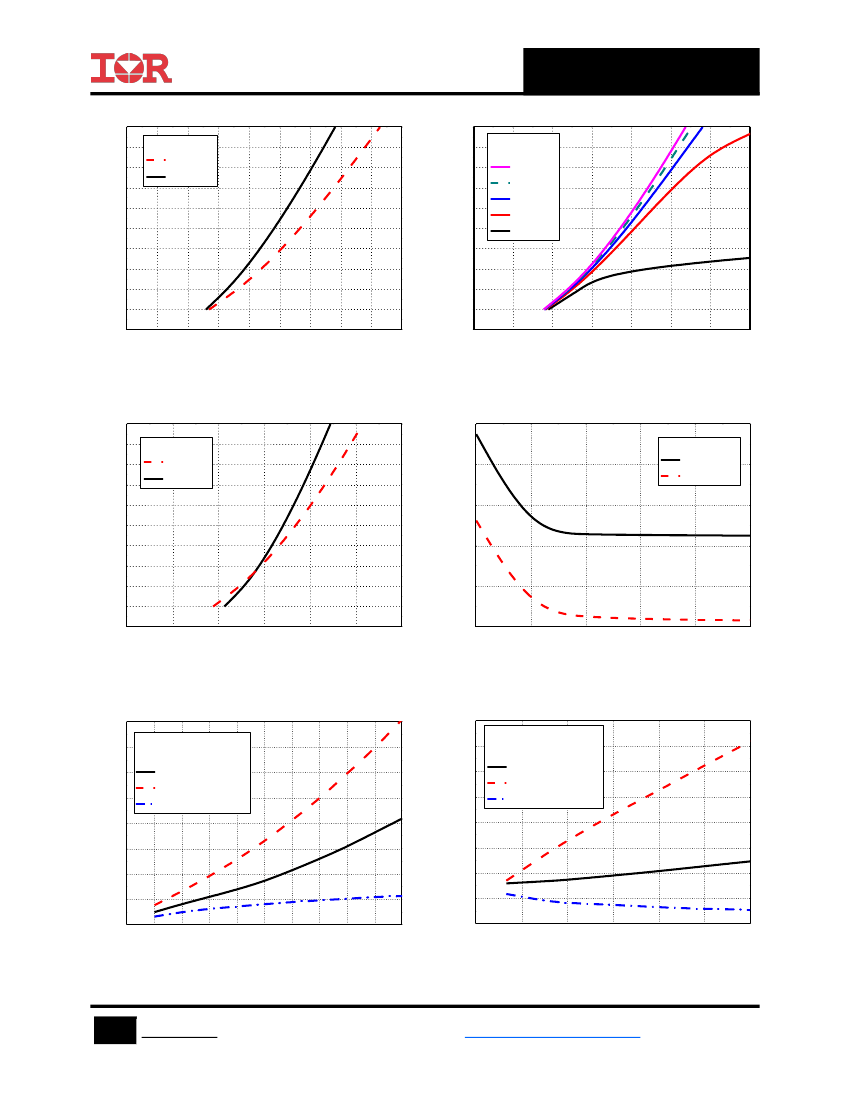

Fig.1 Typical IGBT Saturation Characteristics
Fig.2 Typical IGBT Output Characteristics
400
360
320
280
240
VGE =0V
TJ =125°C
TJ =25°C
50
VGE =0V,f =1MHz
Cies
Coes
30
40
IF (A)
200
160
120
80
40
0
0.0
0.6
1.2
1.8
VF (V)
2.4
3.0
3.6
C (nF)
20
10
0
0
5
10
VCE (V)
15
20
25
Fig.3 Typical Forward Characteristics,
Freewheeling Diode
80
70
60
50
VCC =600V,VGE =+/-15V,
Rg =10 ohm,TJ =125°C
Eoff
Eon
Fig. 4 Typical Capacitance Characteristics
80
70
60
50
VCC =600V,VGE =+/-15V,
IC =200A,TJ =125°C
Eoff
Eon
Erec
E (mJ)
E (mJ)
Erec
40
30
20
10
0
0
40
80
120
160
200 240
IC (A)
280
320
360
400
40
30
20
10
0
0
5
10
15
Rg (
)
20
25
30
Fig.5 Typical Switching Loss vs. Collector Current
Fig.6 Typical Switching Loss vs. Gate Resistance
5
www.irf.com © 2014 International Rectifier
Submit Datasheet Feedback
October 1, 2014
