0674.600 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> 0674.600

0674.600: DescriptionAxial Lead and Cartridge Fuses - Ceramic Body; CategoryCircuit protection Circuit protection; File Size37KB，1 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com

Download Datasheet Parametric View All

0674.600 Overview

Axial Lead and Cartridge Fuses - Ceramic Body

0674.600 Parametric

Parameter Name	Attribute value
Maker	Littelfuse
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Fusing characteristics	FAST
body height	11 mm
Body length or diameter	3.9 mm
Circuit protection type	ELECTRIC FUSE
JESD-609 code	e0
Joule integral nominal
Manufacturer's serial number	674
Installation features	THROUGH HOLE
physical size	3.9mm x 11mm
Rated breaking capacity	50 A
Rated current	0.6 A
Rated voltage (AC)	250 V
Guideline	CSA; UL
surface mount	NO
Terminal surface	TIN LEAD
Terminal shape	PIN WIRE
Base Number Matches	1

Preview

Download Datasheet

View All

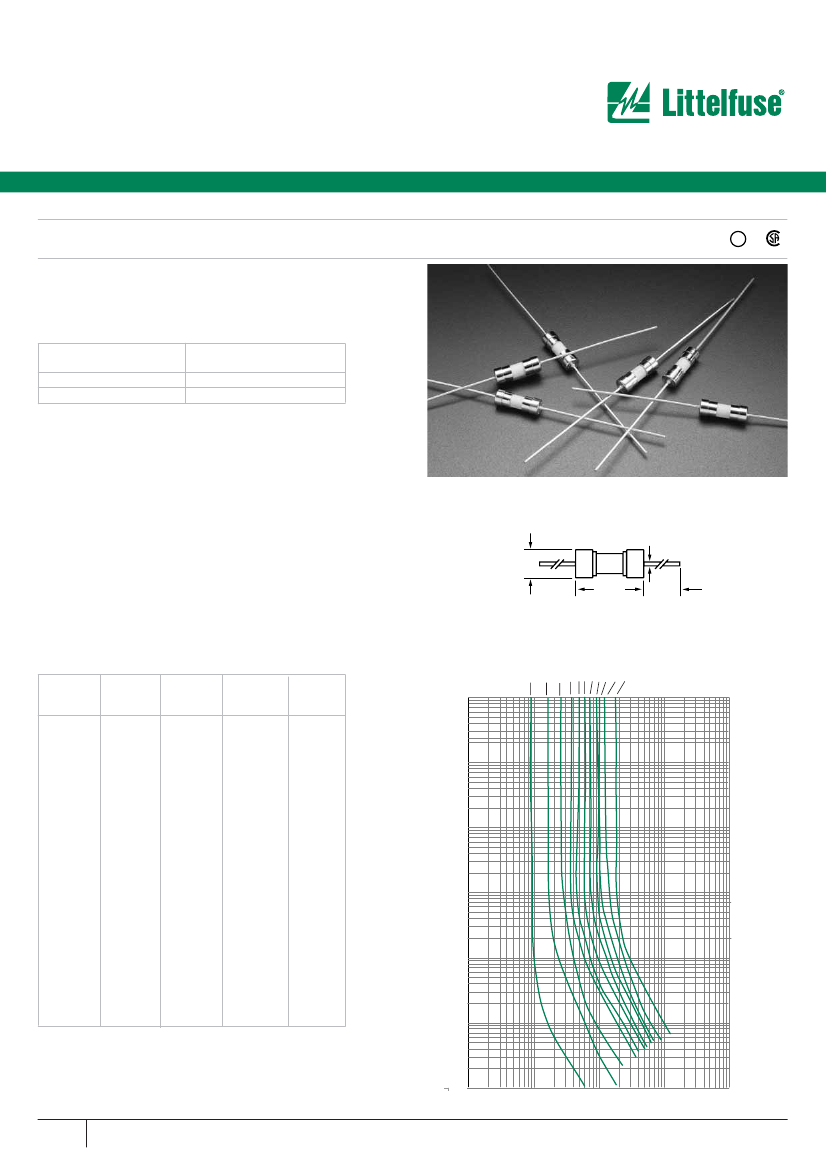

Axial Lead and Cartridge Fuses

Ceramic Body

3.6 x 10 mm

Fast-Acting Fuse 674 Series

• Designed to UL/CSA 248 Standard.

• Fast-Acting, ceramic body fuse in a compact package.

• This space saving fuse is ideally suited for lighting, power supply,

and adapter applications.

ELECTRICAL CHARACTERISTICS:

% of Ampere

Opening

Rating

Time

100%

200%

4 hours, Minimum

5 seconds, Max.

AGENCY APPROVALS:

Listed by Underwriters

Laboratories and Certified by CSA from 0.100 through

8 Amps.

INTERRUPTING RATING:

50A@250V AC

674

000

Series

3.9 (.153")

0.6 (.024") ( 0.1 -5A)

0.8 (.031") (6 -7A)

1.0 (.039") (8A)

PACKAGING OPTIONS:

Please refer to the following suffixes when ordering:

Bulk (1000 pieces): Add MXE suffix to the catalog part number.

Tape and Reel (1500 pieces): Add DRT4 suffix to the catalog

part number.

TAPE AND REEL SPECIFICATIONS:

Per EIA-296 with 10mm pitch and 56.5mm inside

tape spacing.

11.0

(.433")

30.0

(1.181") TYP.

Axial Lead Material: Solder coated copper.

Average Time Current Curves

500mA

Catalog

Number

0674.100

0674.125

0674.200

0674.250

0674.300

0674.400

0674.500

0674.600

0674.750

0674.800

0674

001.

0674

01.5

0674

01.6

0674

002.

0674

02.5

0674

3.15

0674

004.

0674

04.5

0674

005.

0674

006.

0674

06.3

0674

06.5

0674

007.

0674

008.

Ampere

Rating

.100

.125

.200

.250

.300

.400

.500

.600

.750

.800

1.00

1.50

1.60

2.00

2.50

3.15

4.00

4.50

5.00

6.00

6.30

6.50

7.00

8.00

Voltage

Rating

250

Nominal

Resistance

Cold mOhms

4.8150

3.8540

1.7300

1.6100

0.9395

0.5860

0.2325

0.1780

0.1320

0.1220

0.1050

0.0592

0.0560

0.0380

0.0341

0.0251

0.0175

0.0171

0.0144

0.0131

0.0120

0.0119

0.0112

0.0088

Nominal

Melting i

Sec.

0.00192

0.00299

0.0114

0.0225

0.0295

0.0688

0.128

0.217

0.250

0.303

0.506

0.881

0.951

2.25

3.73

5.98

8.96

9.58

15.9

18.0

19.2

21.6

25.2

35.4

1000

100

TIME IN SECONDS

0.1

0.01

0.001

0.1

1.5A

2.5A

3.15A

10A

ORDERING INFORMATION:

CURRENT IN AMPERES

100

1000

434

w w w. l i t t e l f u s e . c o m
