W.FL-2LP-04N2-A-(60) datasheet, PDF

Datasheet> All Categories > Wire/cable> W.FL-2LP-04N2-A-(60)

W.FL-2LP-04N2-A-(60): DescriptionCBL ASSY W.FL PLUG-PLUG 2.362"; CategoryWire/cable; File Size272KB，8 Pages; ManufacturerHirose Electric; Environmental Compliance

Download Datasheet Parametric View All

W.FL-2LP-04N2-A-(60) Overview

CBL ASSY W.FL PLUG-PLUG 2.362"

W.FL-2LP-04N2-A-(60) Parametric

Parameter Name	Attribute value
gender	mother form to mother form
style	W.FL to W.FL
first connector	W.FL female connector, right angle
Second connector	W.FL female connector, right angle
length	2.362"（60.00mm）
Cable type	0.81mm outer diameter coaxial cable
impedance	50 Ohms
Frequency - maximum	6GHz
color	black
characteristic	shield
Operating temperature	-40°C ~ 90°C

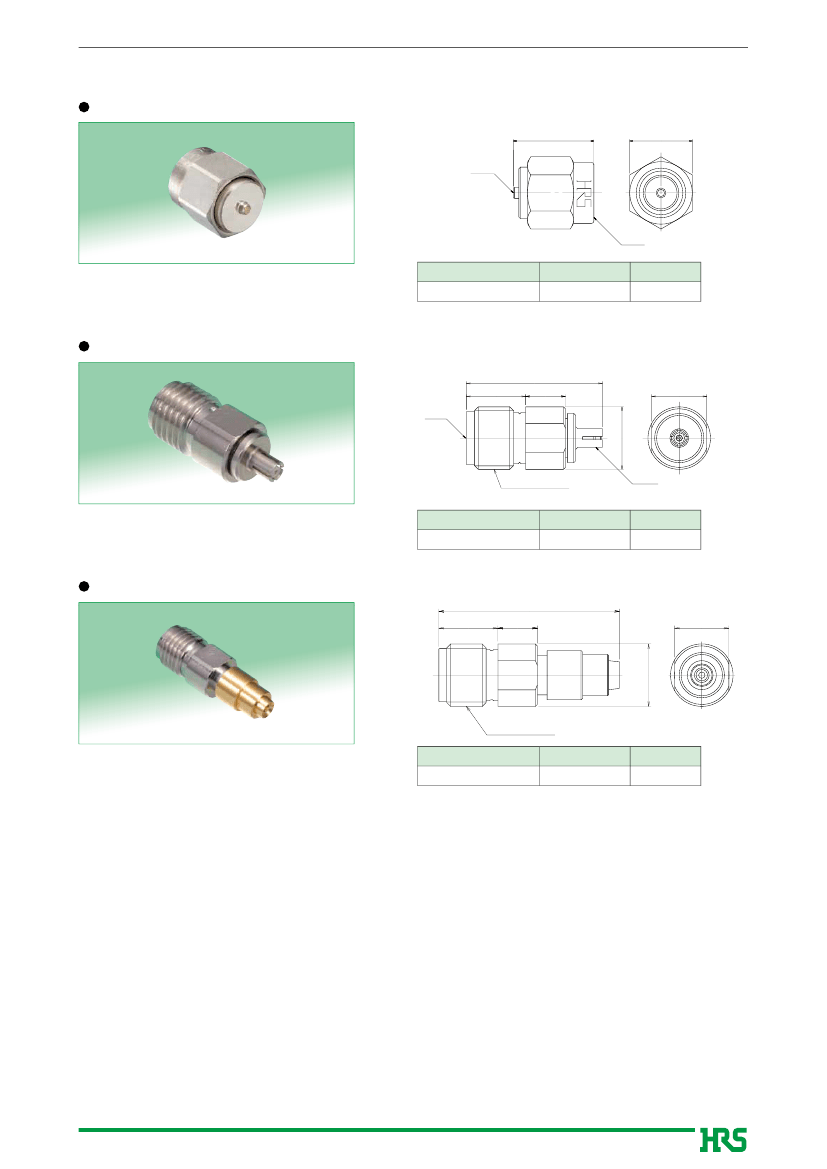

Preview

Download Datasheet

View All

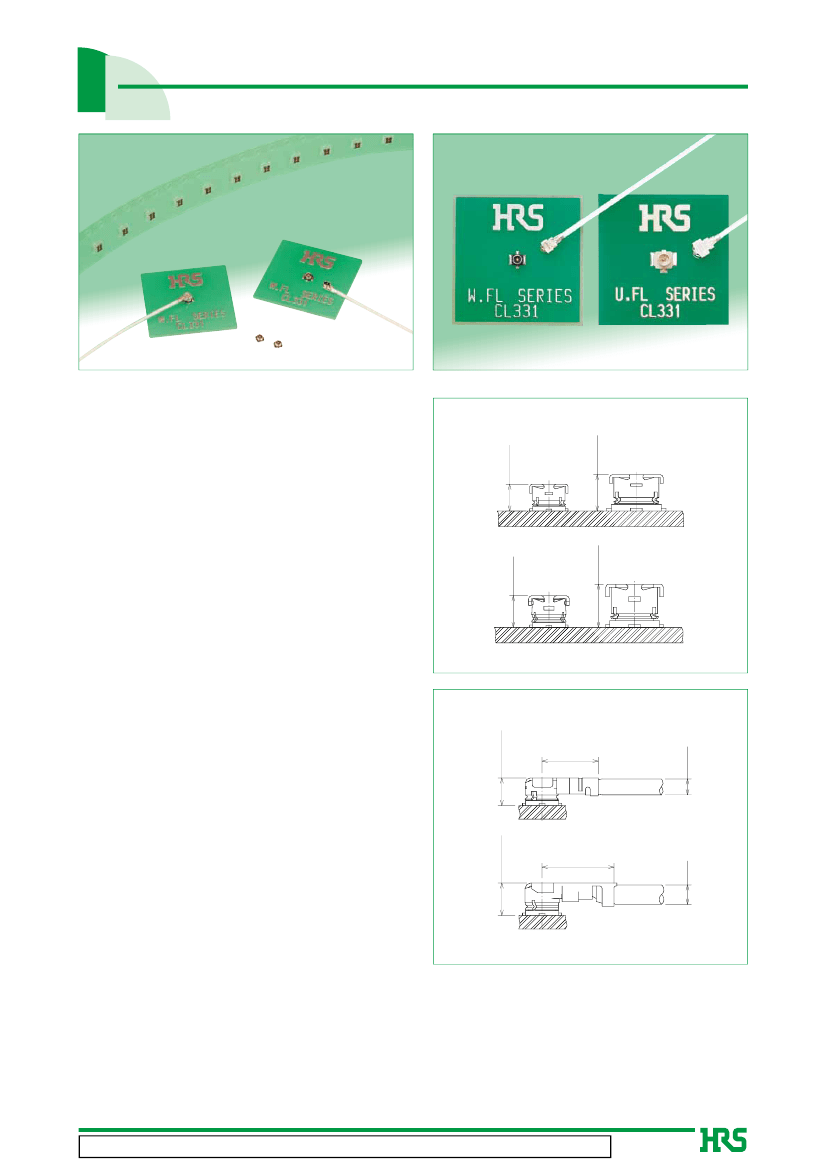

Ultra Small Surface Mount Coaxial Connectors

1.4mm or 1.65mm Mated Height

W.FL Series

Occupied Mounting Area

W.FL Series

U.FL Series

Fig.1

■

Features

Mated height comparison

1. Nominal mated height of 1.4mm or 1.65mm

(Max. 1.55 or 1.85mm)(Fig.2)

(MAX2.0)

(MAX2.4)

2.3

1.9

W.FL-LP(G)-062HF

U.FL-LP-062HF

1.4 (MAX1.55)

2. Small board footprint

The W.FL Series is about 55% smaller than our

U.FL Series connector and only uses 3.4mm

PCB space. The PCB layout for the W.FL Series is

the same as for W.FL2 and X.FL Series.

Note:This product is not compatible with W.FL2

Series and X.FL Series.(Fig.1)

W.FL-LP-040HF

U.FL-LP(V)-040HF

3. Extremely light weight

Receptacle:

5.6 mg

Right-angle plug: 18.6 mg(040), 28.2mg(062)

4. Frequency range up to 6 GHz

DC to 3 GHz : V.S.W.R. of 1.3 max.

3 GHz to 6 GHz: V.S.W.R. of 1.4 max.

1.65 (MAX1.85)

Fig.2

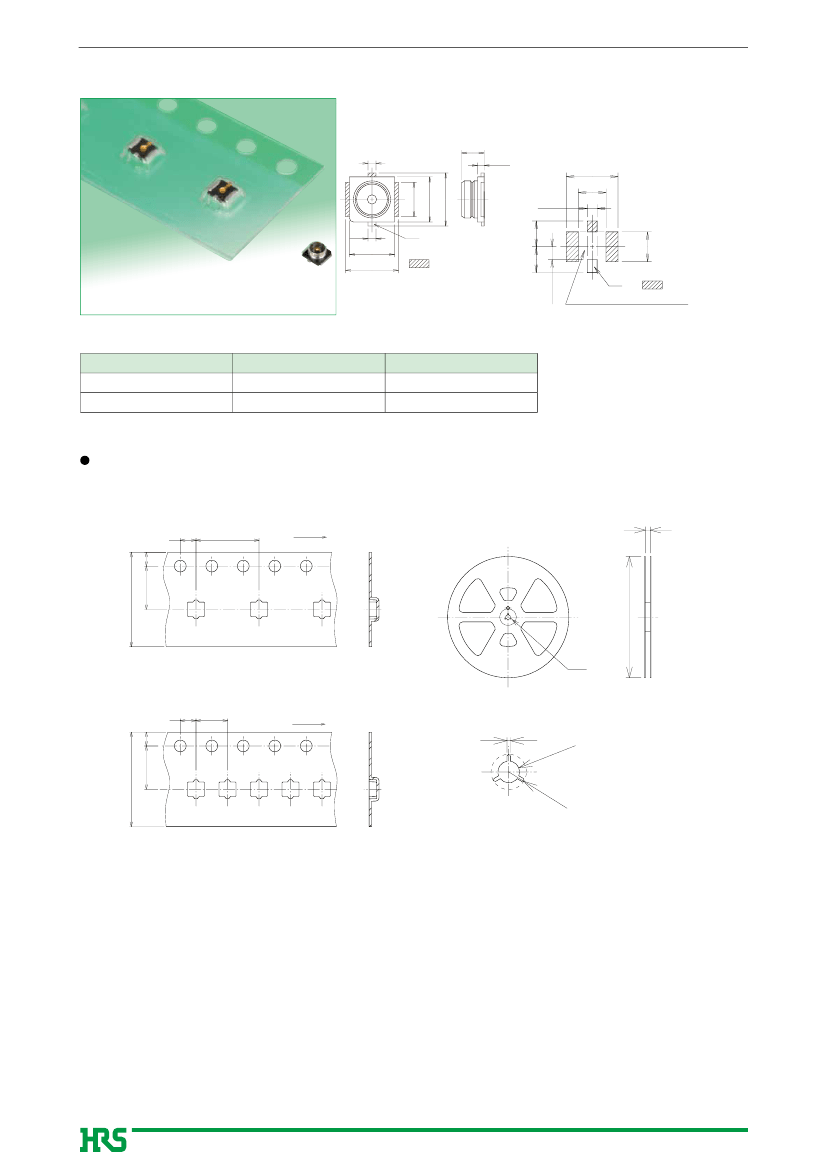

5. Automatic board placement

Packaged on tape-and-reel the receptacles can be

placed with vacuum nozzles of the automatic

placement equipment.

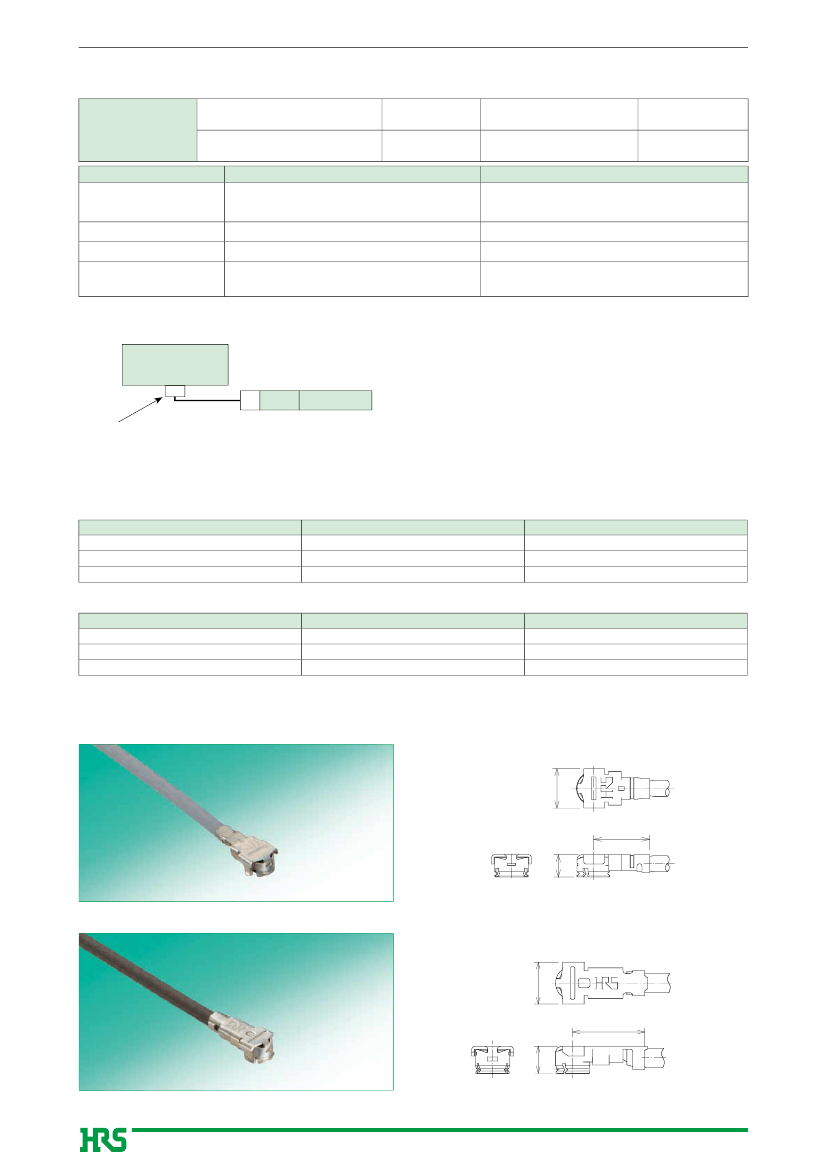

W. FL Plug and Receptacle

1.4 (MAX1.55)

W.FL-LP-040HF

6. Plugs are terminated with ultra-fine

coaxial (fluorinated resin insulated)

cable

The use of ultra-fine coaxial(fluorinated resin

insulated) cables on these connectors offer the

ability to complete connections in small, confined

spaces with a smooth, easy operation.

2.85

1.65 (MAX1.85)

W.FL-LP(G)-062HF

Ø1

3.65

7. Simple connector mating / unmating

Use of the available mating/un-mating tools

assures correct connection/disconnection of the

plug and receptacle.

8. Halogen-free*(Receptacle, Plug(HF type))

*As defined by IEC61249-2-21

Br-900ppm maximum, Cl-900 ppm maximum,

Cl+Br combined-1,500 ppm maximum

Ø0.81

Fig.3

In cases where the application will demand a high level of reliability, such as automotive,

please contact a company representative for further information.

2018.6④
