SS82000-002G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> SS82000-002G

SS82000-002G: DescriptionCONN MOD JACK 8P8C SHIELDED; CategoryThe connector; File Size865KB，2 Pages; ManufacturerStewart Connector; Environmental Compliance

Download Datasheet Parametric Compare View All

SS82000-002G Overview

CONN MOD JACK 8P8C SHIELDED

SS82000-002G Parametric

Parameter Name	Attribute value
Connector type	Jack
Number of pins/contacts	8p8c (RJ45, Ethernet)
Number of ports	1
Number of rows	1
Installation type	Panel mounting
towards	Straight
Termination	IDC
shield	shield
grade	Cat5e
characteristic	EPP918A, latch
LED color	LED not included
Intrusion protection	-
tab direction	User selectable
Contact material	copper alloy
Contact plating	gold
Contact plating thickness	50.0µin（1.27µm）
Shell material	thermoplastic
Operating temperature	-40°C ~ 85°C

Preview

Download Datasheet

View All

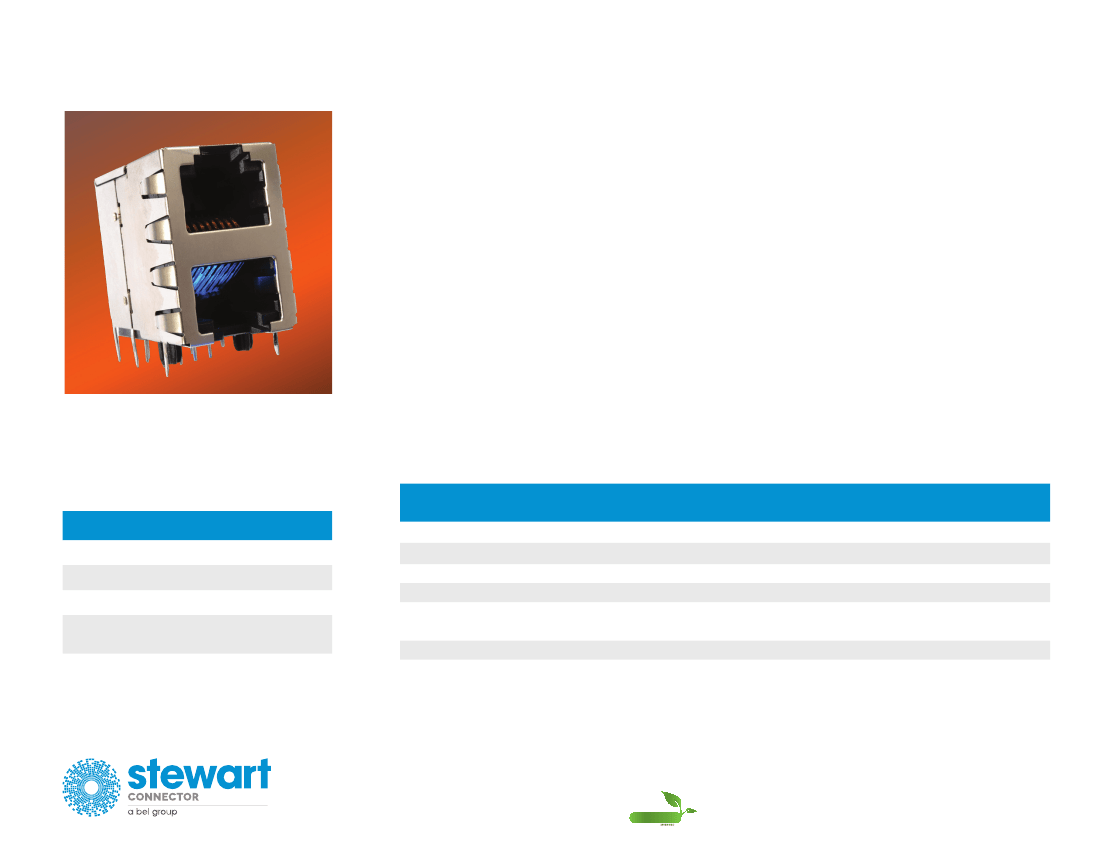

EPP-918A Environmental Protectant

Ruggedized Modular Connectors for Harsh Environments

Stewart’s EPP-918A protectant improves product reliability by providing an unprecedented

level of defense against harsh environmental conditions. In addition to providing superior

moisture, humidity, and corrosion reistance, EPP-918A also shields against wear due to

repetitive mating/unmating forces. By guarding contacts with our patented protective coating,

EPP-918A prolongs the life of contacts within RJ11 and RJ45 jacks despite exposure to

extreme environmental conditions. Once applied (during the manufacturing process), EPP-

918A will not migrate — it adheres to contacts instantly and remains intact without the need

for additional tape, mechanical barriers, or cure time. This characteristic eliminates the added

expense that other barrier methods often entail.

EPP-918A environmental protectant can be used with virtually any Stewart connector product

to increase durability and reliability.

Key Features & Benefits

• Improves durability and reliability for RJ11

and RJ45 jacks

• Prevents corrosion from harsh environmental

conditions

• Withstands high temperature soldering (in

excess of 260° C for 10 seconds)

• Superior resistance to wear and tear during

insertion testing

• Low Level Contact Resistance (LLCR)

testing to 2500 cycles with no measurable

change to gold-plated contacts

• Contains UV tracer for visible inspection of

EPP-918A coating on contacts

• RoHS6 compliant

RoHS

Stewart Connector

11118 Susquehanna Trail South

Glen Rock, PA 17327-9199 USA

+1 717.235.7512

techhelp@belf.com

stewartconnector.com

US/LIT-EPP918av05.15

Compliant

SS82000-002G Related Products

	SS82000-002G	SS64400-002G	SS-6444-NF	SS70100-011G	SS64100-042G	SS64800-008G	SS70100-002G	SS70600-003G	SS65600-002F	SS65600-001F
Description	CONN MOD JACK 8P8C SHIELDED	conn mod jack R/A 4p4c	conn mod jack R/A 4p4c	CONN MOD JACK 8P8C R/A SHIELDED	CONN MOD JACK 10P10C R/A SHLD	CONN MOD JACK 8P8C R/A UNSHLD	CONN MOD JACK 8P8C R/A UNSHLD	CONN MOD JACK 6P4C R/A UNSHLD	CONN MOD JACK 6P4C VERT UNSHLD	CONN MOD JACK 6P4C VERT UNSHLD
Connector type	Jack	-	-	Jack	Jack	Jack	Jack	Jack	Jack	Jack
Number of pins/contacts	8p8c (RJ45, Ethernet)	-	-	8p8c (RJ45, Ethernet)	10p10c（RJ50）	8p8c (RJ45, Ethernet)	8p8c (RJ45, Ethernet)	6p4c（RJ11，RJ14）	6p4c（RJ11，RJ14）	6p4c（RJ11，RJ14）
Number of ports	1	-	-	1	1	1	1	1	1	1
Number of rows	1	-	-	1	1	1	1	1	1	1
Installation type	Panel mounting	-	-	Through hole	Through hole	Through hole	Through hole	Through hole	Through hole	Through hole
towards	Straight	-	-	90° angle (right angle)	90° angle (right angle)	90° angle (right angle)	90° angle (right angle)	90° angle (right angle)	vertical	vertical
Termination	IDC	-	-	welding	welding	welding	welding	welding	welding	welding
shield	shield	-	-	Shielded, EMI refers	shield	No shielding	No shielding	No shielding	No shielding	No shielding
characteristic	EPP918A, latch	-	-	Plate lock, EPP918A	Plate lock, EPP918A	Plate lock, EPP918A	Plate lock, EPP918A	Plate lock, EPP918A	plate lock	panel lock, panel stop
LED color	LED not included	-	-	LED not included	LED not included	LED not included	LED not included	LED not included	LED not included	LED not included
tab direction	User selectable	-	-	Down	Down	Down	Down	Down	User selectable	User selectable
Contact material	copper alloy	-	-	copper alloy	copper alloy	copper alloy	copper alloy	copper alloy	copper alloy	copper alloy
Contact plating	gold	-	-	gold	gold	gold	gold	gold	gold	gold
Contact plating thickness	50.0µin（1.27µm）	-	-	30.0µin（0.76µm）	30.0µin（0.76µm）	30.0µin（0.76µm）	30.0µin（0.76µm）	30.0µin（0.76µm）	30.0µin（0.76µm）	30.0µin（0.76µm）
Shell material	thermoplastic	-	-	thermoplastic	thermoplastic	thermoplastic	thermoplastic	thermoplastic	thermoplastic	thermoplastic
Operating temperature	-40°C ~ 85°C	-	-	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C
