TSSA5U50 - TSSA5U60
Taiwan Semiconductor
5A, 50V - 60V Trench Schottky Rectifiers
FEATURES
- Patented Trench Schottky technology
- Low power loss/ high efficiency
- Ideal for automated placement
- Guardring for overvoltage protection
- High forward surge capability
- Compliant to RoHS directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21

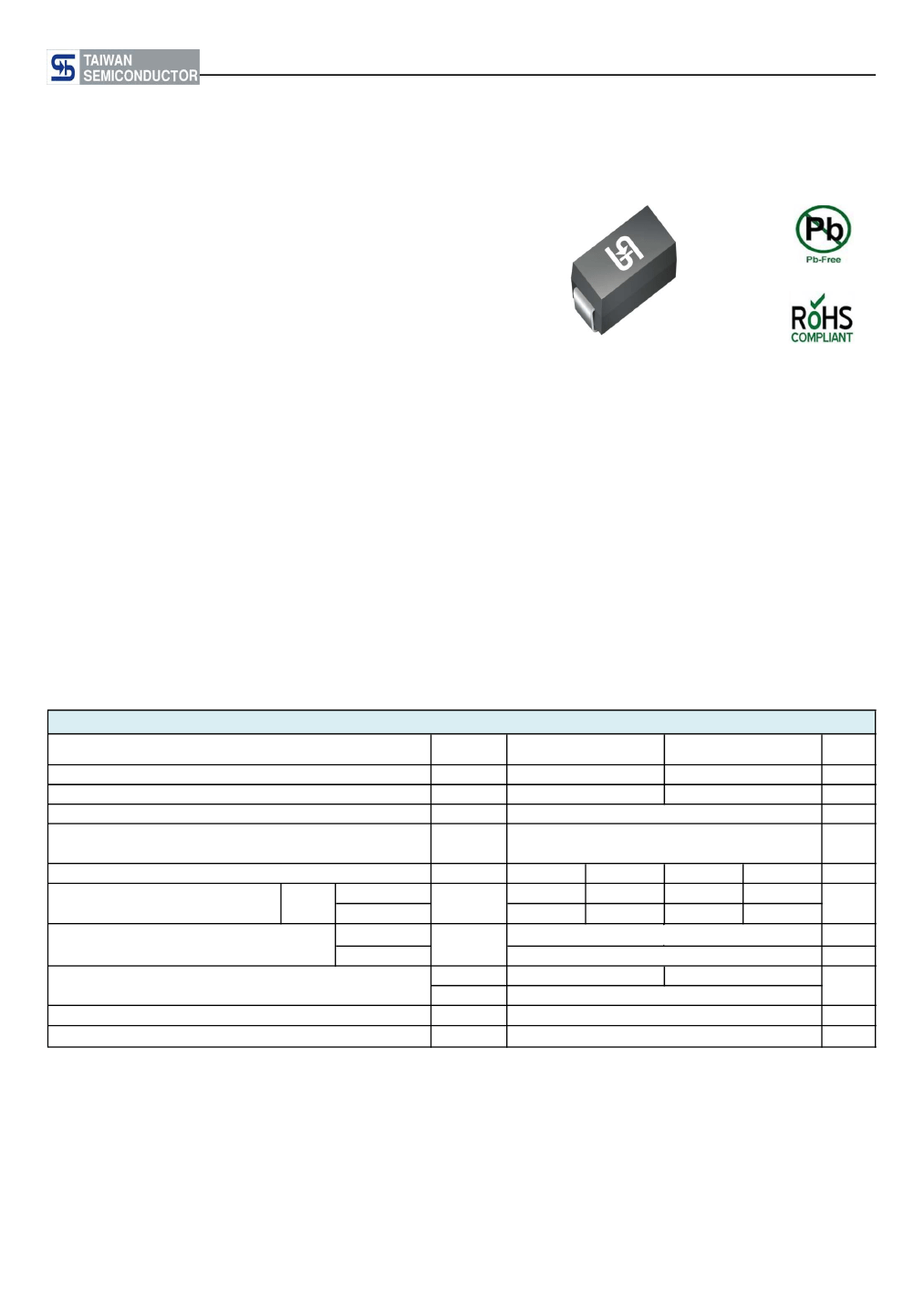

DO-214AC (SMA)
TYPICAL APPLICATIONS
Trench Schottky barrier rectifier is designed for high frequency
miniature switched mode power supplies such as adapters, lighting
and on-board DC/DC converters.
MECHANICAL DATA
Case:
DO-214AC (SMA)
Molding compound meets UL 94 V-0 flammability rating
Moisture sensitivity level: level 1, per J-STD-020
Part no. with suffix "H" means AEC-Q101 qualified
Packing code with suffix "G" means green compund (halogen-free)
Terminal:
Matte tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 2 whisker test
Polarity:
Indicated by cathode band
Weight:
0.06 g (approximately)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
= 25°C unless otherwise noted)
PARAMETER
Marking code
Maximum repetitive peak reverse voltage
Maximum average forward rectified current
Peak forward surge current, 8.3 ms single half sine-wave
superimposed on rated load
Instantaneous forward voltage
(Note 1)
T
J
= 25°C
T
J
= 125°C
T
J
= 25°C
T
J
= 125°C
V
RRM
I
F(AV)
I
FSM
TYP.
I
F
= 5A
V
F
I
R
R
θJL
R
θJA
T
J
T
STG
25
70
- 55 to +150
- 55 to +150
0.44
0.39
MAX.
0.54
0.49
300
50
28
SYMBOL
TSSA5U50
5U50
50
5
75
TYP.
0.48
0.44
MAX.
0.56
0.52
V
μA
mA
°C/W
°C
°C
TSSA5U60
5U60
60
V
A
A
UNIT
Maximum instantaneous reverse current at rated
reverse voltage
Typical thermal resistance
Operating temperature range
Storage temperature range
Note 1: Pulse test with pulse width = 300μs, 1% duty cycle
Version: D1512
TSSA5U50 - TSSA5U60
Taiwan Semiconductor
ORDERING INFORMATION
PART NO.
TSSA5UXX
(Note 1, 2)
PART NO.
SUFFIX
H
PACKING
CODE
E3
E2
PACKING CODE
SUFFIX
G
PACKAGE
Clip SMA
Clip SMA
PACKING
1,800 / 7" Plastic reel
7,500 / 13" Plastic reel
Note 1: "XX" defines voltage from 50V (TSSA5U50) to 60V (TSSA5U60)
Note 2: Whole series with green compound
EXAMPLE
EXAMPLE
PART NO.
TSSA5U60HE3G
PART NO.
TSSA5U60
PART NO.
SUFFIX
H
PACKING CODE
E3
PACKING CODE
SUFFIX
G
DESCRIPTION
AEC-Q101 qualified
Green compound

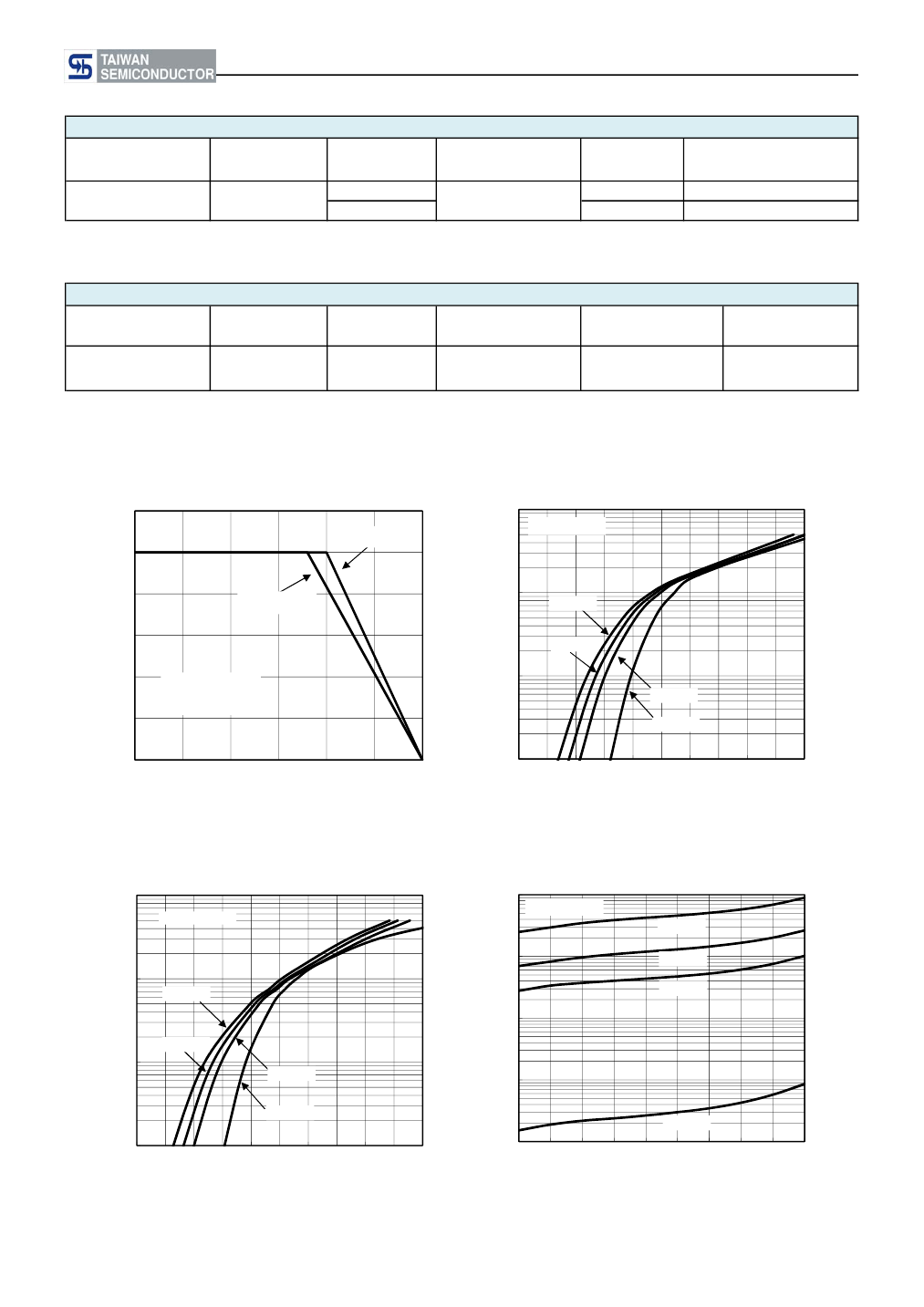

RATINGS AND CHARACTERISTICS CURVES
(T
A
= 25°C unless otherwise noted)
FIG. 1 FORWARD CURRENT DERATING CURVE
6
INSTANTANEOUS FORWARD CURRENT (A)
100
FIG. 2 TYPICAL FORWARD CHARACTERISTICS
TSSA5U50
AVERAGE FORWARD CURRENT (A)
5
TSSA5U50
4
TSSA5U60
10
T
J
=150°C
3
T
J
=125°C
1
T
J
=100°C
T
J
=25°C
0.1
2
1
WITH HEATSINK
5mm x 5mm
Cu-pad
0
0
25
50
75
100
125
150
LEAD TEMPERATURE (
o
C)
0.0
0.2
0.4
0.6
0.8
1.0
FORWARD VOLTAGE (V)
FIG. 3 TYPICAL FORWARD CHARACTERISTICS
100
INSTANTANEOUS REVERSE CURRENT (mA)
INSTANTANEOUS FORWARD CURRENT (A)
10
FIG. 4 TYPICAL REVERSE CHARACTERISTICS
TSSA5U50
TSSA5U60
T
J
=150°C
1
T
J
=125°C
T
J
=100°C
0.1
10
T
J
=150°C
28
T
J
=125°C
1
T
J
=100°C
0.01
T
J
=25°C
0.1
0.0
0.2
0.4
0.6
0.8
1.0
FORWARD VOLTAGE (V)
T
J
=25°C
0.001
10
20
30
40
50
60
70
80
90
100
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
Version: D1512
TSSA5U50 - TSSA5U60
Taiwan Semiconductor

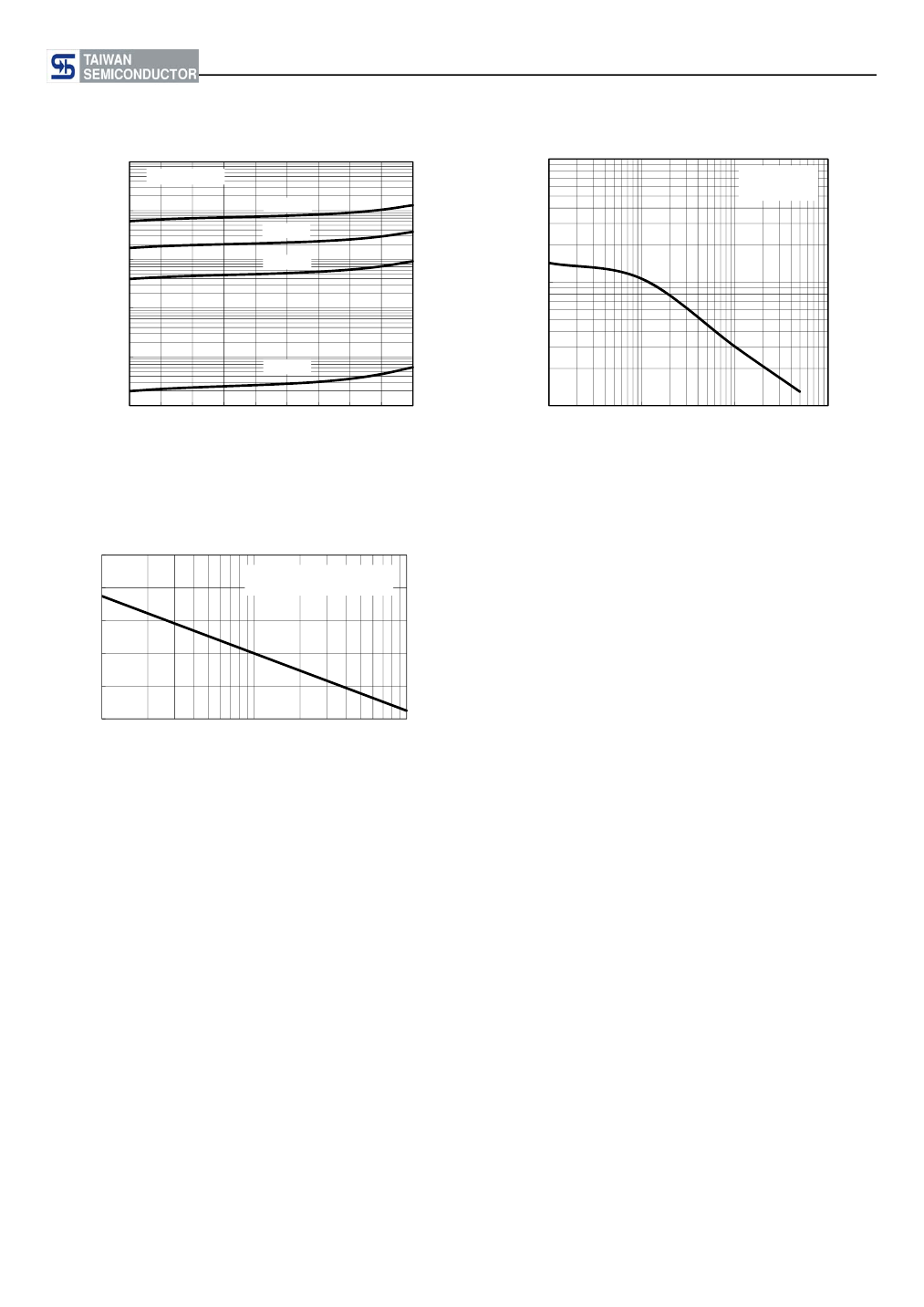

FIG. 5 TYPICAL REVERSE CHARACTERISTICS
100
FIG. 6 TYPICAL JUNCTION CAPACITANCE
10000
TSSA5U60
INSTANTANEOUS REVERSE CURRENT (mA)
10
T
J
=150°C
T
J
=125°C
1
T
J
=100°C
JUNCTION CAPACITANCE (pF)
A
f=1.0MHz
Vsig=50mVp-p
1000
0.1
0.01
T
J
=25°C
0.001
10
20
30
40
50
60
70
80
90
100
100
0.1
1
10
100
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
REVERSE VOLTAGE (V)
FIG. 7 MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
100
80
8.3ms Single Half Sine Wave
CURRENT (A)
60
40
20
0
1
10
NUMBER OF CYCLES AT 60 Hz
100
Version: D1512
TSSA5U50 - TSSA5U60
Taiwan Semiconductor

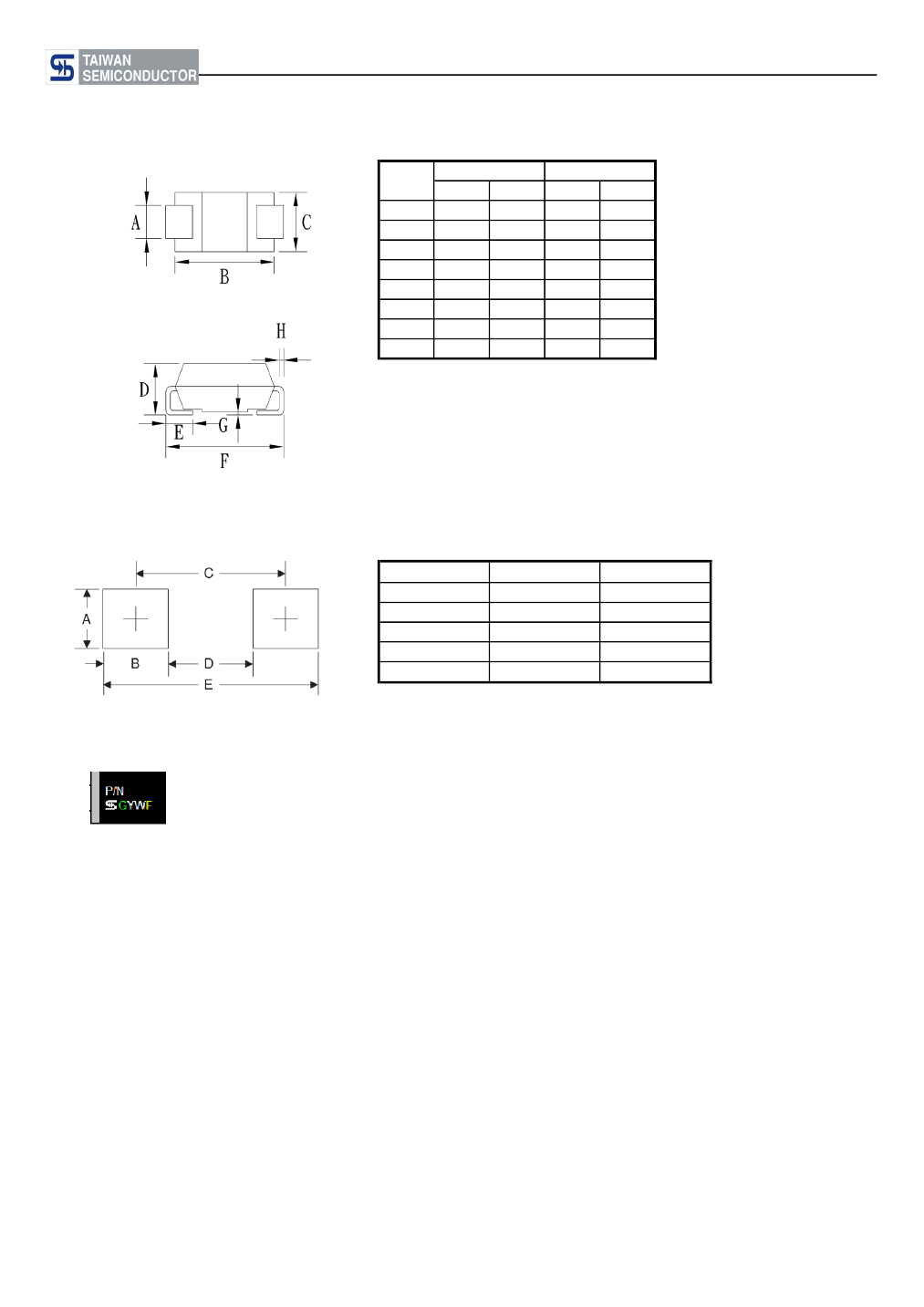

PACKAGE OUTLINE DIMENSIONS
DO-214AC (SMA)
DIM.
A
B
C
D
E
F
G
H
Unit (mm)
Min
1.27
4.06
2.29
1.99
0.90
4.95
0.10
0.15
Max
1.58
4.60
2.83
2.50
1.41
5.33
0.20
0.31
Unit (inch)
Min
0.050
0.160
0.090
0.078
0.035
0.195
0.004
0.006
Max
0.062
0.181
0.111
0.098
0.056
0.210
0.008
0.012
SUGGESTED PAD LAYOUT
Symbol
A
B
C
D
E
Unit (mm)
1.68
1.52
3.93
2.41
5.45
Unit (inch)
0.066
0.060
0.155
0.095
0.215
MARKING DIAGRAM
P/N =
G=
YW =
F=
Marking Code
Green Compound
Date Code
Factory Code
Version: D1512
TSSA5U50 - TSSA5U60
Taiwan Semiconductor
CREAT BY ART
Notice
Specifications of the products displayed herein are subject to change without notice. TSC or anyone on its behalf,
assumes no responsibility or liability for any errors or inaccuracies.
Information contained herein is intended to provide a product description only. No license, express or implied, to
any intellectual property rights is granted by this document. Except as provided in TSC's terms and conditions of
sale for such products, TSC assumes no liability whatsoever, and disclaims any express or implied warranty,
relating to sale and/or use of TSC products including liability or warranties relating to fitness for a particular purpose,
merchantability, or infringement of any patent, copyright, or other intellectual property right.
The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications.
Customers using or selling these products for use in such applications do so at their own risk and agree to fully
indemnify TSC for any damages resulting from such improper use or sale.
Version: D1512
