Thin-Film Directional Couplers
CP0603 High Directivity LGA Termination
GENERAL DESCRIPTION
ITF (Integrated Thin-Film) TECHNOLOGY
The ITF LGA Coupler is based on thin-film multilayer technology.
The technology provides a miniature part with excellent high frequency
performance and rugged construction for reliable automatic assembly.
The ITF Coupler is offered in a variety of frequency bands compatible
with various types of high frequency wireless systems.
DIMENSIONS:
(Bottom View)
B
A
millimeters (inches)
S
APPLICATIONS
•
•
•
•
•
Mobile Communications
Satellite TV Receivers
GPS
Vehicle Location Systems
Wireless LAN’s
FEATURES
Inherent Low Profile
Self Alignment during Reflow
Excellent Solderability
Low Parasitics
Better Heat Dissipation
Operating/Storage Temp
-40°C to +85°C
• Power Rating 3W RF Cont
•
•
•
•
•
•
T
W
L
W
T
1.60±0.10
(0.063±0.004)
0.84±0.10
(0.033±0.004)
0.60±0.10
(0.024±0.004)
A
B
S
L
0.25±0.05
(0.010±0.002)
0.20±0.05
(0.008±0.002)
0.05±0.05
(0.002±0.002)
HOW TO ORDER
CP
Style
Directional Coupler
3
0603
Size
0603
X
Type
****
Frequency
(MHz)
X
Sub Type
N
Termination
Code
L = LGA Sn90, Pb10
**N
= LGA Sn100
TR
Packaging Code
TR = Tape and Reel
**RoHS compliant
QUALITY INSPECTION
Finished parts are 100% tested for electrical parameters and
visual characteristics. Each production lot is evaluated on a
sample basis for:
• Static Humidity: 85°C, 85% RH, 160 hours
• Endurance: 125°C, I
R
, 4 hours
TERMINALS (Top View)
OUT
50 OHM
Not RoHS Compliant
LEAD-FREE COMPATIBLE
COMPONENT
TERMINATION
Sn90Pb10 or Lead-Free Sn100 Nickel/Solder coating
compatible with automatic soldering technologies: reflow,
wave soldering, vapor phase and manual.
IN
COUPLING
For RoHS compliant products,
please select correct termination style.
ORIENTATION IN TAPE
Recommended Pad Layout Dimensions
mm (inches)
OUT
50
OHM
OUT
50
OHM
1.10
(0.043)
0.40
(0.016)
IN
CP
IN
CP
0.50
(0.020)
1.75 (0.069)
*The recommended distance to the PCB Ground Plane is 0.254mm (0.010")
53
Thin-Film Directional Couplers
CP0603 High Directivity LGA Termination

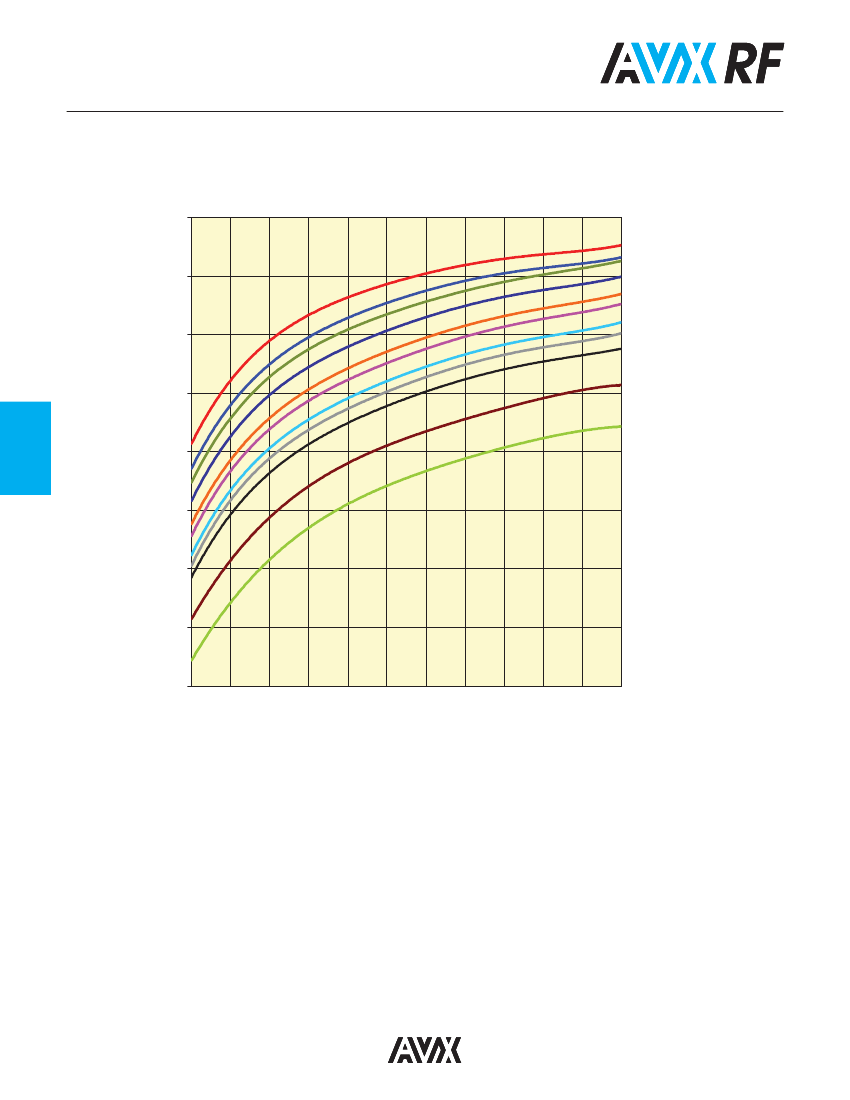

CP0603 - TYPE SELECTION CHART
Coupling vs. Frequency
0
CP0603
A
xxxx
CN
CP0603
A
xxxx
HN
CP0603
A
xxxx
KN
CP0603
A
xxxx
AN
CP0603
A
xxxx
DN
CP0603
A
xxxx
BN
CP0603
A
xxxx
MN
CP0603
A
xxxx
EN
CP0603
A
xxxx
LN
CP0603
A
xxxx
FN
CP0603
A
xxxx
GN
-5
-10
-15
dB
3
-20
-25
-30
-35
-40
0.5
1
1.5
2
2.5
3
3.5
4
4.5
5
5.5
6
Frequency [GHz]
Intermediate coupling factors are readily available.
Please contact factory.

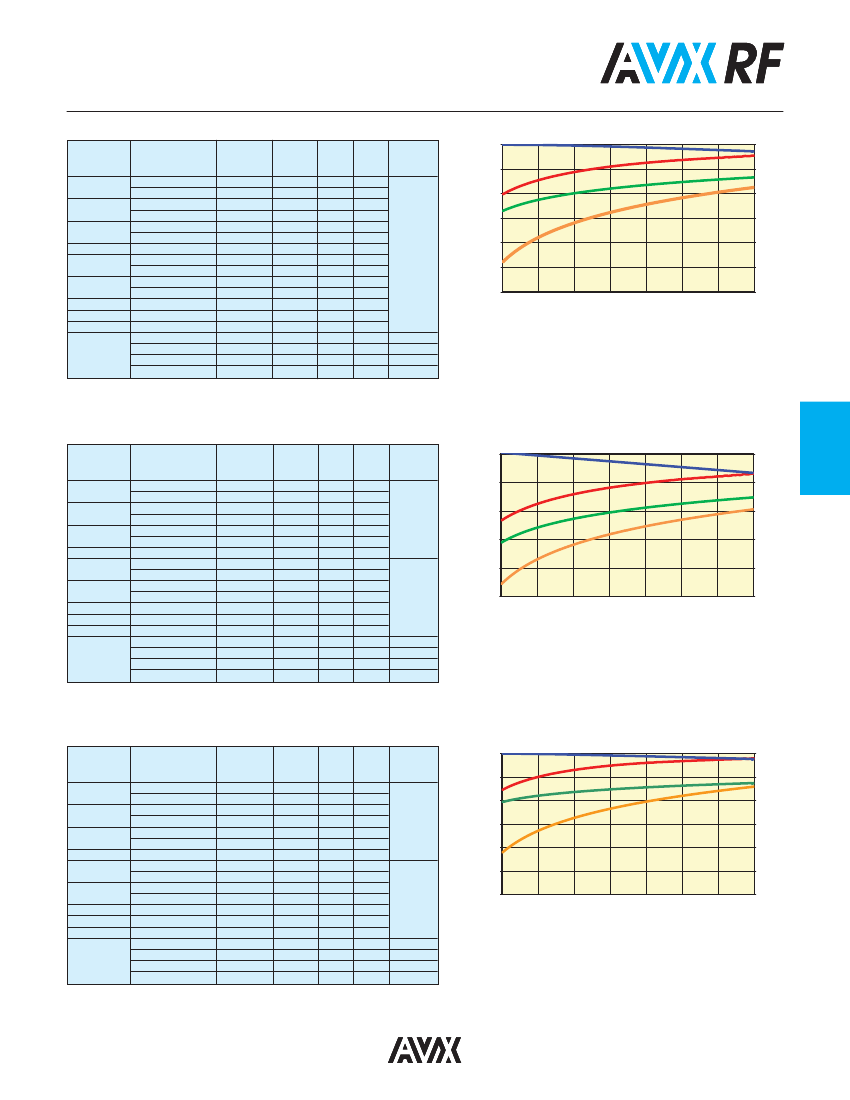

54
Thin-Film Directional Couplers
CP0603 High Directivity LGA Type
Coupler P/N CP0603AxxxxAN
Application
AMPS
GSM
E-GSM
PDC
PCN
PCS
PHP
DECT
Wireless LAN
WiFi
P/N
Examples*
CP0603A0836AN
CP0603A0881AN
CP0603A0902AN
CP0603A0947AN
CP0603A0897AN
CP0603A0942AN
CP0603A1441AN
CP0603A1747AN
CP0603A1842AN
CP0603A1880AN
CP0603A1960AN
CP0603A1907AN
CP0603A1890AN
CP0603A2442AN
CP0603A3500AN
CP0603A5000AN
CP0603A5500AN
CP0603A6000AN
Frequency Coupling I. Loss Return Directivity
Band
[dB]
max. Loss
[dB]
[MHz]
[dB]
[dB]
824 - 849
20.0
0.25
28
869 - 894
19.7
0.25
28
890 - 915
19.4
0.25
27
935 - 960
19.0
0.25
27
880 - 915
19.4
0.25
28
925 - 960
19.0
0.25
27
1429 - 1453
15.5
0.40
24
22
1710 - 1785
14.0
0.50
22
1805 - 1880
13.5
0.50
22
1850 - 1910
13.2
0.50
22
1930 - 1990
13.0
0.55
21
1895 - 1920
13.2
0.50
22
1880 - 1900
13.2
0.50
22
2400 - 2484
11.5
0.75
20
3450 - 3550
8.6
1.3
17
20
4950 - 5050
6.1
2.2
13
14
5450 - 5550
5.5
2.5
15
13
5950 - 6050
5
3
11.6
13
0
-10
I. Loss
CP0603AxxxxANTR
Coupling
0
-8
-16
Coupling, Return Loss,
Isolation, [dB]
-30
-40
-50
R. Loss
-24
-32
-40
-48
Isolation
-60
0.8
1.6
2.4
3.2
4
4.8
5.6
6.4
Frequency [GHz]
Coupler P/N CP0603AxxxxBN
Application
AMPS
GSM
E-GSM
PDC
PCN
PCS
PHP
DECT
Wireless LAN
WiFi
P/N
Examples*
CP0603A0836BN
CP0603A0881BN
CP0603A0902BN
CP0603A0947BN
CP0603A0897BN
CP0603A0942BN
CP0603A1441BN
CP0603A1747BN
CP0603A1842BN
CP0603A1880BN
CP0603A1960BN
CP0603A1907BN
CP0603A1890BN
CP0603A2442BN
CP0603A3500BN
CP0603A5000BN
CP0603A5500BN
CP0603A6000BN
Frequency Coupling I. Loss Return Directivity
Band
[dB]
max. Loss
[dB]
[MHz]
[dB]
[dB]
824 - 849
23.0
0.20
31
869 - 894
22.7
0.20
31
890 - 915
22.5
0.20
31
935 - 960
22.0
0.20
30
24
880 - 915
22.5
0.20
31
925 - 960
22.0
0.20
30
1429 - 1453
18.5
0.25
27
1710 - 1785
17.0
0.25
25
1805 - 1880
16.4
0.25
25
1850 - 1910
16.2
0.25
25
1930 - 1990
16.0
0.25
24
21
1895 - 1920
16.1
0.25
25
1880 - 1900
16.2
0.25
25
2400 - 2484
14.2
0.35
23
3450 - 3550
11.2
0.6
20
20
4950 - 5050
8.4
1.1
16.7
17
5450 - 5550
7.8
1.4
15.7
16
5950 - 6050
7.2
1.6
15
15
0
I. Loss
CP0603AxxxxBNTR
0
-10
-2
Coupling
I Loss [dB]
-20
3
I Loss [dB]
I Loss [dB]
Coupling, Return Loss,
Isolation, [dB]
-20
-4
-30
R. Loss
-6
-40
Isolation
-8
-50
0.8
1.6
2.4
3.2
4.0
4.8
5.6
6.4
-10
Frequency [GHz]
Coupler P/N CP0603AxxxxCN
Application
AMPS
GSM
E-GSM
PDC
PCN
PCS
PHP
DECT
Wireless LAN
WiFi
P/N
Examples*
CP0603A0836CN
CP0603A0881CN
CP0603A0902CN
CP0603A0947CN
CP0603A0897CN
CP0603A0942CN
CP0603A1441CN
CP0603A1747CN
CP0603A1842CN
CP0603A1880CN
CP0603A1960CN
CP0603A1907CN
CP0603A1890CN
CP0603A2442CN
CP0603A3500CN
CP0603A5000CN
CP0603A5500CN
CP0603A6000CN
Frequency Coupling I. Loss Return Directivity
Band
[dB]
max. Loss
[dB]
[MHz]
[dB]
[dB]
824 - 849
15.2
0.35
23
869 - 894
15.0
0.35
23
890 - 915
14.7
0.35
23
935 - 960
14.3
0.40
22
23
880 - 915
14.7
0.35
23
925 - 960
14.3
0.40
22
1429 - 1453
11.0
0.70
19
1710 - 1785
9.5
0.80
18
1805 - 1880
9.0
0.90
17
1850 - 1910
8.8
0.90
17
1930 - 1990
8.5
1.00
17
21
1895 - 1920
8.8
0.90
17
1880 - 1900
8.8
0.90
17
2400 - 2484
7.0
1.40
15
3450 - 3550
4.8
2.0
23
20
4950 - 5050
3.0
3.6
21
17
5450 - 5550
3.0
4.0
20.6
16
5950 - 6050
2.5
4.5
20.5
16
0
-10
I. Loss
Coupling
CP0603AxxxxCNTR
0
-20
-40
R. Loss
Coupling, Return Loss,
Isolation, [dB]
-20
-30
-40
Isolation
-60
-80
-100
-120
-50
-60
0.8
1.6
2.4
3.2
4
4.8
5.6
6.4
Frequency [GHz]
Important: Couplers can be used at any frequency within the indicated range.

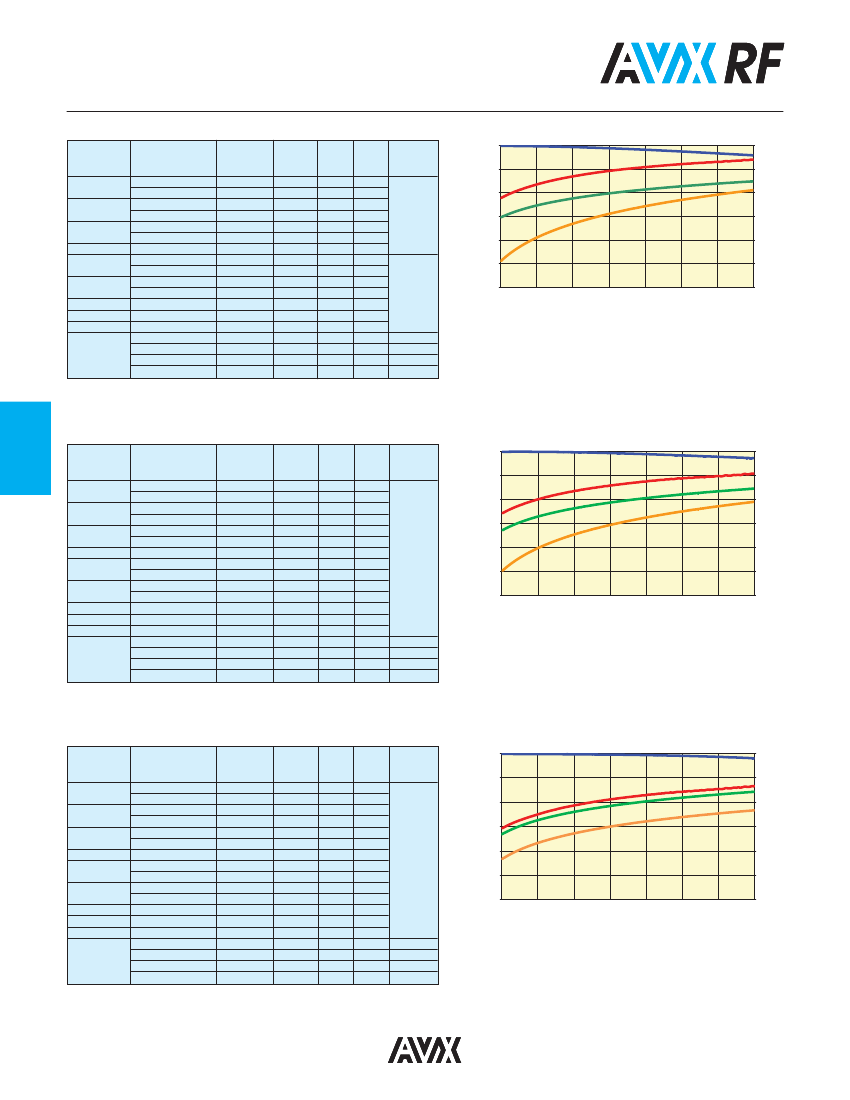

55
Thin-Film Directional Couplers
CP0603 High Directivity LGA Type
Coupler P/N CP0603AxxxxDN
Application
AMPS
GSM
E-GSM
PDC
PCN
PCS
PHP
DECT
Wireless LAN
WiFi
P/N
Examples*
CP0603A0836DN
CP0603A0881DN
CP0603A0902DN
CP0603A0947DN
CP0603A0897DN
CP0603A0942DN
CP0603A1441DN
CP0603A1747DN
CP0603A1842DN
CP0603A1880DN
CP0603A1960DN
CP0603A1907DN
CP0603A1890DN
CP0603A2442DN
CP0603A3500DN
CP0603A5000DN
CP0603A5500DN
CP0603A6000DN
Frequency Coupling I. Loss Return Directivity
Band
[dB]
max. Loss
[dB]
[MHz]
[dB]
[dB]
824 - 849
22.0
0.25
31
869 - 894
21.8
0.25
30
890 - 915
21.3
0.25
30
935 - 960
21.0
0.30
30
30
880 - 915
21.3
0.25
30
925 - 960
21.0
0.30
30
1429 - 1453
17.7
0.40
27
1710 - 1785
16.0
0.40
25
1805 - 1880
15.4
0.40
25
1850 - 1910
15.2
0.40
24
1930 - 1990
15.0
0.40
24
25
1895 - 1920
15.2
0.40
24
1880 - 1900
15.2
0.40
24
2400 - 2484
13.3
0.55
22
3450 - 3550
10.1
0.66
25.3
20
4950 - 5050
7.8
1.17
21.1
18
5450 - 5550
6.8
1.39
19.9
18
5950 - 6050
6.3
1.64
18.8
17
0
-10
I. Loss
CP0603AxxxxDNTR
0
-4
Coupling
Coupling, Return Loss,
Isolation, [dB]
-20
-30
-40
-50
-8
-12
-16
-20
-24
R. Loss
Isolation
-60
0.8
1.6
2.4
3.2
4
4.8
5.6
6.4
Frequency [GHz]

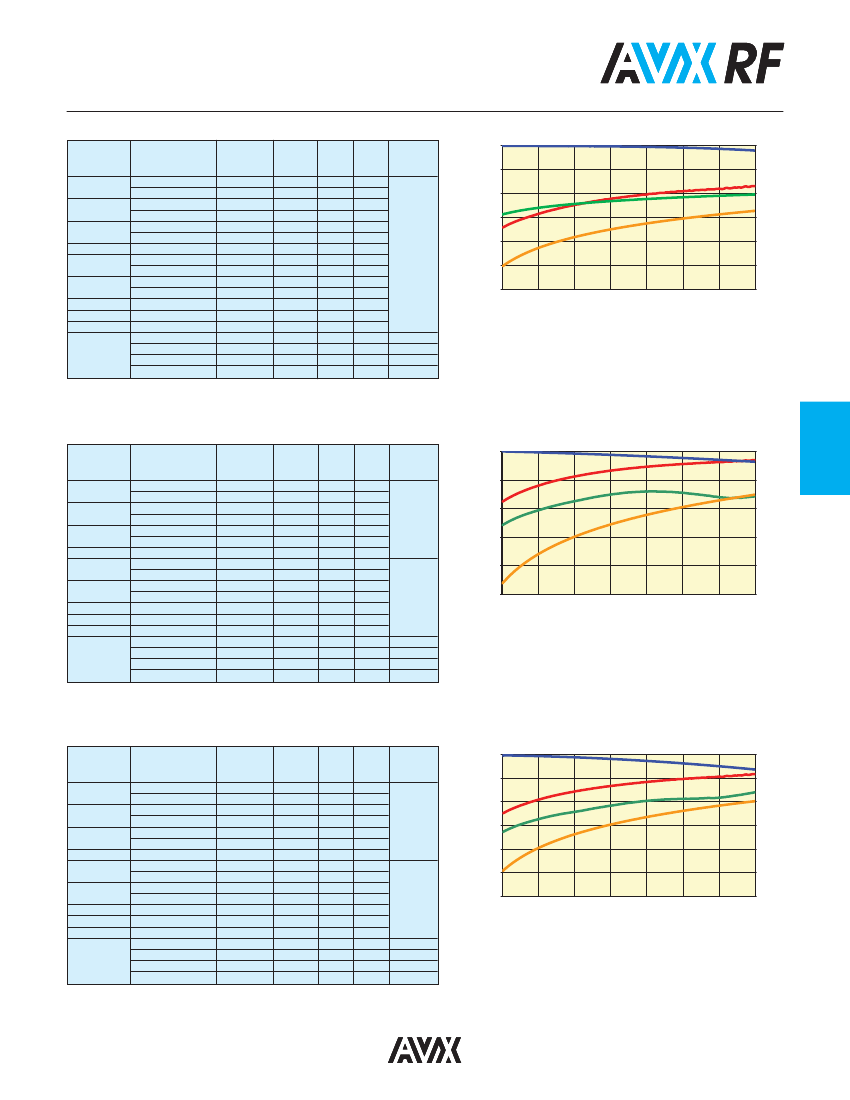

3
Coupler P/N CP603AxxxxEN
Application
AMPS
GSM
E-GSM
PDC
PCN
PCS
PHP
DECT
Wireless LAN
WiFi
P/N
Examples*
CP0603A0836EN
CP0603A0881EN
CP0603A0902EN
CP0603A0947EN
CP0603A0897EN
CP0603A0942EN
CP0603A1441EN
CP0603A1747EN
CP0603A1842EN
CP0603A1880EN
CP0603A1960EN
CP0603A1907EN
CP0603A1890EN
CP0603A2442EN
CP0603A3500EN
CP0603A5000EN
CP0603A5500EN
CP0603A6000EN
Frequency Coupling I. Loss Return Directivity
Band
[dB]
max. Loss
[dB]
[MHz]
[dB]
[dB]
824 - 849
25.8
0.20
32
869 - 894
25.3
0.20
32
890 - 915
25.0
0.20
32
935 - 960
24.7
0.20
31
880 - 915
26.0
0.20
32
925 - 960
24.7
0.20
31
1429 - 1453
22.0
0.25
28
21
1710 - 1785
19.5
0.30
26
1805 - 1880
19.0
0.30
26
1850 - 1910
18.8
0.30
26
1930 - 1990
18.5
0.30
26
1895 - 1920
18.7
0.30
26
1880 - 1900
18.8
0.30
26
2400 - 2484
17.0
0.40
24
3450 - 3550
13.2
0.5
18
20
4950 - 5050
10.7
0.9
13
16
5450 - 5550
10.2
1.2
12
15
5950 - 6050
9.7
1.4
12
14
0
I. Loss
CP0603AxxxxENTR
0
-4
Coupling
-10
Coupling, Return Loss,
Isolation, [dB]
-30
R. Loss
-12
-16
-20
-24
-40
-50
Isolation
-60
0.8
1.6
2.4
3.2
4
4.8
5.6
6.4
Frequency [GHz]
Coupler P/N CP603AxxxxFN
Application
AMPS
GSM
E-GSM
PDC
PCN
PCS
PHP
DECT
Wireless LAN
WiFi
P/N
Examples*
CP0603A0836FN
CP0603A0881FN
CP0603A0902FN
CP0603A0947FN
CP0603A0897FN
CP0603A0942FN
CP0603A1441FN
CP0603A1747FN
CP0603A1842FN
CP0603A1880FN
CP0603A1960FN
CP0603A1907FN
CP0603A1890FN
CP0603A2442FN
CP0603A3500FN
CP0603A5000FN
CP0603A5500FN
CP0603A6000FN
Frequency Coupling I. Loss Return Directivity
Band
[dB]
max. Loss
[dB]
[MHz]
[dB]
[dB]
824 - 849
31.2
0.20
32
869 - 894
30.8
0.20
32
890 - 915
30.5
0.20
30
935 - 960
30.2
0.20
30
880 - 915
30.5
0.20
30
925 - 960
30.2
0.20
30
1429 - 1453
27.0
0.25
28
12
1710 - 1785
25.0
0.25
27
1805 - 1880
26.5
0.25
27
1850 - 1910
24.3
0.25
27
1930 - 1990
24.0
0.25
28
1895 - 1920
24.2
0.25
27
1880 - 1900
24.2
0.25
27
2400 - 2484
21.5
0.25
25
3450 - 3550
17.8
0.33
20.0
13
4950 - 5050
15.4
0.62
14.86
12
5450 - 5550
14.8
0.86
13.58
12
5950 - 6050
14.3
1.02
12.58
11
0
I. Loss
CP0603AxxxxFNTR
0
-4
-8
Coupling
-10
Coupling, Return Loss,
Isolation, [dB]
-30
R. Loss
-12
-16
Isolation
-40
-50
-60
0.8
-20
-24
1.6
2.4
3.2
4
4.8
5.6
6.4
Frequency [GHz]
Important: Couplers can be used at any frequency within the indicated range.
56
I Loss [dB]
-20
I Loss [dB]
-20
-8
I Loss [dB]
Thin-Film Directional Couplers
CP0603 High Directivity LGA Type
Coupler P/N CP603AxxxxGN
Application
AMPS
GSM
E-GSM
PDC
PCN
PCS
PHP
DECT
Wireless LAN
WiFi
P/N
Examples*
CP0603A0836GN
CP0603A0881GN
CP0603A0902GN
CP0603A0947GN
CP0603A0897GN
CP0603A0942GN
CP0603A1441GN
CP0603A1747GN
CP0603A1842GN
CP0603A1880GN
CP0603A1960GN
CP0603A1907GN
CP0603A1890GN
CP0603A2442GN
CP0603A3500GN
CP0603A5000GN
CP0603A5500GN
CP0603A6000GN
Frequency Coupling I. Loss Return Directivity
Band
[dB]
max. Loss
[dB]
[MHz]
[dB]
[dB]
824 - 849
34.2
0.20
30
869 - 894
33.8
0.20
30
890 - 915
33.6
0.20
30
935 - 960
33.2
0.20
29
880 - 915
33.6
0.20
30
925 - 960
33.2
0.20
29
1429 - 1453
30.0
0.25
25
13
1710 - 1785
28.5
0.25
24
1805 - 1880
28.0
0.25
24
1850 - 1910
27.7
0.25
24
1930 - 1990
27.5
0.25
23
1895 - 1920
27.6
0.25
24
1880 - 1900
27.7
0.25
24
2400 - 2484
25.5
0.25
22
3450 - 3550
21.6
0.31
20
13
4950 - 5050
19
0.39
16
12
5450 - 5550
18.5
0.57
15
12
5950 - 6050
18.0
0.74
14
11
0
I. Loss
CP0603AxxxxGNTR
0
-4
-8
R. Loss
-10
Coupling, Return Loss,
Isolation, [dB]
-30
Coupling
-12
-16
-20
-24
-40
-50
Isolation
-60
0.8
1.6
2.4
3.2
4
4.8
5.6
6.4
Frequency [GHz]
Coupler P/N CP603AxxxxHN
Application
AMPS
GSM
E-GSM
PDC
PCN
PCS
PHP
DECT
Wireless LAN
WiFi
P/N
Examples*
CP0603A0836HN
CP0603A0881HN
CP0603A0902HN
CP0603A0947HN
CP0603A0897HN
CP0603A0942HN
CP0603A1441HN
CP0603A1747HN
CP0603A1842HN
CP0603A1880HN
CP0603A1960HN
CP0603A1907HN
CP0603A1890HN
CP0603A2442HN
CP0603A3500HN
CP0603A5000HN
CP0603A5500HN
CP0603A6000HN
Frequency Coupling I. Loss Return Directivity
Band
[dB]
max. Loss
[dB]
[MHz]
[dB]
[dB]
824 - 849
17.3
0.30
26
869 - 894
17.0
0.30
25
890 - 915
16.7
0.30
25
935 - 960
16.3
0.35
25
26
880 - 915
17.0
0.35
25
925 - 960
16.3
0.35
25
1429 - 1453
13.0
0.55
22
1710 - 1785
11.4
0.75
20
1805 - 1880
11.0
0.75
20
1850 - 1910
10.8
0.75
19
1930 - 1990
10.5
0.75
19
24
1895 - 1920
10.7
0.75
19
1880 - 1900
10.8
0.75
19
2400 - 2484
8.8
1.00
17
3450 - 3550
5.9
1.48
25
21
4950 - 5050
4.4
2.59
22
18
5450 - 5550
4
2.95
22
17
5950 - 6050
3.5
3.37
21
17
0
I. Loss
CP0603AxxxxHNTR
0
-10
-10
I Loss [dB]
-20
3
I Loss [dB]
I Loss [dB]
Coupling, Return Loss,
Isolation, [dB]
-20
Coupling
-20
-30
R. Loss
-30
-40
Isolation
-40
-50
0.8
1.6
2.4
3.2
4
4.8
5.6
6.4
-50
Frequency [GHz]
Coupler P/N CP603AxxxxMN
Application
AMPS
GSM
E-GSM
PDC
PCN
PCS
PHP
DECT
Wireless LAN
WiFi
P/N
Examples*
CP0603A0836MN
CP0603A0881MN
CP0603A0902MN
CP0603A0947MN
CP0603A0897MN
CP0603A0942MN
CP0603A1441MN
CP0603A1747MN
CP0603A1842MN
CP0603A1880MN
CP0603A1960MN
CP0603A1907MN
CP0603A1890MN
CP0603A2442MN
CP0603A3500MN
CP0603A5000MN
CP0603A5500MN
CP0603A6000MN
Frequency Coupling I. Loss Return Directivity
Band
[dB]
max. Loss
[dB]
[MHz]
[dB]
[dB]
824 - 849
24.2
0.20
33
869 - 894
23.8
0.20
32
890 - 915
23.4
0.20
32
935 - 960
23.2
0.20
32
23
880 - 915
23.4
0.20
32
925 - 960
23.2
0.20
32
1429 - 1453
20.0
0.25
28
1710 - 1785
18.4
0.25
27
1805 - 1880
18.0
0.25
26
1850 - 1910
17.8
0.25
26
1930 - 1990
17.5
0.25
26
20
1895 - 1920
17.7
0.25
26
1880 - 1900
17.8
0.25
26
2400 - 2484
15.6
0.35
24
3450 - 3550
12.8
0.58
18
20
4950 - 5050
10.2
1.0
15
16
5450 - 5550
9.7
1.2
15
14
5950 - 6050
8.9
1.5
13.5
9
0
I. Loss
CP0603AxxxxMNTR
0
-2
Coupling
-10
Coupling, Return Loss,
Isolation, [dB]
-20
-30
-4
-6
R. Loss
-40
-50
-8
-10
-12
Isolation
-60
0.8
1.6
2.4
3.2
4
4.8
5.6
6.4
Frequency [GHz]
Important: Couplers can be used at any frequency within the indicated range.
57
京公网安备 11010802033920号
EEWORLD
