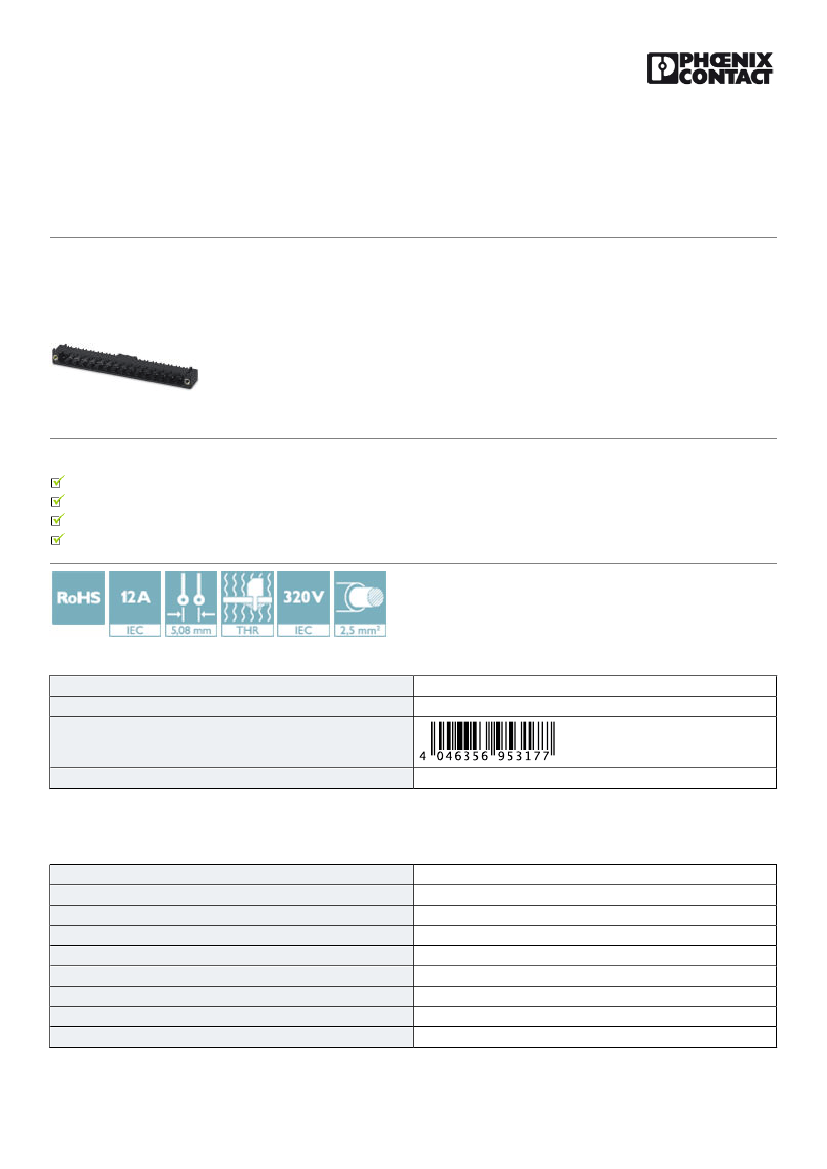

Printed-circuit board connector - CC 2,5/15-GF-5,08-LR
P26THR - 1827540
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
PCB headers, nominal current: 12 A, rated voltage (III/2): 320 V, number of positions: 15, pitch: 5.08 mm,
color: black, contact surface: Tin, mounting: THR soldering
The figure shows a 16-position
version
Your advantages
Designed for integration into the SMT soldering process
Maximum flexibility when it comes to device design – one header for connectors with different connection technologies
Screwable flange for superior mechanical stability
Automatic locking and intuitive release through Lock and Release operating lever in contrasting color
Key Commercial Data
Packing unit
Minimum order quantity
GTIN
GTIN
4046356953177
50 pc
50 pc
Technical data
Dimensions
Length [ l ]
Width
Pitch
Dimension a
Width [ w ]
Height [ h ]
Height
Length of the solder pin
Pin dimensions
12 mm
86.31 mm
5.08 mm
71.12 mm
86.31 mm
11.17 mm
8.57 mm
2.6 mm
1 x 1 mm
11/15/2018 Page 1 / 3
https://www.phoenixcontact.com/pi/products/1827540
Printed-circuit board connector - CC 2,5/15-GF-5,08-LR
P26THR - 1827540
Technical data
Dimensions
Length
12 mm
General
Range of articles
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Insulating material
Flammability rating according to UL 94
Color
Number of positions
CC 2,5/..-GF-LR
IIIa
4 kV
4 kV
4 kV
250 V
320 V
400 V
EN-VDE
12 A
LCP
V0
black
15
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
EN-VDE
V0
Environmental Product Compliance
REACh SVHC
China RoHS
Lead 7439-92-1
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Approvals
Approvals
Approvals
EAC / cULus Recognized
Ex Approvals
Approval details
11/15/2018 Page 2 / 3
https://www.phoenixcontact.com/pi/products/1827540
Printed-circuit board connector - CC 2,5/15-GF-5,08-LR
P26THR - 1827540
Approvals
EAC
D
300 V
10 A
B.01742
cULus Recognized
Nominal voltage UN
Nominal current IN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm E60425-19931011
B
300 V
16 A
Phoenix Contact 2018 © - all rights reserved
http://www.phoenixcontact.com
PHOENIX CONTACT GmbH & Co. KG
Flachsmarktstr. 8
32825 Blomberg
Germany
Tel. +49 5235 300
Fax +49 5235 3 41200
http://www.phoenixcontact.com
11/15/2018 Page 3 / 3
