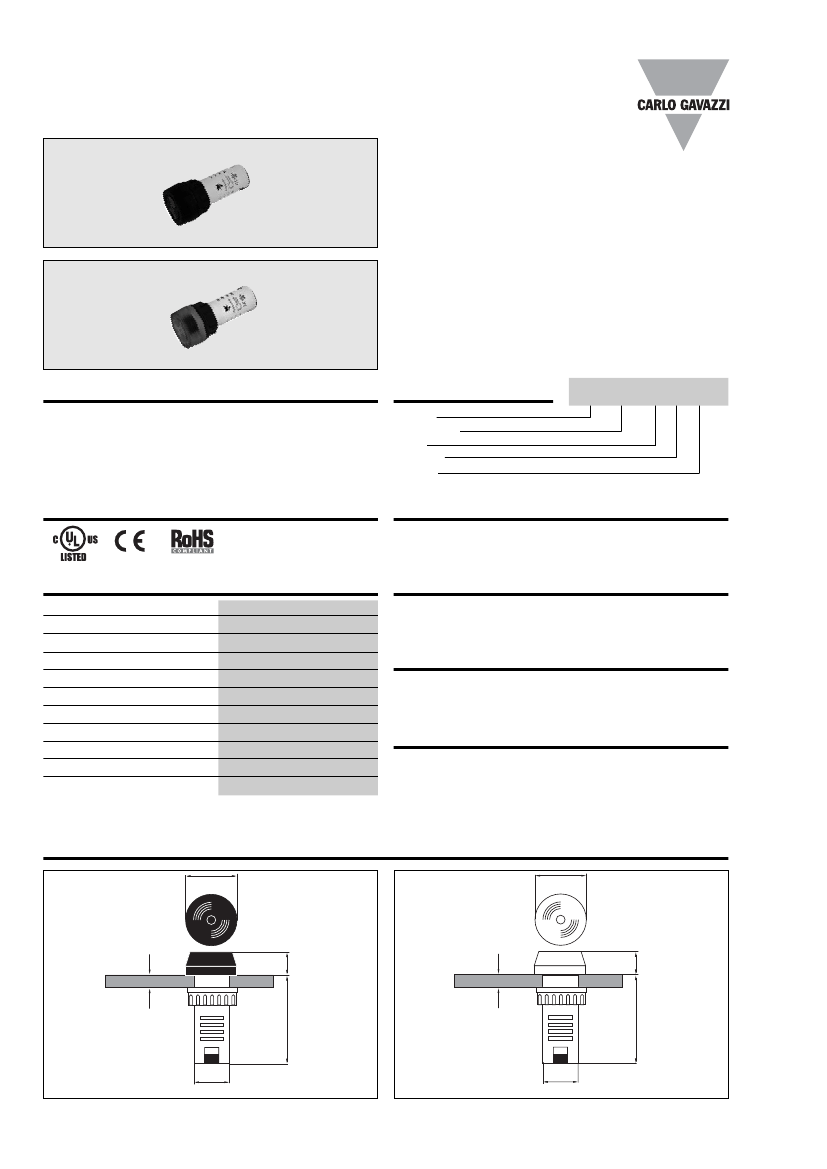

Panel Actuators and Indicators
Type PL 22
Buzzer and Flashing Buzzer
• Ø 22mm (Ø0.87”) dimension
• Buzzer
• Interrupted sound
• Flashing type
• AC and DC voltage
• cULus and CE
• IEC/EN 60947-5-1, IEC/EN 60073, IEC/EN 60529, UL 508
PL 22S BZK
PL 22S FBZR
Product description
Pilot lights and Buzzer are
panel
mounted
device
assemblies consisting of the
housing, an internal lamp or
buzzer, terminals, and a cover.
Applications include industrial
control panels of all types,
equipment indicator panels,
status alarm indicator.
The buzzer volume is 95dB @
10cm (3.94”), the current is
20mA.
Ordering key
Series
Dimension
Type
Colour
Voltage
PL 22S BZ R 24
Approvals
Dimension and style
22S =
Ø22mm (Ø0.87”) standard size
3MHG
Technical data
Rated imp. withstand voltage U
imp
Rated insulation Voltage U
i
Allowable voltage fluctuation
Continuous operating life
Ultrahigh brightness
Applying frequency
Current consumption (AC/DC)
Sound volume
Operating temperature
Storage temperature
Degree of protection
2500VAC 50Hz 1min.
500VAC
±20%
≥100.000h
≥100cd/m
2
(≥9.29ftc)
50-60Hz
15-20mA
95dB @ 10cm (3.94”)
-25 to +70°C (-13 to +158°F)
-30 to +80°C (-22 to +176°F)
IP 40
Types
BZ =
Buzzer
FBZ=
Flashing buzzer
Colours
R =
Red only for FBZ type
K =
Black only for BZ type
Voltages
06
12
24
48
=
=
=
=
6VAC/DC
12VAC/DC
24VAC/DC
48VAC/DC
110
220D
220A
380A
=
=
=
=
110VAC/DC
220VDC
220VAC
380VAC
Dimensions
mm/inches
Ø29/1.14”
7/0.28”max
7/0.28”max
Ø29/1.14”
13/0.51”
“BZ” Type
50/1.97”
Ø22/0.87”
“FBZ” Type
Ø22/0.87”
1
Specifications are subject to change without notice. Pictures are just an example. For special features and/or custumization, please ask to our sales network. 270709
50/1.97”
13/0.51”

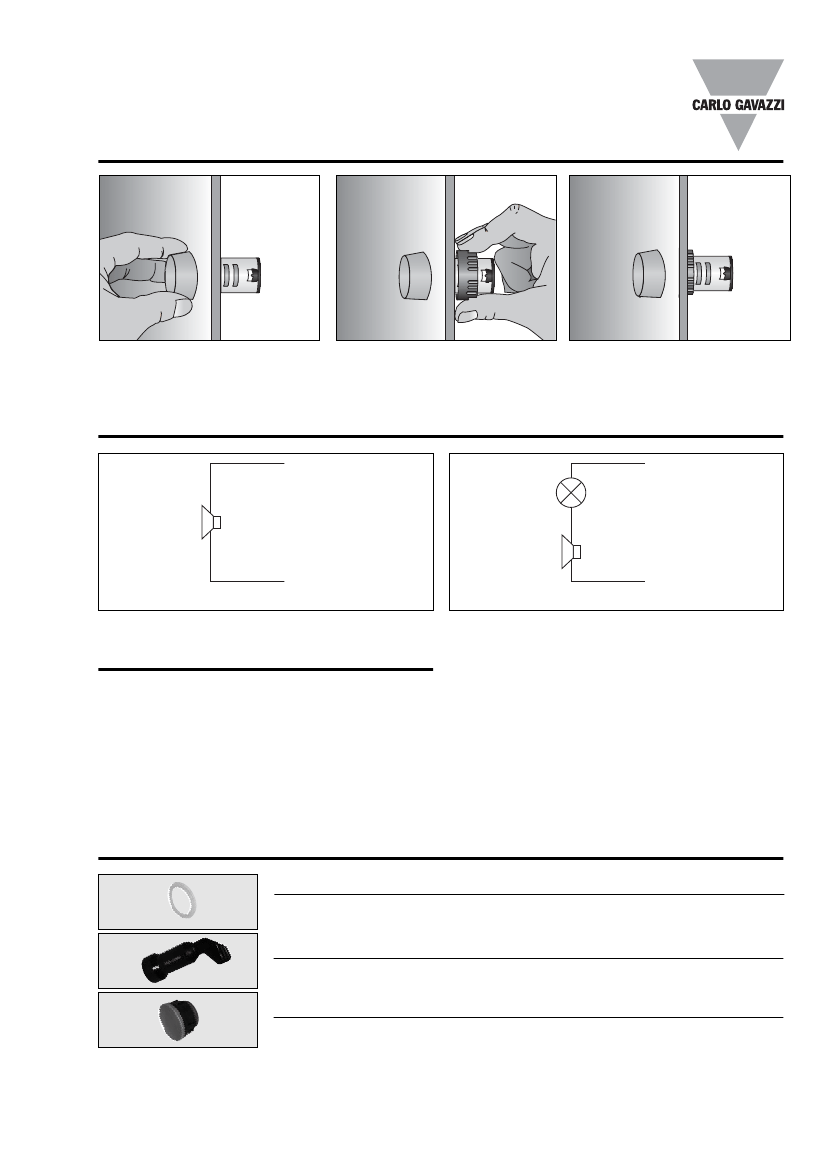

Mounting
Just insert the pilot light into the hole of
the pannel.
The pilot light will be secured at the
back by the plastic nut
The pilot light has been installed.
Wiring Diagram
X1
X1
X2
“SBZK” Type
“SFBZR” Type
X2
Wiring Notes
1) Use 60°C or 75°C copper (CU) conductor and wire size
range 18AWG, stranded or solid.
2) Terminal tightening torque 0.6Nm (5.3in.lb)
3) Recommended external fuse - listed or R/C fuses,
Supplemental (JDYX, JDYX2) rated 3A mmaximum.
Accessories for Panel Indicators
Reducing ring for Pilot Light Ø22mm (0.87”)
To mount the Ø22mm (0.87”) pilot light into the hole
for Ø25mm (0.98”)or Ø30mm (1.18”) of the panel.
ABS
Ø25mm/Ø0.98”
PA RR 2
Ø30mm/Ø1.18”
PA RR 3
Fastering connector for Pilot Light Ø22mm (0.87”)
Improve the quality of installation and
reduce the time of installations.
PC
PA PL CONN
Panel hole cap Ø22mm (0.87”)
For blocking up prepared or useless holes
on the panels.
ABS
PA PHC 22
Specifications are subject to change without notice. Pictures are just an example. For special features and/or custumization, please ask to our sales network. 270709
