SGNMA3T10004: DescriptionCAP TRIMMER 1-10PF 1000V TH; CategoryPassive components; File Size74KB，1 Pages; ManufacturerSprague Goodman; Environmental Compliance

Download Datasheet Parametric View All

SGNMA3T10004 Overview

CAP TRIMMER 1-10PF 1000V TH

SGNMA3T10004 Parametric

Parameter Name	Attribute value
Capacitance range	1 ~ 10pF
Adjustment type	side
Voltage - Rated	1000V
dielectric materials	Polytetrafluoroethylene (PTFE)
Q value at different frequencies	2000 @ 100MHz
size/dimensions	0.281" diameter (7.14mm)
Height - Installation (maximum)	0.522"（13.26mm）
Operating temperature	-65°C ~ 125°C
Installation type	Through hole
characteristic	Non-magnetic

Preview

Download Datasheet

View All

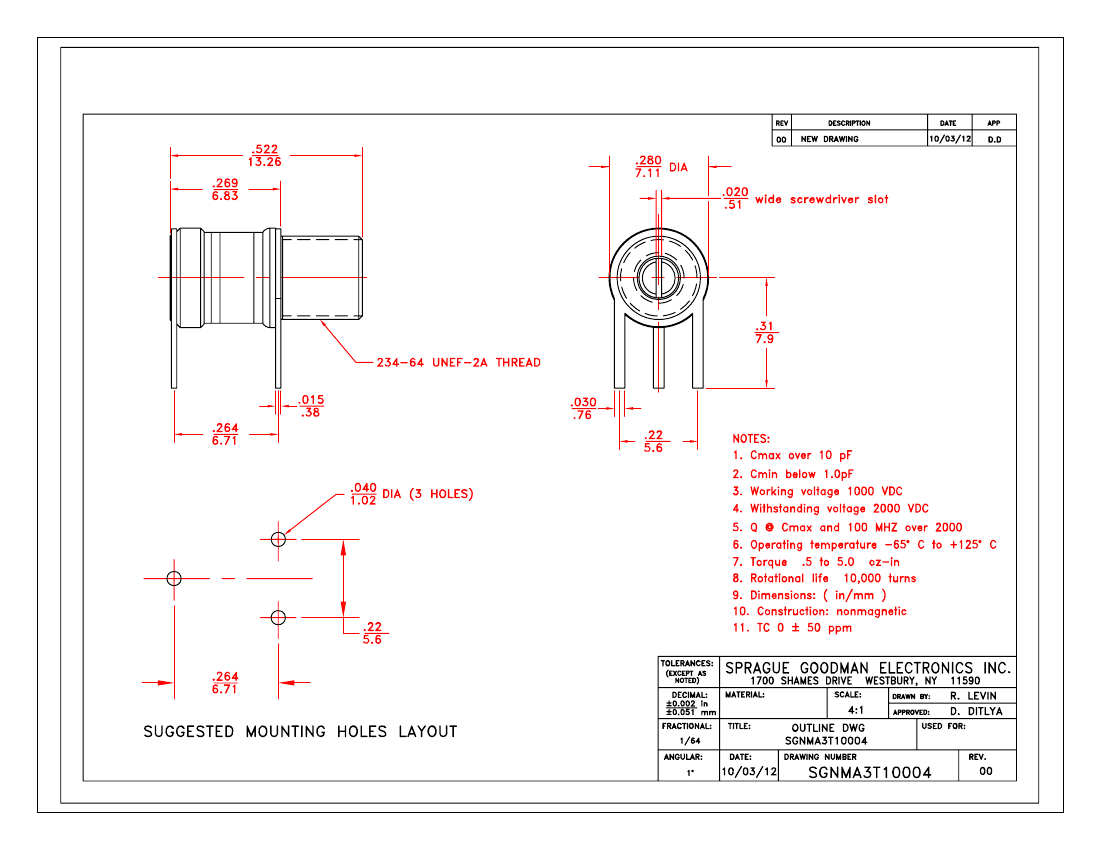

REV

DESCRIPTION

DATE

APP

00

NEW DRAWING

.522

13.26

.269

6.83

.280

7.11

DIA

.020

.51

10/03/12

D.D

wide

screwdriver

slot

.31

7.9

234-64 UNEF-2A

THREAD

.015

.38

.264

6.71

.030

.76

.22

5.6

NOTES:

1. Cmax over 10 pF

2. Cmin below 1.0pF

3. Working voltage 1000 VDC

4. Withstanding voltage 2000 VDC

5. Q @ Cmax and 100 MHZ over 2000

.040

1.02

DIA (3 HOLES)

6. Operating temperature -65° C to +125° C

7. Torque

.5 to 5.0

oz-in

8. Rotational life

10,000 turns

9. Dimensions: ( in/mm )

10. Construction: nonmagnetic

.22

5.6

TOLERANCES:

11. TC 0

50 ppm

.264

6.71

(EXCEPT AS

NOTED)

DECIMAL:

0.002 in

0.051 mm

SPRAGUE GOODMAN ELECTRONICS INC.

1700 SHAMES DRIVE

MATERIAL:

SCALE:

WESTBURY, NY

DRAWN BY:

APPROVED:

11590

R. LEVIN

D. DITLYA

4:1

TITLE:

SUGGESTED

MOUNTING

HOLES

LAYOUT

FRACTIONAL:

OUTLINE

DWG

USED FOR:

1/64

ANGULAR:

1

DATE:

SGNMA3T10004

DRAWING NUMBER

REV.

10/03/12

SGNMA3T10004
