Proximity Inductive Sensors
DC Metal Face
Types IA, M8, M12, M18 and M30
•
•
•
•
•
•
•
•
•
Sensing distance: 1 to 15 mm
Flush and non-flush types
Long and short housing
Rated operational voltage: 10 - 30 VDC
Output: DC 100 mA, NPN or PNP
Normally open, Normally closed
Output indication: by yellow LED
Protection: reverse polarity, short circuit, transients
Cable and plug versions
Product Description

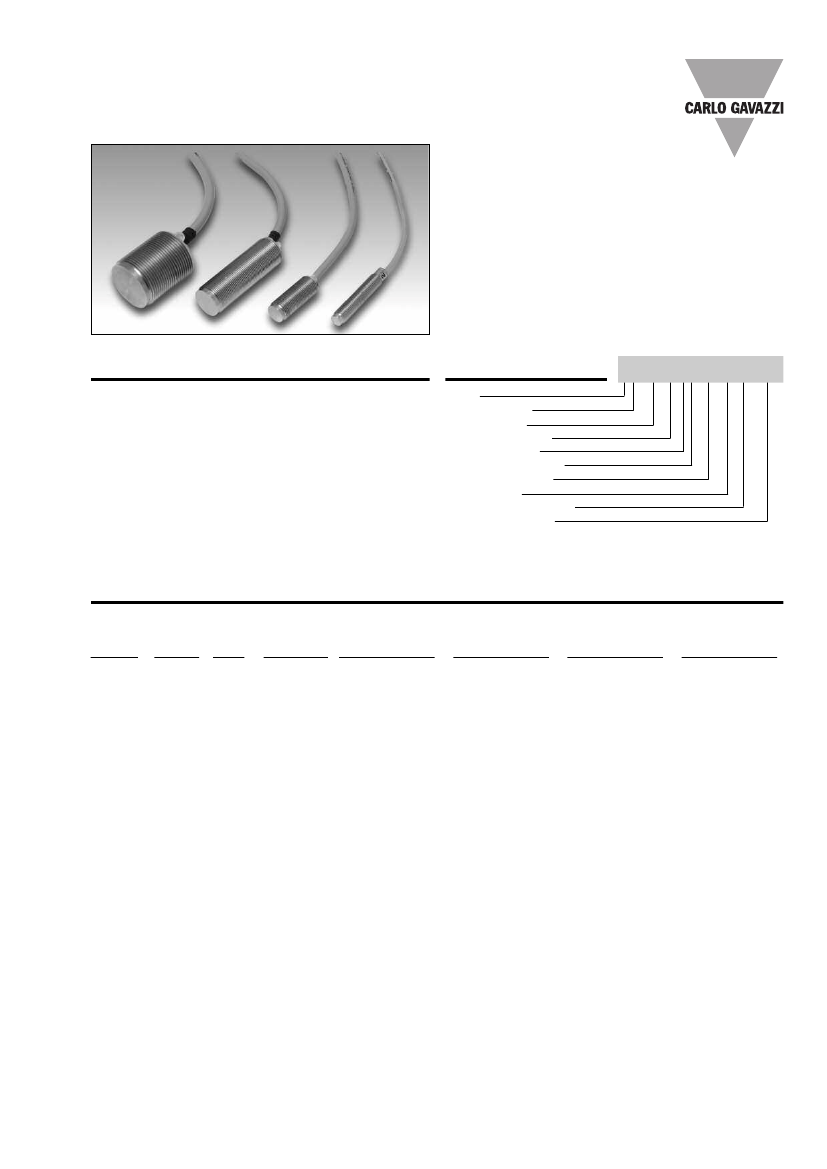

A family of metal face induc-
tive proximity switches in
industrial standard stainless
steel housings (M8, M12,
M18 and M30 types).
Output indication: by yellow
LED.
Outputs are open collector
NPN or PNP transistors.
Available with cable and M8
or M12 plug.
These sensors stand up to
abrasion and impact caused
by flying metal chips, grit
and misaligned or vibrating
targets.
In addition, the stainless
steel body resists against
corrosion and chemical
attack, by offering a higher
level of protection for more
reliable operation and longer
life in harsh environments.
Ordering Key
Type
Housing style
Housing size
Housing material
Housing length
Detection principle
Sensing distance
Output type
Output configuration
Connection type
IA08FLF01NOM5
Type Selection M8, M12 and M18
Housing Connec- Housing Rated
Ordering no.
diameter tion
style
operating NPN
distance S
n
Normally open
M8
M8
M8
M8
M8
M8
M8
M8
M12
M12
M12
M12
M12
M12
M12
M12
M18
M18
M18
M18
M18
M18
M18
M18
1)
Ordering no.
PNP
Normally open
Ordering no.
NPN
Normally closed
IA 08 FSF 01 NC
IA 08 FSF 01 NCM5
IA 08 FLF 01 NC
IA 08 FLF 01 NCM5
IA 08 FSN 02 NC
IA 08 FSN 02 NCM5
IA 08 FLN 02 NC
IA 08 FLN 02 NCM5
IA 12 FSF 02 NC
IA 12 FSF 02 NCM1
IA 12 FLF 02 NC
IA 12 FLF 02 NCM1
IA 12 FSN 04 NC
IA 12 FSN 04 NCM1
IA 12 FLN 04 NC
IA 12 FLN 04 NCM1
IA 18 FSF 05 NC
IA 18 FSF 05 NCM1
IA 18 FLF 05 NC
IA 18 FLF 05 NCM1
IA 18 FSN 08 NC
IA 18 FSN 08 NCM1
IA 18 FLN 08 NC
IA 18 FLN 08 NCM1
Ordering no.
PNP
Normally closed
IA 08 FSF 01 PC
IA 08 FSF 01 PCM5
IA 08 FLF 01 PC
IA 08 FLF 01 PCM5
IA 08 FSN 02 PC
IA 08 FSN 02 PCM5
IA 08 FLN 02 PC
IA 08 FLN 02 PCM5
IA 12 FSF 02 PC
IA 12 FSF 02 PCM1
IA 12 FLF 02 PC
IA 12 FLF 02 PCM1
IA 12 FSN 04 PC
IA 12 FSN 04 PCM1
IA 12 FLN 04 PC
IA 12 FLN 04 PCM1
IA 18 FSF 05 PC
IA 18 FSF 05 PCM1
IA 18 FLF 05 PC
IA 18 FLF 05 PCM1
IA 18 FSN 08 PC
IA 18 FSN 08 PCM1
IA 18 FLN 08 PC
IA 18 FLN 08 PCM1
Cable
Plug
Cable
Plug
Cable
Plug
Cable
Plug
Cable
Plug
Cable
Plug
Cable
Plug
Cable
Plug
Cable
Plug
Cable
Plug
Cable
Plug
Cable
Plug
Short
Short
Long
Long
Short
Short
Long
Long
Short
Short
Long
Long
Short
Short
Long
Long
Short
Short
Long
Long
Short
Short
Long
Long
1 mm
1)
1 mm
1)
1 mm
1)
1 mm
1)
2 mm
2)
2 mm
2)
2 mm
2)
2 mm
2)
2 mm
1)
2 mm
1)
2 mm
1)
2 mm
1)
4 mm
2)
4 mm
2)
4 mm
2)
4 mm
2)
5 mm
1)
5 mm
1)
5 mm
1)
5 mm
1)
8 mm
2)
8 mm
2)
8 mm
2)
8 mm
2)
2)
IA 08 FSF 01 NO IA 08 FSF 01 PO
IA 08 FSF 01 NOM5 IA 08 FSF 01 POM5
IA 08 FLF 01 NO IA 08 FLF 01 PO
IA 08 FLF 01 NOM5 IA 08 FLF 01 POM5
IA 08 FSN 02 NO IA 08 FSN 02 PO
IA 08 FSN 02 NOM5 IA 08 FSN 02 POM5
IA 08 FLN 02 NO IA 08 FLN 02 PO
IA 08 FLN 02 NOM5 IA 08 FLN 02 POM5
IA 12 FSF 02 NO IA 12 FSF 02 PO
IA 12 FSF 02 NOM1 IA 12 FSF 02 POM1
IA 12 FLF 02 NO IA 12 FLF 02 PO
IA 12 FLF 02 NOM1 IA 12 FLF 02 POM1
IA 12 FSN 04 NO IA 12 FSN 04 PO
IA 12 FSN 04 NOM1 IA 12 FSN 04 POM1
IA 12 FLN 04 NO IA 12 FLN 04 PO
IA 12 FLN 04 NOM1 IA 12 FLN 04 POM1
IA 18 FSF 05 NO IA 18 FSF 05 PO
IA 18 FSF 05 NOM1 IA 18 FSF 05 POM1
IA 18 FLF 05 NO IA 18 FLF 05 PO
IA 18 FLF 05 NOM1 IA 18 FLF 05 POM1
IA 18 FSN 08 NO IA 18 FSN 08 PO
IA 18 FSN 08 NOM1 IA 18 FSN 08 POM1
IA 18 FLN 08 NO IA 18 FLN 08 PO
IA 18 FLN 08 NOM1 IA 18 FLN 08 POM1
For flush mounting in metal
For non-flush mounting in metal
Specifications are subject to change without notice (09.11.12)
1
DC Metal Face
Type Selection M30
Housing Connec- Housing Rated
Ordering no.
diameter tion
style
operating NPN
distance S
n
Normally open
M30
M30
M30
M30
M30
M30
M30
M30
1)
Ordering no.
PNP
Normally open
Ordering no.
NPN
Normally closed
IA 30 FSF 10 NC
IA 30 FSF 10 NCM1
IA 30 FLF 10 NC
IA 30 FLF 10 NCM1
IA 30 FSN 15 NC
IA 30 FSN 15 NCM1
IA 30 FLN 15 NC
IA 30 FLN 15 NCM1
Ordering no.
PNP
Normally closed
IA 30 FSF 10 PC
IA 30 FSF 10 PCM1
IA 30 FLF 10 PC
IA 30 FLF 10 PCM1
IA 30 FSN 15 PC
IA 30 FSN 15 PCM1
IA 30 FLN 15 PC
IA 30 FLN 15 PCM1
Cable
Plug
Cable
Plug
Cable
Plug
Cable
Plug
Short
Short
Long
Long
Short
Short
Long
Long
10 mm
1)
10 mm
1)
10 mm
1)
10 mm
1)
15 mm
2)
15 mm
2)
15 mm
2)
15 mm
2)
2)
IA 30 FSF 10 NO IA 30 FSF 10 PO
IA 30 FSF 10 NOM1 IA 30 FSF 10 POM1
IA 30 FLF 10 NO IA 30 FLF 10 PO
IA 30 FLF 10 NOM1 IA 30 FLF 10 POM1
IA 30 FSN 15 NO IA 30 FSN 15 PO
IA 30 FSN 15 NOM1 IA 30 FSN 15 POM1
IA 30 FLN 15 NO IA 30 FLN 15 PO
IA 30 FLN 15 NOM1 IA 30 FLN 15 POM1
For flush mounting in metal
For non-flush mounting in metal
Specifications
Rated operational voltage
(U
B
)
Ripple
Output current
(I
e
)
No load supply current
(I
O
)
IA08, IA12FxF, IA18FxF, IA30FxF
IA12FxN, IA18FxN, IA30FxN
Voltage drop
(U
d
)
IA08
IA12, IA18, IA30
Protection
Voltage transient
Power ON delay
(t
v
)
Operating frequency
(f)
IA08Fxxxxxx
IA12FxFxxxx
IA12FxNxxxx
IA18FxFxx
IA18FxNxx
IA18FxFxxM1
IA18FxNxxM1
IA30FSFxx
IA30FSNxx
IA30FLFxx
IA30FLNxx
IA30FxFxxM1
IA30FxNxxM1
Indication for output ON
Operating sensing distance
(S
a
)
Effective operating distance
(S
r
)
Usable operating distance
(S
u
)
Repeated accuracy
(R)
Differential travel
(H)
(Hysteresis)
Ambient temperature
Operating
Storage
Humidity (non-condensing)
10 to 30 VDC
< 10%
≤
100 mA @ 50°C
< 10 mA
< 20 mA
< 1.5 V
< 2.0 V
Reverse polarity,
short-circuit, transients
1 kV
< 10 ms
500 Hz
2000 Hz
1000 Hz
2000 Hz
1000 Hz
1000 Hz
500 Hz
2000 Hz
1000 Hz
300 Hz
150 Hz
2000 Hz
1000 Hz
LED, yellow
0
≤
S
a
≤
0.81 x S
n
0.9 x S
n
≤
S
r
≤
1.1 x S
n
0.9 x S
r
≤
S
u
≤
1.1 x S
r
≤
5%
1 to 20% of sensing dist.
-25° to +70°C (-13° to +158°F)
-25° to +70°C (-13° to +158°F)
35 to 95% RH
Housing material
Body, Front
Backpart
Plug
Cable
Nuts
Connection
Cable
IA08
IA12, IA18
IA30
Plug
IA08
IA12, IA18, IA30
Cables for plug (-1)
Degree of protection
Weight
IA08FSFxx
IA08FSFxxM5
IA08FLFxx
IA08FLFxxM5
IA08FSNxx
IA08FSNxxM5
IA08FLNxx
IA08FLNxxM5
IA12FSFxx
IA12FSFxxM1
IA12FLFxx
IA12FLFxxM1
IA12FSNxx
IA12FSNxxM1
IA12FLNxx
IA12FLNxxM1
IA18FSFxx
IA18FSFxxM1
IA18FLFxx
IA18FLFxxM1
IA18FSNxx
IA18FSNxxM1
IA18FLNxx
IA18FLNxxM1
Stainless steel AISI 304
PA-66
PVC
Stainless steel
2 m, 3 x 0.15 mm
2
, Ø 3 mm,
Grey PVC
2 m, 3 x 0.15 mm
2
, Ø 4 mm,
Grey PVC
2 m, 3 x 0.50 mm
2
, Ø 5.8 mm,
Grey PVC
M8 x 1
M12 x 1
CONH1A/CONH1O series
IP 67
33 g
33 g
33 g
18 g
32 g
32 g
32 g
17 g
31 g
40 g
67 g
153 g
30 g
38 g
65 g
144 g
110 g
74 g
153 g
94 g
92 g
70 g
144 g
91 g
2
Specifications are subject to change without notice (09.11.12)

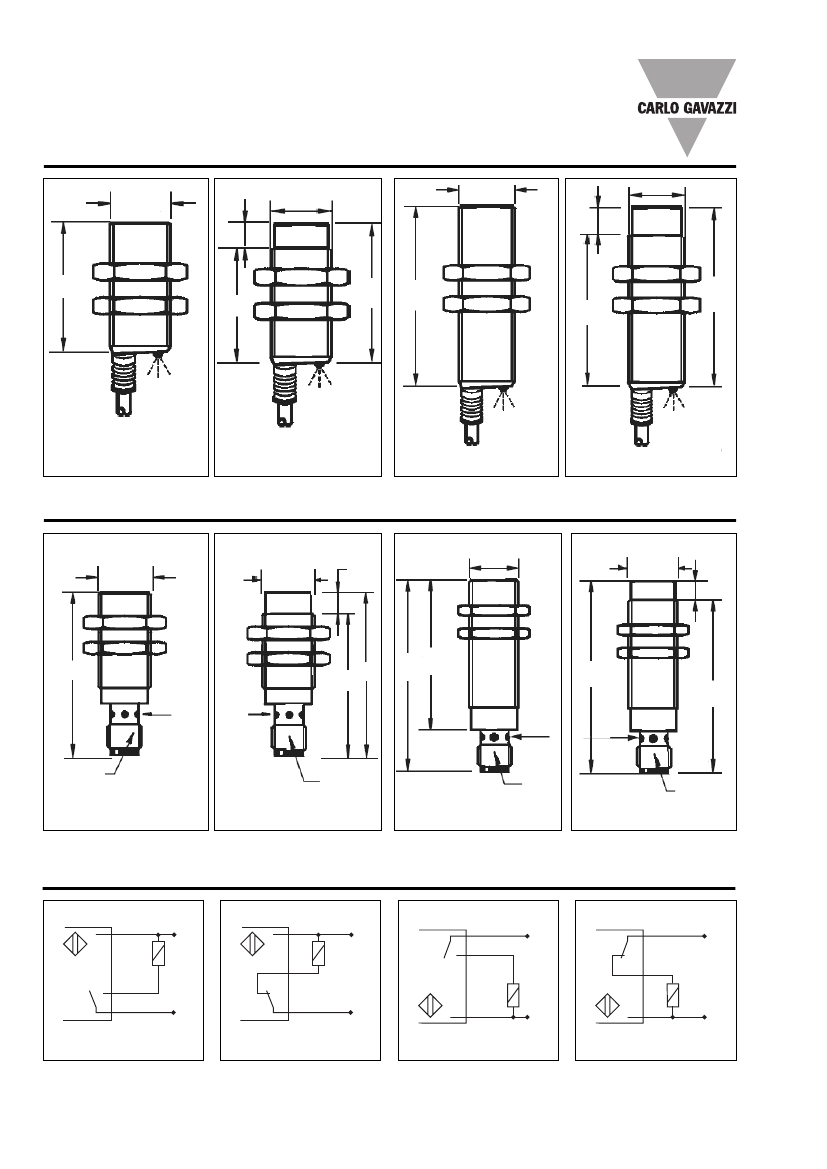

DC Metal Face
Installation Hints
Relief of cable strain
To avoid interference from inductive voltage/
current peaks, separate the prox. switch pow-
er cables from any other power cables, e.g.
motor, contactor or solenoid cables
Protection of the sensing face
Switch mounted on mobile carrier
Incorrect
Correct
The cable should not be pulled
A proximity switch should not serve as
mechanical stop
Any repetitive flexing of the
cable should be avoided
Delivery Contents
•
•
•
•
Inductive proximity switch IA..
2 stainless steel nuts
1 stainless steel washer
Packaging: plastic bag
Specifications are subject to change without notice (09.11.12)
5
