WL10-NF-4: DescriptionLIQUID LEAK SENSORS; CategoryThe sensor; File Size123KB，3 Pages; ManufacturerNidec Copal Electronics; Environmental Compliance

Download Datasheet Parametric Compare View All

WL10-NF-4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	WL10-NF-4	-	-	View	Buy Now

WL10-NF-4 Overview

LIQUID LEAK SENSORS

WL10-NF-4 Parametric

Parameter Name	Attribute value
sensor type	Battery leaking
Output type	NPN - open collector
Operating temperature	-10°C ~ 60°C（TA）

Preview

Download Datasheet

View All

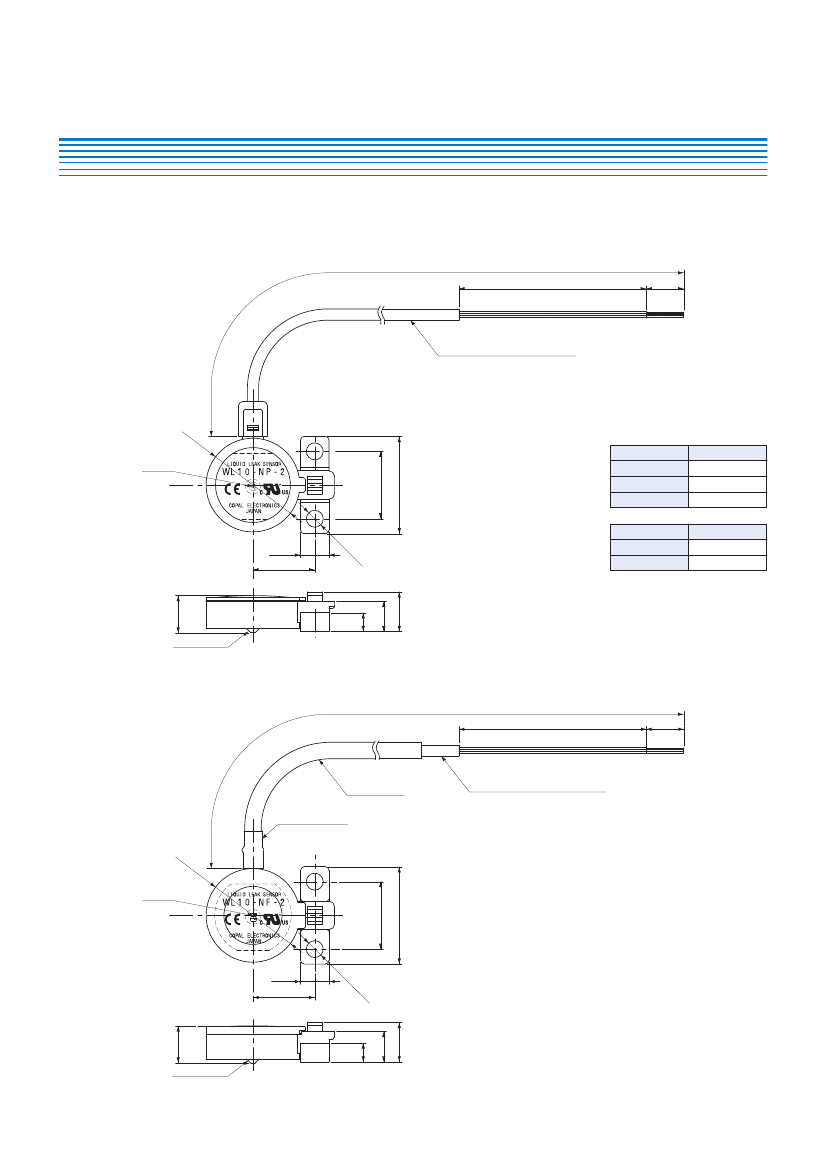

LIQUID LEAK SENSORS

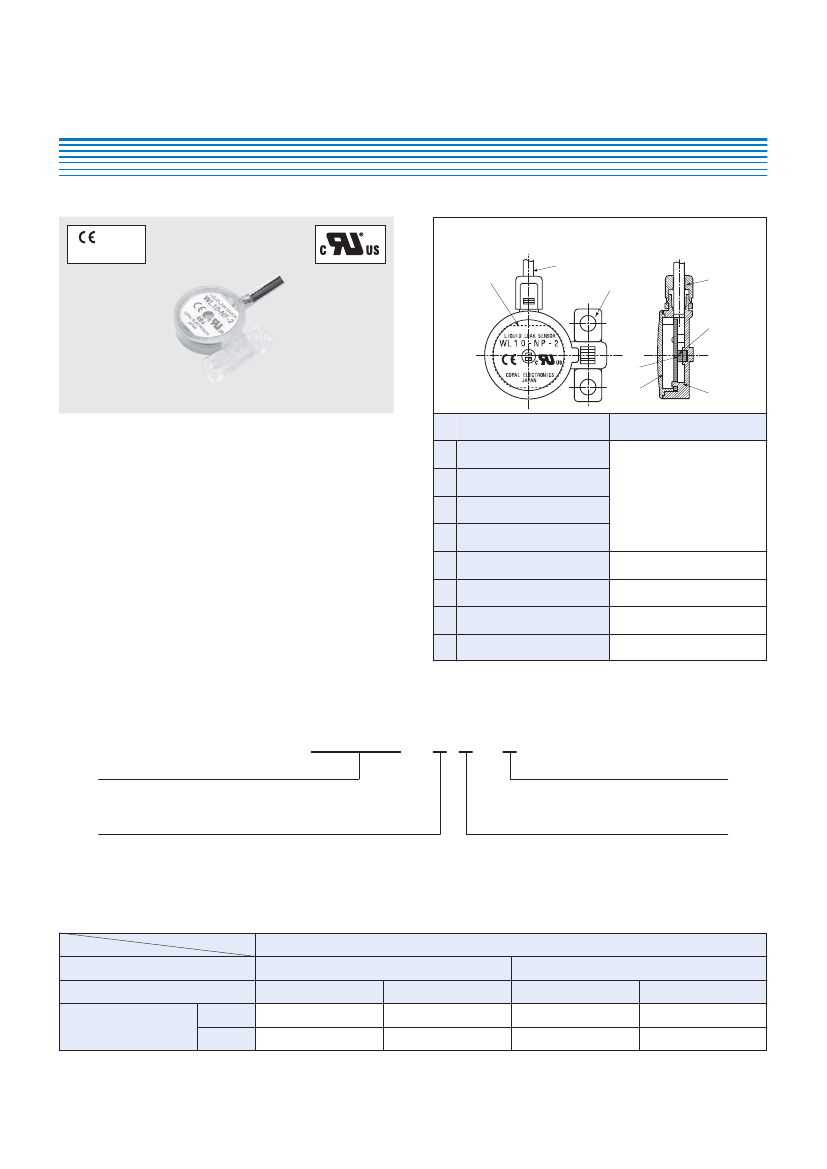

WL 10

INTERNAL STRUCTURE

[

PP type

]

6

8

3

4

7

5

2

Part name

marking

Compatible with

EMC directive

1

Material

■

FEATURES

Low effects at detection point by introduction of new

optical technology

Needless shade plate, High precision

Compact and Slim size (

φ

25 mm, t = 10 mm)

Lead-free Soldering

1

2

3

4

5

6

7

8

Housing

Cover

PP

Mounting plate

Sealing cap

P.C. board

Label

Photo-interrupter

Cable

Glass-Epoxy

Polyester film

—

PVC

■

MODEL NUMBER DESIGNATION

W L 1 0 - N P - 2

Series name

Cable length

2：2 m

（

Standard

）

4：4 m

（

Semi-Standard

）

Switch output interface

N

：

NPN open collector

P

：

PNP open collector

Material of housing

P：

PP

Polypropylene

）

（

F：

PFA

(Perfluoroalkoxy alkane)

■

LIST OF MODEL NUMBERS

Model number

Switch output interface

Material of housing

2m

Cable length

4m

PP

WL10-NP-2

A

WL10-NP-4

NPN

PFA

WL10-NF-2

A

WL10-NF-4

PP

WL10-PP-2

A

WL10-PP-4

PNP

PFA

WL10-PF-2

A

WL10-PF-4

※

Verify the above model numbers when placing orders.

The products marked

A

are manufactured upon receipt of order basis.

WL10-NF-4 Related Products

	WL10-NF-4	WL10-NP-4	WL10-NF-2	WL10-PF-4	WL10-NP-2	WL10-PF-2	WL10-PP-2	WL10-PP-4
Description	LIQUID LEAK SENSORS	LIQUID LEAK SENSORS	LIQUID LEAK SENSORS NPN OC	LIQUID LEAK SENSORS	LIQUID LEAK SENSORS NPN OC	LIQUID LEAK SENSORS PNP OC	LIQUID LEAK SENSORS PNP OC	LIQUID LEAK SENSORS
sensor type	Battery leaking	Battery leaking	Battery leaking	Battery leaking	Battery leaking	Battery leaking	Battery leaking	Battery leaking
Output type	NPN - open collector	NPN - open collector	NPN - open collector	PNP - open collector	NPN - open collector	PNP - open collector	PNP - open collector	PNP - open collector
Operating temperature	-10°C ~ 60°C（TA）	-10°C ~ 60°C（TA）	-10°C ~ 60°C（TA）	-10°C ~ 60°C（TA）	-10°C ~ 60°C（TA）	-10°C ~ 60°C（TA）	-10°C ~ 60°C（TA）	-10°C ~ 60°C（TA）
