3132-16-1-0500-011-1-TS datasheet, PDF

Datasheet> All Categories > Wire/cable> 3132-16-1-0500-011-1-TS

3132-16-1-0500-011-1-TS: DescriptionHOOK-UP STRND 16AWG GRN/YEL 500'; CategoryWire/cable; File Size148KB，1 Pages; ManufacturerCNC Tech; Environmental Compliance

Download Datasheet Parametric Compare View All

3132-16-1-0500-011-1-TS Overview

HOOK-UP STRND 16AWG GRN/YEL 500'

3132-16-1-0500-011-1-TS Parametric

Parameter Name	Attribute value
Cable type	electronic wire
Wire gauge	16 AWG
Number of wire strands	26/0.0100"
conductor material	Copper, tin plated
Sheath (insulation) material	silicone rubber
Sheath (insulation) diameter	0.091"（2.31mm）
Sheath (insulation) thickness	0.015"（0.38mm）
length	500.0'（152.4m）
Voltage	300V
Operating temperature	-30°C ~ 150°C
Casing color	green,yellow
grade	UL type 3132
characteristic	High Temperature, Oil Resistant

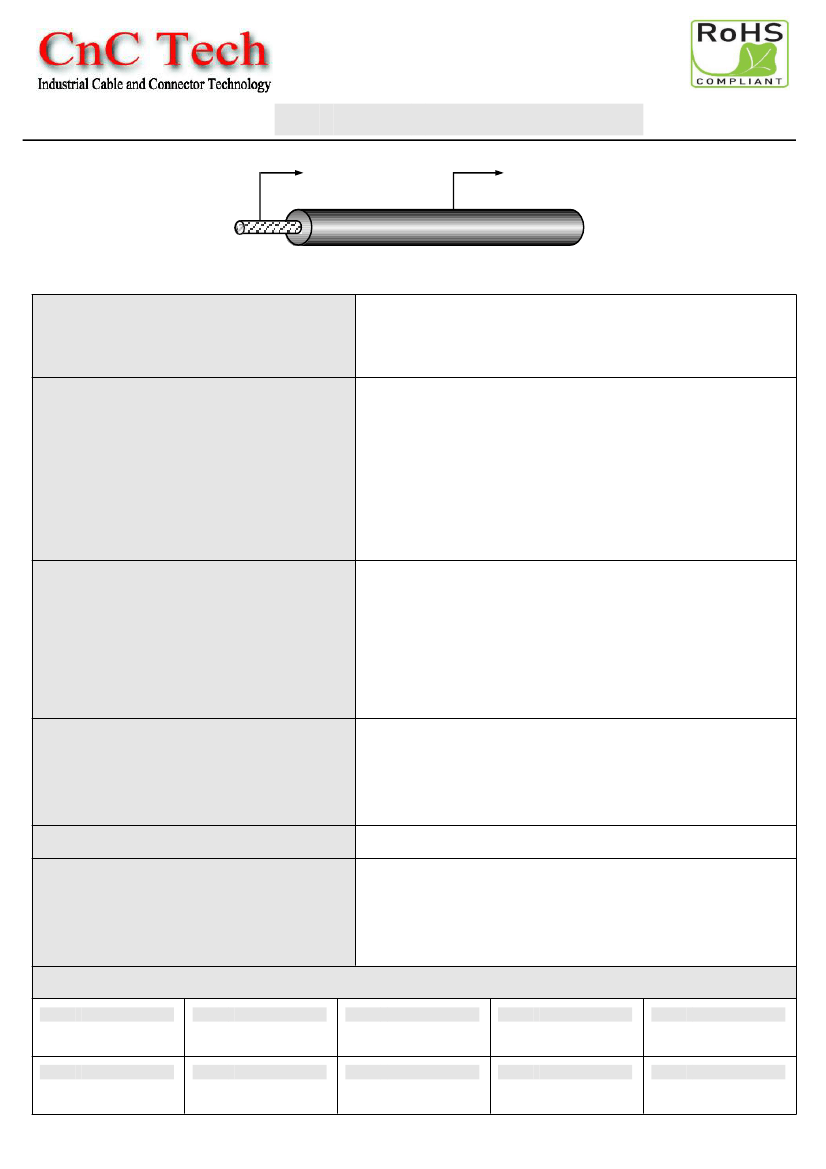

Preview

Download Datasheet

View All

P/N 3132-16-1-0500-0XX-1-TS

(Conductor: Tinned strands)

(Insulation: Silicone Rubber)

UL3132 -

Silicone Rubber Wire 150°C 300V

(16 AWG)

CONSTRUCTION:

Tinned Strands, copper conductor, 26/0.254mm strands.

Overall Diameter = 2.30mm ± 0.15mm

Insulation Thickness: 0.39mm

DUAL-RATED AWM: Can be used in USA and Canada

UL Subject 758 UL FILE NO:E108485

CSA Standard CSA FILE NO:LL84687

Printed Markings:

“

AWM 3132 150℃ 300V E108485-S 18AWG REIHSING CSA I A

150℃ 300V LL84687 18AWG FT2 L F

”

CERTIFICATION & APPROVALS:

Passes CSA FT2 Flame Test

PHYSICAL

ELECTRICAL PROPERTIES:

Rated Temperature: 150

℃

~ -30

℃

Rated Voltage: 300V

Insulation Potential Strength: 2000 VAC/min

High flexibility: Soft silicone rubber material.

Maximum Conductor Resistance: 15.6Ω/km

Resistant to: Oil, extremes of hot & cold, flexing.

Silicone rubber wire, has high temperature resistance and

high flexibility in confined spaces. Suitable for use in whole

sealed cooking appliances, lighting equipment, internal

combustion engine and mercury switches.

500ft per reel.

Conforms to all current RoHS directives as laid out in EU

Directive 2011/65/EC

Current SGS reports for this wire are available upon

request.

P/N's & COLORS

3132-16-1-0500-001-1-TS

3132-16-1-0500-002-1-TS

3132-16-1-0500-003-1-TS

3132-16-1-0500-004-1-TS

3132-16-1-0500-005-1-TS

APPLICATIONS:

PACKAGING:

ENVIRONMENTAL APPROVALS:

BLACK

3132-16-1-0500-006-1-TS

WHITE

3132-16-1-0500-007-1-TS

YELLOW

3132-16-1-0500-008-1-TS

RED

3132-16-1-0500-010-1-TS

BLUE

3132-16-1-0500-011-1-TS

BROWN

GREEN

ORANGE

VIOLET

GREEN + YELLOW

3132-16-1-0500-011-1-TS Related Products

	3132-16-1-0500-011-1-TS	3132-16-1-0500-001-1-TS	3132-16-1-0500-002-1-TS	3132-16-1-0500-003-1-TS	3132-16-1-0500-004-1-TS	3132-16-1-0500-005-1-TS	3132-16-1-0500-006-1-TS	3132-16-1-0500-007-1-TS	3132-16-1-0500-008-1-TS	3132-16-1-0500-010-1-TS
Description	HOOK-UP STRND 16AWG GRN/YEL 500'	HOOK-UP STRND 16AWG BLACK 500'	HOOK-UP STRND 16AWG WHITE 500'	HOOK-UP STRND 16AWG YELLOW 500'	HOOK-UP STRND 16AWG RED 500'	HOOK-UP STRND 16AWG BLUE 500'	HOOK-UP STRND 16AWG BROWN 500'	HOOK-UP STRND 16AWG GREEN 500'	HOOK-UP STRND 16AWG ORANGE 500'	HOOK-UP STRND 16AWG VIOLET 500'
Cable type	electronic wire	electronic wire	electronic wire	electronic wire	electronic wire	electronic wire	electronic wire	electronic wire	electronic wire	electronic wire
Wire gauge	16 AWG	16 AWG	16 AWG	16 AWG	16 AWG	16 AWG	16 AWG	16 AWG	16 AWG	16 AWG
Number of wire strands	26/0.0100"	26/0.0100"	26/0.0100"	26/0.0100"	26/0.0100"	26/0.0100"	26/0.0100"	26/0.0100"	26/0.0100"	26/0.0100"
conductor material	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated
Sheath (insulation) material	silicone rubber	silicone rubber	silicone rubber	silicone rubber	silicone rubber	silicone rubber	silicone rubber	silicone rubber	silicone rubber	silicone rubber
Sheath (insulation) diameter	0.091"（2.31mm）	0.091"（2.31mm）	0.091"（2.31mm）	0.091"（2.31mm）	0.091"（2.31mm）	0.091"（2.31mm）	0.091"（2.31mm）	0.091"（2.31mm）	0.091"（2.31mm）	0.091"（2.31mm）
Sheath (insulation) thickness	0.015"（0.38mm）	0.015"（0.38mm）	0.015"（0.38mm）	0.015"（0.38mm）	0.015"（0.38mm）	0.015"（0.38mm）	0.015"（0.38mm）	0.015"（0.38mm）	0.015"（0.38mm）	0.015"（0.38mm）
length	500.0'（152.4m）	500.0'（152.4m）	500.0'（152.4m）	500.0'（152.4m）	500.0'（152.4m）	500.0'（152.4m）	500.0'（152.4m）	500.0'（152.4m）	500.0'（152.4m）	500.0'（152.4m）
Voltage	300V	300V	300V	300V	300V	300V	300V	300V	300V	300V
Operating temperature	-30°C ~ 150°C	-30°C ~ 150°C	-30°C ~ 150°C	-30°C ~ 150°C	-30°C ~ 150°C	-30°C ~ 150°C	-30°C ~ 150°C	-30°C ~ 150°C	-30°C ~ 150°C	-30°C ~ 150°C
Casing color	green,yellow	black	White	yellow	red	blue	brown	green	orange color	Purple
grade	UL type 3132	UL type 3132	UL type 3132	UL type 3132	UL type 3132	UL type 3132	UL type 3132	UL type 3132	UL type 3132	UL type 3132
characteristic	High Temperature, Oil Resistant	High Temperature, Oil Resistant	High Temperature, Oil Resistant	High Temperature, Oil Resistant	High Temperature, Oil Resistant	High Temperature, Oil Resistant	High Temperature, Oil Resistant	High Temperature, Oil Resistant	High Temperature, Oil Resistant	High Temperature, Oil Resistant
