DTTi5516
Single module demodulator and decoder IC
for digital video set-top boxes
DATA BRIEF
Description
.
The DTTi5516 is an integrated demodulator/
decoder solution for digital terrestrial receivers for
compressed video, sound and data services.
A COFDM (coded orthogonal frequency division
multiplex) demodulator performs IF to MPEG-2
block processing of OFDM carriers.
The demodulated stream is then processed by
video and audio decoders using standard Omega
technology.
The DTTi5516 provides a cost-effective solution
for a digital video set-top boxes using a 2-layer
PCBs and single device. It also has lower power
requirements than separate demodulator and
decoder ICs.
The DTTi5516 contains all of the most commonly
used descramblers, and thus allows a single platform
to be developed to cover the entire mainstream
set-top box market.

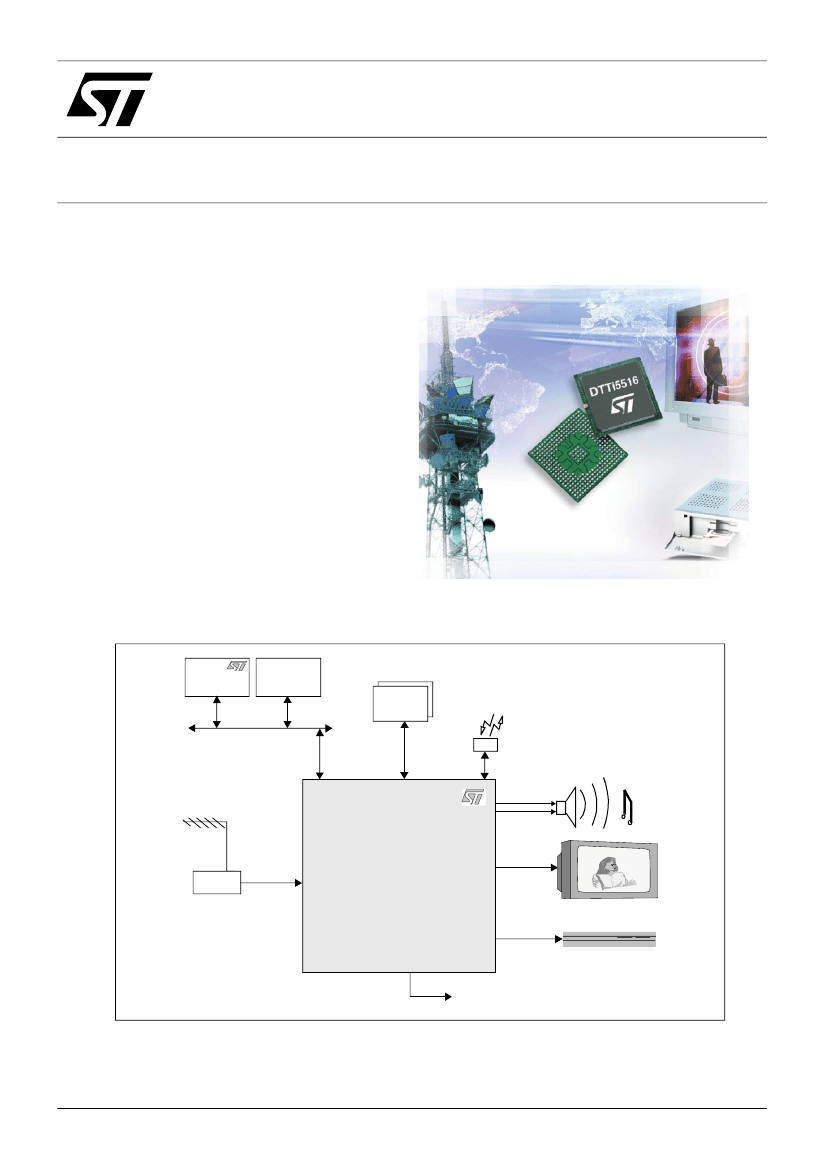

Integrated demodulator/decoder solution for digital terrestrial set-top box and TV receivers
SDRAM
(optional)
SDRAM
Flash
IR
Tx/Rx
Tuner
DTTi5516
RGB
CVBS/YC
VCR
RS232
March 2004
1/2
DTTi5516
Features
■
Enhanced ST20 32-bit VL-RISC CPU
●
■
On-chip peripherals
●
●
●
●
●
●
●
●
●
●
180 MHz, 8 Kbyte instruction cache, 8 Kbyte data
cache and 8 Kbyte SRAM
121 MHz shared memory interface,16-bit wide
SDRAM interface, 64 and 128 Mbit support
SRAM, SDRAM, SFlash support
Integrated DES-ECB, DVB and ICAM descramblers
Support for low cost DVB-CI interface
Greater than 2x decoding speed
Trick modes including smooth fast-forward and rewind
Fully programmable horizontal and vertical SRCs
5 display planes
2, 4 and 8 bpp CLUT graphics, 256 x 30 bits (AYCbCr)
CLUT entries
RGB16 support
MPEG-1 layers I/II decoding (MP3 option)
Dolby® Digital 5.1 decoding downmixed to 2-channels
Dolby Pro Logic® compatible output
PCM mixing and sample rate conversion
SRS/TruSurround® virtual surround sound
■
Memory interfaces
●
●
■
Programmable transport interfaces (PTI)
●
●
■
MPEG2 MP@ML video decoder
●
●
●
5 ASCs (UARTs) with Tx and Rx FIFOs
6 x 8-bit banks of parallel I/O
2 smartcard interfaces and clock generators
2 SSCs for I²C master/slave interface
4 PWM channels
Teletext serializer and DMA module
Multi-channel infrared transmitter/receiver
Modem analog front-end interface
IEEE1284 interface
Low-power / RTC / watchdog controller
Single frequency network (SFN) compatible
Adjacent channel interference canceller (ACI)
Excellent static and dynamic (Doppler) performance
Automatic guard interval and mode detection
Accepts 6, 7 and 8 MHz channel bandwidths
Lock indicators and general-purpose I/O pins
Supports 2K, 8K modes
Supports QPSK, 16, 64 QAM constellations
1/4, 1/8, 1/16, 1/32 guard intervals
Supports hierarchical and non-hierarchical modes
■
DVB-T decoding and NorDig II compliant
●
●
●
●
●
●
●
●
●
●
■
Graphics/display
●
●
●
■
Audio subsystem
●
●
●
●
●
Ordering information
Salestype
STi5516-DVB
DTTi5516-Brick
DTTi5516xWC
Description
Reference software drivers
Development platform
IC reference
