Spec Sheet
Multilayer Ceramic Capacitors (High dielectric type)
JMK021BJ222KK-W
Features
Item Summary
2200pF±10%, 6.3V,
X5R, 008004/0201 (EIA/JIS)
Lifecycle Stage
Mass Production
Standard packaging quantity (minimum)
Taping Embossed 50000pcs
Products characteristics table
Capacitance
Case Size (EIA/JIS)
Rated Voltage
tanδ (max)
Temperature Characteristic (EIA)
Operating Temp. Range (EIA)
High Temperature Loading
(% Rated Voltage)
Insulation Resistance (min)
RoHS2 Compliance (10 subst.)
REACH Compliance (181 subst.)
Halogen Free
Soldering
10 MΩ·μF
Yes
Yes
Yes
Reflow
2200 pF ± 10 %
008004/0201
6.3 V
10 %
X5R
-55 to +85 ℃
150 %
External Dimensions
Dimension L
Dimension W
Dimension T
Dimension e
0.25 ±0.013 mm
0.125 ±0.013 mm
0.125 ±0.013 mm
0.0675 ±0.0275 mm
2018.10.02
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
http://www.ty-top.com
Powered by TCPDF (www.tcpdf.org)
Multi Layer Ceramic Capacitor
○JMK021BJ222KK
6.3V 0201 X5R 2200pF +/- 10% t=0.138mmMAX
6.3V 008004 X5R 2200pF +/- 10% t=0.0054inchMAX

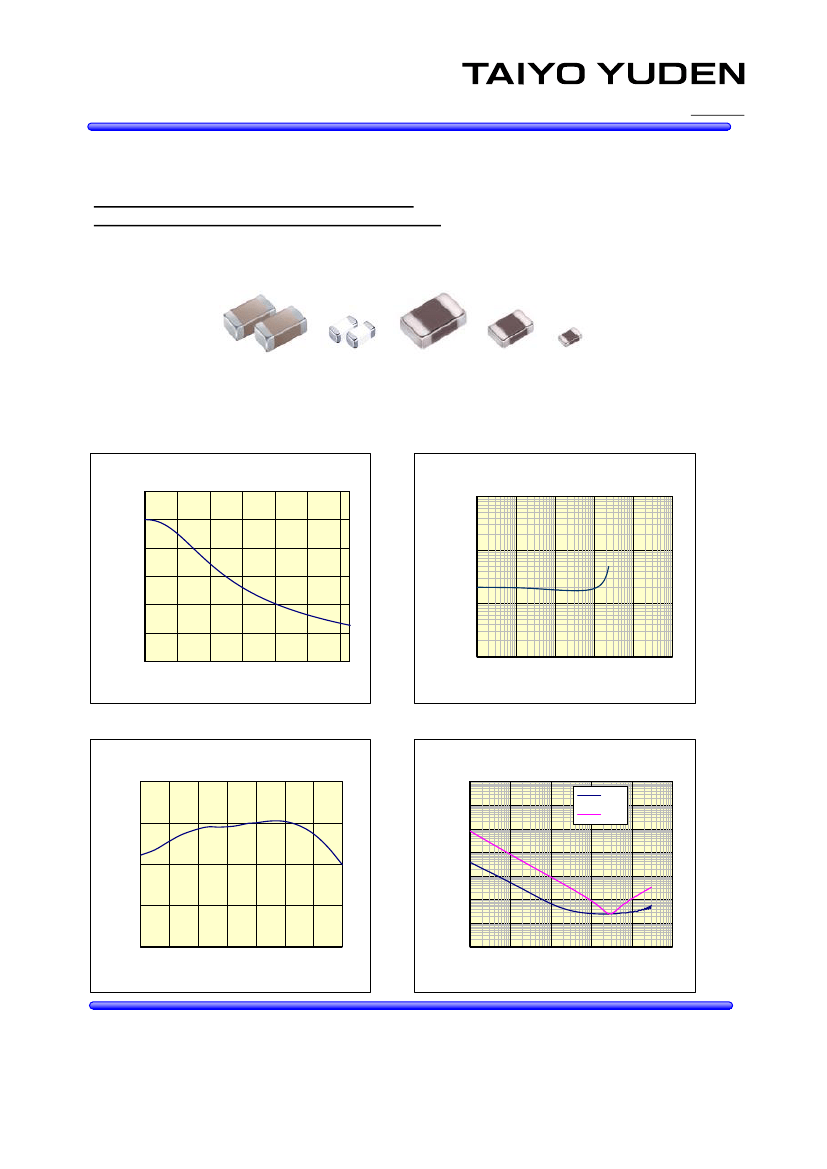

-Electrical Characteristics Data-
17S6C09
RoHS compliance product
20
0
JMK021BJ222KK
DC Bias Char.
100000
JMK021BJ222KK
Capacitance Freq.
Capacitance[pF]
-20
10000
dC/C[%]
-40
-60
-80
1000
-100
0
1
2
3
4
5
DC Bias Voltage[V]
6
100
0.1
1
10
100
1000
10000
Frequency[MHz]
JMK021BJ222KK
Capacitance Temp.
10
100000
10000
0
1000
JMK021BJ222KK
Impedance,ESR Freq.
ESR
Z
Z,ESR[OHM]
-55
-35
-15
5
25 45 65
Temperature[degreeC]
85
dC/C[%]
100
-10
10
1
0.1
-20
-30
0.01
0.1
1
10
100
1000
Frequency[MHz]
10000
部品特性は設½環境、測定条件等により変化する場合があります。本データをご½用される際は実際の½品特性に対する参考
データとしてご活用ください。また、本データは予告無く½加½削除及び変更を行う場合があります。ご注文の際は、納入仕様書の
ご確認をお願いします。
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
