SDUR1520
Technical Data
Data Sheet N1085 Rev. A
SDUR1520 ULTRAFAST RECTIFIER
Applications
Antiparallel diode for high frequency
switching devices
Anti saturation diode
Snubber diode
Free wheeling diode in converters and
motor control circuits
Rectifiers in switch mode power supplies (SMPS)
Inductive heating and melting
Uninterruptible power supplies (UPS)
Ultrasonic cleaners and welders
TO-220AC

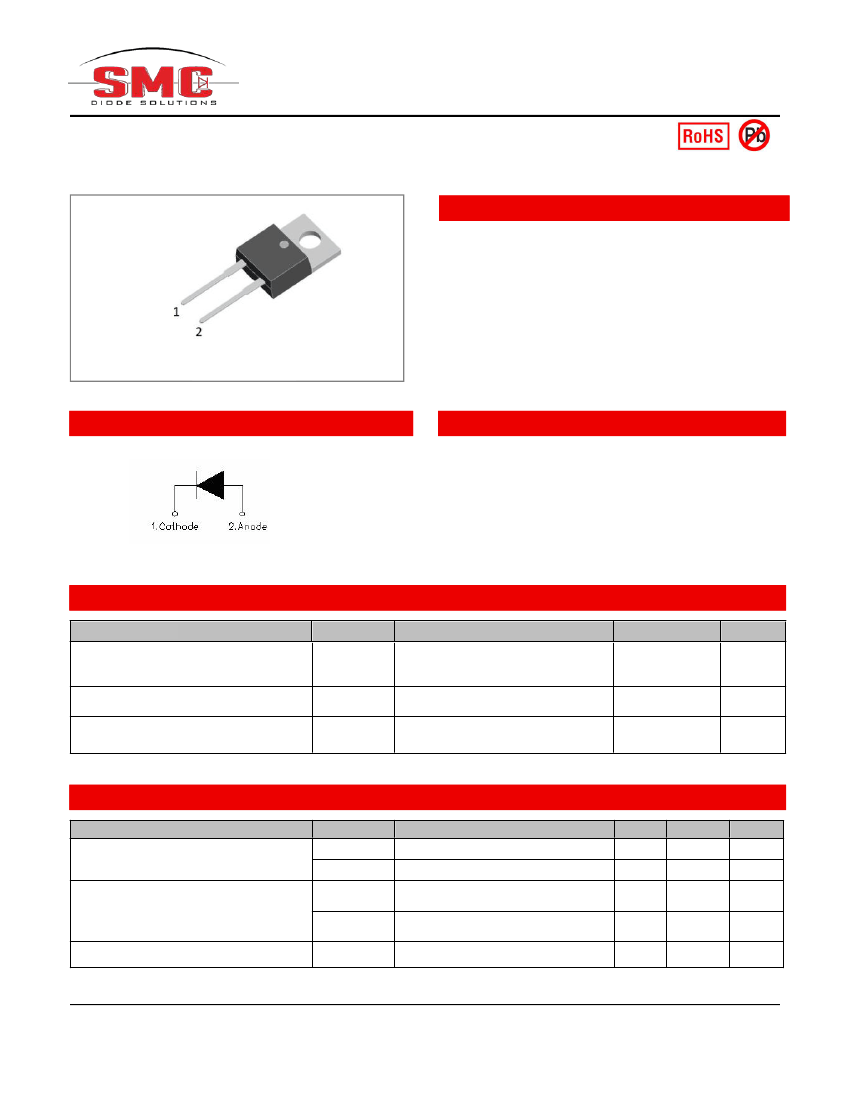

Circuit Diagram
Features
Ultra-Fast switching
High current capability
Low reverse leakage current
High surge current capability
This is a Pb − free device
All SMC parts are traceable to the wafer lot
Additional testing can be offered upon request
Maximum Ratings:
Characteristics
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
Average Rectified Forward Current
Peak One Cycle Non-Repetitive Surge
Current
Symbol
V
RRM
V
RWM
V
R
I
F (AV)
I
FSM
Condition
-
50% duty cycle @Tc=75°C,
rectangular wave form
8.3ms, Half Sine pulse
Max.
200
15
110
Units
V
A
A
Electrical Characteristics:
Characteristics
Forward Voltage Drop*
Reverse Current*
Symbol
V
F1
V
F2
I
R1
I
R2
@15A, Pulse, T
J
= 25C
Condition
Typ.
0.91
-
0.03
-
31
Max.
1.05
0.85
10
500
35
Units
V
V
μA
uA
ns
@15A, Pulse, T
J
= 150C
@V
R
= rated V
R
T
J
= 25C
@V
R
= rated V
R
T
J
= 150C
I
F
=500mA, I
R
=1A,and I
rm
=250mA
Reverse Recovery Time
* Pulse width < 300 µs, duty cycle < 2%
t
rr
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
SDUR1520
Technical Data
Data Sheet N1085 Rev. A
Thermal-Mechanical Specifications:
Characteristics
Junction Temperature
Storage Temperature
Typical Thermal Resistance Junction to
Case
Approximate Weight
Case Style
Symbol
T
J
T
stg
R
JC
wt
Condition
-
-
DC operation
-
TO-220AC
Specification
-55 to +150
-55 to +150
1.6
1.6
Units
C
C
C/W
g

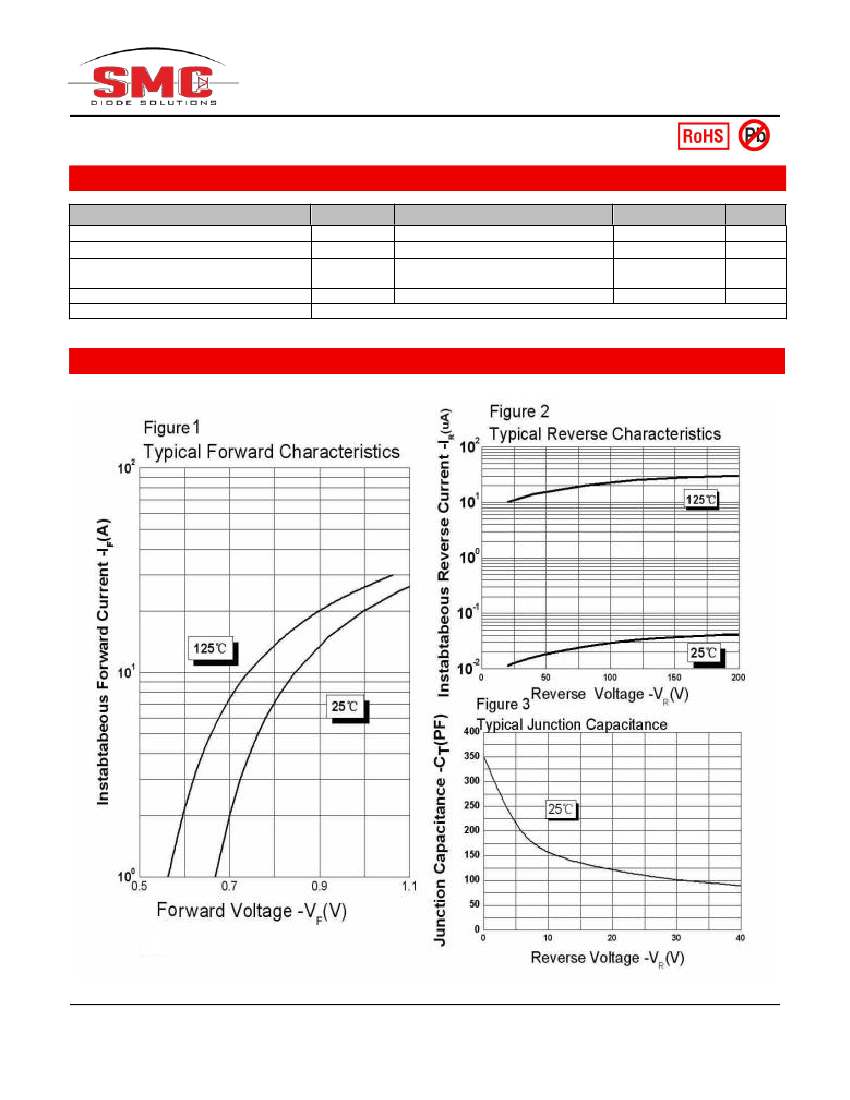

Ratings and Characteristics Curves
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
SDUR1520
Technical Data
Data Sheet N1085 Rev. A

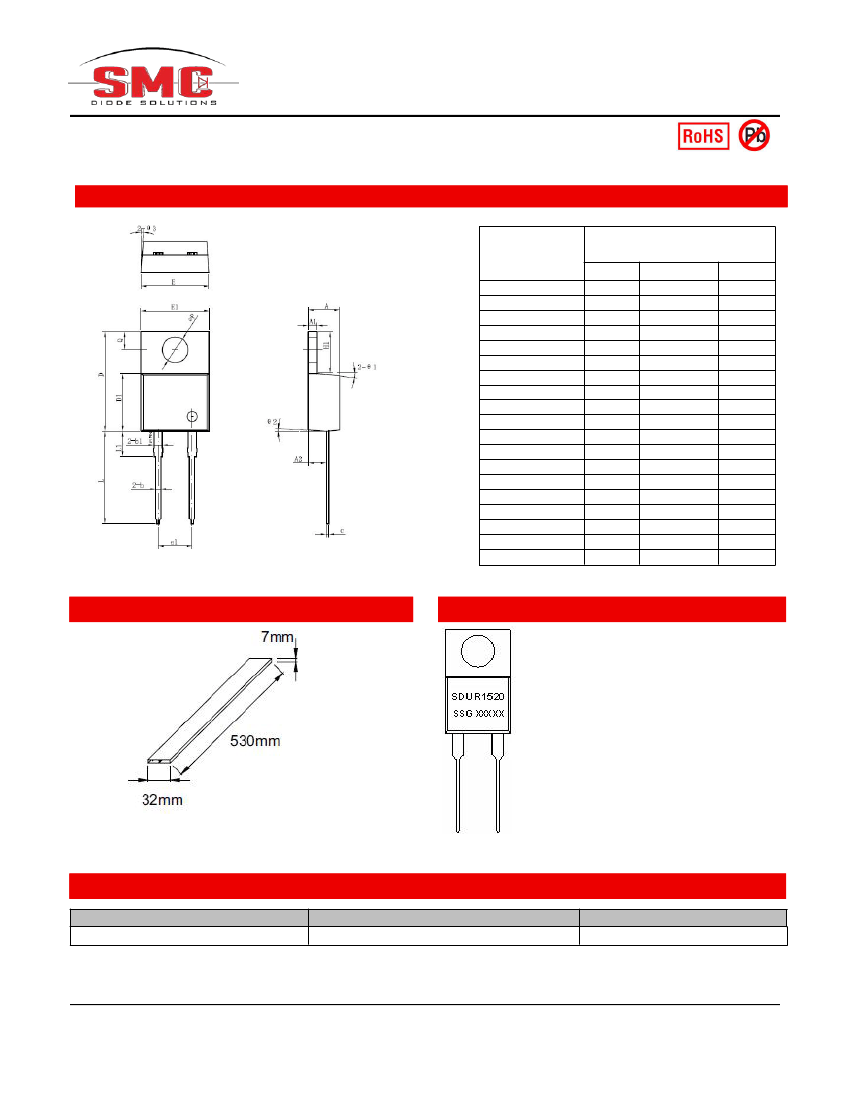

Mechanical Dimensions TO-220AC
Symbol
A
A1
A2
b
b1
c
D
D1
E
E1
e1
H1
L
L1
ΦP
Q
Θ1
Θ2
Θ3
Dimensions in millimeters
Min.
4.47
1.17
2.52
0.71
1.17
0.31
14.64
8.50
10.01
9.98
4.98
6.04
13.00
3.56
3.74
2.54
Typical
4.70
1.27
2.69
0.81
1.27
0.38
14.94
8.07
10.16
10.18
5.08
6.24
13.86
3.80
3.84
2.74
5°
4°
4°
Max.
4.85
1.37
2.89
0.96
1.37
0.61
15.24
8.90
10.31
10.38
5.18
6.44
14.08
3.96
4.04
2.94
Tube Specification
Marking Diagram
Where XXXXX is YYWWL
SDUR
15
20
SSG
YY
WW
L
= Device Type
= Forward Current (15A)
= Reverse Voltage(200V)
= SSG
= Year
= Week
= Lot Number
Cautions：Molding
resin
Epoxy resin UL:94V-0
Ordering Information
Device
SDUR1520
TO-220AC (Pb-Free)
Package
50 pcs/ tube
Shipping
For information on tape and reel specifications, including part orientation and tape sizes, please refer to our tape and reel packaging
Specification.
