HWS600L-36/BAT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> HWS600L-36/BAT

HWS600L-36/BAT: DescriptionAC/DC CONVERTER 36V 600W; CategoryPower/power management; File Size240KB，2 Pages; ManufacturerTDK-LAMBDA; Environmental Compliance

Download Datasheet Parametric Compare View All

HWS600L-36/BAT Overview

AC/DC CONVERTER 36V 600W

HWS600L-36/BAT Parametric

Parameter Name	Attribute value
type	closed
battery chemistry	lead acid
Battery size	-
Number of batteries	1
Voltage - nominal	36V
Charging current - maximum	18A
Charging time	-
Voltage - input	85 ~ 265 VAC
Power - Max	600W
size/dimensions	7.48" long x 2.40" wide x 4.72" high (190.00mm x 61.00mm x 119.90mm)
Installation type	Desktop
Terminal type	-
Operating temperature	-20°C ~ 74°C
Approval	CE
characteristic	Adjustable output, DC input capability, load sharing, remote switching, telemetry, standby output, universal input
weight	1600g

Preview

Download Datasheet

View All

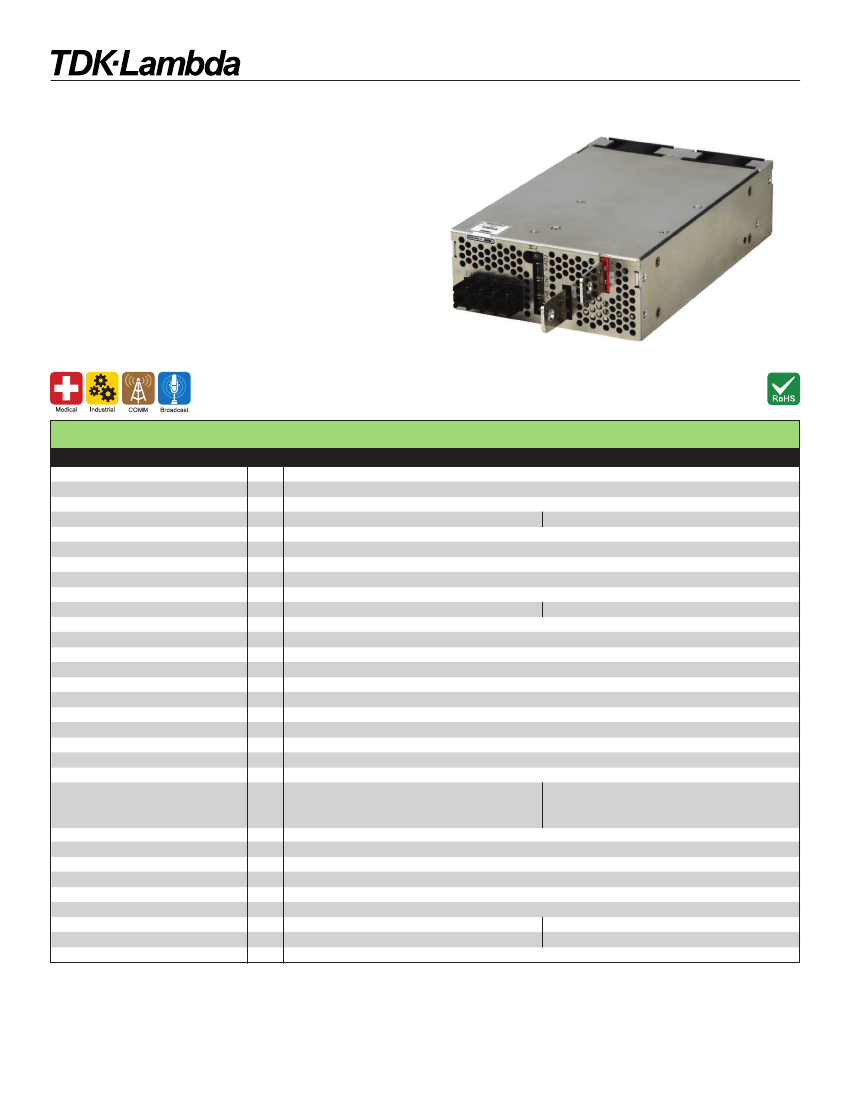

HWS600/1000L BAT Series

36V & 60V Battery Charger Power Supplies

Features

Low Proﬁle

Active Power Factor Correction

Universal Input (85 - 265VAC)

Low acoustical noise

Medical certiﬁcations (HWS1000L)

Adjustable current limit

Constant current style limit

Key Market Segments & Applications

Speciﬁcations

Model

Input Voltage range

Inrush Current (115 / 230VAC)

Power Factor

Input Current (100/200VAC)

Temperature Coefﬁcient

Constant Current Set Accuracy

Overvoltage Protection

Overtemperature Protection

Hold Up Time (Typ)

Leakage Current (max)

Remote Sense

Parallel Connection

Remote On/Off (CNT)

Voltage Programming

DC Good & Fan Fail Signal

Auxiliary Output

LED Indicator

Operating Temperature

Storage Temperature

Humidity (non condensing)

Cooling

Withstand Voltage

(One minute)

Isolation Resistance

Vibration (non operating)

Shock

Immunity

Safety Agency Certiﬁcations

Conducted & Radiated EMI

Weight (Typ)

Size (WxHxD)

Warranty

°C

yrs

HWS600L

HWS1000L

85 - 265VAC (47 - 63Hz) or 120 - 350VDC

20 / 40

Meets EN61000-3-2 Class A

7.1 / 3.6

12 / 6

<0.02%/°C

±10%

36V: 45 - 52.2V; 60V: 69 - 81V

Yes, cycle AC or Remote On/Off to reset

20ms at 115/230VAC

<0.75mA

100uA at 115VAC 60Hz

(1)

Yes

Yes, 1-6V adjusts output (see manual for limits)

Yes, open collector output

12V 0.1A

Green LED = On

-40°C start up. -20 to 74°C, derating linearly to 50% load above 50°C

-40 to +85°C

20 - 90% RH operating, 10 - 95%RH non operating

Variable speed internal fan

Input to Ground 2kVAC, Input to

Output 3kVAC, Output to Ground

Output 4kVAC, Output to Ground,

500VAC, Output to CNT 100VA

500VAC, Output to CNT 100VAC

>50M at 25°C & 70%RH, Output to Ground 500VDC

MIL-STD-810F 514.5 Cat. 4, 10

MIL-STD-810F 516.5 Procedure I, VI

EN61000-4-2 (lvl2, 3), -3 (lvl 3), -4 lvl (3), -5 (lvl 3, 4), -6 (lvl 3), -8 (lvl 4), -11

UL, CSA, EN60950-1, UL, CSA, EN60601-1 (1000W only), EN50178, CE Mark

EN55011 / EN55022-B, FCC Class B

1600

2300

2.4 x 4.72 x 7.48”

2.4 x 5.91 x 9.45”

Five Years

(1) 300uA worse case, 265VAC 63Hz

1-800-526-2324 • www.us.tdk-lambda.com/lp/

100

Disclaimer: us.tdk-lambda.com/lp/legal.htm

HWS600L-36/BAT Related Products

	HWS600L-36/BAT	HWS1000L-36/BAT	HWS1000L-60/BAT
Description	AC/DC CONVERTER 36V 600W	AC/DC CONVERTER 36V 1000W	AC/DC CONVERTER 60V 1000W
type	closed	closed	closed
battery chemistry	lead acid	lead acid	lead acid
Number of batteries	1	1	1
Voltage - nominal	36V	36V	60V
Charging current - maximum	18A	29A	17A
Voltage - input	85 ~ 265 VAC	85 ~ 265 VAC	85 ~ 265 VAC
Power - Max	600W	1000W	1000W
size/dimensions	7.48" long x 2.40" wide x 4.72" high (190.00mm x 61.00mm x 119.90mm)	9.45" long x 5.91" wide x 2.40" high (240.00mm x 150.00mm x 61.00mm)	9.45" long x 5.91" wide x 2.40" high (240.00mm x 150.00mm x 61.00mm)
Installation type	Desktop	Desktop	Desktop
Operating temperature	-20°C ~ 74°C	-20°C ~ 74°C	-20°C ~ 74°C
Approval	CE	CE	CE
characteristic	Adjustable output, DC input capability, load sharing, remote switching, telemetry, standby output, universal input	Adjustable output, DC input capability, load sharing, remote switching, telemetry, universal input	Adjustable output, DC input capability, load sharing, remote switching, telemetry, universal input
weight	1600g	2300g	2300g
