HMC448LC3B
v03.0514
SMT GaAs MMIC x2 ACTIVE FREQUENCY
MULTIPLIER, 20 - 25 GHz OUTPUT
Typical Applications
The HMC448LC3B is suitable for:
Features
Output Power: +11 dBm
Wide Input Power Range: -4 to +6 dBm
Fo, 3Fo Isolation: >20 dBc @ Fout= 20 GHz
100 KHz SSB Phase Noise: -135 dBc/Hz
Single Supply: +5V@ 48 mA
RoHS Compliant 3x3 mm SMT Package
FREQ. MULTIPLIERS - ACTIVE - SMT
• Clock Generation Applications:
SONET OC-192 & SDH STM-64
• Point-to-Point & VSAT Radios
• Test Instrumentation
• Military & Space

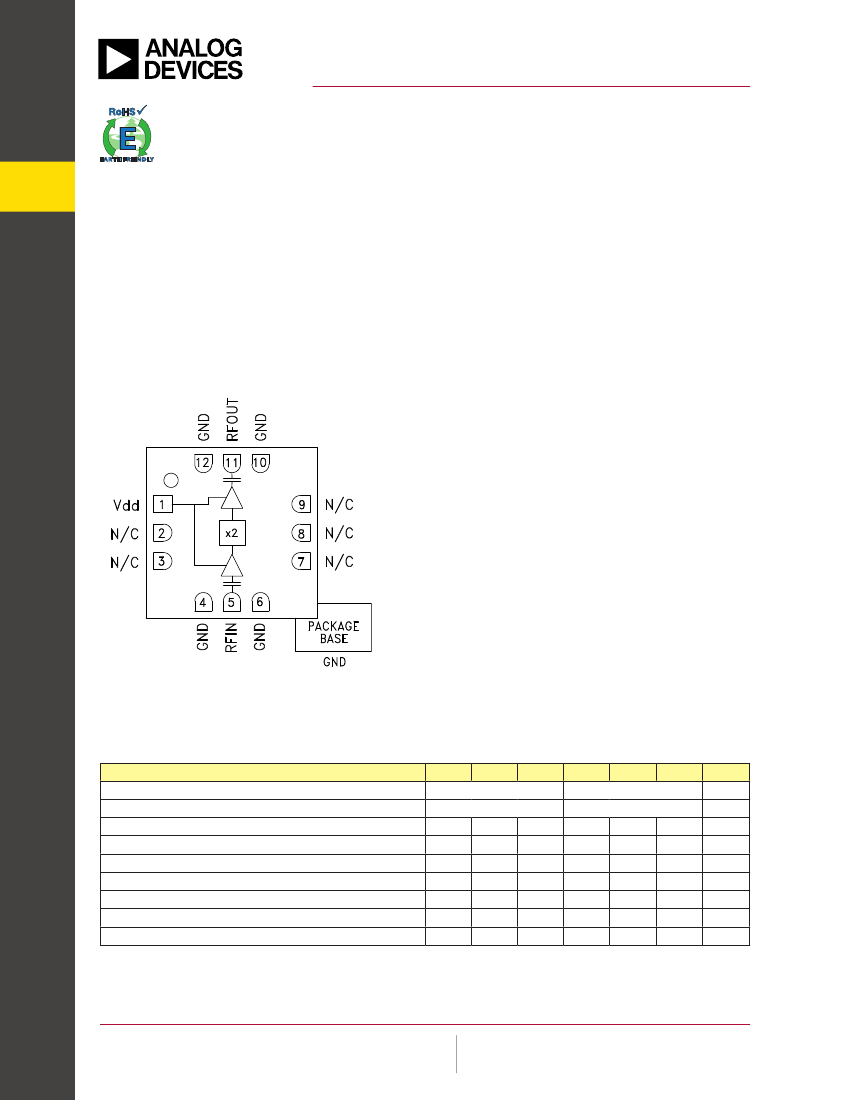

Functional Diagram
General Description
The HMC448LC3B is a x2 active broadband frequ-
ency multiplier utilizing GaAs PHEMT technology
in a leadless RoHS compliant SMT package. When
driven by a 0 dBm signal, the multiplier provides
+11 dBm typical output power from 22 to 25 GHz.
The Fo and 3Fo isolations are >20 dBc up to 22
GHz. This multi-rate frequency multiplier can
be used in the generation of a half rate clock for
40 Gbps systems or as part of a multiplier chain to
generate a full rate 40 Gbps clock. The HMC448LC3B
is also ideal for use in LO multiplier chains for Pt-to-Pt
& VSAT Radios yielding reduced parts count vs.
traditional approaches. The low additive SSB Phase
Noise of -135 dBc/Hz at 100 kHz offset helps maintain
good system noise performance. The HMC448LC3B
eliminates the need for wire bonding, allowing the use
of surface mount manufacturing techniques.
Electrical Specifications,
T
A
= +25° C, Vdd = +5V, 0 dBm Drive Level
Parameter
Frequency Range, Input
Frequency Range, Output
Output Power
Fo Isolation (with respect to output level)
3Fo Isolation (with respect to output level)
Input Return Loss
Output Return Loss
SSB Phase Noise (100 kHz Offset)
Supply Current (Idd)
5
Min.
Typ.
10 - 11
20 - 22
9
24
25
10
6
-135
48
7.5
Max.
Min.
Typ.
11 - 12.5
22 - 25
11
15
25
7
10
-135
48
Max.
Units
GHz
GHz
dBm
dBc
dBc
dB
dB
dBc/Hz
mA
1
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
For price, delivery, and
Drive,
orders: Analog Devices, Inc.,
For price, delivery and to place orders:
infringements of patents or
Corporation, 2 Elizabeth
to place
Chelmsford, MA 01824
responsibility is assumed by Analog Devices for its use, nor for any
Hittite Microwave
other
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
rights of third parties that may result from its use. Specifications subject to change without notice. No
Phone: 978-250-3343
Fax: 978-250-3373
Phone: 781-329-4700
www.hittite.com
Order On-line at
• Order online at www.analog.com
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Application Support: Phone: 1-800-ANALOG-D
Trademarks and registered trademarks are the property of their respective owners.
Application Support: Phone: 978-250-3343 or apps@hittite.com
HMC448LC3B
v03.0514
SMT GaAs MMIC x2 ACTIVE FREQUENCY
MULTIPLIER, 20 - 25 GHz OUTPUT

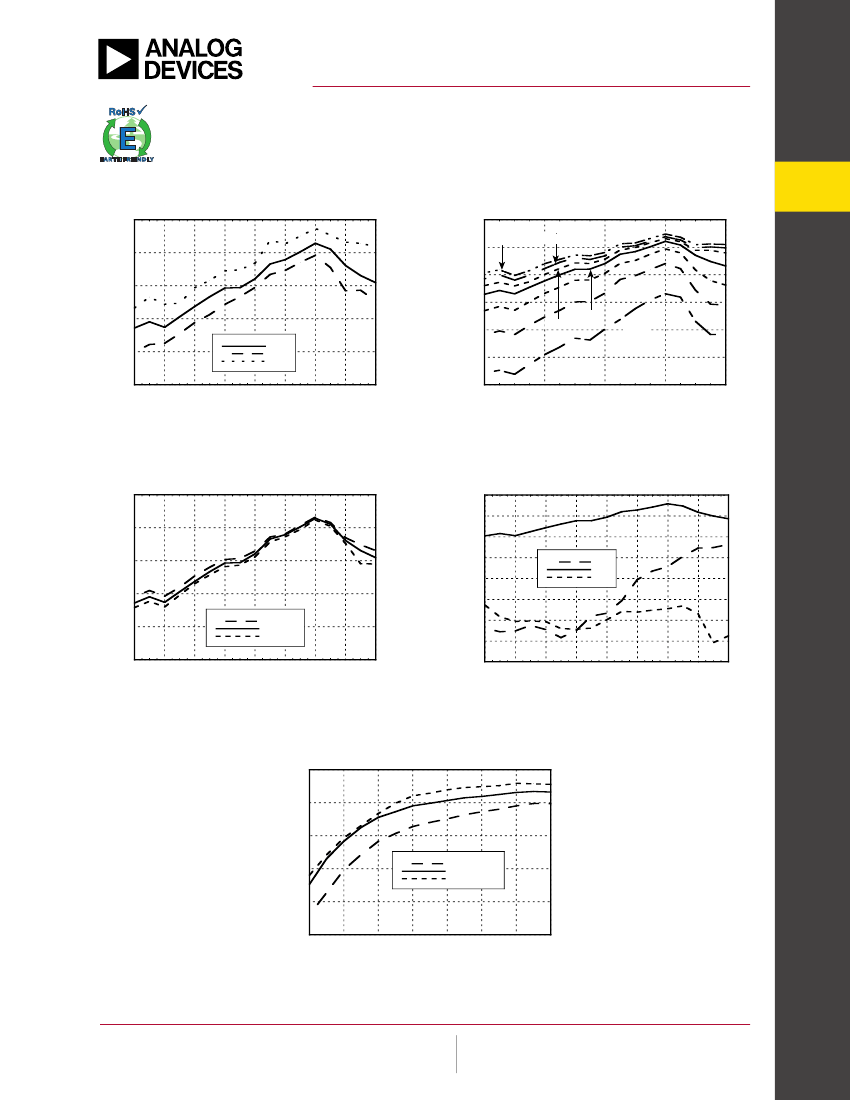

Output Power vs.
Temperature @ 0 dBm Drive Level
15
Output Power vs. Drive Level
16
12
8
-4 dBm
OUTPUT POWER (dBm)
9
OUTPUT POWER (dBm)
12
4
-2 dBm
0 dBm
+2 dBm
-6 dBm
6
+25C
+85C
-40C
0
-4
-8
3
0
18
19
20
21
22
23
24
25
26
OUTPUT FREQUENCY (GHz)
18
20
22
24
26
OUTPUT FREQUENCY (GHz)
Output Power vs.
Supply Voltage @ 0 dBm Drive Level
15
Isolation @ 0 dBm Drive Level
15
10
OUTPUT POWER (dBm)
OUTPUT POWER (dBm)
12
5
0
-5
-10
-15
-20
-25
Fo
2Fo
3Fo
9
6
Vdd=4.5V
Vdd=5.0V
Vdd=5.5V
3
0
18
19
20
21
22
23
24
25
26
OUTPUT FREQUENCY (GHz)
18
19
20
21
22
23
24
25
26
OUTPUT FREQUENCY (GHz)
Pin vs. Pout @ 3 Frequencies
14
OUTPUT POWER (dBm)
10
6
Fout= 20 GHz
Fout= 22 Ghz
Fout= 25 GHz
2
-2
-6
-6
-4
-2
0
2
4
6
8
INPUT POWER (dBm)
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
For price, delivery, and
Drive,
orders: Analog Devices, Inc.,
For price, delivery and to place orders:
infringements of patents or
Corporation, 2 Elizabeth
to place
Chelmsford, MA 01824
responsibility is assumed by Analog Devices for its use, nor for any
Hittite Microwave
other
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
rights of third parties that may result from its use. Specifications subject to change without notice. No
Phone: 978-250-3343
Fax: 978-250-3373
Phone: 781-329-4700
www.hittite.com
Order On-line at
• Order online at www.analog.com
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Application Support: Phone: 1-800-ANALOG-D
Trademarks and registered trademarks are the property of their respective owners.
Application Support: Phone: 978-250-3343 or apps@hittite.com
FREQ. MULTIPLIERS - ACTIVE - SMT
2
+6 dBm
+4 dBm
HMC448LC3B
v03.0514
SMT GaAs MMIC x2 ACTIVE FREQUENCY
MULTIPLIER, 20 - 25 GHz OUTPUT
Input Return Loss vs. Temperature
0
Output Return Loss vs. Temperature
0
FREQ. MULTIPLIERS - ACTIVE - SMT
-5
RETURN LOSS (dB)
RETURN LOSS (dB)
-4
-10
-8
+25C
+85C
-40C
-15
+25C
+85C
-40C
-12
-20
-16
-25
9
10
11
FREQUENCY (GHz)
12
13
-20
18
19
20
21
22
23
24
25
26
FREQUENCY (GHz)

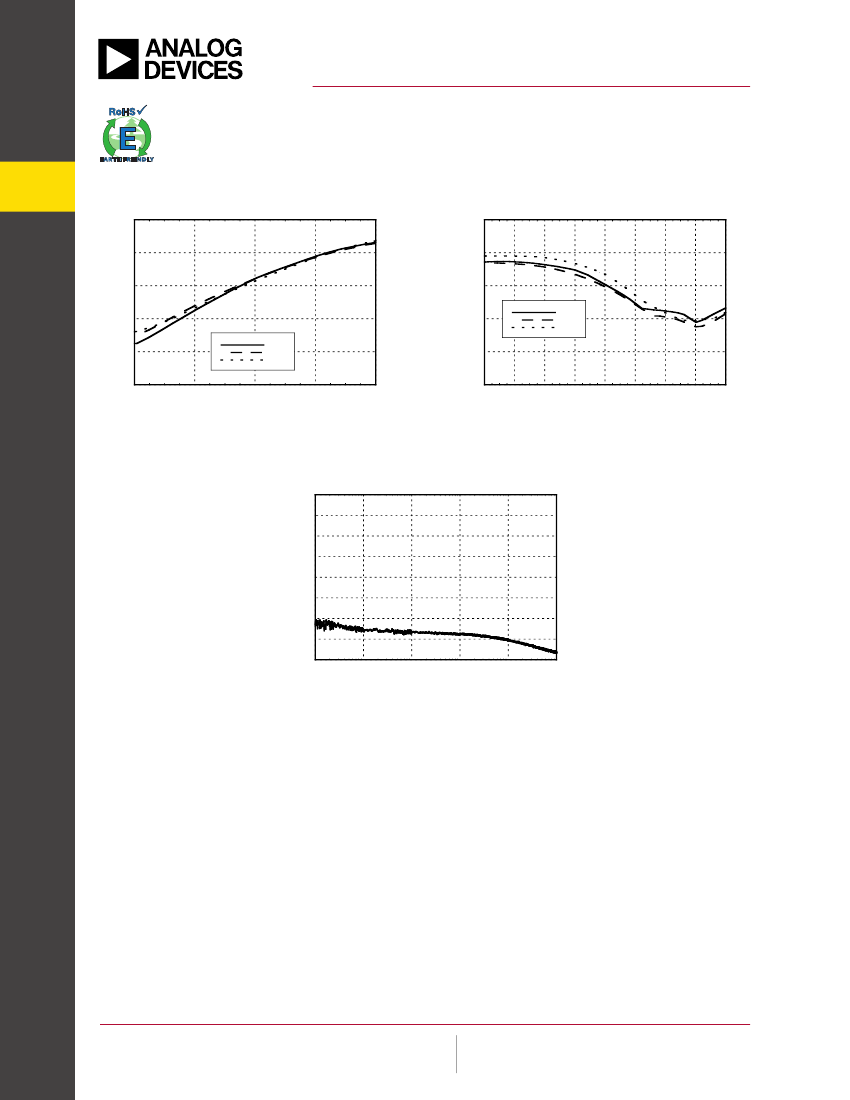

SSB Phase Noise Performance,
Fout = 20.4 GHz, Pin = 0 dBm
0
-20
SSB PHASE NOISE (dBc/Hz)
-40
-60
-80
-100
-120
-140
-160
2
10
10
3
10
4
10
5
10
6
10
7
OFFSET FREQUENCY (Hz)
3
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
For price, delivery, and
Drive,
orders: Analog Devices, Inc.,
For price, delivery and to place orders:
infringements of patents or
Corporation, 2 Elizabeth
to place
Chelmsford, MA 01824
responsibility is assumed by Analog Devices for its use, nor for any
Hittite Microwave
other
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
rights of third parties that may result from its use. Specifications subject to change without notice. No
Phone: 978-250-3343
Fax: 978-250-3373
Phone: 781-329-4700
www.hittite.com
Order On-line at
• Order online at www.analog.com
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Application Support: Phone: 1-800-ANALOG-D
Trademarks and registered trademarks are the property of their respective owners.
Application Support: Phone: 978-250-3343 or apps@hittite.com
HMC448LC3B
v03.0514
SMT GaAs MMIC x2 ACTIVE FREQUENCY
MULTIPLIER, 20 - 25 GHz OUTPUT
Absolute Maximum Ratings
RF Input (Vcc= +5V)
Supply Voltage (Vdd)
Channel Temperature
Continuous Pdiss (T= 85 °C)
(derate 8.3 mW/°C above 85 °C)
Thermal Resistance
(channel to ground paddle)
Storage Temperature
Operating Temperature
+20 dBm
+6.0 Vdc
175 °C
744 mW
121 °C/W
-65 to +150 °C
-40 to +85 °C
Typical Supply Current vs. Vdd
Vdd (Vdc)
4.5
5.0
5.5
Idd (mA)
48
49
Note:
Multiplier will operate over full voltage range shown above.
ELECTROSTATIC SENSITIVE DEVICE
OBSERVE HANDLING PRECAUTIONS

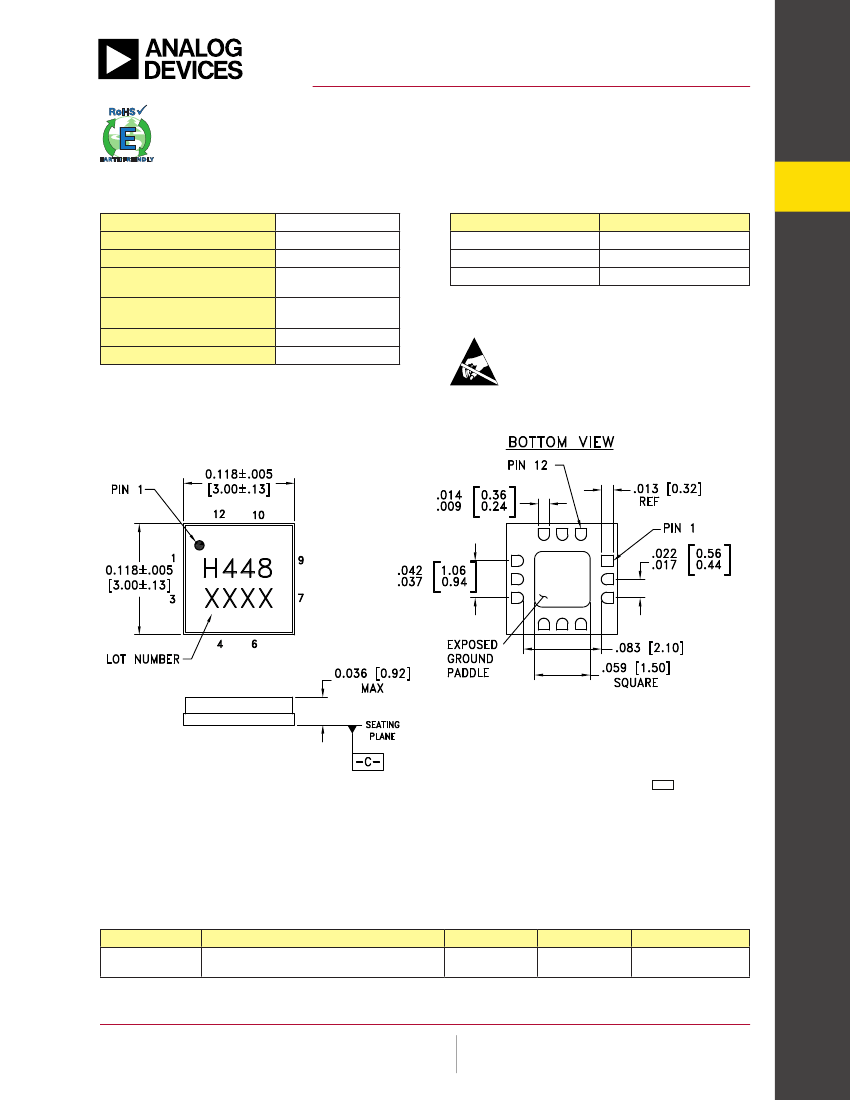

Outline Drawing
NOTES:
1. PACKAGE BODY MATERIAL: ALUMINA
2. LEAD AND GROUND PADDLE PLATING: 30-80 MICROINCHES GOLD OVER
50 MICROINCHES MINIMUM NICKEL.
3. DIMENSIONS ARE IN INCHES [MILLIMETERS].
4. LEAD SPACING TOLERANCE IS NON-CUMULATIVE
5. PACKAGE WARP SHALL NOT EXCEED 0.05mm DATUM -C-
6. ALL GROUND LEADS AND GROUND PADDLE MUST BE SOLDERED
TO PCB RF GROUND.
Package Information
Part Number
HMC448LC3B
Package Body Material
Alumina, White
Lead Finish
Gold over Nickel
MSL Rating
MSL3
[1]
Package Marking
[2]
H448
XXXX
[1] Max peak reflow temperature of 260 °C
[2] 4-Digit lot number XXXX
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
For price, delivery, and
Drive,
orders: Analog Devices, Inc.,
For price, delivery and to place orders:
infringements of patents or
Corporation, 2 Elizabeth
to place
Chelmsford, MA 01824
responsibility is assumed by Analog Devices for its use, nor for any
Hittite Microwave
other
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
rights of third parties that may result from its use. Specifications subject to change without notice. No
Phone: 978-250-3343
Fax: 978-250-3373
Phone: 781-329-4700
www.hittite.com
Order On-line at
• Order online at www.analog.com
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Application Support: Phone: 1-800-ANALOG-D
Trademarks and registered trademarks are the property of their respective owners.
Application Support: Phone: 978-250-3343 or apps@hittite.com
FREQ. MULTIPLIERS - ACTIVE - SMT
4
47
HMC448LC3B
v03.0514
SMT GaAs MMIC x2 ACTIVE FREQUENCY
MULTIPLIER, 20 - 25 GHz OUTPUT
Pin Description
Pin Number
Function
Description
Interface Schematic
FREQ. MULTIPLIERS - ACTIVE - SMT
1
Vdd
Supply voltage 5V ± 0.5V. External bypass capacitors
of 100 pF, 1,000 pF and 2.2 µF are required.
2, 3, 7-9
N/C
This pin may be connected to RF/DC ground.
Performance will not be affected.
Package bottom must also be connected
to RF/DC ground.
Pin is AC coupled and matched to 50 Ohm
from 10.0 - 12.5 GHz.
Pin is AC coupled and matched to 50 Ohm
from 20 - 25 GHz.
4, 6, 10, 12
GND
5
RFIN
11
RFOUT
Application Circuit
Component
C1
C2
C3
Value
100 pF
1,000 pF
2.2 µF
5
