BB-852-10135 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Module/solution> BB-852-10135

BB-852-10135: DescriptionNETWORK SWITCH-MANAGED 5 PORT; CategoryModule/solution; File Size671KB，2 Pages; ManufacturerB+B SmartWorx; Environmental Compliance

Download Datasheet Parametric Compare View All

BB-852-10135 Overview

NETWORK SWITCH-MANAGED 5 PORT

BB-852-10135 Parametric

Parameter Name	Attribute value
type	Switch - Managed
Configuration	Fixed
Number of ports	5
copper port	4
Copper type	10/100
Fiber optic port	1
Fiber type	100BASE-FX (single mode)
SFP/XFP port	-
SFP/XFP type	-
Connector type	RJ45，SC
Voltage - input	-
Intrusion protection	-
Installation type	rack mount
Operating temperature	0°C ~ 50°C

Preview

Download Datasheet

View All

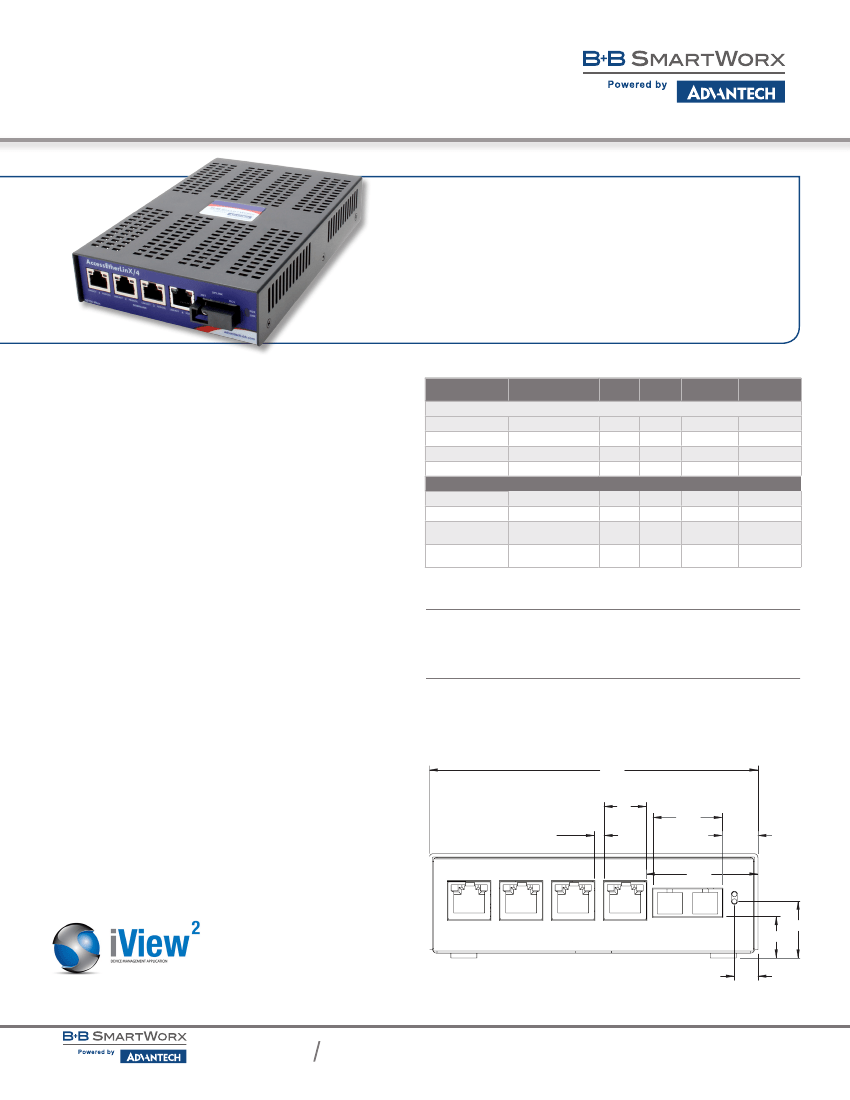

10/100 Mbps Managed Multi-port Optical

Demarcation Device

AccessEtherLinX/4

www.advantech-bb.com

PRODUCT FEATURES

•

The AccessEtherLinX/4, a four-port managed Ethernet device, enables

service providers to offer differentiated, “Transparent LAN” services to multi-

tenant building and business customers. Residing at the customer premises,

the AccessEtherLinX/4 provides a VLAN-based, Layer 2 entry point to the

last mile fiber network, trunking, differentiating and separating customer

traffic.

Featuring free SNMP management, 802.1Q VLAN, 802.1p QoS, traffic

prioritization, bandwidth control and multicast pruning/snooping (using IGMP

v1, v2), the AccessEtherLinX/4 is perfect for a wide range of Fiber to-the-

Home, Fiber-to-the-Curb and Fiber-to-the-Business (collectively “FTTx”)

services, and is an ideal solution for delivering those Ethernet based services

to customers quickly and cost-effectively. Designed with a small footprint,

the AccessEtherLinX/4 facilitates easy installation inside the premises.

Bandwidth control and 802.1Q VLAN compatibility built-in: the

AccessEtherLinX/4 accepts traffic containing VLAN tags on the Uplink port

and directs traffic to the twisted pair downlink ports or to management based

on VLAN ID. In addition to assigning 802.1Q VLAN-tags on a per-port basis,

priority can be defined for each port and SNMP tag; traffic is divided into a

hi/low level for packet prioritization in the queue. The AccessEtherLinX/4

also includes bi-directional bandwidth control, and supports IGMP multicast

pruning to ensure the necessary amount of IP multicast packets are bridged.

Independent RJ-45 ports for flexible configuration

SNMP Manageable

Read/Write IEEE 802.1Q VLAN-tags

Bi-directional Bandwidth control

Linkloss and FiberAlert

Selective Advertising

ORDERING INFORMATION

MODEL NUMBER FIBER

AccessEtherLinX/4

852-13121

MM1300-ST

852-13122

MM1300-SC

852-13123

SM1310/PLUS-ST

852-13124

SM1310/PLUS-SC

SINGLE STRAND FIBER *

852-10133

SSFX-SM1310-SC

852-10134

SSFX-SM1550-SC

SSFX-SM1310/

852-10135

PLUS-SC

SSFX-SM1550/

852-10136

PLUS-SC

FIBER

ETHERNET ETHERNET

PORTS RANGE PORTS

CONNECTOR

5 km

40 km

20 km

40 km

RJ45

* These products have single-strand fiber technology. Deploy in pairs or

connect another compatible single-strand fiber product.

895-39226

- Rackmount Bracket

895-39949

- Rackmount Shelf

ACCESSORIES

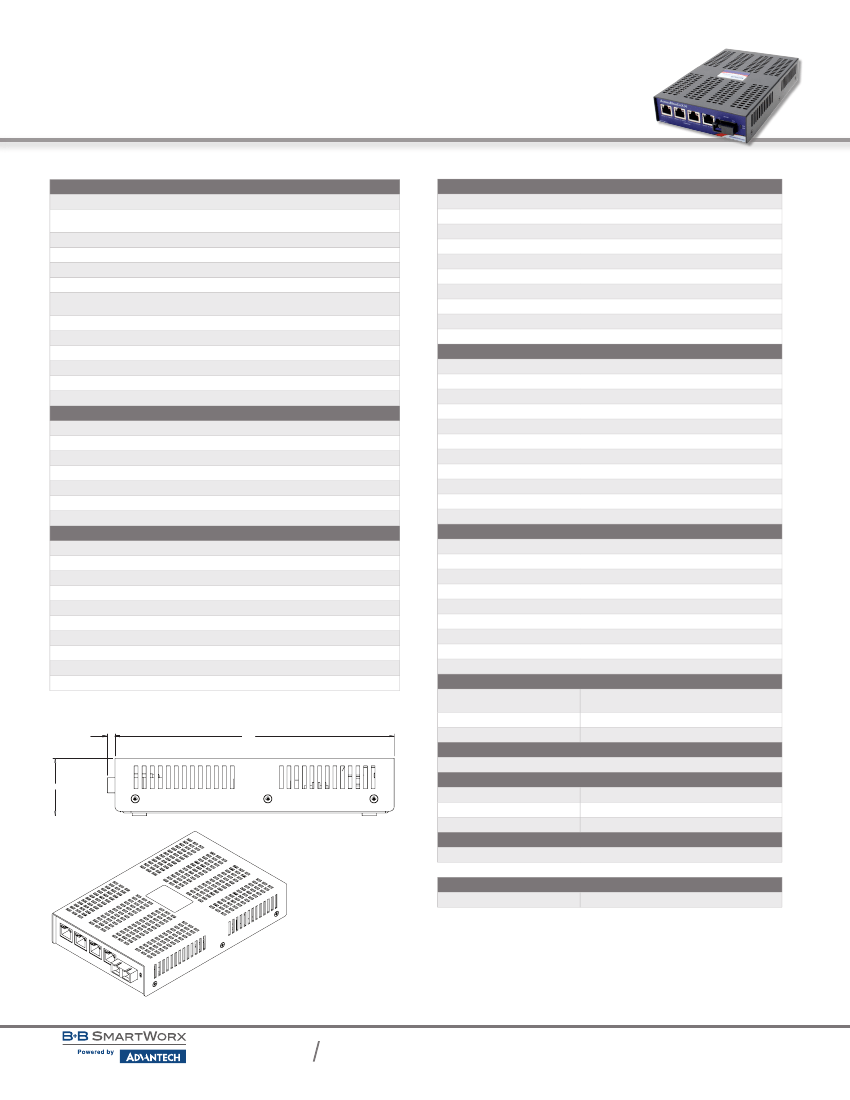

MECHANICAL DIAGRAM

(dimensions in inches)

4.74

.61

3X, .14

1.00

.51

1.61

.60

.82

iView: Windows 2000/XP/Vista/Win7

.34

All product specifications are subject to change without notice.

AccessEtherLinX/4_2517ds

orders@advantech-bb.com

support@advantech-bb.com

Corporate Headquarters: 707 Dayton Road, PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104

European Office: Westlink Commercial Park, Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445

BB-852-10135 Related Products

	BB-852-10135	BB-852-13121	BB-852-13122	BB-852-10133	BB-852-13123	BB-852-13124	BB-852-10134	BB-852-10136
Description	NETWORK SWITCH-MANAGED 5 PORT	ACCESSETHERLINX, TX/4 + FX-MM130	ACCESSETHERLINX, TX/4 + FX-MM130	NETWORK SWITCH-MANAGED 5 PORT	ACCESSETHERLINX, TX/4 + FX-SM131	ACCESSETHERLINX, TX/4 + FX-SM131	NETWORK SWITCH-MANAGED 5 PORT	NETWORK SWITCH-MANAGED 5 PORT
type	Switch - Managed	controlled	controlled	Switch - Managed	controlled	controlled	Switch - Managed	Switch - Managed
Configuration	Fixed	Fixed	Fixed	Fixed	Fixed	Fixed	Fixed	Fixed
copper port	4	4	4	4	4	4	4	4
Copper type	10/100	10/100	10/100	10/100	10/100	10/100	10/100	10/100
Fiber optic port	1	1	1	1	1	1	1	1
Fiber type	100BASE-FX (single mode)	100BASE-FX (multi-mode)	100BASE-FX (multi-mode)	100BASE-FX (single mode)	100BASE-FX (single mode)	100BASE-FX (single mode)	100BASE-FX (single mode)	100BASE-FX (single mode)
Connector type	RJ45，SC	RJ45，ST	RJ45，SC	RJ45，SC	RJ45，ST	RJ45，SC	RJ45，SC	RJ45，SC
Installation type	rack mount	Base installation	Base installation	rack mount	Base installation	Base installation	rack mount	rack mount
Operating temperature	0°C ~ 50°C	0°C ~ 50°C	0°C ~ 50°C	0°C ~ 50°C	0°C ~ 50°C	0°C ~ 50°C	0°C ~ 50°C	0°C ~ 50°C
