FB8S031JA1R2000 datasheet, PDF

Datasheet> All Categories > The connector> FB8S031JA1R2000

FB8S031JA1R2000: DescriptionCONN FPC TOP 31POS 0.30MM R/A; CategoryThe connector; File Size148KB，1 Pages; ManufacturerJAE Electronics; Environmental Compliance

Download Datasheet Parametric Compare View All

FB8S031JA1R2000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	FB8S031JA1R2000	-	-	View	Buy Now

FB8S031JA1R2000 Overview

CONN FPC TOP 31POS 0.30MM R/A

FB8S031JA1R2000 Parametric

Parameter Name	Attribute value
Flat flexible type	FPC
Installation type	Surface mount, right angle
Connector/contact type	contacts, top
Number of pins	31
spacing	0.012"（0.30mm）
Termination	welding
FFC, FCB thickness	0.20mm
board height	0.047"（1.20mm）
Lock function	Rotation lock
Cable end type	tapered
Contact material	copper alloy
Contact plating	gold
Shell material	Liquid crystal polymer (LCP), glass fiber reinforced
Actuator material	Polyamide (PA), nylon, glass fiber reinforced
characteristic	Zero insertion force (ZIF)
Rated voltage	50V
Operating temperature	-40°C ~ 85°C
Material flammability rating	UL94 V-0
Rated current	0.35A/contact
Contact plating thickness	-
Shell color	beige
Actuator color	black
Number of patches	20

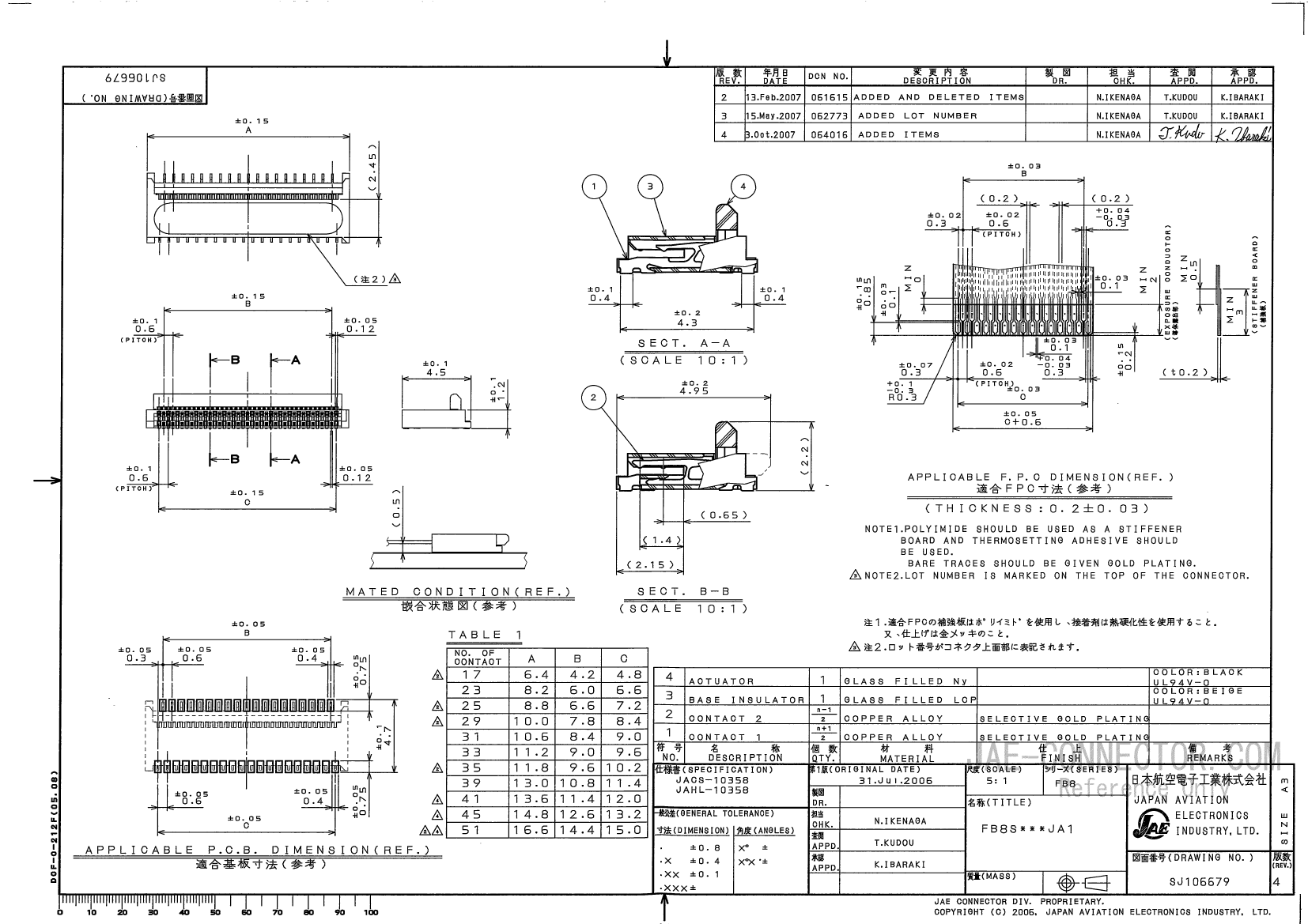

Preview

Download Datasheet

View All

FB8S031JA1R2000 Related Products

	FB8S031JA1R2000	FB8S025JA1R2000	FB8S017JA1R2000	FB8S035JA1R2000	FB8S039JA1R2000
Description	CONN FPC TOP 31POS 0.30MM R/A	CONN FPC TOP 25POS 0.30MM R/A	CONN FPC TOP 17POS 0.30MM R/A	CONN FPC TOP 35POS 0.30MM R/A	CONN FPC TOP 39POS 0.30MM R/A
Flat flexible type	FPC	FPC	FPC	FPC	FPC
Installation type	Surface mount, right angle	Surface mount, right angle	Surface mount, right angle	Surface mount, right angle	Surface mount, right angle
Connector/contact type	contacts, top	contacts, top	contacts, top	contacts, top	contacts, top
Number of pins	31	25	17	35	39
spacing	0.012"（0.30mm）	0.012"（0.30mm）	0.012"（0.30mm）	0.012"（0.30mm）	0.012"（0.30mm）
Termination	welding	welding	welding	welding	welding
FFC, FCB thickness	0.20mm	0.20mm	0.20mm	0.20mm	0.20mm
board height	0.047"（1.20mm）	0.047"（1.20mm）	0.047"（1.20mm）	0.047"（1.20mm）	0.047"（1.20mm）
Lock function	Rotation lock	Rotation lock	Rotation lock	Rotation lock	Rotation lock
Cable end type	tapered	tapered	tapered	tapered	tapered
Contact material	copper alloy	copper alloy	copper alloy	copper alloy	copper alloy
Contact plating	gold	gold	gold	gold	gold
Shell material	Liquid crystal polymer (LCP), glass fiber reinforced	Liquid crystal polymer (LCP), glass fiber reinforced	Liquid crystal polymer (LCP), glass fiber reinforced	Liquid crystal polymer (LCP), glass fiber reinforced	Liquid crystal polymer (LCP), glass fiber reinforced
Actuator material	Polyamide (PA), nylon, glass fiber reinforced	Polyamide (PA), nylon, glass fiber reinforced	Polyamide (PA), nylon, glass fiber reinforced	Polyamide (PA), nylon, glass fiber reinforced	Polyamide (PA), nylon, glass fiber reinforced
characteristic	Zero insertion force (ZIF)	Zero insertion force (ZIF)	Zero insertion force (ZIF)	Zero insertion force (ZIF)	Zero insertion force (ZIF)
Rated voltage	50V	50V	50V	50V	50V
Operating temperature	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C
Material flammability rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Rated current	0.35A/contact	0.35A/contact	0.35A/contact	0.35A/contact	0.35A/contact
Shell color	beige	beige	beige	beige	beige
Actuator color	black	black	black	black	black
Number of patches	20	20	20	20	20
