FF02S31SV1-R3000 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> FF02S31SV1-R3000

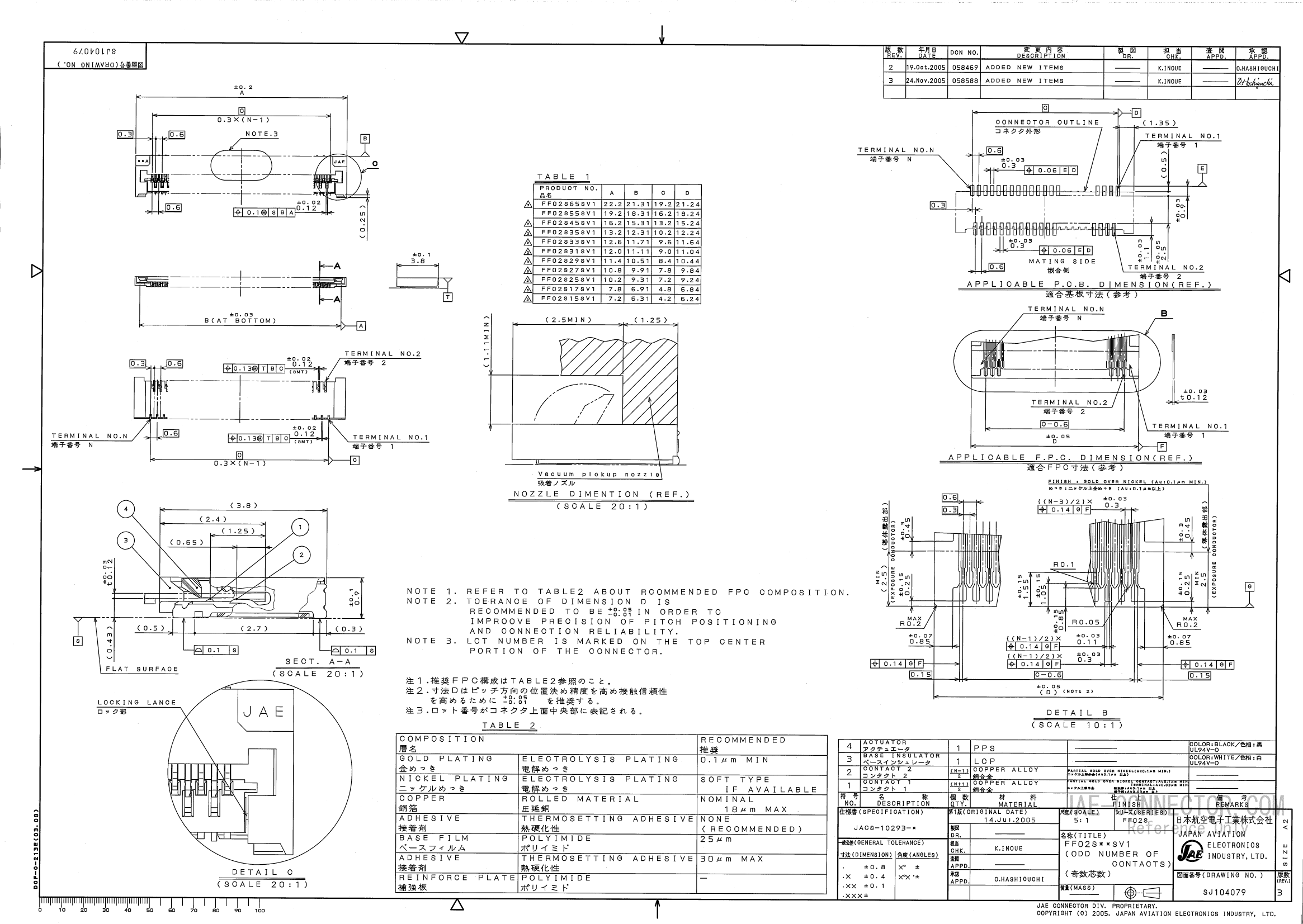

Preview

FF02S31SV1-R3000: DescriptionCONN FPC BOTTOM 31POS 0.30MM R/A; CategoryThe connector; File Size218KB，1 Pages; ManufacturerJAE Electronics; Environmental Compliance

Download Datasheet Parametric Compare View All

FF02S31SV1-R3000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	FF02S31SV1-R3000	-	-	View	Buy Now

FF02S31SV1-R3000 Overview

CONN FPC BOTTOM 31POS 0.30MM R/A

FF02S31SV1-R3000 Parametric

Parameter Name	Attribute value
Flat flexible type	FPC
Installation type	Surface mount, right angle
Connector/contact type	contact, bottom
Number of pins	31
spacing	0.012"（0.30mm）
Termination	welding
FFC, FCB thickness	0.12mm
board height	0.035"（0.88mm）
Lock function	trigger lock
Cable end type	Straight
Contact material	copper alloy
Contact plating	gold
Shell material	Liquid Crystal Polymer (LCP)
Actuator material	Polyphenylene sulfide (PPS)
characteristic	Zero insertion force (ZIF)
Rated voltage	50V
Operating temperature	-40°C ~ 85°C
Material flammability rating	UL94 V-0
Rated current	0.35A/contact
Contact plating thickness	3.90µin（0.099µm）
Shell color	White
Actuator color	black
Number of patches	-
