151,AL: DescriptionBOX ABS ALMOND 5.62"L X 3.25"W; CategoryTopical application Mechanical and electrical/engineering/automation; File Size512KB，2 Pages; ManufacturerSERPAC; Environmental Compliance

Download Datasheet Parametric Compare View All

151,AL Overview

BOX ABS ALMOND 5.62"L X 3.25"W

151,AL Parametric

Parameter Name	Attribute value
Container type	box
size/dimensions	5.620" long x 3.250" wide (142.75mm x 82.55mm)
high	1.500"（38.10mm）
Area (L x W)	18.3 in²（118 cm²）
design	Handheld, split-sided
Material	Plastic - ABS
color	almond color
thickness	0.100"（2.54mm）
characteristic	PCB holder
grade	IP40，NEMA 1
Material flammability rating	UL94 HB
delivery information	Shipping from Digi-Key
weight	0.24 lbs (108.86g)

Preview

Download Datasheet

View All

151

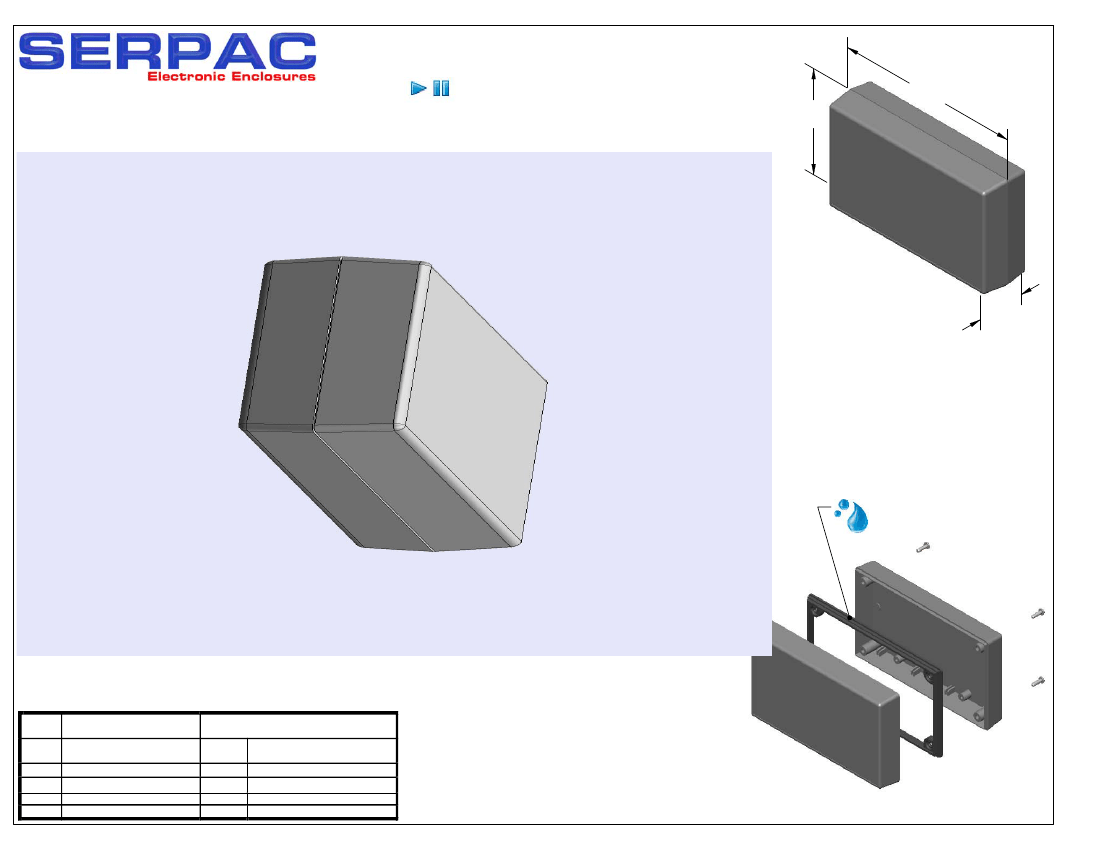

(exploded isometric)

-Click on image to show toolbar. Use

to Play/Pause Animation.

-Left click and drag on image to move 3D model.

W

3.25

L

5.63

H

1.50

Water proofing gasket

PS15 optional.

see note #2

3D model options:

a) Zoom in & out with center wheel.

b) Pause at any moment to view and or print views.

c) Change the views to ortho and section views if needed from the Views pull down menu.

d) Explore options included in the tool bar like: Views, Transparency of model, Lighting type, etc.

PART

NO.

5-1

15

6005

DESCRIPTION

(Included)

TOP

BOTTOM

#4X3/8” Self tapping (4)

ACCSESSORIES

(Optional)

PART

NO.

50

PS15

350

450

DESCRIPTION

Non-skid Feet

Perimeter Seal

Prototype grid board

Prototype clad board

Notes:

Enclosure weight .24 lbs / 107 gm

1) Enclosure meets or exceeds IP40 and NEMA 1

2) When used with PS15 the enclosure meets or exceeds

IP 67 and NEMA 4X, 12 and 13 MIL-STD-810G 506.5

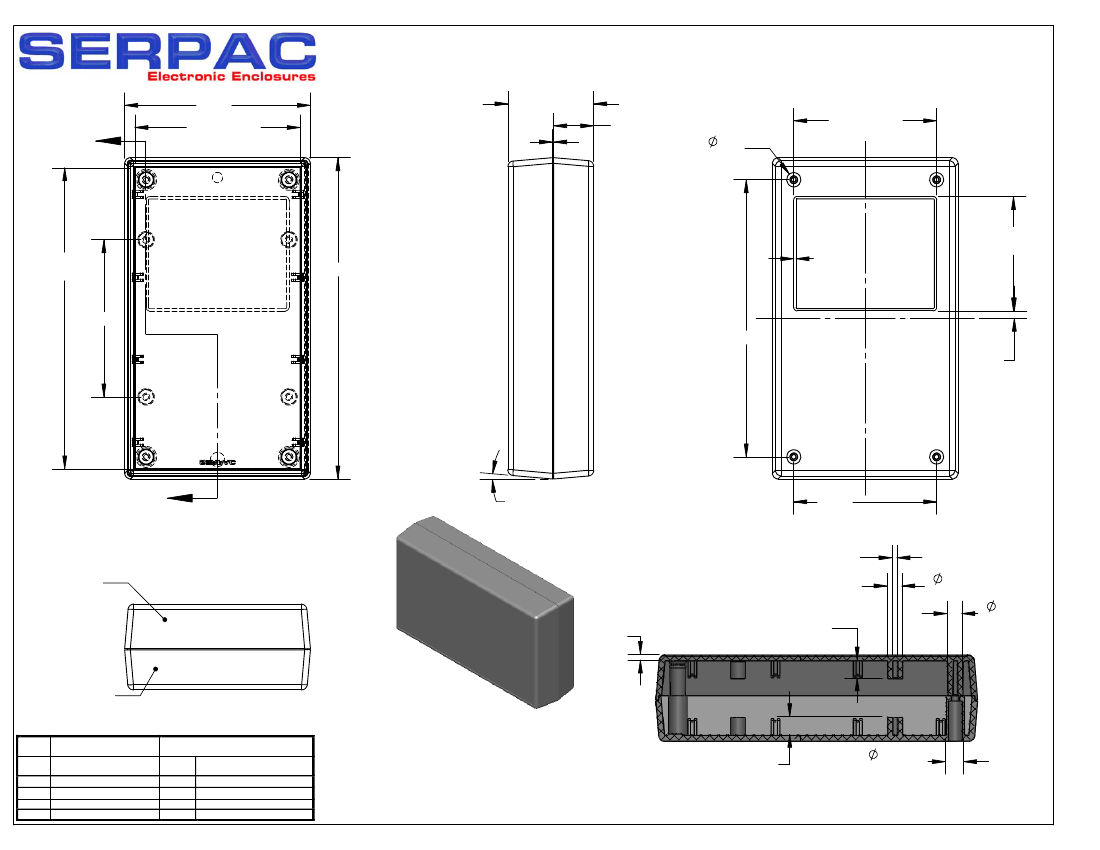

3) Circuit Board drawings can be download at:

ALL DIMENSIONS ARE ± .010"

3/22/10

(1 of 2)

http://www.serpac.com/Accessories/CircuitBoard/drawings/350-450-cbg.pdf

619 Commercial Ave. Covina, CA 91723

4) All components are RoHS Compliant.

Ph. (626) 331-0517 Fx. (626) 331-8584 serpac.com

151,AL Related Products

	151,AL	151,GY	151W,AL	151W,GY	151EMI,BK	151,BK	151,GY-BULK	151W,BK
Description	BOX ABS ALMOND 5.62"L X 3.25"W	BOX ABS GRAY 5.62"L X 3.25"W	BOX ABS ALMOND 5.62"L X 3.25"W	BOX ABS GRAY 5.62"L X 3.25"W	BOX ABS BLACK 5.62"L X 3.25"W	BOX ABS BLACK 5.62"L X 3.25"W	BOX ABS GRAY 5.62"L X 3.25"W	BOX ABS BLACK 5.62"L X 3.25"W
Container type	box	box	box	box	box	box	box	box
size/dimensions	5.620" long x 3.250" wide (142.75mm x 82.55mm)	5.620" long x 3.250" wide (142.75mm x 82.55mm)	5.620" long x 3.250" wide (142.75mm x 82.55mm)	5.620" long x 3.250" wide (142.75mm x 82.55mm)	5.620" long x 3.250" wide (142.75mm x 82.55mm)	5.620" long x 3.250" wide (142.75mm x 82.55mm)	5.620" long x 3.250" wide (142.75mm x 82.55mm)	5.620" long x 3.250" wide (142.75mm x 82.55mm)
high	1.500"（38.10mm）	1.500"（38.10mm）	1.500"（38.10mm）	1.500"（38.10mm）	1.500"（38.10mm）	1.500"（38.10mm）	1.500"（38.10mm）	1.500"（38.10mm）
Area (L x W)	18.3 in²（118 cm²）	18.3 in²（118 cm²）	18.3 in²（118 cm²）	18.3 in²（118 cm²）	18.3 in²（118 cm²）	18.3 in²（118 cm²）	18.3 in²（118 cm²）	18.3 in²（118 cm²）
design	Handheld, split-sided	Handheld, split-sided	Handheld, split-sided	Handheld, split-sided	Handheld, split-sided	Handheld, split-sided	Handheld, split-sided	Handheld, split-sided
Material	Plastic - ABS	Plastic - ABS	Plastic - ABS	Plastic - ABS	Plastic, ABS, EMI	Plastic - ABS	Plastic - ABS	Plastic - ABS
color	almond color	grey	almond color	grey	black	black	grey	black
thickness	0.100"（2.54mm）	0.100"（2.54mm）	0.100"（2.54mm）	0.100"（2.54mm）	0.100"（2.54mm）	0.100"（2.54mm）	0.100"（2.54mm）	0.100"（2.54mm）
characteristic	PCB holder	PCB holder	PCB support, wall mounting	PCB support, wall mounting	PCB support, EMI shielding	PCB holder	PCB holder	PCB support, wall mounting
grade	IP40，NEMA 1	IP40，NEMA 1	IP40，NEMA 1	IP40，NEMA 1	IP40	IP40，NEMA 1	IP40，NEMA 1	IP40，NEMA 1
Material flammability rating	UL94 HB	UL94 HB	UL94 HB	UL94 HB	-	UL94 HB	UL94 HB	UL94 HB
delivery information	Shipping from Digi-Key	Shipping from Digi-Key	Shipping from Digi-Key	Shipping from Digi-Key	Shipping from Digi-Key	Shipping from Digi-Key	Shipping from Digi-Key	Shipping from Digi-Key
weight	0.24 lbs (108.86g)	0.24 lbs (108.86g)	0.24 lbs (108.86g)	0.24 lbs (108.86g)	0.24 lbs (108.86g)	0.24 lbs (108.86g)	0.24 lbs (108.86g)	0.24 lbs (108.86g)
