Evaluation Board User Guide
UG-199
One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
Evaluating the ADP2121 6 MHz, Step-Down Converter
FEATURES
600 mA, 6 MHz, synchronous, step-down dc-to-dc converter
1
Tiny ceramic inductor and capacitors
Input voltage range: 2.3 V to 5.5 V (VIN = 2.9 V to 5.5 V for
ADP2121-2.3-EVALZ)
Fixed output voltages: 1.8 V, 1.82 V, 1.85 V, 1.875 V, and 2.3 V
Automatic power-saving mode
Jumper-selectable shutdown/enable
Jumper-selectable operating mode for the desired
optimization at light loads
Automatic PFM/PWM switching for high efficiency
Fixed PWM for improved transient performance
EVALUATION BOARD LAYOUT
GENERAL DESCRIPTION
The
ADP2121
evaluation board is a complete 6 MHz, low
quiescent current, step-down dc-to-dc converter application
capable of producing up to a 600 mA output current at the
1.8 V, 1.82 V, 1.85 V, 1.875 V, and 2.3 V fixed output voltages.
The converter operates with an input voltage in the 2.3 V to 5.5 V
range. At high load currents, the device uses a voltage regulating
pulse-width modulation (PWM) mode that maintains a constant
frequency with excellent stability and transient response. For
light load currents, the state of the MODE pin determines the
operating mode of the converter. In forced PWM mode, the
converter continues operating in PWM for light loads. In auto
mode, the ADP2121 can automatically enter a power saving
mode that uses pulse-frequency modulation (PFM) to reduce
the effective switching frequency and ensure the longest battery
life in portable applications. The evaluation board demonstrates
the operation and performance of the ADP2121 as well as its
compatibility with tiny ceramic components for a small area
solution.
This user guide includes I/O descriptions, setup instructions,
the evaluation board schematic, and the printed circuit board
(PCB) layout drawings for the ADP2121 evaluation board.
Complete specifications for the ADP2121 are available in the
ADP2121 data sheet available from Analog Devices, Inc., and
should be consulted in conjunction with this user guide when
using the evaluation board.

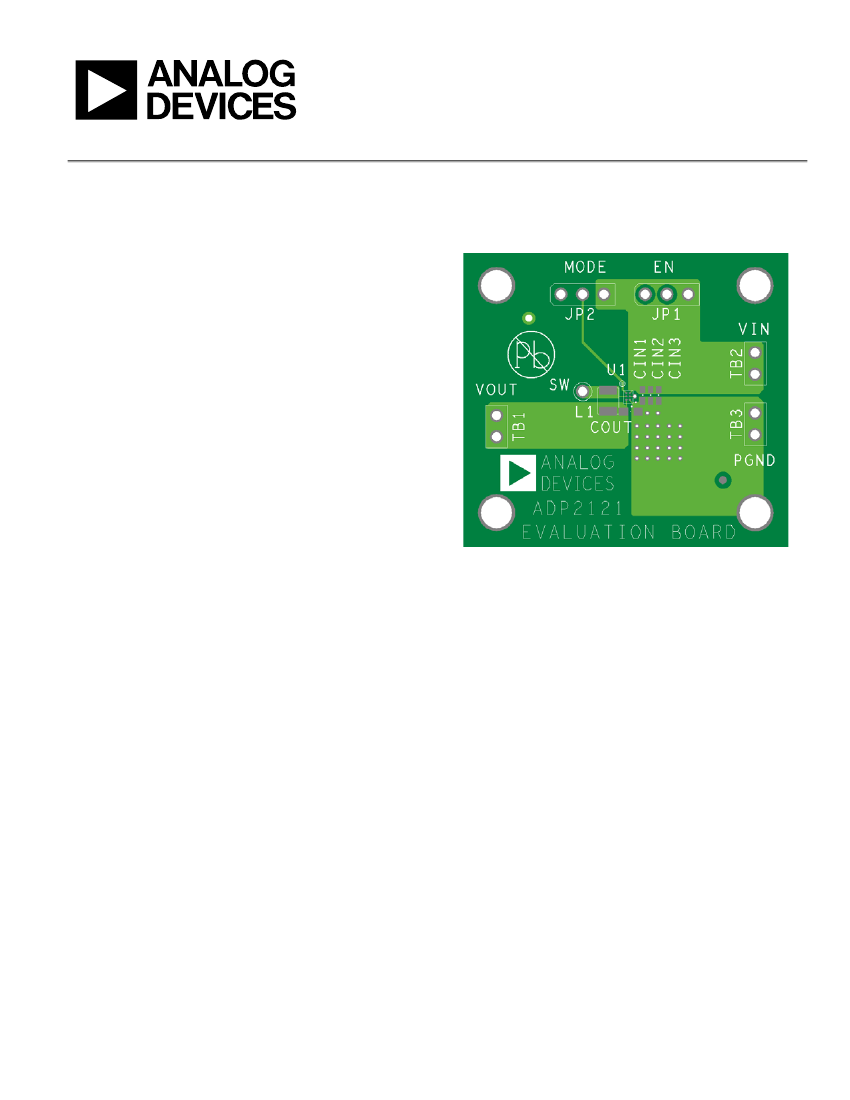

Figure 1. ADP2121 Evaluation Board Top Layer
1
Guaranteed by design. The maximum output current guarantee for 2.3 V to
2.5 V increases linearly from 300 mA to 500 mA. The maximum output
current guarantee for 2.5 V to 2.7 V increases linearly from 500 mA to
600 mA. For greater than 2.7 V, the maximum output current guarantee is
600 mA.
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
Rev. 0 | Page 1 of 8
09420-001
UG-199
TABLE OF CONTENTS
Features .............................................................................................. 1
General Description ......................................................................... 1
Evaluation Board Layout ................................................................. 1
Revision History ............................................................................... 2
Evaluation Board Overview ............................................................ 3
Input/Output Connectors ........................................................... 3
Evaluation Setup ........................................................................... 4
Evaluation Board User Guide
Performance Evaluation ...............................................................4
Evaluation Board Schematic and Layout .......................................5
Layout Guidlines ...........................................................................5
Application Note ...........................................................................5
Ordering Information .......................................................................6
Bill of Materials ..............................................................................6
REVISION HISTORY
10/10—Revision 0: Initial Version
Rev. 0 | Page 2 of 8
Evaluation Board User Guide
EVALUATION BOARD OVERVIEW
09420-005
UG-199
The
ADP2121
evaluation board is fully assembled and tested.
The following sections describe the various connectors on the
board, the proper evaluation setup, and the testing capabilities
of the evaluation board.
INPUT/OUTPUT CONNECTORS
EN Jumper (JP1)
The EN connector enables or disables the converter. Use one of
the following methods to control the state of the EN pin. Do not
leave the EN pin floating.
•
Disable the converter by using a jumper to connect the left-
most pins of JP1. The jumper connects the EN pin to GND,
effectively disabling the converter (see Figure 2).
•

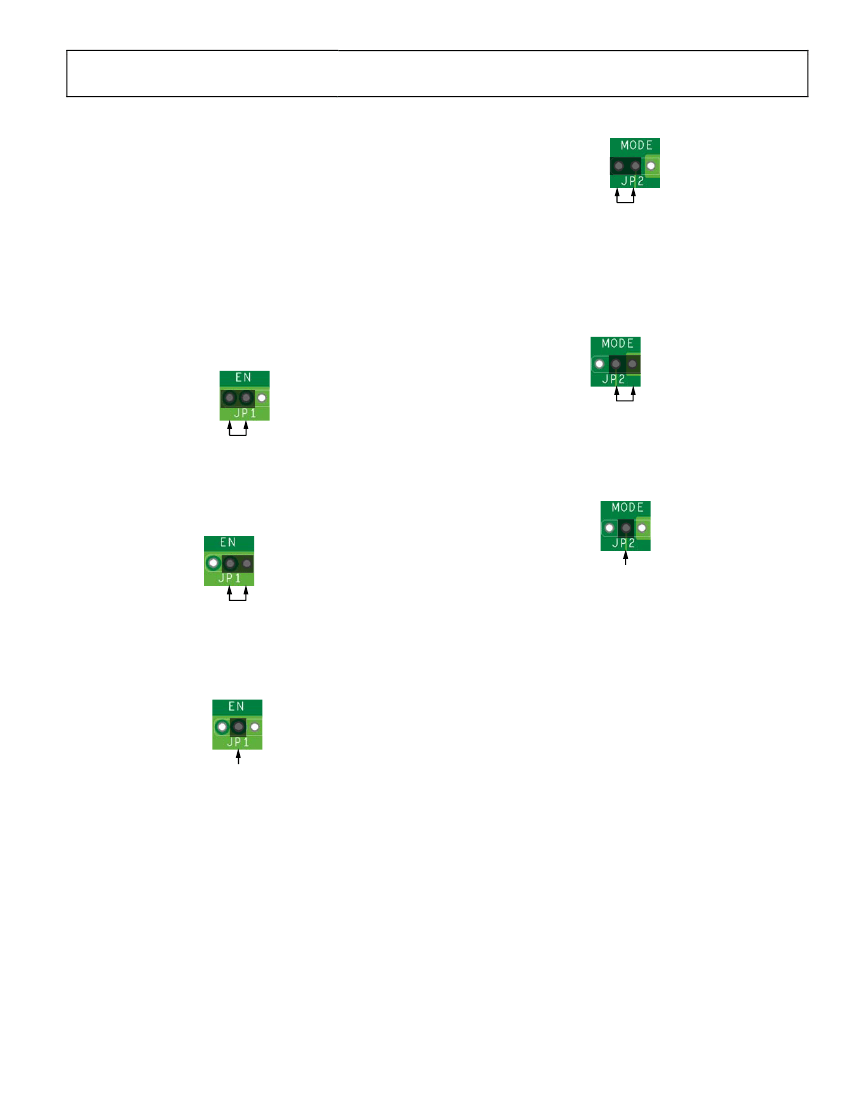

PLACE JUMPER HERE
Figure 5. Auto Mode Jumper Position
Place the converter in forced PWM mode by using a
jumper to connect the right most pins of JP2. The jumper
connects the MODE pin to VIN, effectively forcing the
converter to remain in PWM mode, regardless of the size
of the applied load (see Figure 6).
PLACE JUMPER HERE
09420-002
Figure 6. PWM Mode Jumper Position
PLACE JUMPER HERE
Figure 2. SD Jumper Position
•
•
Enable the converter by using a jumper to connect the
right most pins of JP1. The jumper connects the EN pin to
VIN, effectively enabling the converter (see Figure 3).
Control the voltage applied to the MODE pin directly by
connecting an external device to the center pin of JP2 (see
Figure 7). Apply a voltage between GND and VIN.
CONNECT EXTERNAL
DEVICE HERE
09420-003
Figure 7. MODE Pin Direct Connection
PLACE JUMPER HERE
Figure 3. EN Jumper Position
VOUT Test Bus (TB1)
The VOUT test bus provides access to the regulated output
voltage and the FB (feedback) pin of the part. A load of up to
600 mA can be applied to this bus.
•
Directly control the EN pin by connecting an external
device to the center pin of JP1 (see Figure 4). Apply a
voltage between GND and VIN.
VIN Test Bus (TB2)
The VIN test bus connects the positive input supply voltage to
the VIN pin. Connect the power supply to this bus and keep the
wires as short as possible to minimize EMI transmission.
CONNECT EXTERNAL
DEVICE HERE
09420-004
PGND Test Bus (TB3)
The PGND test bus is the power ground connection for the part
and the external components via the GND pin. Attach ground
connections from external equipment to this bus.
Figure 4. EN Pin Direct Connection
MODE Jumper (JP2)
The MODE connector controls the operating mode of the
ADP2121. Use one of the following methods to select between
automatic PFM/PWM switching and forced PWM operation.
Do not leave the MODE pin floating. The MODE pin is not
designed for dynamic control and should not be changed after
the ADP2121 is enabled.
•
Place the converter in auto mode by using a jumper to connect
the left most pins of JP2. The jumper connects the MODE
pin to GND to use the power save mode with automatic
transition between PFM and PWM mode (see Figure 5).
SW Test Point (TP1)
The SW test point allows access to the switch node (SW pin) of
the ADP2121 to monitor the switching behavior. An LC filter is
connected to this pin on the board. Connect a BNC cable to
measure the switching frequency to this test point.
Rev. 0 | Page 3 of 8
09420-007
09420-006
UG-199
EVALUATION SETUP
Follow these setup instructions to ensure proper operation of
the
ADP2121
evaluation board:
1.
2.
3.
Connect the positive input supply to VIN.
Connect the input supply ground to PGND.
Connect the desired load between VOUT and PGND. For
VIN = 2.3 V to 2.5 V, the maximum load the ADP2121 can
deliver increases linearly from 300 mA to 500 mA. For
VIN = 2.5 V to 2.7 V, the maximum load increases linearly
from 500 mA to 600 mA. Above VIN = 2.7 V, the ADP2121
can supply up to 600 mA.
Connect EN to enable or disable the converter and MODE
to select between auto mode and PWM mode.
Apply a VIN between 2.3 V and 5.5 V (6.0 V absolute
maximum.)
Evaluation Board User Guide
PFM/PWM Transition
To observe the PFM/PWM transition, place the converter in
auto mode. Connect an oscilloscope to the SW test point and
vary the load current applied to VOUT between 70 mA and
170 mA (typical). The PFM/PWM transition point varies with
the input voltage applied to VIN. Hysteresis exists in the load
transition point to prevent oscillation between modes and is
evident in the different values seen for the rising and the falling
load sweeps.
Output Voltage Ripple
The output voltage ripple is visible by placing an oscilloscope
across the output capacitor (COUT.) Set the oscilloscope to ac
coupling or apply a dc offset for proper resolution.
4.
5.
Line Transient
Generate a high speed transient in the voltage applied to VIN and
observe the behavior of the evaluation board at the SW test point
and the VOUT test bus. To see the most accurate load transient
waveform, place a probe directly on the output capacitor terminal
with a short path to ground to limit noise and stray inductance.
PERFORMANCE EVALUATION
The resulting oscilloscope waveforms and typical performance
characteristics for the following tests are provided in the
ADP2121 data sheet.
Line Regulation
The line regulation is observed and measured by monitoring
the output voltage at VOUT while varying the input voltage
applied to VIN.
Load Transient
Generate a fast transient in the current applied to VOUT and
observe the behavior of the evaluation board at the SW test
point and the VOUT test bus. To see the most accurate load
transient waveform, place a probe directly on the output capacitor
terminal with a short path to ground to limit noise and stray
inductance.
Load Regulation
The load regulation is observed and measured by monitoring
the output voltage at VOUT while sweeping the applied load
between VOUT and PGND. To minimize voltage drop, use
short, low resistance wires, especially for heavy loads.
Oscillator Frequency
The oscillator frequency is measured by connecting an oscilloscope
to the SW test point with the converter in PWM mode.
Output Accuracy
The output accuracy is verified by monitoring the output voltage at
VOUT while testing both the line and load regulation.
Inductor Current
The inductor current is accessible by removing one side of the
inductor from its pad and connecting a current loop in series.
Place an oscilloscope current probe on the loop to view the
current waveform.
Efficiency
The efficiency, η, is calculated by comparing the input power to
the output power.
η=
V
OUT
×
I
OUT
V
IN
×
I
IN
Rev. 0 | Page 4 of 8
Evaluation Board User Guide
EVALUATION BOARD SCHEMATIC AND LAYOUT
MODE
JP2
1 2 3
(AUTO)
VIN (PWM)
A1
UG-199
EN
TP1
JP1
1 2 3
(OFF) VIN (ON)
ADP2121
MODE
VIN
A2
VIN
TB2
VOUT
TB1
L1
B1
CIN1
SW
EN
B2
CIN2
CIN3
PGND
C1
FB
U1
GND
C2
TB3
09420-008
COUT

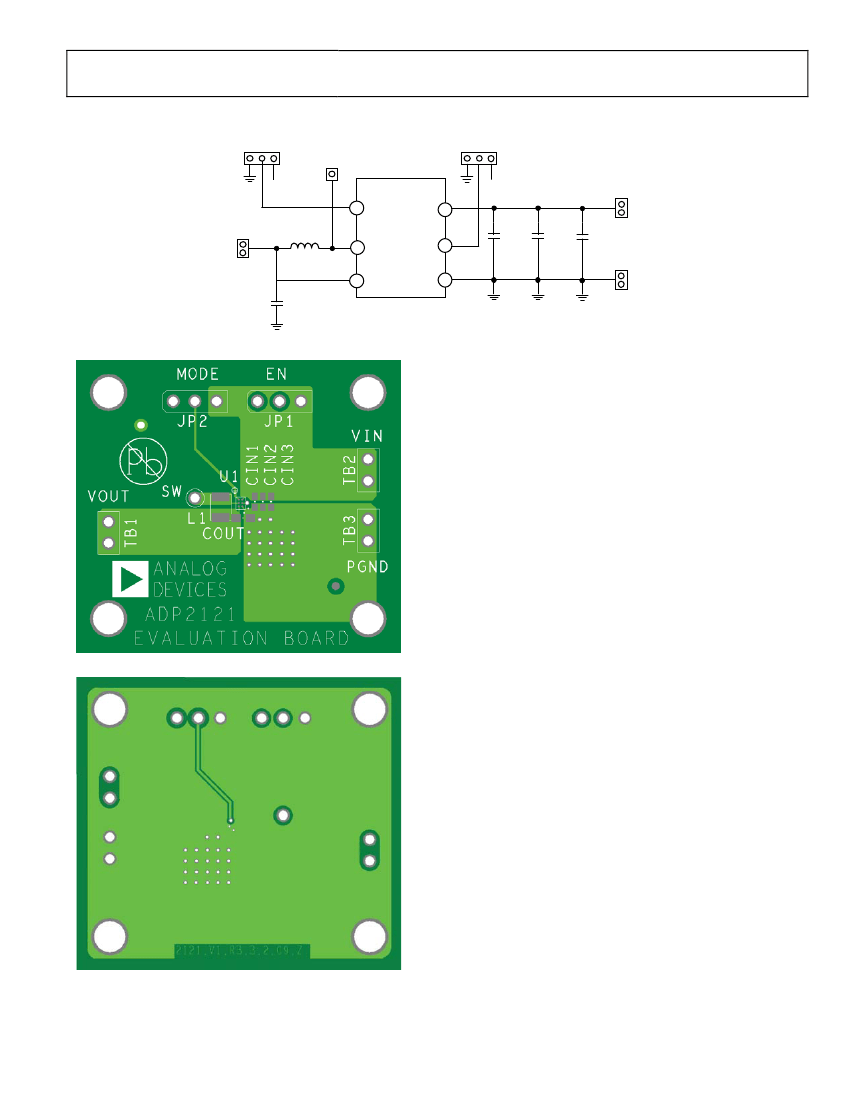

Figure 8. ADP2121 Evaluation Board Schematic
LAYOUT GUIDLINES
For high efficiency, good regulation, and stability with the
ADP2121,
a well-designed PCB layout is essential. Use the
following guidelines when designing PCBs:
•
•
•
•
Keep the low ESR input capacitor, CIN, close to VIN
and GND.
Keep high current traces as short and as wide as possible.
Avoid routing high impedance traces near any node
connected to SW or near the inductor to prevent radiated
noise injection.
Keep the low ESR output capacitor, COUT, close to the FB
and GND pins of the ADP2121. Long trace lengths from
the part to the output capacitor add series inductance and
may cause instability or increased ripple.
09420-009
APPLICATION NOTE
It is recommended that the VIN pin be bypassed with a 2.2 μF
or larger ceramic input capacitor if a supply line has a distributed
capacitance of at least 10 μF. If not, at least a 10 μF capacitor is
recommended on the input supply pin. The input capacitor can
be increased without any limit for improved input voltage
filtering.
Figure 9. PCB Top Layer
Figure 10. PCB Bottom Layer
Rev. 0 | Page 5 of 8
09420-010
京公网安备 11010802033920号
EEWORLD
