The remarkably simple solution that provides easy
interchangeability, upgradeability and replacement.

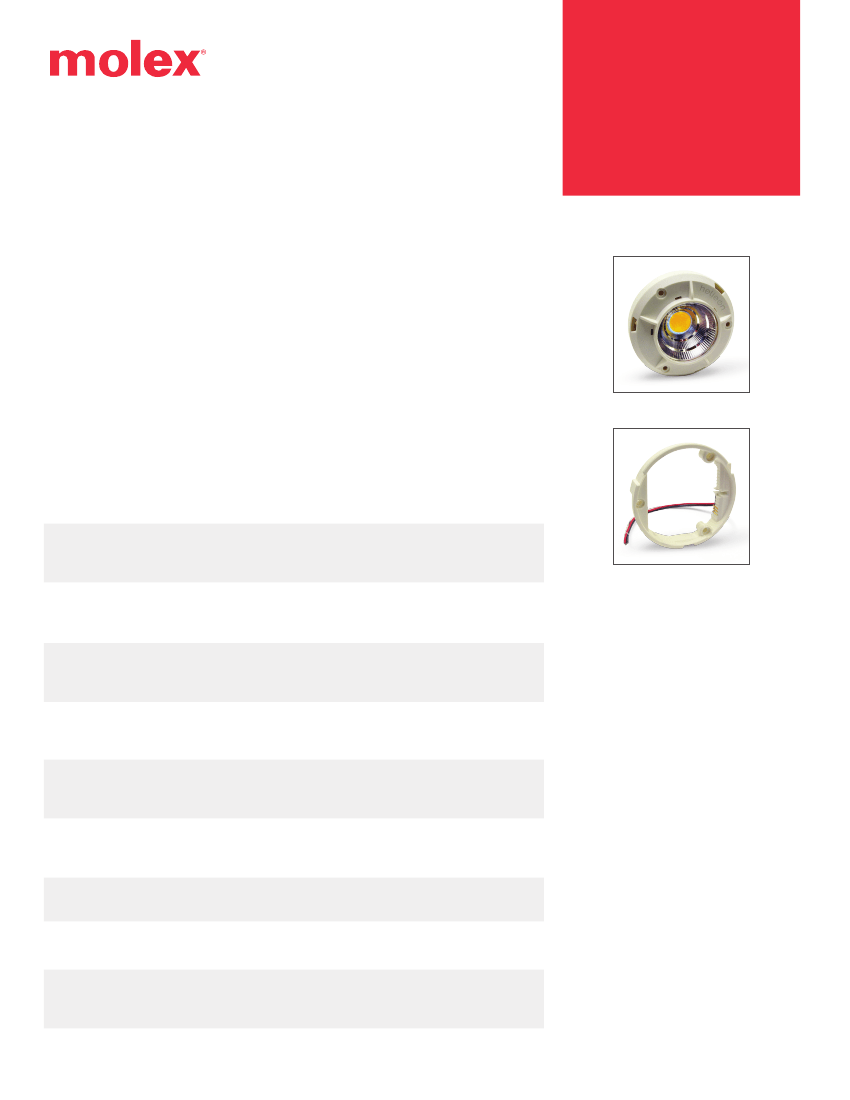

The Helieon lighting system is the first plug-and-play, solid state down light
module to integrate high-efficiency precision lighting with an easy-to-use
socketed solution to accelerate innovation and enable the mass adoption
of solid state lighting. Combining unmatched solid state lighting technology
from Bridgelux and interconnect technology from Molex, the Helieon lighting
system simplifies the process of designing, building, replacing and upgrading
luminaires.
Helieon modules enable flexibility in changing the look and feel of the lighting
installation with the simplicity of replacing a light bulb. By emulating a
traditional lighting socket, the Helieon system delivers an easy and familiar
installation experience. Beam angle, color temperature and light output
can be easily changed or upgraded with the simple twist of a wrist after
installation — without the complexity and expense of removing the luminaire.
Product options are tailored to match light output levels of traditional
light sources, delivering between 500 and 1,500 lumens under application
conditions in halogen and fluorescent color temperature options. Helieon
modules are available with narrow, medium and wide flood beam spread
options that enable precision effects for a wide variety of lighting applications.
Helieon
®
Down
Light Module
Features and Benefits
Integrated solid state lighting solution
for OEM fixture manufacturers, lighting
designers and architects
Multiple product options compatible
with a single thermal and electronic
driver system design
Separable socketed plug-and-play
solution (socket and module) with a
turn-and-click installation process
Removable clear cover optic to
protect light emitting area and
reflector
Uniform high-quality illumination with
beam control optics (24, 32 and 50
degree options)
High system efficacy enables
luminaires with operating efficiencies
>50 lm/W
Color controlled to a single three-step
MacAdams ellipse
UL recognized (File Number E328924)
Simplifies the design integration
effort and accelerates time to market
Enables flexibility to change the
lighting experience after installation
Enables separation of source and
fixture, emulating traditional lighting
Delivers clean white light without
pixilation for precision lighting effects
Meets or exceeds global regulatory
requirements such as Energy Star,
Title 24, Part L and others
Uniform consistent white light
between luminaires in the lighting
installation
Streamlines the UL-listing process for
the luminaire
Enables luminaire manufacturers to
design with confidence
Reduces environmental and disposal
issues, delivering a sustainable
solution
Recyclable components, Pb and
Mercury free, RoHS compliant
Three year limited warranty

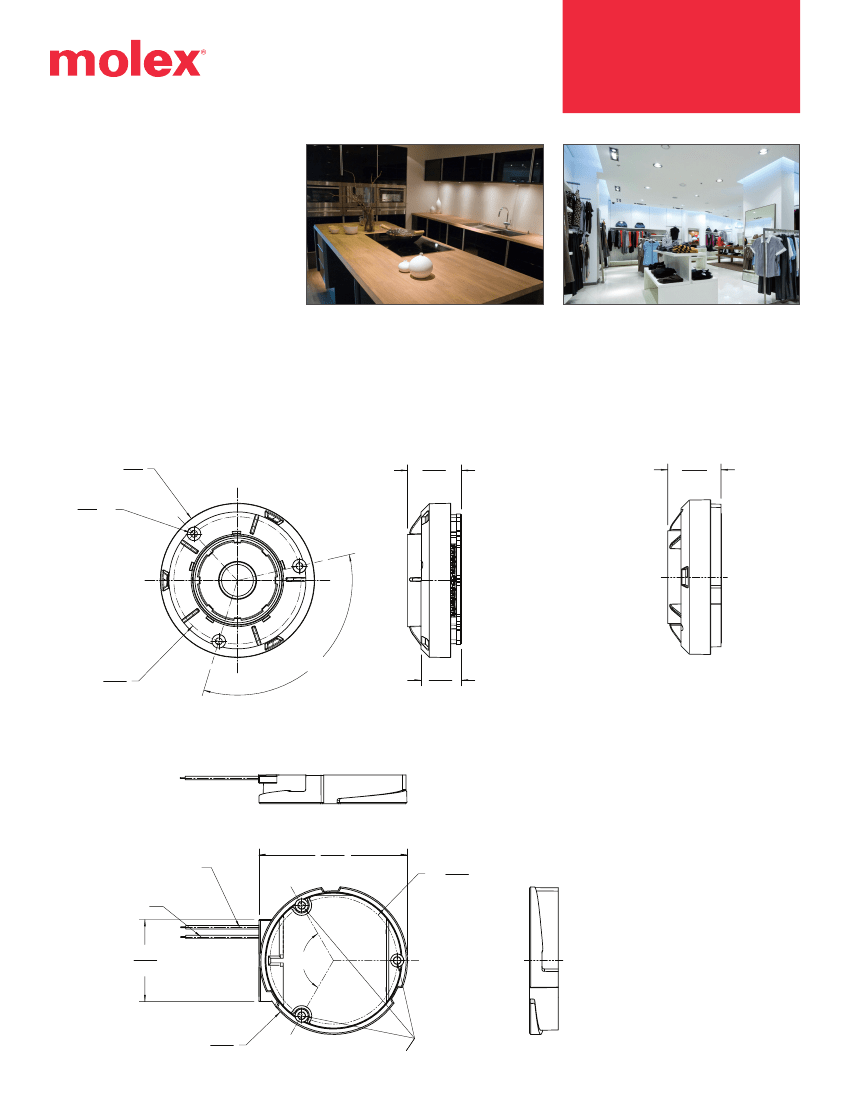

Helieon
®
Down
Light Module
Typical Product Performance
800 QXRA Series
Part
Number
(1)
CCT
CRI
Beam Angle
(FWHM)
Forward
Current
(mA)
700
Hot Lumens
(T
C
60°C)
490
710
860
550
800
1020
(2)
Voltage
(3)
(T
C
60°C)
(V)
11.4
11.9
12.3
11.4
11.9
12.3
Nominal
Wattage
(T
C
60°C) (W)
7.9
12.4
17.2
7.9
12.4
17.2
Nominal
Efficacy
(T
C
60°C) (lm/W)
62
57
50
70
64
59
180081-22x0
3000K
82
24°, 32° and 50°
1050
1400
700
180081-42x0
4100K
80
24°, 32° and 50°
1050
1400
1200 QXRA Series
Part
Number
(1)
CCT
CRI
Beam Angle
(FWHM)
Forward
Current
(mA)
700
Hot Lumens
(T
C
60°C)
730
1040
1330
840
1200
1530
(2)
Voltage
(3)
(T
C
60°C)
(V)
17.2
17.9
18.5
17.2
17.9
18.5
Nominal
Wattage
(T
C
60°C) (W)
12.0
18.8
25.8
12.0
18.8
25.8
Nominal
Efficacy
(T
C
60°C) (lm/W)
61
56
51
70
64
59
180081-23x0
3000K
82
24°, 32°
and 50°
1050
1400
700
180081-43x0
4100K
80
24°, 32° and 50°
1050
1400
The Helieon Sustainable Light Module is available in 24° narrow flood, 32° medium flood and 50° wide flood viewing angle options.
See Note 1 below for part number designation for beam angle options.
NOTES:
1. x = beam angle (2=24°, 3=32°, 5=50°)
2. Lumen range is within ±10% of the nominal value
3. Voltage range is within ±10% of the nominal value
Environmental Compliance
Molex is committed to providing environmentally friendly products to the solid state lighting market. The Helieon
system is compliant to the European Union directives on the restriction of hazardous substances in electronic
equipment, namely the RoHS directive. The following restricted materials will not be intentionally added to the Helieon
system: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls (PBB) or polybrominated diphenyl
ethers (PBDE).
www.molex.com
Order No. 987650-4381 Rev. 1
Printed in USA/GF/2012.05
©2012 Molex
