FCN-298B050-L/0: DescriptionBoard Stacking Connector, 50 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket; CategoryThe connector; File Size121KB，4 Pages; ManufacturerFUJITSU; Websitehttp://edevice.fujitsu.com/fmd/en/index.html

Download Datasheet Parametric Compare View All

FCN-298B050-L/0 Overview

Board Stacking Connector, 50 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket

FCN-298B050-L/0 Parametric

Parameter Name	Attribute value
Maker	FUJITSU
Reach Compliance Code	unknown
Is Samacsys	N
Body/casing type	SOCKET
Connector type	BOARD STACKING CONNECTOR
Contact completed and terminated	PALLADIUM
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	FCN-290
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	50
Base Number Matches	1

Preview

Download Datasheet

View All

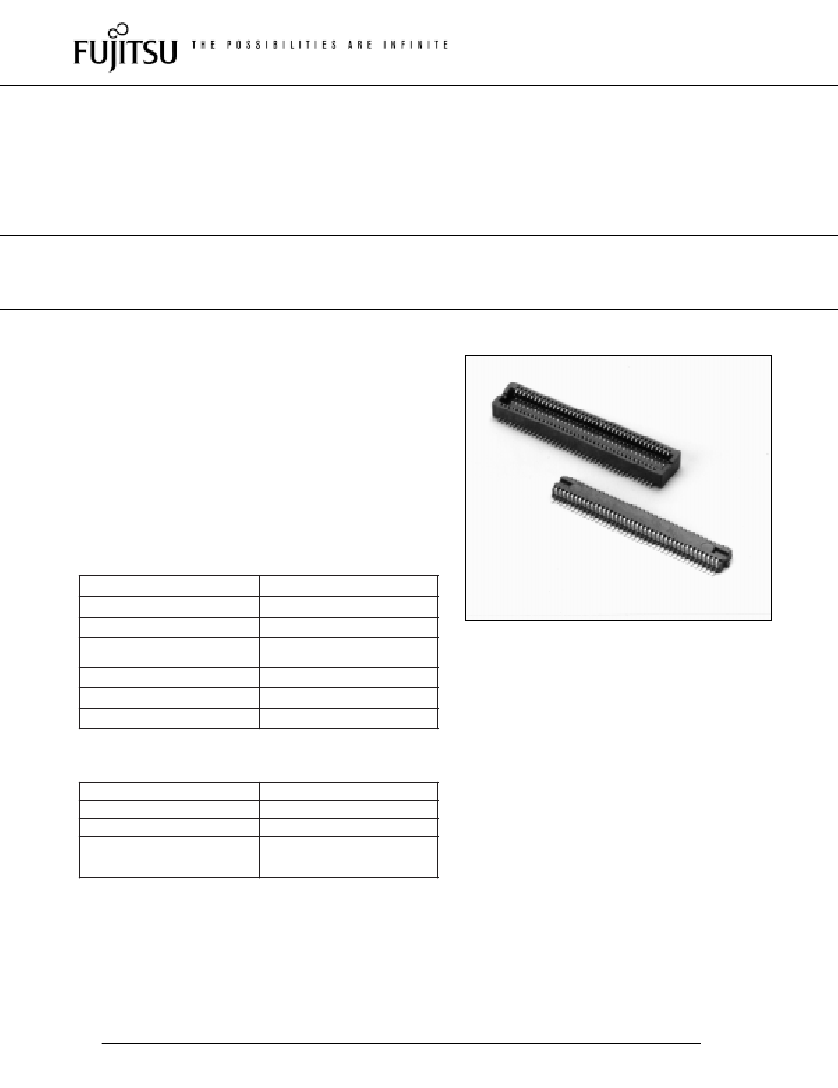

0.5 mm PITCH STACKING CONNECTORS

(2.5 mm STACKING HEIGHT)

FCN-290 SERIES

FEATURES

• Terminal pitch of 0.5 mm (0.020 in.), SMT terminals

(for both plug and socket).

• This connector can connect boards in parallel with

2.5mm (0.098 in.) stacking height .

• Bellows contacts provide reliable interconnection.

• Product is packaged in embossed carrier tape and

reel. Two package sizes are available.

• 3000 pcs per reel

• 500 pcs per reel

SPECIFICATIONS

Item

Operating temperature range

Rated current

Rated voltage

Contact resistance

Insulation resistance

Dielectric withstand voltage

DIS

Item

-40° to +85 ° C

0.3A DC

200V AC

300V DC

40m

Ω

max

500V DC, 100M

Ω

min.

500V AC, 1 min.

MATERIALS

Insulator

Conductor

Plating

Specification

Material

LCP

Copper alloy

Surface finish of

contact: PAGOS®

Terminal: Palladium

Specifications

subject to change

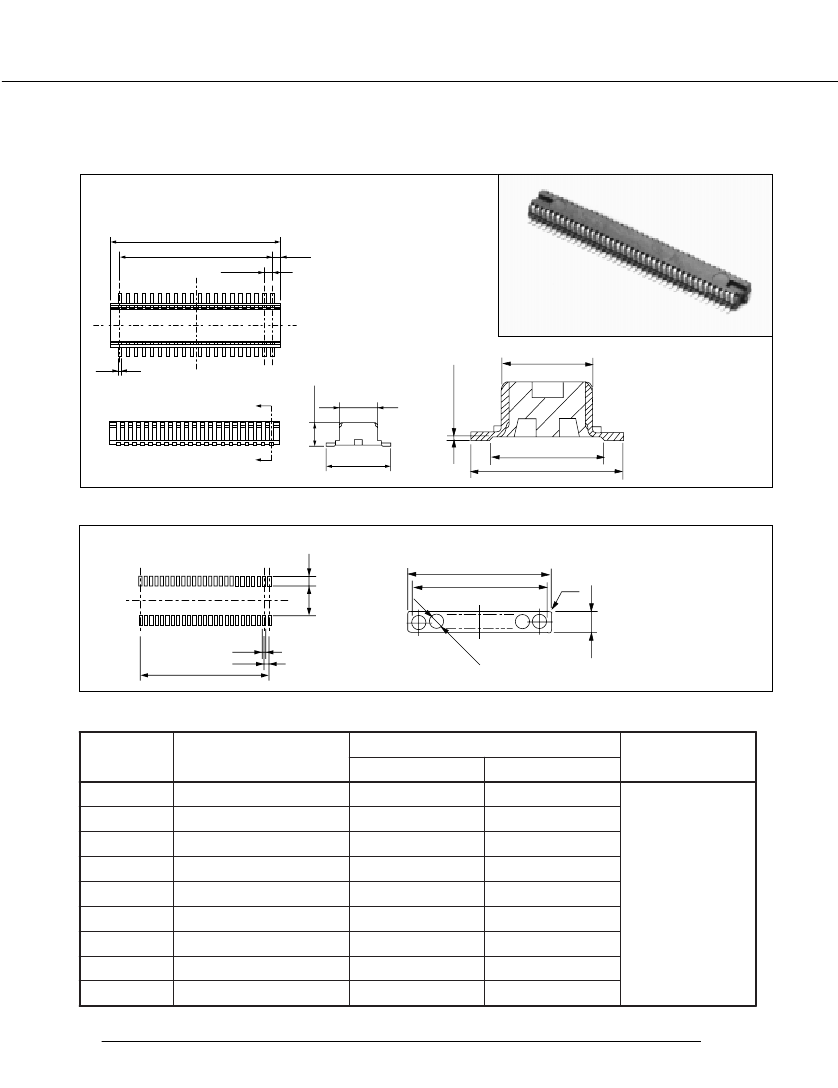

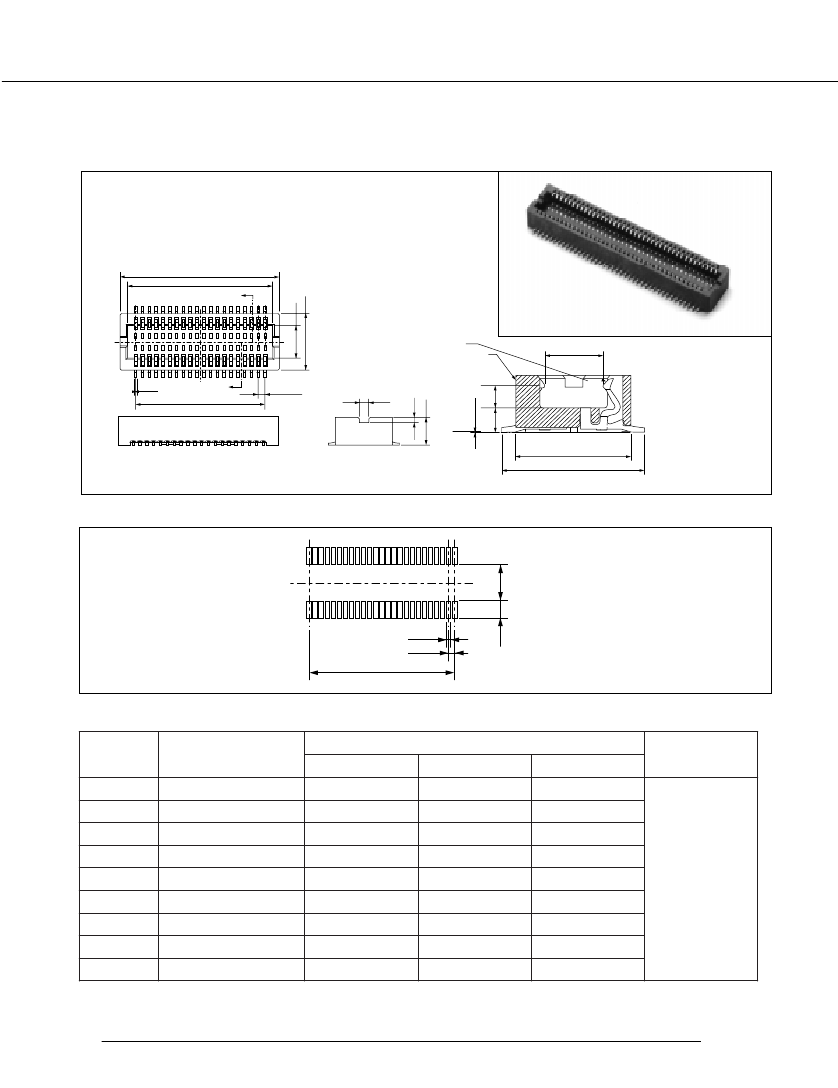

Dimensions are in millimeters (inches)

www.fcai.fujitsu.com

FCN-298B050-L/0 Related Products

	FCN-298B050-L/0	FCN-298B080-L/0	FCN-298Q030-L/0	FCN-298Q080-L/0	FCN-298Q120-L/0	FCN-298B090-L/0
Description	Board Stacking Connector, 50 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket	Board Stacking Connector, 80 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket	Board Stacking Connector, 30 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, Plug	Board Stacking Connector, 80 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, Plug	Board Stacking Connector, 120 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, Plug	Board Stacking Connector, 90 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Body/casing type	SOCKET	SOCKET	PLUG	PLUG	PLUG	SOCKET
Connector type	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR
Contact point gender	FEMALE	FEMALE	MALE	MALE	MALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	50	80	30	80	120	90
Maker	FUJITSU	FUJITSU	-	FUJITSU	FUJITSU	-
Is Samacsys	N	N	-	N	N	-
Contact completed and terminated	PALLADIUM	PALLADIUM	PALLADIUM	PALLADIUM	PALLADIUM	-
JESD-609 code	e4	e4	e4	e4	e4	-
Manufacturer's serial number	FCN-290	FCN-290	-	FCN-290	FCN-290	-
Base Number Matches	1	1	-	1	1	-
