S24DE15001NDFA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> S24DE15001NDFA

S24DE15001NDFA: DescriptionDC DC CONVERTER +/-15V 30W; CategoryPower/power management The power supply circuit; File Size1MB，15 Pages; ManufacturerDelta Electronics

Download Datasheet Parametric Compare View All

S24DE15001NDFA Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	S24DE15001NDFA	-	-	View	Buy Now

S24DE15001NDFA Overview

DC DC CONVERTER +/-15V 30W

S24DE15001NDFA Parametric

Parameter Name	Attribute value
Maker	Delta Electronics
package instruction	ROHS COMPLIANT, METAL, PACKAGE-6
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	12 weeks
Other features	ALSO AVAILABLE OUTPUT VOLTAGE: -15V; SEATED HGT-CALCULATED
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	36 V
Minimum input voltage	9 V
Nominal input voltage	24 V
JESD-30 code	S-MDMA-P6
length	25.4 mm
Number of functions	1
Output times	2
Number of terminals	6
Maximum operating temperature	56 °C
Minimum operating temperature	-40 °C
Maximum output voltage	15.45 V
Minimum output voltage	14.55 V
Nominal output voltage	15 V
Package body material	METAL
Package shape	SQUARE
Package form	MICROELECTRONIC ASSEMBLY
Maximum seat height	10.7 mm
surface mount	NO
technology	HYBRID
Temperature level	OTHER
Terminal form	PIN/PEG
Terminal location	DUAL
Maximum total power output	30 W
Fine-tuning/adjustable output	NO
width	25.4 mm

Preview

Download Datasheet

View All

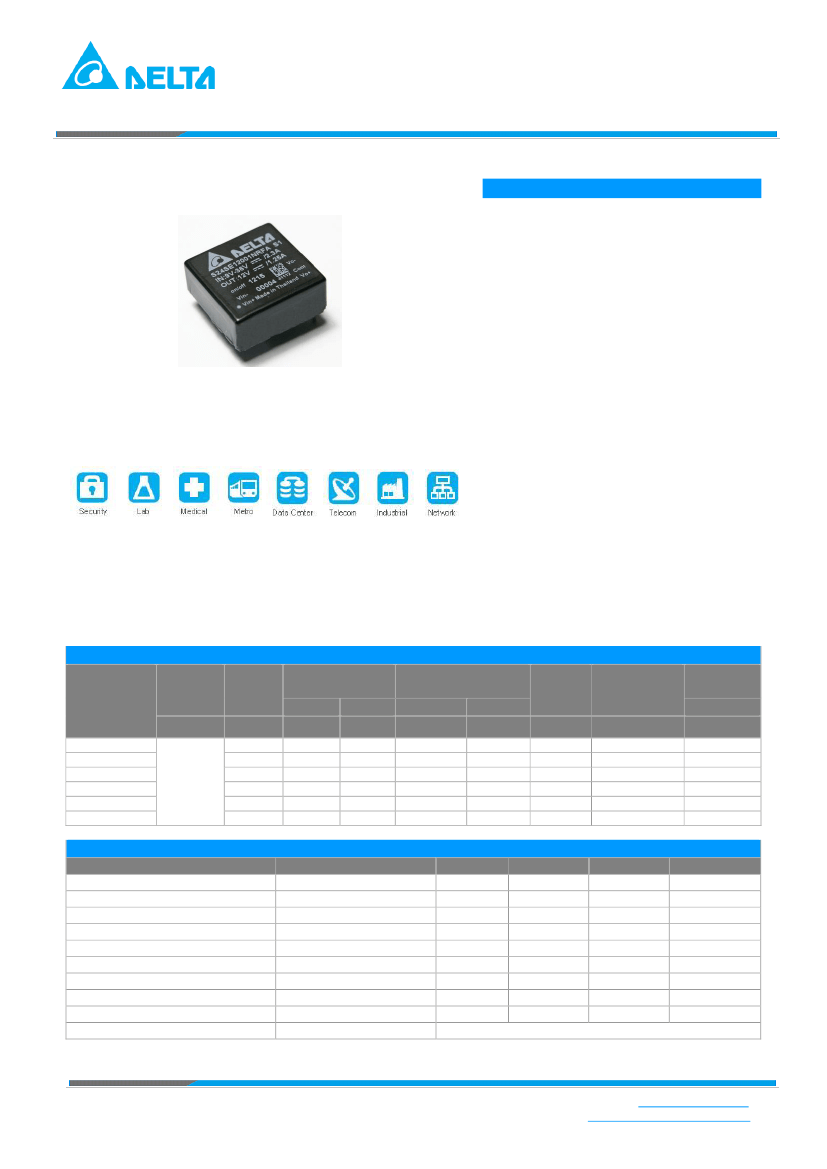

S24SE/S24DE series

30W Single/Dual Output DC/DC Converter

FEATURES



Efficiency up to 89%

Wide input range, 9V-36V

Package with Industry Standard Pinout

Package Dimension:

25.4 x25.4 x10.2mm (1.0” x1.0” x0.40”)(No HSK)

Over voltage protection, hiccup mode

Over current protection, hiccup mode

Positive or Negative Remote ON/OFF

Without tantalum capacitor inside module

Operating Temperature range - 40°C to +85°C

Input to Output Isolation: 1600VDC

RoHS Compliant

3 Years Product Warranty

Heat-sink is option

UL60950, 2

Edition, 2011-12-19 Recognized

EN50155 compliance for Week 1618 datecode

afterwards

The S24SE/S24DE family, the highest power density (30W), supplies industrial 1”X1” isolated power converter whose pinout follows

industry standard. The S24SE/S24DE series comes with a host of industry-standard features, such as over current protection, over voltage

protection, over temperature protection and remote on/off. An optional heatsink is available for more extreme thermal requirements. All

models have an ultra-wide 4:1 input voltage range (9V to 36V). With operating temperature of -40°C to +85°C, it is suitable for customers’

critical applications, such as process control and automation, transportation, data communication and telecom equipment, test equipment,

medical device and everywhere where space on the PCB is critical.

Model List

Model

Number

Input

Voltage

(Range)

VDC

S24SE3R307

S24SE05006

S24SE12003

S24SE15002

S24DE12001

S24DE15001

Output

Voltage

VDC

3.3V

5.0V

12V

15V

±12V

±15V

Output Current

Max.

7500

6000

2500

2000

1250

1000

Min.

Input Current

(typ input voltage)

@Max. Load @No Load

mA(typ.)

1170

1450

mA(typ.)

±10

±12

±15

±120

±150

10000

1000

±1000

±680

Load

Regulation

Maxcapacitive

Load

Efficiency

(typ.)

@Max. Load

88%

89%

88%

(9 ~ 36)

Input Characteristics

Item

Input Surge Voltage (100 msec)

Input Turn-On Voltage Threshold

Input Turn-Off Voltage Threshold

Input Under-Voltage Lockout Hysteresis

Off-Converter Input Current

Input reflected ripple current

Reverse Polarity Input Current

ON/OFF Control, Logic High

ON/OFF Control, Logic Low

Input Filter

Model

All Models

All Models, with 12uH, 20MHz

All Models

Min.

0.4

Typ.

8.5

7.5

---

Max.

1.7

0.3

0.8

Internal PI Filter

Unit

VDC

---

2.4

-0.7

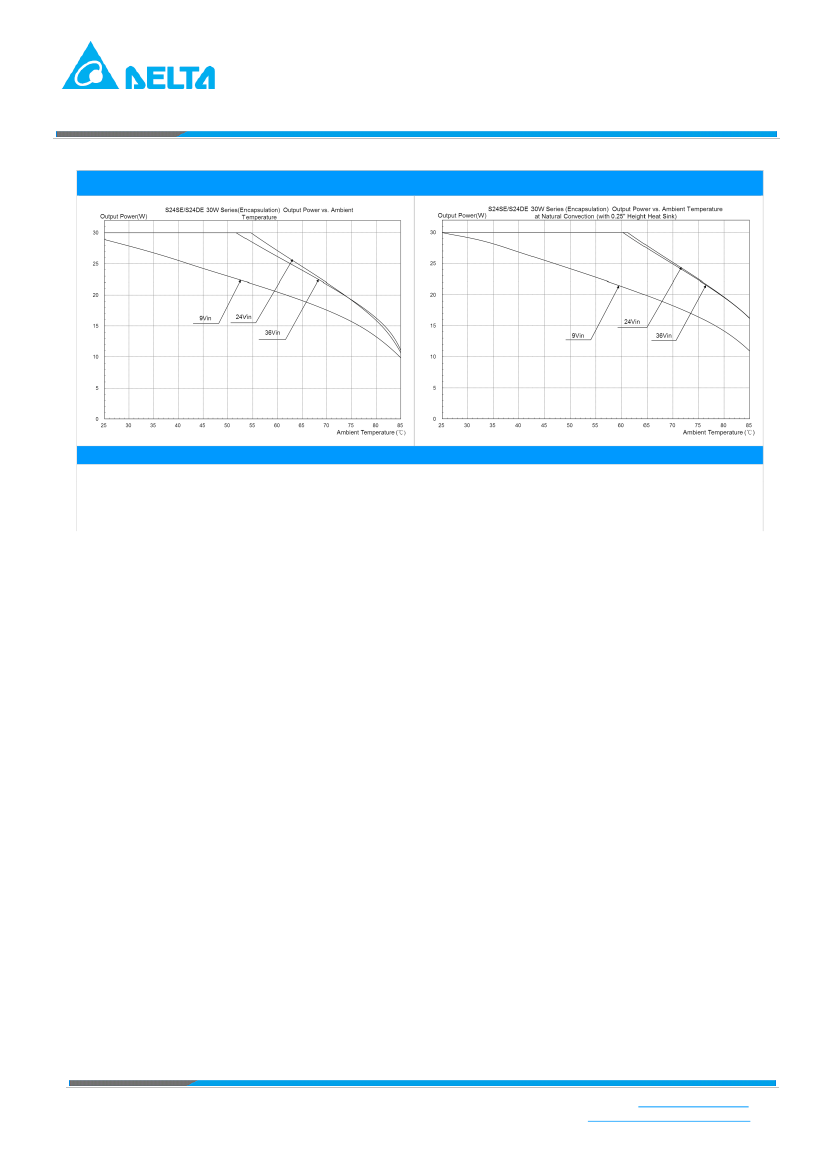

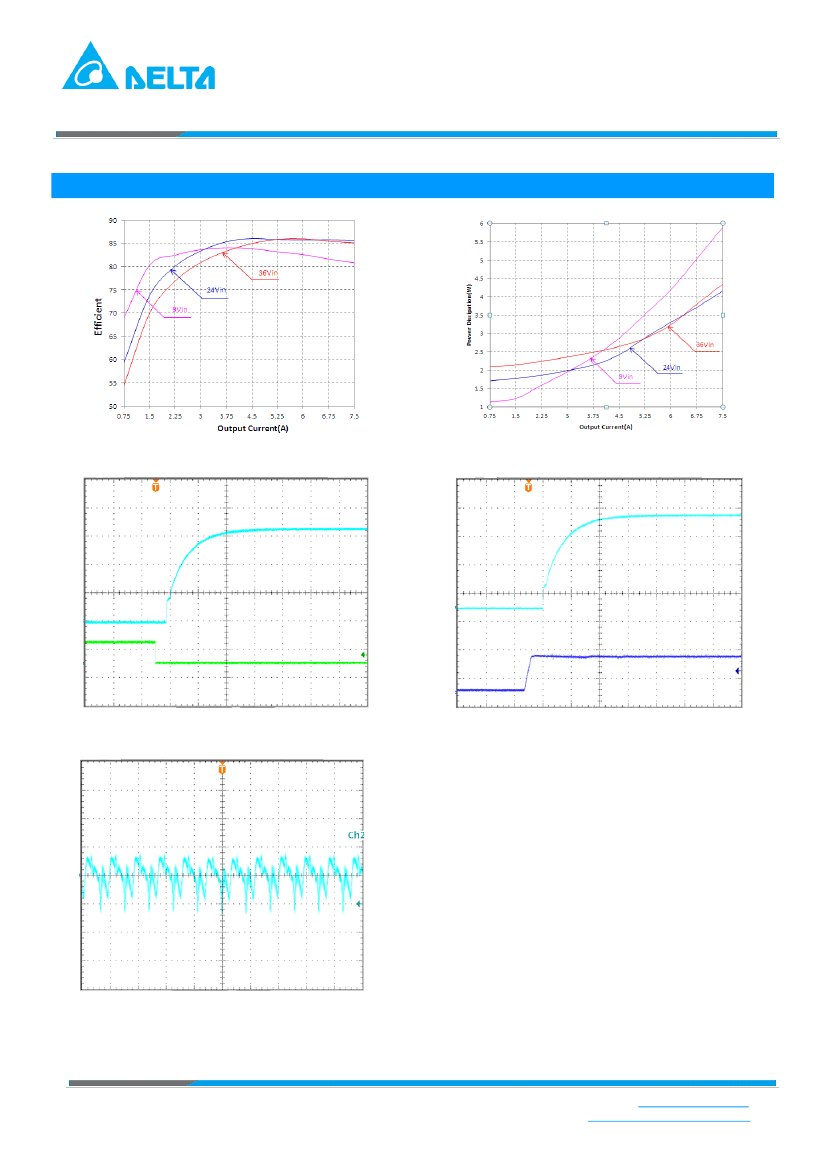

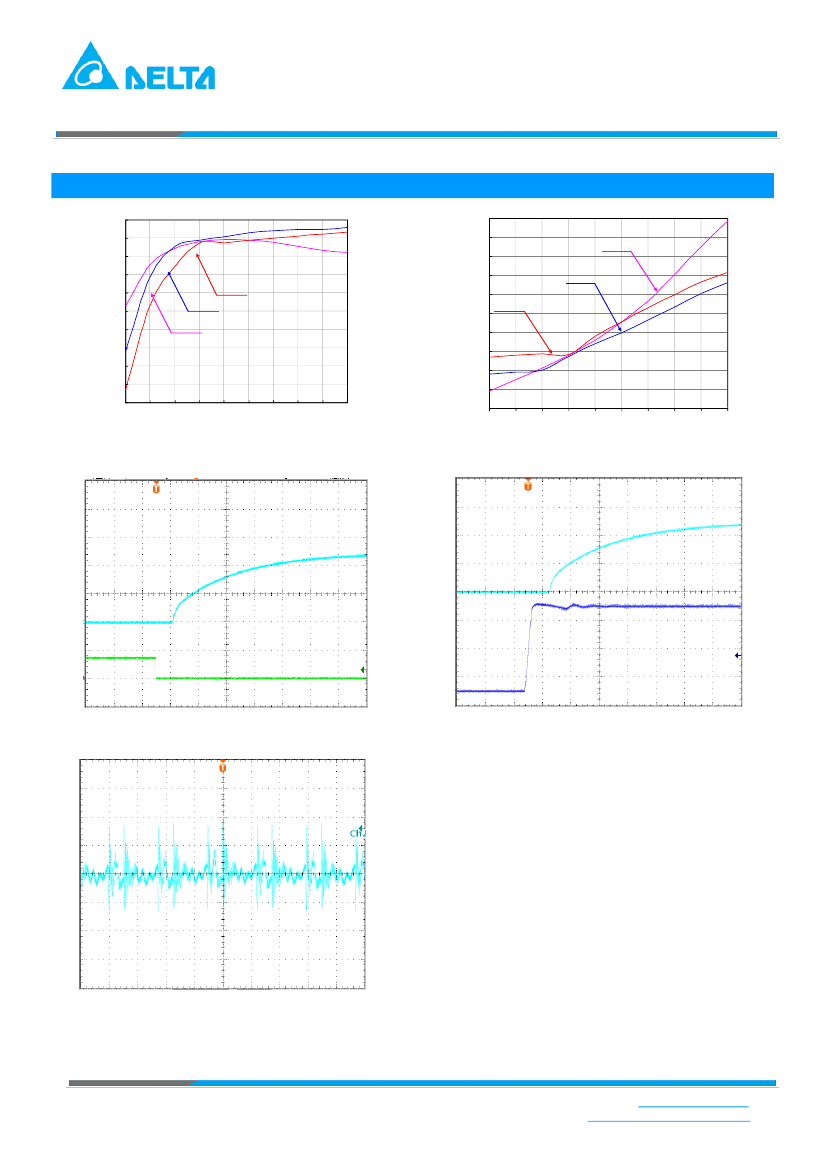

DS_S24SE/S24DE 30W_01052017

E-mail: dcdc@deltaww.com

http://www.deltaww.com/dcdc

S24DE15001NDFA Related Products

	S24DE15001NDFA	S24SE12003PDFH	S24SE05006PDFH	S24SE15002NDFA	S24DE12001PDFH	S24DE15001PDFH	S24SE3R307PDFA	S24SE15002PDFA
Description	DC DC CONVERTER +/-15V 30W	DC DC CONVERTER 12V 30W	DC DC CONVERTER 5V 30W	DC DC CONVERTER 15V 30W	DC DC CONVERTER +/-12V 30W	DC DC CONVERTER +/-15V 30W	DC DC CONVERTER 3.3V 30W	DC DC CONVERTER 15V 30W
type	-	-	isolation module	isolation module	isolation module	isolation module	isolation module	-
Voltage - Input (minimum)	-	-	9V	9V	9V	9V	9V	-
Voltage - input (maximum)	-	-	36V	36V	36V	36V	36V	-
Voltage - Output 1	-	-	5V	15V	12V	15V	3.3V	-
Current - Output (maximum)	-	-	6A	2A	1.25A，1.25A	1A，1A	7.5A	-
Power (W)	-	-	30W	30W	30W	30W	30W	-
Voltage - Isolation	-	-	1.6kV	1.6kV	1.6kV	1.6kV	1.6kV	-
application	-	-	ITE (Business)	ITE (Business)	ITE (Commercial), Railway	ITE (Commercial), Railway	ITE (Business)	-
characteristic	-	-	Remote on/off, OCP, OTP, OVP	Remote on/off, UVLO	Remote on/off, OCP, OTP, OVP, UVLO	Remote on/off, OCP, OTP, OVP, UVLO	Remote on/off, UVLO	-
Operating temperature	-	-	-40°C ~ 85°C (with derating)	-40°C ~ 85°C	-40°C ~ 85°C (with derating)	-40°C ~ 85°C (with derating)	-40°C ~ 85°C	-
efficiency	-	-	89%	88%	88%	88%	88%	-
Installation type	-	-	Through hole	Through hole	Through hole	Through hole	Through hole	-
Package/casing	-	-	6-DIP module	6-DIP module	6-DIP module	6-DIP module	6-DIP module	-
size/dimensions	-	-	1.00" long x 1.00" wide x 0.66" high (25.4mm x 25.4mm x 16.8mm)	1.00" long x 1.00" wide x 0.40" high (25.4mm x 25.4mm x 10.2mm)	1.00" long x 1.00" wide x 0.66" high (25.4mm x 25.4mm x 16.8mm)	1.00" long x 1.00" wide x 0.66" high (25.4mm x 25.4mm x 16.8mm)	1.00" long x 1.00" wide x 0.40" high (25.4mm x 25.4mm x 10.2mm)	-
