EK1HMC6350 User Guide
UG-1031
One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
Getting Started with the
EK1HMC6350
Evaluation Kit and Software
FEATURES
60 GHz evaluation kit designed for quick evaluation of the
HMC6300
and
HMC6301
transmit/receive chipset
Demonstration platform allows easy integration of the
HMC6300
and
HMC6301
radio link with a baseband
modem for over the air transmission
EQUIPMENT NEEDED
2 PCs, one designated for each motherboard for GUI control
Baseband source
Spectrum analyzer
DOCUMENTS NEEDED
HMC6300
data sheet
HMC6301
data sheet
APPLICATIONS
Point to point millimeter wave radio development
Wireless Gigabyte Alliance/IEEE 802.11ad radio
60 GHz RF sniffing
60 GHz signal generator
Modem development
Radar/high resolution Imaging
GENERAL DESCRIPTION
The
EK1HMC6350
evaluation kit allows users to set up a half-
duplex, 60 GHz millimeter wave link using standard baseband
analog interfaces. MMPX and 1.85 mm connectors are provided
to interface with third party test equipment or millimeter wave
antennas. The
EK1HMC6350
evaluation kit includes a USB
interface and graphical user interface (GUI) software, the
HMC6300/HMC6301 Graphical User Interface,
allowing the user
to program the
HMC6300
and
HMC6301
by writing to the device
registers.
There are two motherboards in the kit: an
HMC6300
motherboard
with the TX module location populated and the
HMC6301
motherboard with the RX module location populated.
Full specifications on the
HMC6300
and
HMC6301
are available in
the
HMC6300
and
HMC6301
data sheets, which should be
consulted in conjunction with this user guide when working
with the evaluation board.
EVALUATION KIT CONTENTS
1
HMC6300
Tx 60 GHz transmitter motherboard/module
assembly with a MMPX interface
1
HMC6301
Rx 60 GHz receiver motherboard/module
assembly with a MMPX interface
2 hand formable 2 inch coaxial cables with a male MMPX
connector on one end and a 1.85 mm male connector on
the other end
1
HMC6300
motherboard/TX module with crystal, USB
interface, supply regulators, MCX connector and
differential I/Q interface
1
HMC6301
motherboard/RX module with crystal, USB
interface, supply regulators, MCX connector and
differential I/Q interface
2 wall-mount power supplies
2 USB 2.0 male/male 6 foot cables
8 phase matched MCX to SMA cables for baseband interface
on both motherboards
Evaluation software CD-ROM containing the
HMC6300/HMC6301 Graphical User Interface
software GUI
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
Rev. 0 | Page 1 of 12
UG-1031
TABLE OF CONTENTS
Features .............................................................................................. 1
Applications ....................................................................................... 1
Evaluation Kit Contents ................................................................... 1
Equipment Needed ........................................................................... 1
Documents Needed .......................................................................... 1
General Description ......................................................................... 1
Revision History ............................................................................... 2
Evaluation Board Hardware Setup ................................................. 3
Connecting the MMPX Cable To the HMC6300
Motherboard/TX Module Assembly ............................................ 3
EK1HMC6350 User Guide
Attaching the Baseband Cables ...................................................3
Connecting the MMPX Cable to the HMC6301
Motherboard/RX Module Assembly .............................................5
Evaluation Board Software Quick Start Procedures .....................6
Programming the HMC6300 TX Module .................................6
Programming the HMC6301 RX Module .................................9
60 GHz Wireless Radio Link ......................................................... 12
REVISION HISTORY
7/2016—Revision 0: Initial Version
Rev. 0 | Page 2 of 12
EK1HMC6350 User Guide
EVALUATION BOARD HARDWARE SETUP
CONNECTING THE MMPX CABLE TO THE
HMC6300
MOTHERBOARD/TX MODULE ASSEMBLY
Remove the
HMC6300
motherboard/TX module assembly from
the kit. Snap the MMPX semirigid cable into the
HMC6300
TX
module output connector, shown in Figure 1. The 1.85 mm
connector at the other end of the cable can interface with test
equipment or a WR-15 waveguide transition to connect with
third party antennas.
UG-1031
The baseband source can be test equipment or a modem that
generates a baseband tone or modulated I/Q signal. Connect
the baseband inputs on the motherboard to the baseband I/Q
source as follows:
Motherboard BB_IP connects to the I positive baseband output
Motherboard BB_IM connects to I negative baseband output
Motherboard BB_QP connects to Q positive baseband output
Motherboard BB_QM connects to Q negative baseband output
ATTACHING THE BASEBAND CABLES
Attach the four phase-matched baseband cables supplied with the
EK1HMC6350
evaluation kit to the Tx baseband inputs, and the
baseband cables snap into place. Attach the other end of the
baseband cables to the user selected baseband source.
MOTHERBOARD BOARD
Locate the wall mounted power supply and USB connector
supplied in the kit and connect them to the
HMC6300
motherboard/TX module assembly, shown in Figure 1 and
Figure 2.
HMC6300 TX MODULE
MMPX CABLE

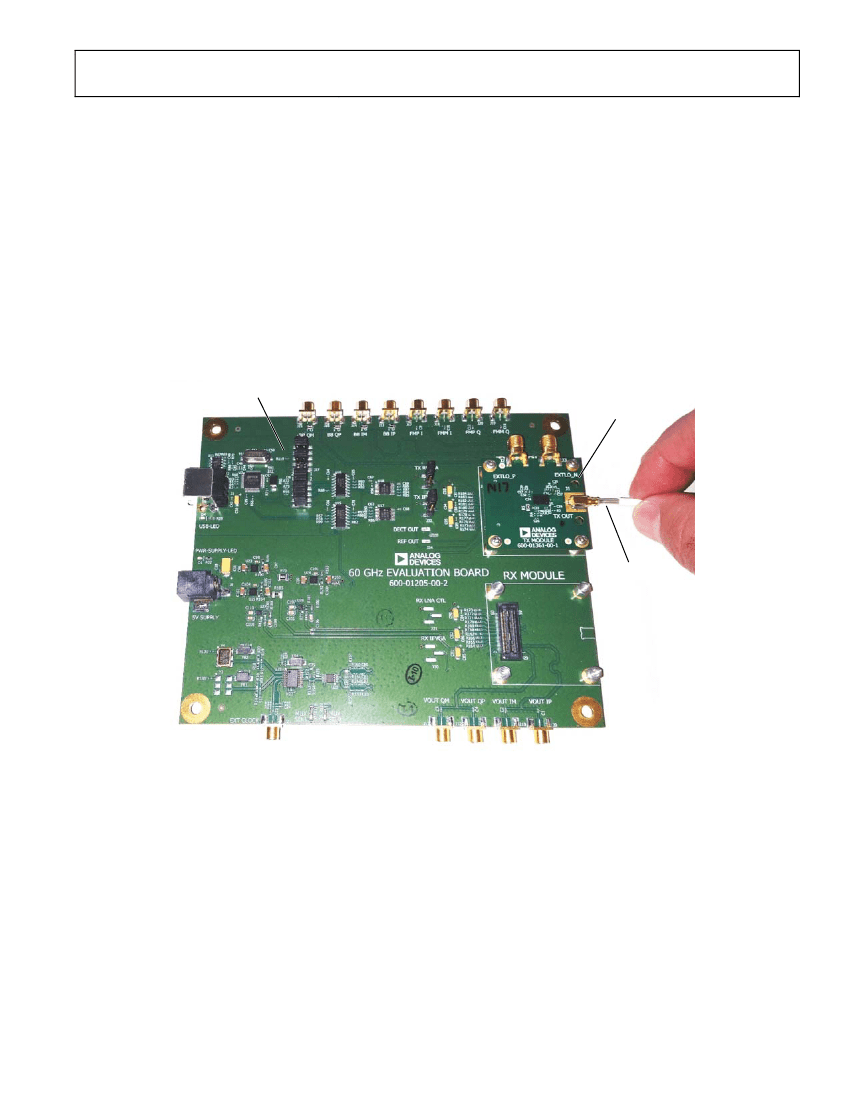

Figure 1.
HMC6300
Assembly with the Motherboard Populated with the TX Module
Rev. 0 | Page 3 of 12
14834-001
UG-1031
Tx BASEBAND I/Q INPUTS
EK1HMC6350 User Guide
USB CABLE TO PC OR LAPTOP
+5V DC POWER

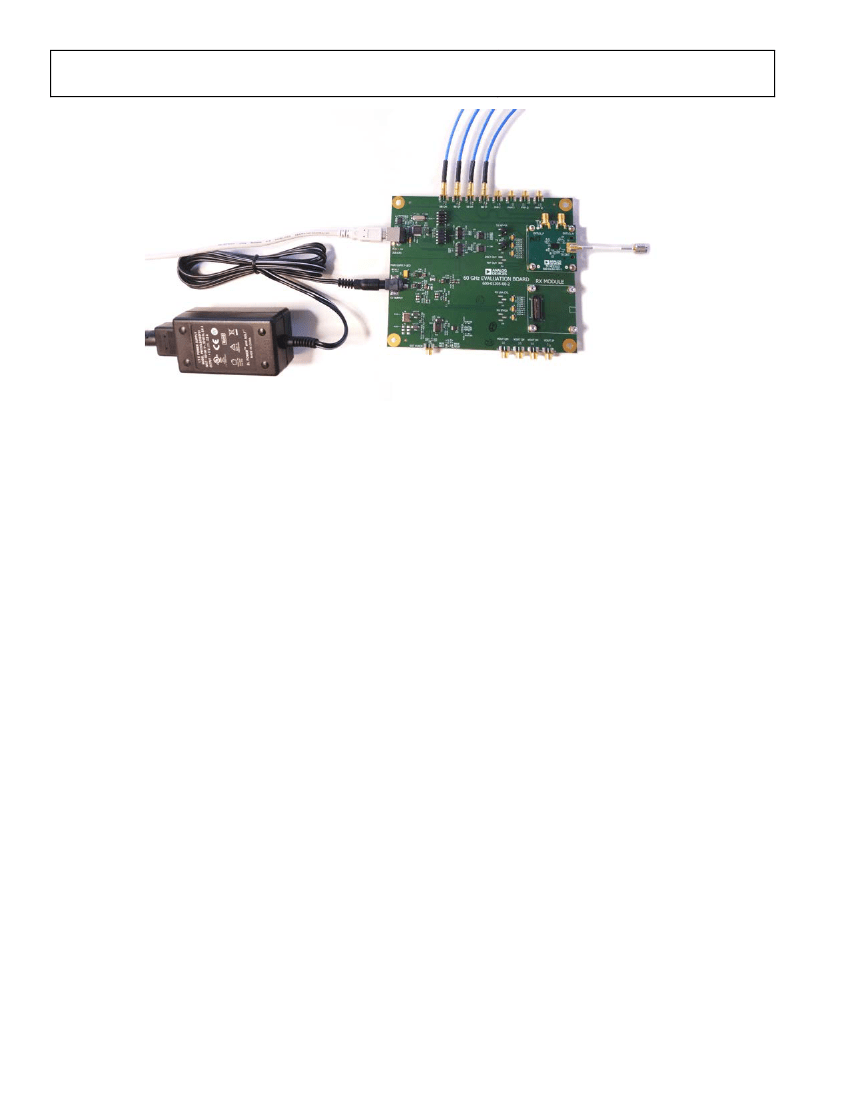

Figure 2.
HMC6300
Motherboard/TX Module Assembly with USB, DC Power, and I/Q Cables Installed
Rev. 0 | Page 4 of 12
14834-002
EK1HMC6350 User Guide
CONNECTING THE MMPX CABLE TO THE
HMC6301
MOTHERBOARD/RX MODULE ASSEMBLY
Locate the motherboard with the
HMC6301
Rx receiver module
installed. Snap the MMPX semirigid cable into the
HMC6301
RX module output connector, shown in Figure 1. The 1.85 mm
connector at the other end of the cable can interface with a test
equipment or a WR-15 waveguide transition to connect with
third party antennas.
Attach the four phase-matched baseband cables supplied with
the
EK1HMC6350
evaluation kit to the Rx baseband outputs, the
baseband cables snap into place.
UG-1031
Attach the other end of the baseband cables to baseband test
equipment or a modem that processes a baseband tone or
modulated I/Q signal. Connect the baseband inputs on the
motherboard to the baseband I/Q source as follows:
•
•
•
•
Motherboard VOUT_IP connects to I positive
baseband input
Motherboard VOUT_IM connects to I negative
baseband input
Motherboard VOUT_QP connects to Q positive
baseband input
Motherboard VOUT_QM connects to Q negative
baseband input
Locate the wall-mounted power supply and USB connector
supplied in the
EK1HMC6350
evaluation kit and connect them
to the
HMC6301
motherboard/RX module assembly, shown in
Figure 3.
USB CABLE TO PC OR LAPTOP
+5V DC POWER

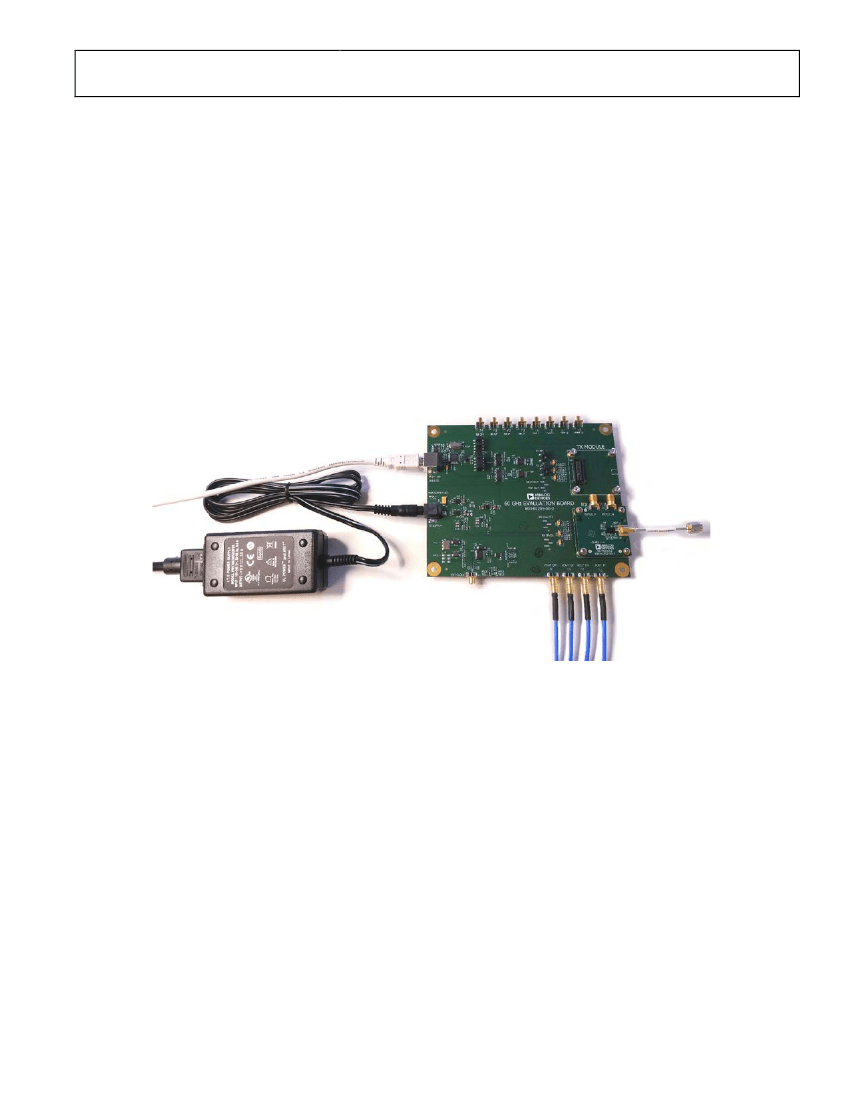

Figure 3.
HMC6301
Assembly with the Motherboard Populated with the RX Module
Rev. 0 | Page 5 of 12
14834-003
