Conductor connectors - QPD C 4PE2,5 2X9-16 GY - 1403835
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
QUICKON cable connector, gray, 4+PE-pos., 1.0 mm² ... 2.5 mm² / 690 V / 20 A, for 6 mm ... 11 mm cable
diameter.
Your advantages
Innovative and time saving - QUICKON fast connection for time saving of up to 80 % for on-site connection
Convenient: quick and easy assembly without special tools
Robust throughout: housing with IP68/IP69K and IK07 protection for a wide range of applications
Safer connection thanks to polarization against mismatching and touch-proof protection according to DIN EN 0105
Easy and safe - with the cable connector, you can repair or extend cables quickly, in combination with the connector as well as the coupling
connection
Key Commercial Data
Packing unit
GTIN
GTIN
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
4046356670319
91.100 g
85366990
Poland
1 pc
Technical data
General
Type
Color
Locking type
Connection method
Number of positions
Note number of positions
Wrench size, union nut
QPD 5x2,5
gray
Screw locking
QUICKON connection
IDC connection
5
4+PE
27 mm
12/31/2018 Page 1 / 6
https://www.phoenixcontact.com/in/products/1403835
Conductor connectors - QPD C 4PE2,5 2X9-16 GY - 1403835
Technical data
General
Tightening torque, union nut
Tightening torque, counter nut
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
10 Nm
5 Nm
1 mm²
2.5 mm²
1 mm²
2.5 mm²
16
14
Cabel
Structure of individual litz in acc. with VDE 0295 / smallest wire diameter VDE 0295 class 1 to 6/min. 0.15 mm
Wire insulation material
Wire diameter including insulation
External cable diameter
Position marking
PVC/PE/TPE/rubber
2 mm ... 3.8 mm
6 mm ... 10 mm
1, 2, L, N, PE
Ambient conditions
Degree of protection
IP66
IP68 (2 m / 24 h)
IP69K
Ambient temperature (operation)
Ambient temperature (storage/transport)
Temperature when conductor connected
-40 °C ... 100 °C
-40 °C ... 100 °C
-5 °C ... 50 °C
Electrical characteristics
Nominal current I
N
Rated current
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
20 A
20 A
690 V
1000 V
1000 V
6 kV
8 kV
8 kV
Mechanical characteristics
QUICKON connectability
Insertion/withdrawal cycles
Category of shock impact
max. 10
>= 50 (QUICKON connections max. 10)
IK07
Material data
Contact material
Contact surface material
Contact carrier material
Cu
silver-plated
PA
12/31/2018 Page 2 / 6
https://www.phoenixcontact.com/in/products/1403835
Conductor connectors - QPD C 4PE2,5 2X9-16 GY - 1403835
Technical data
Material data
Insulating material
Flammability rating according to UL 94
Overvoltage category
Degree of pollution
PA
V0
III
3
Standards and Regulations
Halogen-free
Flammability rating according to UL 94
yes
V0
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Drawings
Dimensional drawing
115
27,6
Ø34,6
27
30
27
QPD C 5x2.5 dimensional drawing
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
272607xx
27260701
27143424
27143400
27143400
27440605
27440605
27440605
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
ETIM 6.0
EC000516
EC002635
EC002560
EC002560
12/31/2018 Page 3 / 6
https://www.phoenixcontact.com/in/products/1403835
Conductor connectors - QPD C 4PE2,5 2X9-16 GY - 1403835
Classifications
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211923
39121522
39121522
39121522
39121402
Approvals
Approvals
Approvals
GL / IECEE CB Scheme / VDE Zeichengenehmigung / EAC
Ex Approvals
Approval details
GL
http://exchange.dnv.com/tari/
6195914 HH
IECEE CB Scheme
http://www.iecee.org/
DE1-58228
VDE Zeichengenehmigung
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://www2.vde.com/de/Institut/Online-Service/
VDE-gepruefteProdukte/Seiten/Online-Suche.aspx
690 V
20 A
1-2.5
40029149
EAC
RU C-
DE.AI30.B.01102

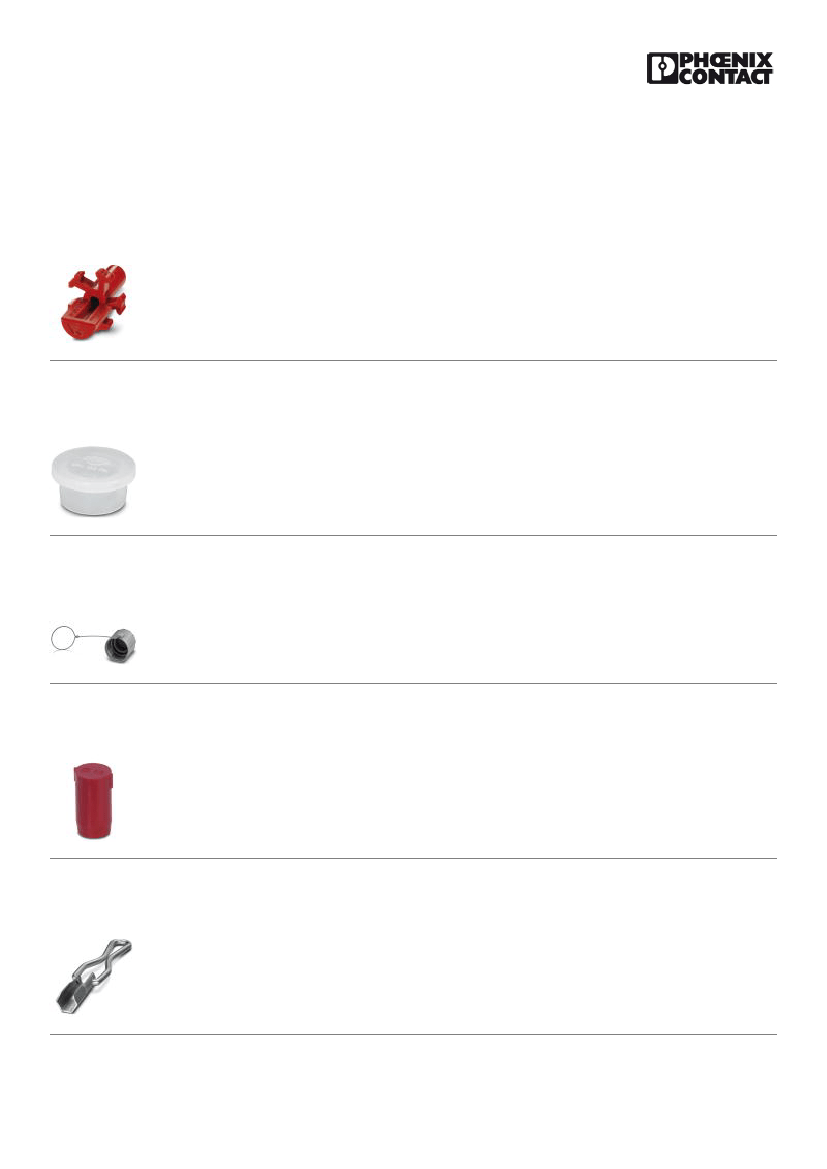

Accessories
Accessories
12/31/2018 Page 4 / 6
https://www.phoenixcontact.com/in/products/1403835
Conductor connectors - QPD C 4PE2,5 2X9-16 GY - 1403835
Accessories
Coding element
Coding profile - CP-QPD 5X2,5 - 1404530
Coding profile, red, for insertion into the 5-pos. QUICKON dome and connector, can be positioned in 72° increments.
Protective cap
Protective cap - QPD QSK 5X2,5 - 1404528
Protective cap, transparent plastic, for 5x 2.5 mm² QPD QUICKON connection, IP50.
Protective cap - QPD QSK GY 5X2,5 FS - 1404526
Protective cap, plastic, for QUICKON connection, gray, with retaining cord, IP68
Sealing plugs
Closing cap - SEALING PLUG 14X22 RD - 1400270
Closing cap, PA, for threads pluggable, color: red
Socket spanner
Socket wrench - QSS 27 - 1670646
Allen wrench, for loosening and fastening the QUICKON union nut, WAF 27 mm
12/31/2018 Page 5 / 6
