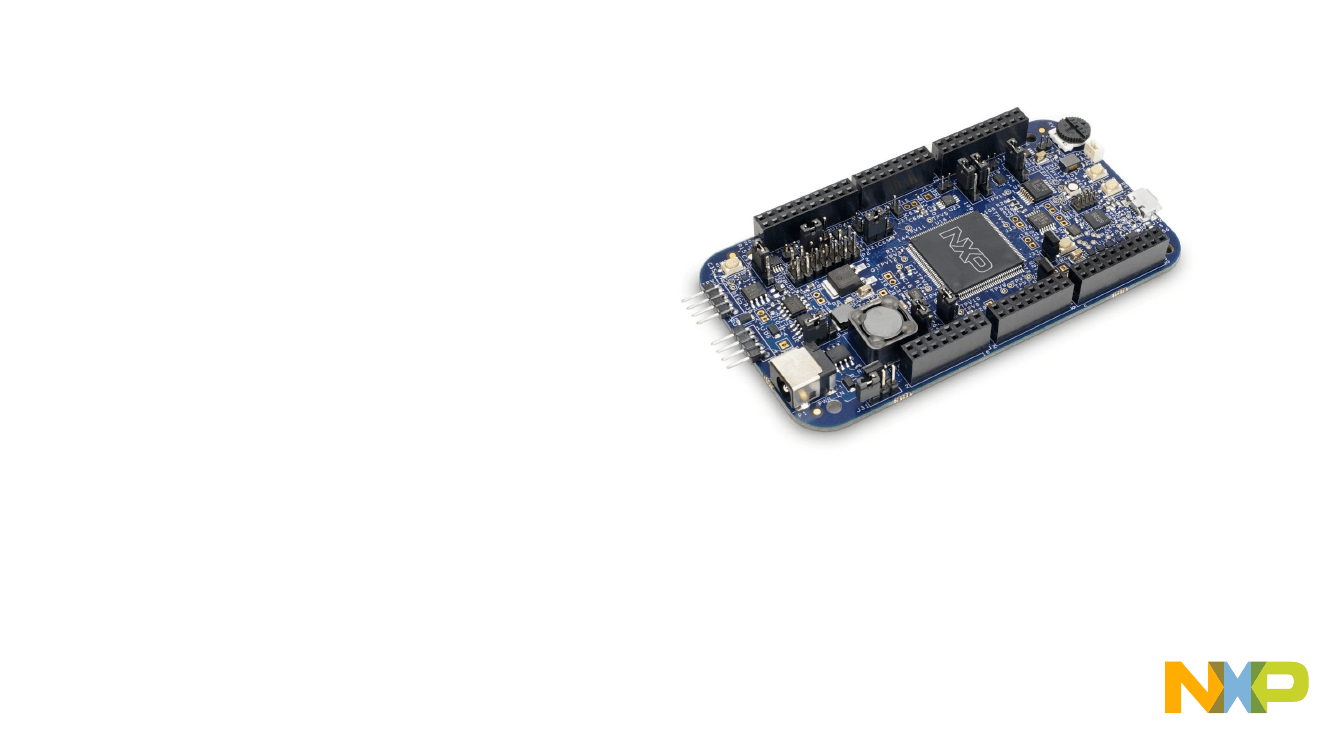

DEVKIT-MPC5744P
QUICK START GUIDE (QSG)
Ultra-Reliable MCUs for Industrial and Automotive Applications
www.nxp.com/DEVKIT-MPC5744P
EXTERNAL USE
Contents
•
•
•
Quick Start Package Overview
Step-by-Step Installation Instructions
Hardware: DEVKIT-MPC5744P Board
−
−
−
−
Features
Overview
Pinout and Jumper Settings
Power Supply
•
Software:
−
−
Software Development Tools
Pre-compiled Code Examples
•
•
•
•
Documentation
MPC574xP Family : Phantom Feature Differences
OpenSDA
Recommendations
1
EXTERNAL USE
Quick Start Package Overview
Board:
DEVKIT-MPC5744P
Low cost EVB with MPC5744P Auto quality MCU on board
Documents:
Name
Quick Start Guide(QSG)
Software Installation Guide(SWIG)
Description
Detailed description on availability of Hardware, Software and Documents to quick start with
MPC5744P project (this document)
Detailed walk through on how to install and use S32 Design Studio for Power Architecture
Application Notes
Fact Sheets, Reference Manuals and Data Sheets
Detailed documents covering topics from ‘how to design hardware’ to ‘how to write software’
Detailed manuals for MPC5744P family of MCU and DEVKIT-MPC5744P board
Downloads:
Name
Integrated Development Environment (IDE)
DEVKIT-MPC5744P Quick Start Package
DEVKIT-MPC5744P Schematics
DEVKIT-MPC5744P PCB Design Package
Description
Eclipse based S32DS IDE with free GCC compiler and Debugger support
Software examples and supporting documents for getting started with the DEVKIT-MPC5744P
PDF schematic files for the DEVKIT-MPC5744P board
Gerber files and Bill of Material
2
EXTERNAL USE
Step-by-Step Installation Instructions

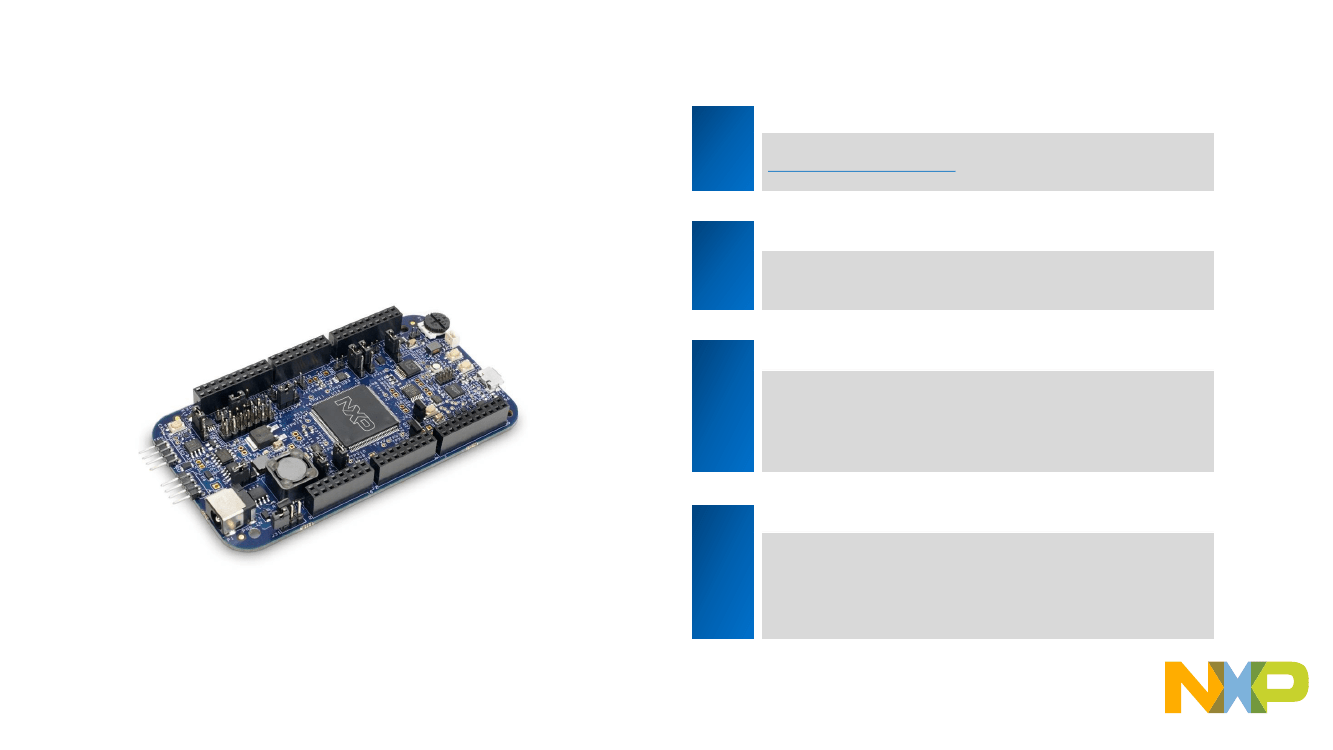

In this quick start guide, you will learn how to set up the
DEVKIT-MPC5744P
board and run the default program.
Install Software and Tools
1
Install S32 Design Studio IDE for Power Architecture.
S32 Design Studio for Power
See Software Installation Guide (SWIG) for detailed procedure
Connect the USB Cable
2
Connect one end of the USB cable to the PC and the other end to
the micro-B connector on the DEVKIT-MPC5744P board. Allow the
PC to automatically configure the USB drivers.
Observe the Default Program reaction
The pre-loaded example project utilizes the
DEVKIT-MPC5744P
user potentiometer and the user LEDs. Once the board is plugged
in the ADC will scan the potentiometer result and shine LEDs based
on result. Turn the potentiometer to turn on a different LED pattern.
(Clock is configured to PLL running at 160 MHz)
3
Learn More About the DEVKIT-MPC5744P
4
Read release notes and documentation on the
nxp.com/DEVKIT-MPC5744P
nxp.com/MPC5744P
3
EXTERNAL USE
DEVKIT-MPC5744P Board : Features
•
MPC5744P has 2 x 200 MHz Power Architecture® e200Z4 Dual issue
cores operating in delayed lockstep
MPC5744P qualified to AEC-Q100 Grade 1 and ambient temperature of -40
to +125 °C
Arduino™ UNO R3 footprint-compatible with expansion “shield” support
−
•
•
Supports DEVKIT-MOTORGD motor control shield
•
Integrated Open-standard Serial and Debug Adapter (OpenSDA) with
support for several industry-standard debug interfaces as well as JTAG
connector
Easy access to the MCU I/O header pins for prototyping
On-chip connectivity for FlexRay, CAN, LIN, UART/SCI and SPI
Potentiometer for precise voltage and analog measurement
One user RGB LED (1 red, 1 green, 1 blue in single package)
2 user push-button switches
Flexible power supply options
•
•
•
•
•
•
•
•
•
Box includes:
−
DEVKIT-MPC5744P Board
Quick Start Package
•
Downloads includes:
−
micro-B USB
12V External power supply
•
−
−
S32 Design Studio IDE
Application notes
•
Similar hardware across ARM
®
, S12 and Power Architecture
®
architecture
based MCUs
NOTE: DEVKIT-MPC5744P RevB does not support shield reset. Any
Arduino™ shield that relies on reset signal from DEVKIT-MPC5744P
RevB will not work. Shield reset
is supported
starting with RevC.
4
