Atmel QTouch
QT5 Xplained Pro User Guide
USER GUIDE
Preface
Atmel QT5 Xplained Pro kit is an extension board that enables the
evaluation of mutual-capacitance touch using the Peripheral Touch
Controller (PTC) module. The kit shows how easy it is to design a nice
looking capacitive touch user interface for the PTC. The kit includes one
®
board with a curved QTouch mutual-capacitance slider and two QTouch
mutual-capacitance buttons. In addition it has 16 LEDs arranged as two 7-
segment digits separated with a colon.
®
Atmel-42637A-QT5-Xplained-Pro_User Guide-12/2015
Table of Contents
Preface............................................................................................................................ 1
1. Introduction................................................................................................................ 3
1.1.
1.2.
1.3.
Features....................................................................................................................................... 3
Kit Overview................................................................................................................................. 3
Kit Compatibility............................................................................................................................3
2. Getting Started...........................................................................................................5
2.1.
2.2.
Xplained Pro Quick Start.............................................................................................................. 5
Design Documentation and Relevant Links................................................................................. 5
3. Xplained Pro.............................................................................................................. 6
3.1.
3.2.
Hardware Identification System....................................................................................................6
Xplained Pro Headers and Connectors........................................................................................6
4. Hardware Users Guide.............................................................................................. 8
4.1.
4.2.
4.3.
Electrical Characteristics.............................................................................................................. 8
Headers and Connectors..............................................................................................................8
Peripherals................................................................................................................................... 9
5. Hardware Revision History and Known Issues........................................................10
5.1.
5.2.
Identifying Product ID and Revision........................................................................................... 10
Revision 4...................................................................................................................................10
6. Document Revision History......................................................................................11
7. Evaluation Board/kit Important Notice..................................................................... 12
Atmel QT5 Xplained Pro User Guide [USER GUIDE]
Atmel-42637A-QT5-Xplained-Pro_User Guide-12/2015
2
1.
1.1.
Introduction
Features
•
QTouch
•
One 4-channel (4X x 1Y) mutual-capacitance curved slider
•
Two mutual-capacitance buttons
LEDs
•
16 LEDs arranged as two 7-segment digits separated with a colon
•
IS31FL3728 I
2
C LED matrix controller from ISSI
Xplained Pro hardware identification system
•
•
1.2.
Kit Overview
Atmel QT5 Xplained Pro extension is designed specifically for Xplained Pro MCU boards featuring an
MCU with a built-in peripheral touch controller.
The extension board can be used to explore the touch functions on the PTC module in mutual-
capacitance mode.

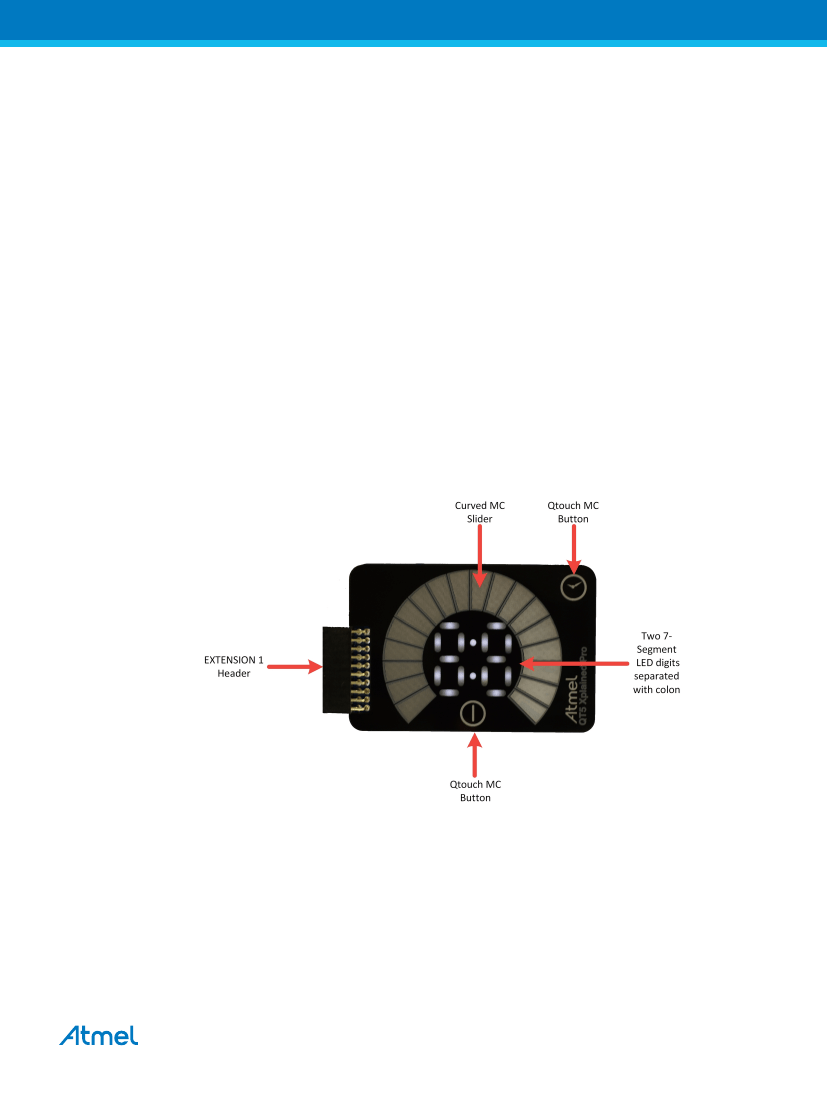

Figure 1-1 QT5 Xplained Pro Extension Board
1.3.
Kit Compatibility
This kit is only supported by Xplained Pro MCU boards that have an MCU with a built-in PTC and a
matching pinout that connects all sensors of the extension. There is no guarantee that every Xplained Pro
MCU board with a device that has PTC will manage to match the touch signal pinout to the extension
headers.
Currently supported MCU boards are:
•
SAM D11 Xplained Pro
Atmel QT5 Xplained Pro User Guide [USER GUIDE]
Atmel-42637A-QT5-Xplained-Pro_User Guide-12/2015
3
•
•
•
•
•
SAM C21 Xplained Pro
SAM L21 Xplained Pro
SAM L22 Xplained Pro
SAM R21 Xplained Pro
ATmega324PB Xplained Pro
Other future Xplained Pro MCU board designs may also support QT5 Xplained Pro.
Atmel QT5 Xplained Pro User Guide [USER GUIDE]
Atmel-42637A-QT5-Xplained-Pro_User Guide-12/2015
4
2.
2.1.
Getting Started
Xplained Pro Quick Start
Three steps to start exploring the Atmel Xplained Pro platform:
1. Download
Atmel Studio.
2. Launch Atmel Studio.
3. Connect QT5 Xplained Pro to an Xplained Pro MCU board and connect a USB cable to the DEBUG
USB port on the Xplained Pro MCU board.
When the Xplained Pro MCU kit is connected to your computer for the first time, the operating system will
®
perform a driver software installation. The driver file supports both 32- and 64-bit versions of Microsoft
®
®
Windows XP, Windows Vista , Windows 7, and Windows 8.
Once the Xplained Pro MCU board is powered the green power LED will be lit and Atmel Studio will auto
detect which Xplained Pro MCU- and extension board(s) are connected. Atmel Studio will present
relevant information like datasheets and kit documentation. The kit landing page in Atmel Studio also has
the option to launch Atmel Software Framework (ASF) example applications for the kit. The target device
is programmed and debugged by the on-board Embedded Debugger and therefore no external
programmer or debugger tool is needed.
2.2.
Design Documentation and Relevant Links
The following list contains links to the most relevant documents and software for QT5 Xplained Pro:
•
Xplained Pro products
- Atmel Xplained Pro is a series of small-sized and easy-to-use evaluation
kits for Atmel microcontrollers and other Atmel products. It consists of a series of low-cost MCU
boards for evaluation and demonstration of features and capabilities of different MCU families.
®
®
®
Atmel QTouch Library PTC
- QTouch Library for Atmel AVR and ARM -based microcontrollers.
®
Atmel QTouch Composer
- Tool for developing capacitive buttons, sliders, and wheels
applications.
Atmel Studio
- Free Atmel IDE for development of C/C++ and assembler code for Atmel
microcontrollers.
Atmel Data Visualizer
- Atmel Data Visualizer is a program used for processing and visualizing
data. Data Visualizer can receive data from various sources such as the Embedded Debugger Data
Gateway Interface found on Xplained Pro boards and COM ports.
Design Documentation
- Package containing CAD source, schematics, BOM, assembly drawings,
3D plots, layer plots etc.
Hardware Users Guide in PDF format
- PDF version of this User Guide.
QT5 Xplained Pro on Atmel webpage
- Atmel website link.
Integrated Silicon Solution Inc.
- IS31FL3728 LED matrix controller manufacturer homepage.
•
•
•
•
•
•
•
•
Atmel QT5 Xplained Pro User Guide [USER GUIDE]
Atmel-42637A-QT5-Xplained-Pro_User Guide-12/2015
5
