SH Series SH10-125-05
Thermoelectric Modules

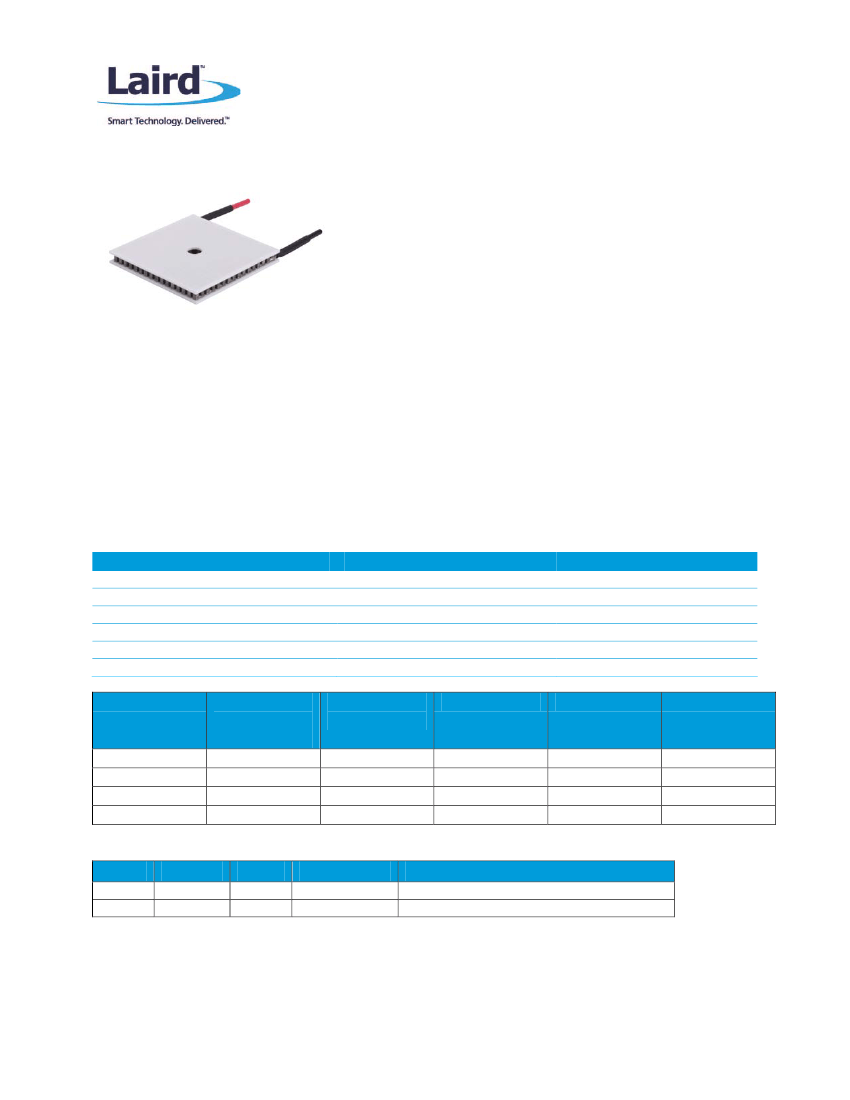

The SH Series is an annular-style thermoelectric module (TEM). The
hot and cold side ceramics have a circular hole in the center to
accommodate light protrusion for optics, mechanical fastening or
temperature probe.
This product line is available in multiple configurations. Assembled
with Bismuth Telluride semiconductor material and thermally
conductive Aluminum Oxide ceramics, the SH Series is designed for
higher current and larger heat-pumping applications.
Americas: +1.919.597.7300
Europe: +46.31.420530
Asia: +86.755.2714.1166
ets.sales@lairdtech.com
www.lairdtech.com
FEATURES
•
•
•
•
•
•
Center hole
Precise temperature control
Reliable solid state operation
No sound or vibration
DC operation
RoHS compliant
Analytical instrumentation
Clinical diagnostics
Photonics laser systems
Industrial instrumentation
•
Food & beverage cooling
•
Consumer appliances
•
•
•
•
APPLICATIONS
SPECIFICATIONS
TECHNICAL

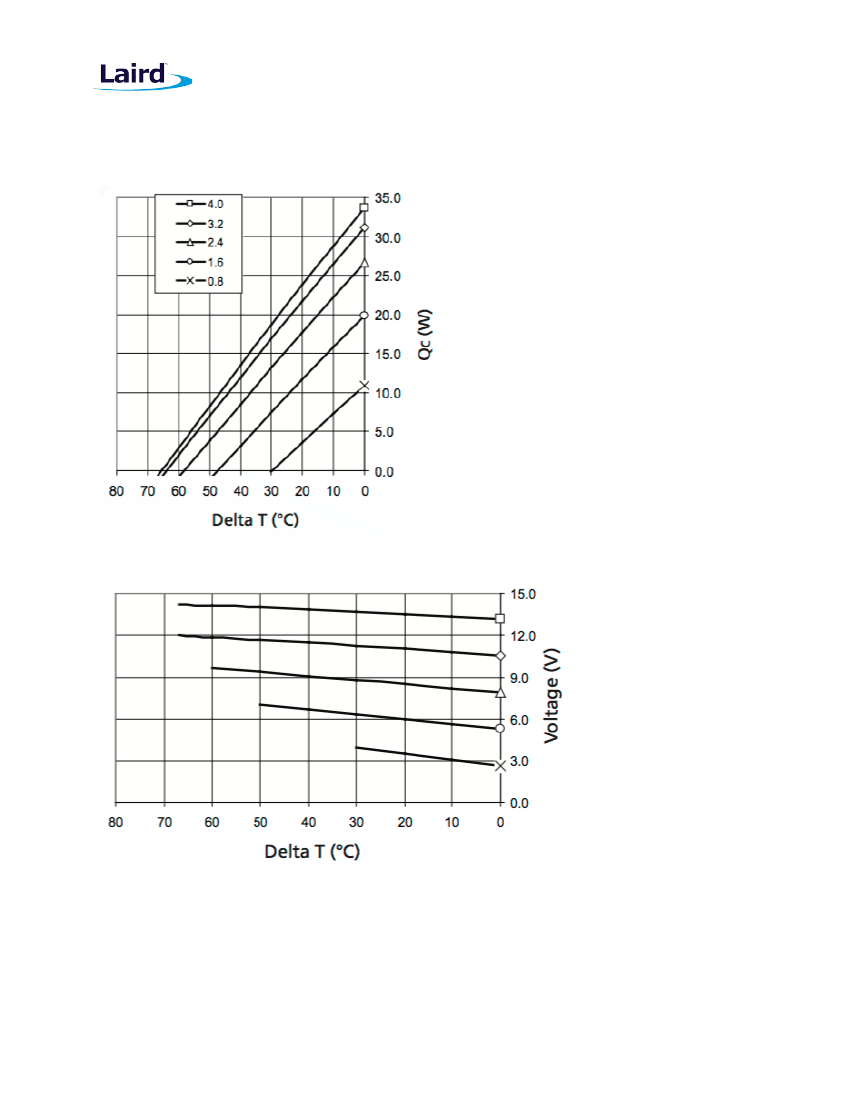

Hot Side Temperature (°C)
Qmax (Watts)
Delta Tmax (°C)
Imax (Amps)
Vmax (Volts)
Module Resistance (Ohms)
25°C
33.7
67
4.0
14.3
3.30
50°C
37.0
75
4.0
16.2
3.72
SUFFIX
L
L1
L2
MM
THICKNESS
(PRIOR TO
TINNING)
FLATNESS &
PARALLELISM
0.0015”/0.0015”
0.001”/0.001”
0.0005”/0.0005”
0.002”/0.002”
HOT FACE
Lapped
Lapped
Lapped
Metallized
COLD FACE
Lapped
Lapped
Lapped
Metallized
LEAD LENGTH
4.5”
4.5”
4.5”
4.5”
0.126”±0.010”
0.126”±0.001”
0.126”±0.0005”
0.134”±0.010”
SEALING OPTIONS
SUFFIX SEALANT COLOR TEMP RANGE DESCRIPTION
RT
EP
RTV
Epoxy
White
Black
-60 to 204 °C
-55 to 150 °C
Non-corrosive, silicone adhesive
Low density syntactic foam epoxy encapsulant
Page
1
of
3
SH10-125-05

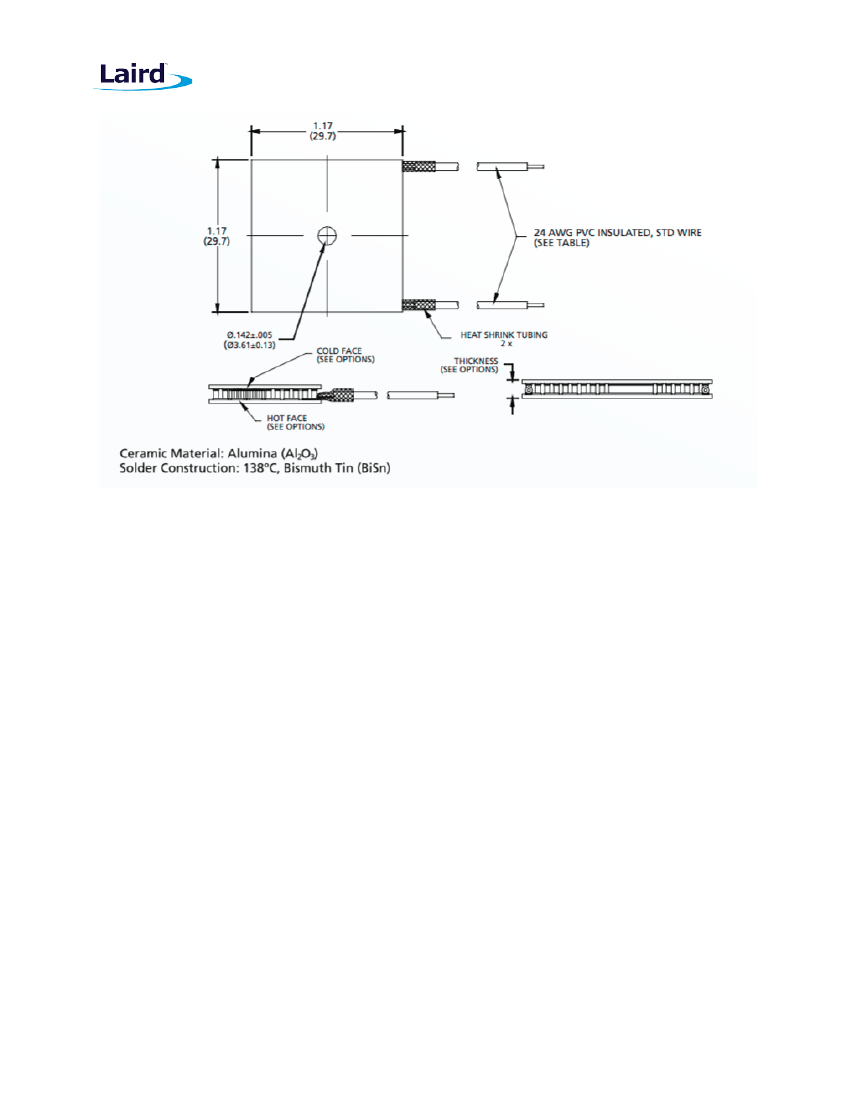

NOTES
1. Max operating temperature: 80°C
2. Do not exceed Imax or Vmax when operating module
3
.
Reference assembly guidelines for recommended installation
4. Solder tinning also available on metallized ceramics
Laird-ETS-SH10-125-05-Data-Sheet-091316
Any information furnished by Laird Technologies, Inc. and its agents is believed to be accurate and reliable. All specifications are subject to
change without notice. Responsibility for the use and application of Laird Technologies materials rests with the end user. Laird Technologies
makes no warranties as to the fitness, merchantability, suitability or non- infringement of any Laird Technologies materials or products for any
specific or general uses. Laird Technologies shall not be liable for incidental or consequential damages of any kind. All Laird Technologies
products are sold pursuant to the Laird Technologies’ Terms and Conditions of sale in effect from time to time, a copy of which will be furnished
upon request. © Copyright 2016 Laird Technologies, Inc. All Rights Reserved. Laird, Laird Technologies, the Laird Technologies Logo, and other
marks are trademarks or registered trademarks of Laird Technologies, Inc. or an affiliate company thereof. Other product or service names may
be the property of third parties. Nothing herein provides a license under any Laird Technologies or any third party intellectual property rights.
Page
3
of
3
