E-9C: DescriptionTOOL HAND CRIMPER SPLICES SIDE; CategoryTools and equipment; File Size52KB，2 Pages; Manufacturer3M; Websitehttp://3M.com/esd; Environmental Compliance

Download Datasheet Parametric Compare View All

E-9C Overview

TOOL HAND CRIMPER SPLICES SIDE

E-9C Parametric

Parameter Name	Attribute value
Tool type	Manual crimper
Supporting products/related products	Connector
characteristic	Side insertion

Preview

Download Datasheet

View All

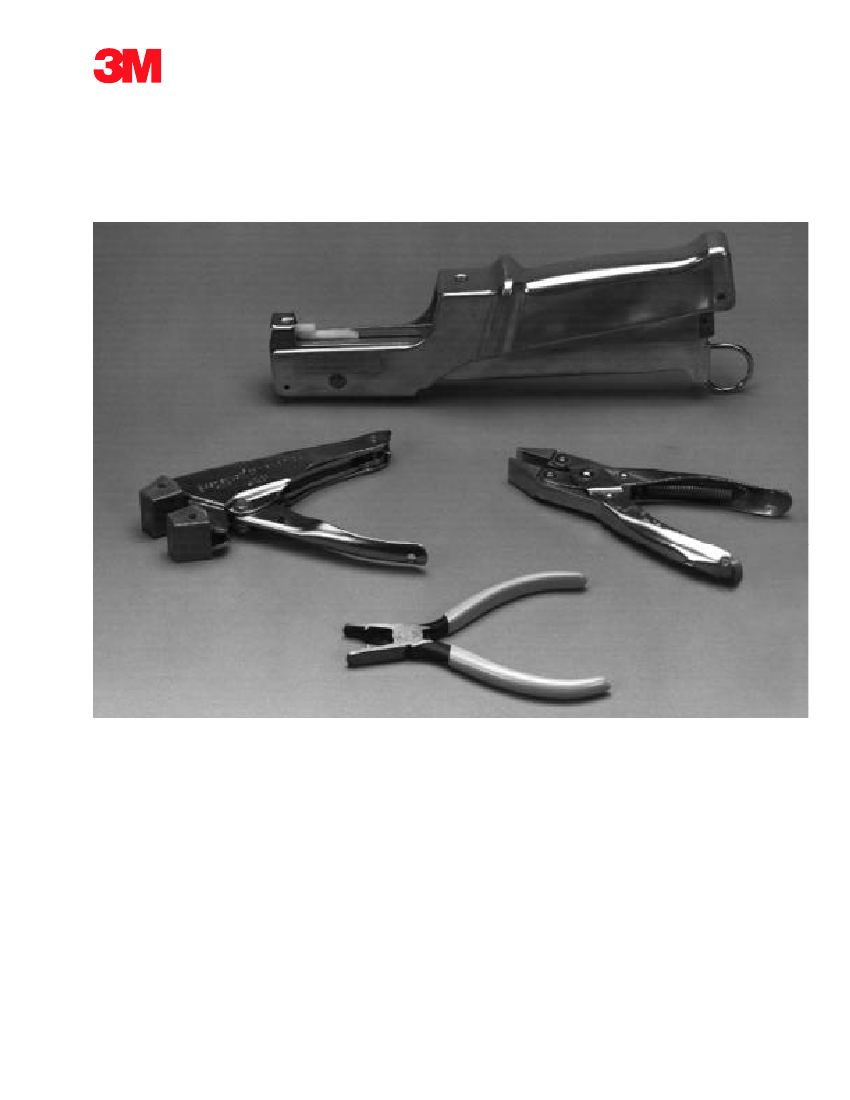

Scotchlok

E-9C, E-9BM, E-9E and E-9Y

™

Crimping Tools

Scotchlok tools make the easiest

connections

To complement its line of efficient, reliable 3M Scotchlok

™

Connectors, 3M Scotchlok

™

Crimping Tools fit comfortably

in hand. All Scotchlok tools are engineered to provide high

mechanical advantage resulting in less operator fatigue.

Each tool is designed to meet specific craftsperson needs.

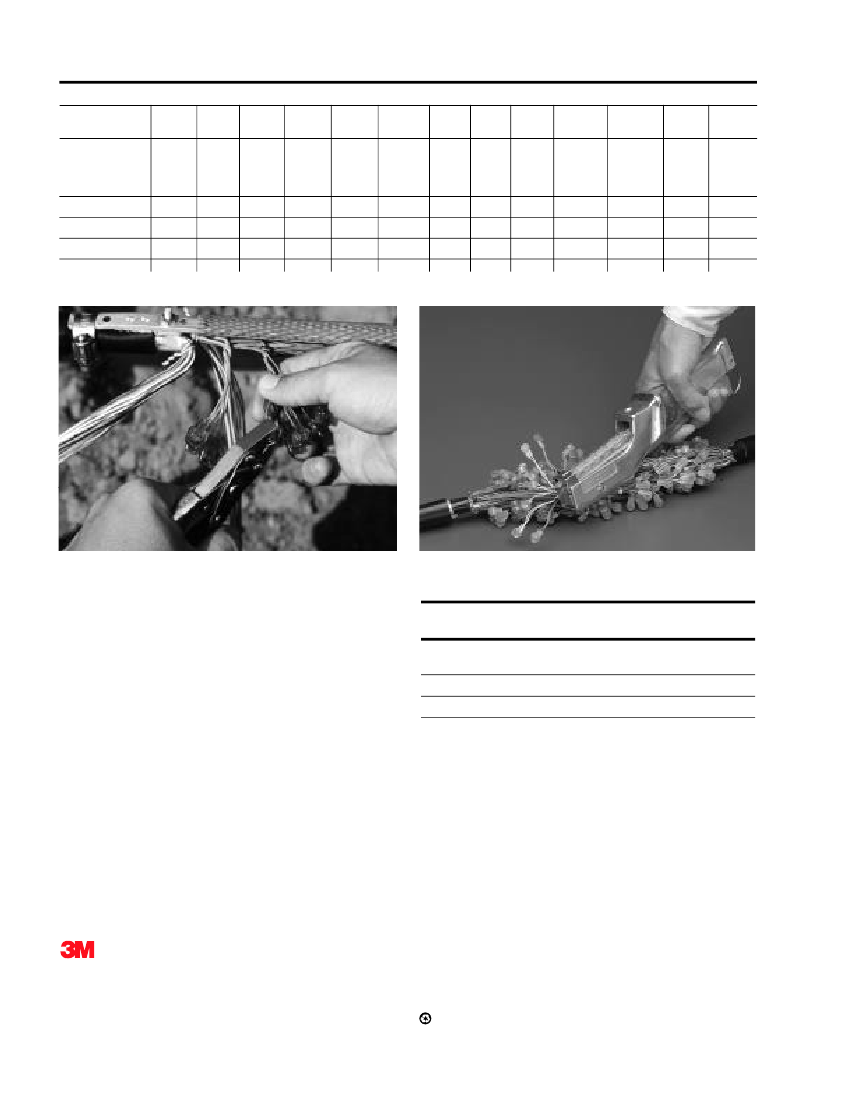

The E-9C tool . . . fast, efficient butt splicing

With its automatic cartridge feed (7-to-1 mechanical

advantage and ratchet action), the E-9C tool allows the

craftsperson to complete a crimp with one hand, freeing the

other hand for wire handling. One squeeze of the handle

crimps the connector and ejects it, automatically advancing

another connector into the crimping position. The ten-,

twelve- or sixteen-connector cartridge is easily inserted into

the E-9C tool. Designed for use with every butt type

Scotchlok connector, the E-9C tool brings fast, efficient

splicing to aerial, pedestal, underground, and direct buried

applications.

The E-9BM tool . . . for universal

connector crimping

This heavy-duty tool is capable of crimping all Scotchlok

connectors. With its parallel closing action and adjustable

jaws, the E-9BM crimping tool features a 10-to-1

mechanical advantage which allows it to handle all

wire gauges.

The E-9E . . . a lightweight tool heavy

on performance

Acompletely parallel closing action and a 4-to-1

mechanical advantage make the E-9E crimping tool one of

the most versatile additions to a craftsperson’s pouch. With

these features, the E-9E tool will crimp all Scotchlok butt

and tap connectors, and also handle all wire gauges.

The E-9Y . . . for two conductor splicing

The E-9YTool has stepped jaws and a long nose which

provide parallel crimping action. Use this tool for two

conductor splicing on conductors less than 19 gauge.
