0399000707 datasheet, PDF - EEWORLD Datasheet

0399000707: DescriptionTERM BLOCK HDR 7POS 90DEG 3.81MM; CategoryThe connector; File Size132KB，2 Pages; ManufacturerMolex Premise Network; Environmental Compliance

Download Datasheet Parametric Compare View All

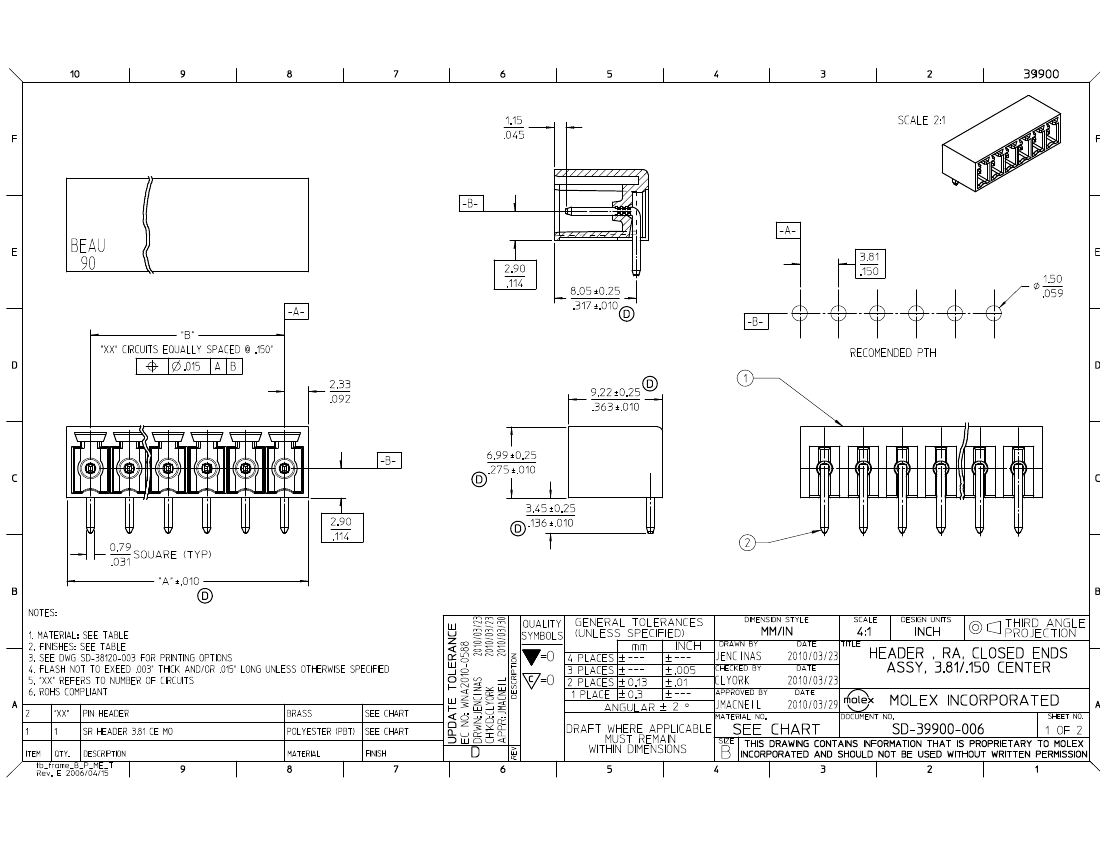

0399000707 Overview

TERM BLOCK HDR 7POS 90DEG 3.81MM

Parameter Name	Attribute value
type	Connector, male pins, shrouded (4 sides)
Number of pins	7
Number of pins per level	7
Number of levels	1
spacing	0.150"（3.81mm）
Needle seat direction	90°, right angle
Plug entrance	-
Terminal type	welding
Installation type	Through hole
Current - IEC	-
Wire Gauge or Range - AWG	-
Wire gauge or range - mm²	-
color	-
Operating temperature	-
Contact mating surface treatment	tin
characteristic	-
Material flammability rating	-
Intrusion protection	-
Screw size	-
Torque - Screws	-
Wire stripping length	-
Contact material	brass
Shell material	Polybutylene terephthalate (PBT)
Contact tail length	0.136"（3.45mm）
Insulation height	0.275"（6.99mm）

	0399000707	0399000713	0399000705
Description	TERM BLOCK HDR 7POS 90DEG 3.81MM	TERM BLOCK HDR 13POS 3.81MM	TERM BLOCK HDR 5POS 90DEG 3.81MM
type	Connector, male pins, shrouded (4 sides)	Connector, male pins, shrouded (4 sides)	Connector, male pins, shrouded (4 sides)
Number of pins	7	13	5
Number of pins per level	7	13	5
Number of levels	1	1	1
spacing	0.150"（3.81mm）	0.150"（3.81mm）	0.150"（3.81mm）
Needle seat direction	90°, right angle	90°, right angle	90°, right angle
Terminal type	welding	welding	welding
Installation type	Through hole	Through hole	Through hole
Contact mating surface treatment	tin	tin	tin
Contact material	brass	brass	brass
Shell material	Polybutylene terephthalate (PBT)	Polybutylene terephthalate (PBT)	Polybutylene terephthalate (PBT)
Contact tail length	0.136"（3.45mm）	0.136"（3.45mm）	0.136"（3.45mm）
Insulation height	0.275"（6.99mm）	0.275"（6.99mm）	0.275"（6.99mm）
