CMPT5401TR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> CMPT5401TR

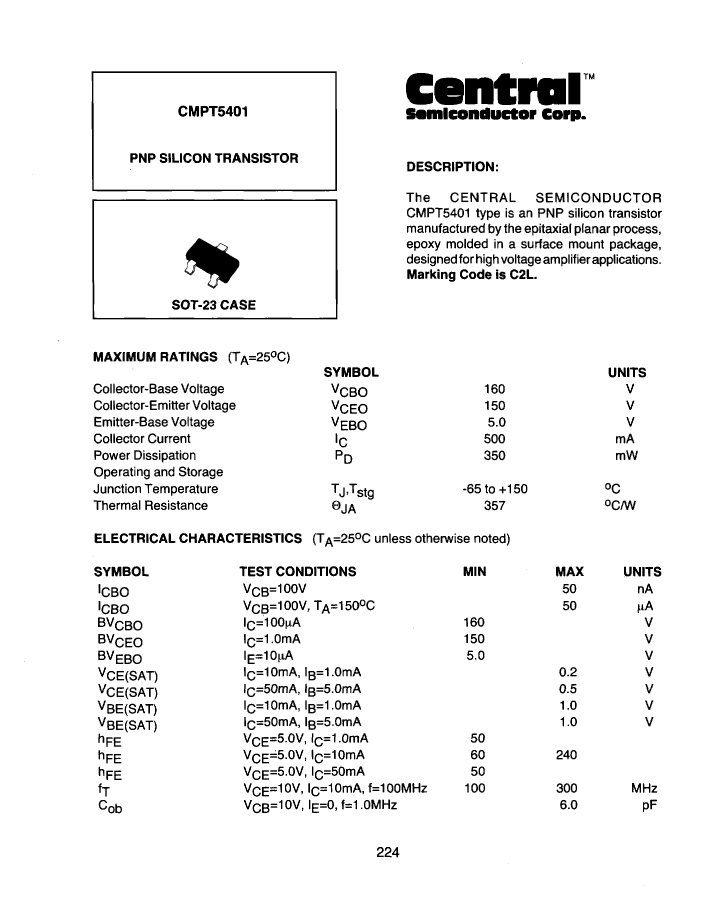

CMPT5401TR: DescriptionSmall Signal Bipolar Transistor, 0.5A I(C), 150V V(BR)CEO, 1-Element, PNP, Silicon,; CategoryDiscrete semiconductor The transistor; File Size34KB，2 Pages; ManufacturerCentral Semiconductor

Download Datasheet Parametric Compare View All

CMPT5401TR Overview

Small Signal Bipolar Transistor, 0.5A I(C), 150V V(BR)CEO, 1-Element, PNP, Silicon,

CMPT5401TR Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Central Semiconductor
package instruction	SMALL OUTLINE, R-PDSO-G3
Reach Compliance Code	not_compliant
ECCN code	EAR99
Maximum collector current (IC)	0.5 A
Collector-based maximum capacity	6 pF
Collector-emitter maximum voltage	150 V
Configuration	SINGLE
Minimum DC current gain (hFE)	60
JESD-30 code	R-PDSO-G3
JESD-609 code	e0
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	PNP
Maximum power dissipation(Abs)	0.35 W
Certification status	Not Qualified
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	AMPLIFIER
Transistor component materials	SILICON
Nominal transition frequency (fT)	100 MHz
VCEsat-Max	0.5 V

Preview

Download Datasheet

View All

CMPT5401TR Related Products

	CMPT5401TR	CMPT5401TRLEADFREE	CMPT5401BK	CMPT5401BKLEADFREE	CMPT5401TR13LEADFREE	CMPT5401TR13
Description	Small Signal Bipolar Transistor, 0.5A I(C), 150V V(BR)CEO, 1-Element, PNP, Silicon,	Small Signal Bipolar Transistor, 0.5A I(C), 150V V(BR)CEO, 1-Element, PNP, Silicon,	Small Signal Bipolar Transistor, 0.5A I(C), 150V V(BR)CEO, 1-Element, PNP, Silicon,	Small Signal Bipolar Transistor, 0.5A I(C), 150V V(BR)CEO, 1-Element, PNP, Silicon,	Small Signal Bipolar Transistor, 0.5A I(C), 150V V(BR)CEO, 1-Element, PNP, Silicon,	Small Signal Bipolar Transistor, 0.5A I(C), 150V V(BR)CEO, 1-Element, PNP, Silicon,
Is it lead-free?	Contains lead	Lead free	Contains lead	Lead free	Lead free	Contains lead
Is it Rohs certified?	incompatible	conform to	incompatible	conform to	conform to	incompatible
Reach Compliance Code	not_compliant	compliant	unknown	compliant	compliant	not_compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum collector current (IC)	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A
Collector-based maximum capacity	6 pF	6 pF	6 pF	6 pF	6 pF	6 pF
Collector-emitter maximum voltage	150 V	150 V	150 V	150 V	150 V	150 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	60	60	60	60	60	50
JESD-30 code	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
JESD-609 code	e0	e3	e0	e3	e3	e0
Number of components	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	260	NOT SPECIFIED	260	260	NOT SPECIFIED
Polarity/channel type	PNP	PNP	PNP	PNP	PNP	PNP
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	YES	YES	YES
Terminal surface	Tin/Lead (Sn/Pb)	Matte Tin (Sn)	TIN LEAD	MATTE TIN (315)	MATTE TIN (315)	TIN LEAD
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	10	NOT SPECIFIED	10	10	NOT SPECIFIED
transistor applications	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz
VCEsat-Max	0.5 V	0.5 V	0.5 V	0.5 V	0.5 V	0.5 V
Maker	Central Semiconductor	-	Central Semiconductor	Central Semiconductor	Central Semiconductor	Central Semiconductor
package instruction	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	-	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	-
Maximum power dissipation(Abs)	0.35 W	0.35 W	0.35 W	0.35 W	-	-
