5988391107F

Description
LED BLUE CLEAR 1208 SMD R/A
CategoryLED optoelectronic/LED
File Size1MB，2 Pages
ManufacturerDIALIGHT
Websitehttps://www.dialight.com
Environmental Compliance
Download Datasheet Parametric Compare View All

5988391107F Overview

LED BLUE CLEAR 1208 SMD R/A

5988391107F Parametric

Parameter NameAttribute value
colorblue
Lens colorcolorless
Lens transparencytransparent
millicandela level140mcd
Lens style/sizeRectangular, with dome, 2.00mm x 1.00mm
Voltage - Forward (Vf) (Typical)3.2V
Current - Test20mA
perspective160°
Installation typeSurface mount, right angle
Wavelength - Main473nm
Wavelength - Peak-
characteristic-
Package/casing2-SMD, no leads
Supplier device packaging1208
size/dimensions3.20mm length x 1.50mm width
Height (maximum value)1.00mm

Preview

Download Datasheet

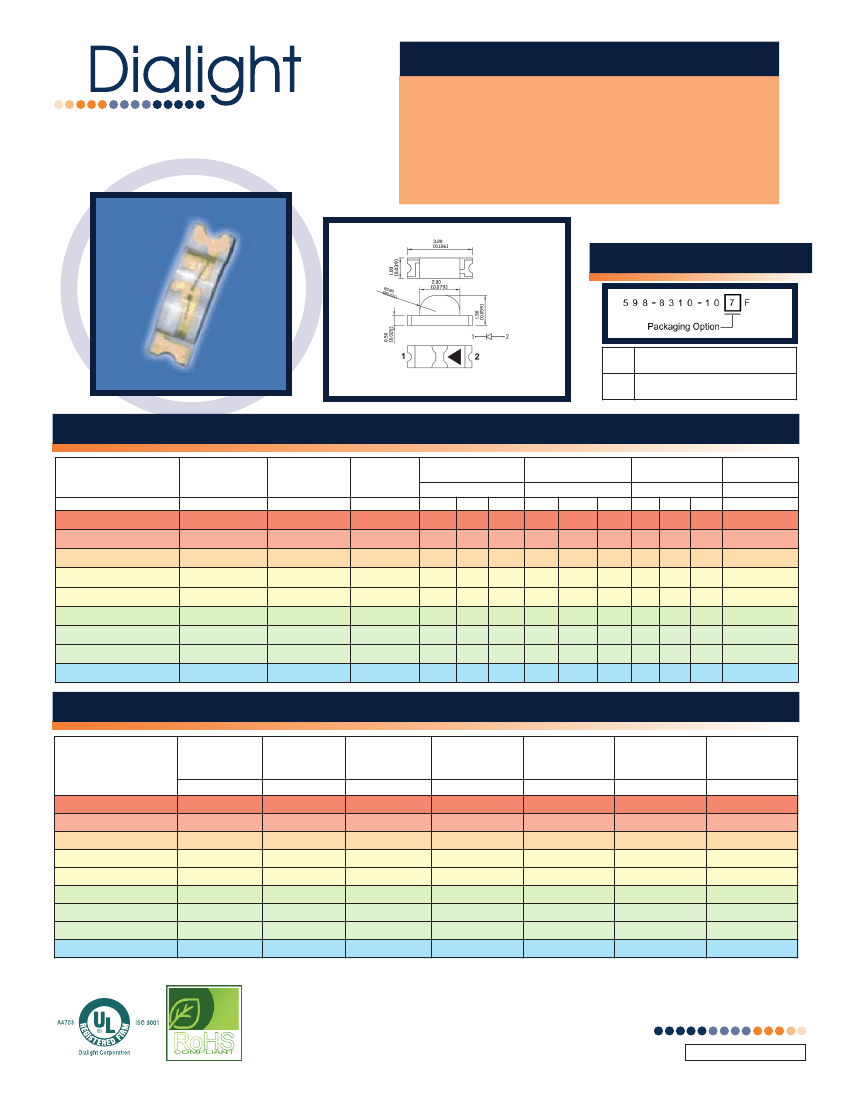

FEATURES / BENEFITS
Compatible with automatic placement equipment
(3.2mm X 1.5mm X 1.0mm) Single Color Right Angle
Micro LED
®
SMD LED
“598 SERIES” 1208 PACKAGE
RoHS compliant
Packaged in 8mm tape, 7” reel and 20 per strip
Meets EIA-481-1 pkg. std.

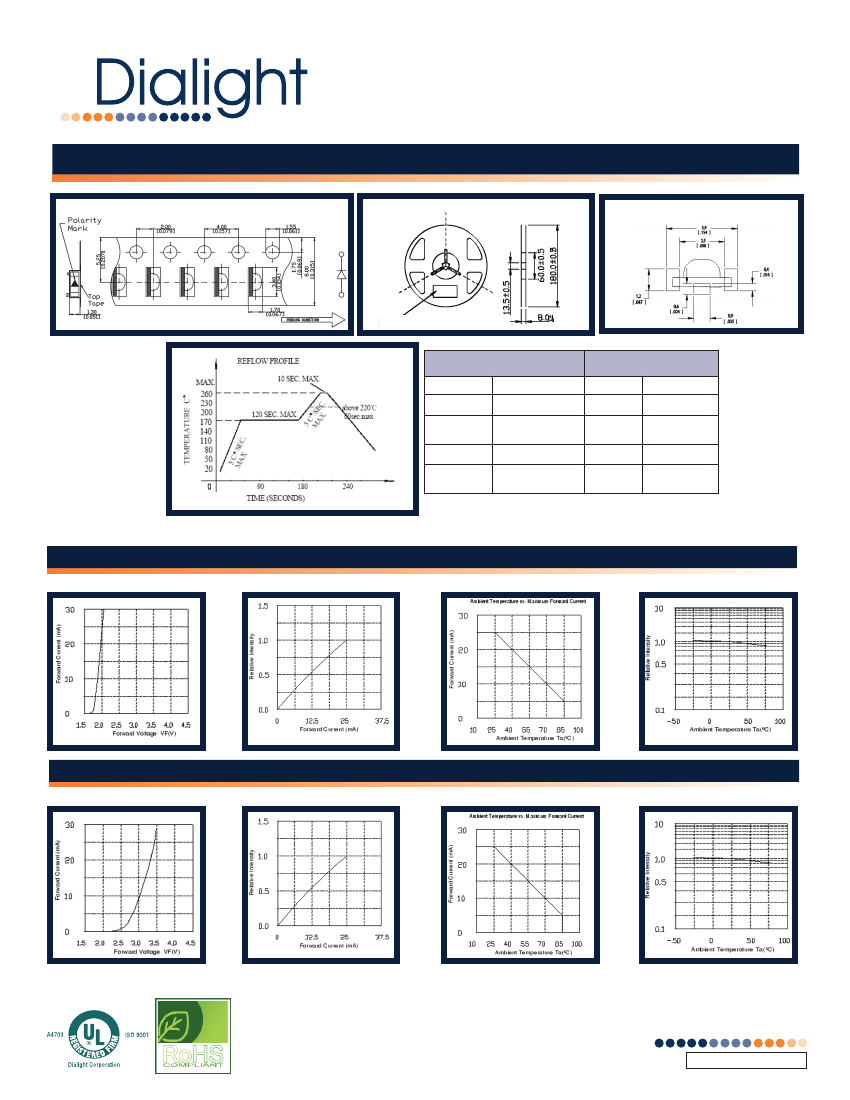

Package Outline Drawing:
ORDERING INFORMATION
2
Notes 1. All dimensions are in mm [inches];
2. Tolerances are ±0.1mm [0.004inch] unless noted.
20 pieces on tape
7” reel 3000pcs / reel
7
PART NUMBERS
DIALIGHT P/N
EMITTED COLOR
MATERIAL
LENS COLOR
LUMINOUS
INTENSITY
If = 20 ma
MIN
TYP MAX
-
80
90
100
100
30
18
150
90
-
120
110
130
130
50
28
220
140
70
150
150
160
160
60
50
300
160
DOMINANT
WAVELENGTH
If = 20 ma
MIN
TYP
MAX
630
620
600
590
583
570
562
520
470
635
625
-
-
-
-
-
523
473
640
630
610
595
590
575
570
525
475
FORWARD
VOLTAGE
If = 20 ma
MIN TYP MAX
1.8
1.8
1.8
1.8
1.8
1.8
1.8
3
2.8
2
2
2
2
2
2
2
3.2
3.2
2.4
2.4
2.4
2.4
2.4
2.4
2.4
3.5
3.5
VIEWING
ANGLE
° DEGREES
160
160
160
160
160
160
160
160
160
598-8310-107F
598-8320-107F
598-8330-107F
598-8340-107F
598-8350-107F
598-8360-107F
598-8370-107F
598-8380-107F
598-8391-107F
RED
RED-ORANGE
ORANGE
YELLOW
YELLOW
YELLOW-GREEN
GREEN
GREEN
BLUE
AlInGaP
AlInGaP
AlInGaP
AlInGaP
AlInGaP
AlInGaP
GaP
InGaN
InGaN
Water Clear
Water Clear
Water Clear
Water Clear
Water Clear
Water Clear
Water Clear
Water Clear
Water Clear
ABSOLUTE RATINGS
(@ Ta = 25ºC)
Power
Dissipation
(mW)
598-8310-107F
598-8320-107F
598-8330-107F
598-8340-107F
598-8350-107F
598-8360-107F
598-8370-107F
598-8380-107F
598-8391-107F
60
60
60
55
55
60
60
87.5
87.5
Forward
Current
(mA)
25
25
25
25
25
25
25
25
25
Reverse
Voltage
(V)
5
5
5
5
5
5
5
5
5
Operating
Temperature
Range
(ºC)
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
Storage
Temperature
Range
(ºC)
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
Peak Pulse
Forward
Current
(mA)
100
100
100
100
100
100
100
100
100
Electrostatic
Discharge
(HBM)
2000
2000
2000
2000
2000
2000
2000
1000
1000
DIALIGHT P/N
Dialight Corporation
1501 Route 34 South • Farmingdale, NJ 07727 USA
Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778 • www.dialight.com
MDEI5981208RT_A

5988391107F Related Products

5988391107F 5988320107F 5988310107F 5988330107F 5988340107F 5988350107F 5988360107F 5988380107F 5988370107F 5988370102F
Description LED BLUE CLEAR 1208 SMD R/A LED RED CLEAR 1208 SMD R/A LED RED CLEAR 1208 SMD R/A LED ORANGE CLEAR 1208 R/A SMD LED YELLOW CLEAR 1208 R/A SMD LED YELLOW CLEAR 1208 R/A SMD LED YLW/GRN CLEAR 1208 SMD R/A LED GREEN CLEAR 1208 R/A SMD LED GREEN CLEAR 1208 R/A SMD LED GREEN CLEAR 1208 R/A SMD
color blue red red orange color yellow yellow Yellow green green green green
Lens color colorless colorless colorless colorless colorless colorless colorless colorless colorless colorless
Lens transparency transparent transparent transparent transparent transparent transparent transparent transparent transparent transparent
millicandela level 140mcd 120mcd 70mcd 110mcd 130mcd 130mcd 50mcd 220mcd 28mcd 28mcd
Lens style/size Rectangular, with dome, 2.00mm x 1.00mm Rectangular, with dome, 2.00mm x 1.00mm Rectangular, with dome, 2.00mm x 1.00mm Rectangular, with dome, 2.00mm x 1.00mm Rectangular, with dome, 2.00mm x 1.00mm Rectangular, with dome, 2.00mm x 1.00mm Rectangular, with dome, 2.00mm x 1.00mm Rectangular, with dome, 2.00mm x 1.00mm Rectangular, with dome, 2.00mm x 1.00mm Rectangular, with dome, 2.00mm x 1.00mm
Voltage - Forward (Vf) (Typical) 3.2V 2V 2V 2V 2V 2V 2V 3.2V 2V 2V
Current - Test 20mA 20mA 20mA 20mA 20mA 20mA 20mA 20mA 20mA 20mA
perspective 160° 160° 160° 160° 160° 160° 160° 160° 160° 160°
Installation type Surface mount, right angle Surface mount, right angle Surface mount, right angle Surface mount, right angle Surface mount, right angle Surface mount, right angle Surface mount, right angle Surface mount, right angle Surface mount, right angle Surface mount, right angle
Wavelength - Main 473nm 625nm 635nm 605nm 593nm 587nm 573nm 523nm 566nm 566nm
Package/casing 2-SMD, no leads 2-SMD, no leads 2-SMD, no leads 2-SMD, no leads 2-SMD, no leads 2-SMD, no leads 2-SMD, no leads 2-SMD, no leads 2-SMD, no leads 2-SMD, no leads
Supplier device packaging 1208 1208 1208 1208 1208 1208 1208 1208 1208 1208
size/dimensions 3.20mm length x 1.50mm width 3.20mm length x 1.50mm width 3.20mm length x 1.50mm width 3.20mm length x 1.50mm width 3.20mm length x 1.50mm width 3.20mm length x 1.50mm width 3.20mm length x 1.50mm width 3.20mm length x 1.50mm width 3.20mm length x 1.50mm width 3.20mm length x 1.50mm width
Height (maximum value) 1.00mm 1.00mm 1.00mm 1.00mm 1.00mm 1.00mm 1.00mm 1.00mm 1.00mm 1.00mm
