NOTES:
1. MATERIALS AND FINISHES:
MCX STR CRIMP PLUG - BeCu, GOLD PLATING
CABLE - RG 178
2. ELECTRICAL:
A. IMPEDANCE: 50 OHM
3. PACKAGING:
A. QUANTITY: SINGLE PACK
B. MARKING: BAG TO BE MARKED
"AMPHENOL RF, 255101-08-XX.XX AND DATE CODE"
THIRD ANGLE PROJ.
REV
REVISIONS
--
C
RELEASE TO MFG.
DESCRIPTION
DATE
FORMAT UPDATED,18.00", 48.00"
& METRIC LENGTHS ADDED
--
ECO
--
APPR
--
VK
24-Oct-16
2227
SCALE
0.750
LENGTH 'L' (SEE TABLE)
HEAT SHRINK TUBE
TYP(2)
INTERFACE PER
CECC 22220
SERIES:MCX PLUG
TYP(2)
PART NUMBER
(IMPERIAL)
-
PART NUMBER
(METRIC)
255101-08-M0.25
-
-
-
-
-
-
LENGTH TABLE
LENGTH 'L'
IN INCHES [METERS]
6.00 [0.152]
9.84 [0.250]
LENGTH 'X' IN INCHES
[METERS] MIN
0.75 [0.019]
LENGTH 'X' (SEE TABLE)
TYP(2)
255101-08-06.00
255101-08-12.00
255101-08-18.00
255101-08-24.00
-
12.00 [0.305]
18.00 [0.457]
19.69 [0.500]
24.00 [0.610]
29.53 [0.750]
36.00 [0.914]
39.37 [1.000]
48.00 [1.219]
157.48 [4.000]
78.74 [2.000]
TOLERANCE TABLE
LENGTH IN INCHES/FT [METERS]
0" - 23.90" [0 - 0.607]
24.00" - 59.00" [0.610 - 1.499]
TOLERANCE
# 0.25" [0.006]
# 0.50" [0.013]
# 2.5%
# 5.0%
255101-08-M0.50
255101-08-M0.75
255101-08-M1.00
255101-08-M2.00
255101-08-M4.00
DESIGN REQUIREMENTS:
FREQUENCY: ___ TO ___ GHz
VSWR ____ : 1 MAX
INS. LOSS: ____ dB MAX
255101-08-36.00
-
X
CONTINUITY
X
HI-POT: 750 VRMS
OTHER
255101-08-48.00
-
-
-
1.50 [0.038]
5.0' - 24.9' [1.524 - 7.617]
25.0' & UP [7.620
& UP]

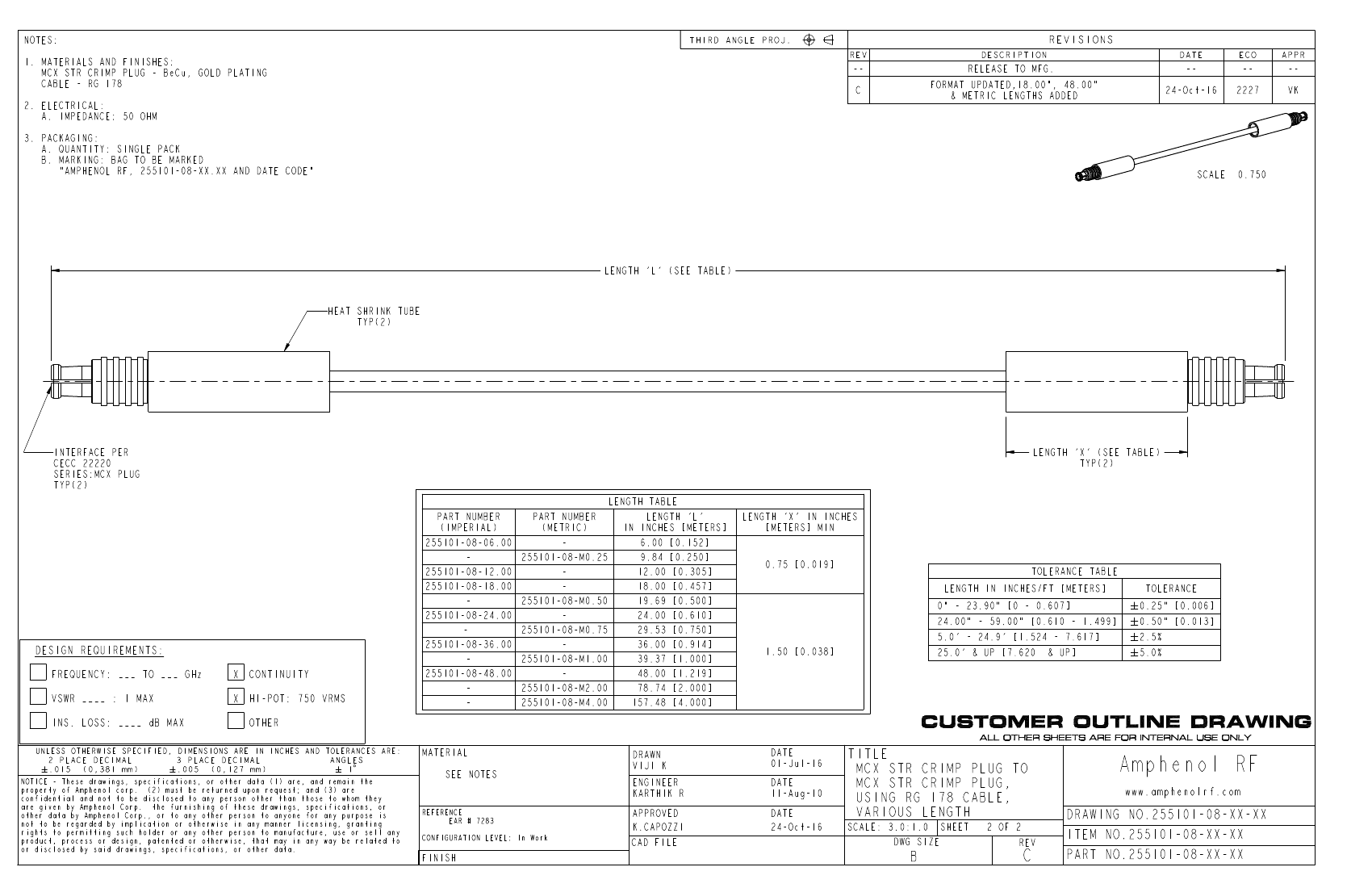

CUSTOMER OUTLINE DRAWING
ALL OTHER SHEETS ARE FOR INTERNAL USE ONLY
DATE
01-Jul-16
DATE
11-Aug-10
DATE
24-Oct-16
UNLESS OTHERWISE SPECIFIED, DIMENSIO NS ARE IN INCHES AND TOLERANCES ARE:
2 PLACE DECIMAL
3 PLACE DECIMAL
ANGLES
NOTICE - These drawings, specifications, or other data (1) are, and remain the
property of Amphenol corp. (2) must be returned upon request; and (3) are
confidential and not to be disclosed to any person other than those to whom
they
are given by Amphenol Corp. the furnishing of these drawings, specifications,
or
other data by Amphenol Corp., or to any other person to anyone for any purpose
is
not to be regarded by implication or otherwise in any manner licensing,
granting
rights to permitting such holder or any other person to manufacture, use or
sell any
product, process or design, patented or otherwise, that may in any way be
related to
or disclosed by said drawings, specifications, or other data.
MATERIAL
SEE NOTES
REFERENCE
EAR # 7283
CONFIGURATION LEVEL: In Work
DRAWN
VIJI K
ENGINEER
KARTHIK R
APPROVED
K.CAPOZZI
TITLE
MCX STR CRIMP PLUG TO
MCX STR CRIMP PLUG,
USING RG 178 CABLE,
VARIOUS LENGTH
SCALE: 3.0:1.0
DWG SIZE
SHEET
2 OF 2
Amphenol RF
www.amphenolrf.com
DRAWING NO. 255101-08-XX-XX
ITEM NO. 255101-08-XX-XX
PART NO. 255101-08-XX-XX
FINISH
CAD FILE
B
REV
C
