4
3
2
ZONE
ALL
REV
N/C
FC75-01-CA003
FC75-01-CA006
FC75-01-CA012
D
NUMBER OF
CONDUCTORS
LENGTH IN FEET
NOTES:
1 INSTALL CONNECTORS
AND HEAT SHRINK AS NEEDED
2 THE ID, CHOICE OF BLACK
HEAT SHRINK,
AND CABLE SPLIT LENGTHS ARE
PRODUCTION PREFERENCE
3 CONNECTIONS ARE ALL 1:1
1
REVISION HISTORY
DESCRIPTION
DATE
INITIAL RELEASE 09/06/2013
BY
RR
FN
1
2
3

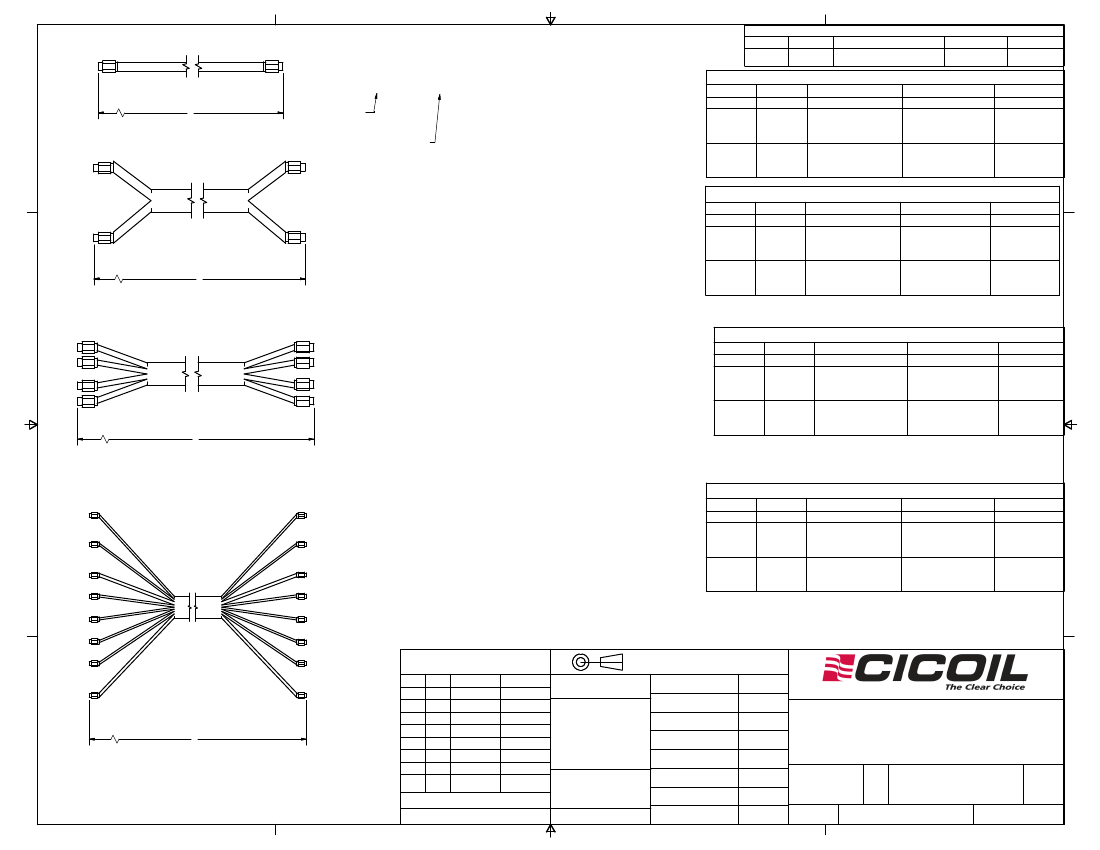

FLEXIBLE COAX 75 OHM, FC75-01-CAXXX
QTY
DESCRIPTION PART NUMBER
A/R
2
A/R
CICOIL CABLE
SMA CONNECTOR
BLACK HEAT
SHRINK (-55°C
TO +135°C)
372R101-1
CONSMA007*
MANUFACTURING
DISCRETION
MFG
CICOIL
D
LINX
TECHNOLOG
IES
---
FC75-02-CA003
FC75-02-CA006
FC75-02-CA012
FN
4 CONDUCTORS: ULTRA FLEXIBLE,
FINELY STRANDED, TINNED COPPER
5 SHIELDING: ULTRA FLEXIBLE, BRAIDED
SHIELDS,WITH 90% NOMINAL COVERAGE
1
2
3
FLEXIBLE COAX 75 OHM, FC75-02-CAXXX
QTY
DESCRIPTION PART NUMBER
A/R
4
A/R
CICOIL CABLE
SMA CONNECTOR
BLACK HEAT
SHRINK (-55°C
TO +135°C)
372R101-2
CONSMA007*
MANUFACTURIN
G DISCRETION
MFG
CICOIL
LINX
TECHNOLOG
IES
---
C
6 MINIMUM BEND RADIUS: 6X CABLE HEIGHT FOR
INTERMEDIATE FLEX;
10X CABLE HEIGHT FOR CONTINUOUS FLEX
C
FC75-04-CA003
FC75-04-CA006
FC75-04-CA012
7 FLEX LIFE: 10,000,000 CYCLES NOMINAL
8 OUTER JACKET DUROMETER RATING:
65 (SHORE A)
9
TEMPERATURE RATING FOR CABLE:
-65°C TO +165°C
TEMPERATURE RATING FOR FINISHED ASSEMBLY:
-20°C TO +125°C
FN
1
2
3
FLEXIBLE COAX 75 OHM, FC75-04-CAXXX
QTY
DESCRIPTION PART NUMBER
A/R
8
A/R
CICOIL CABLE
SMA CONNECTOR
BLACK HEAT
SHRINK (-55°C
TO +135°C)
372R101-4
CONSMA007*
MANUFACTURIN
G DISCRETION
MFG
CICOIL
LINX
TECHNOLOG
IES
---
10 OUTER JACKET DIELECTRIC STRENGTH:
450 VOLTS/MILS (17.7 kv/mm)
B
11 *OR EQUIVALENT
FN
1
2
3
FLEXIBLE COAX 75 OHM, FC75-08-CAXXX
QTY
DESCRIPTION PART NUMBER
A/R
16
A/R
CICOIL CABLE
SMA CONNECTOR
BLACK HEAT
SHRINK (-55°C
TO +135°C)
372R101-8
CONSMA007*
MANUFACTURING
DISCRETION
MFG
CICOIL
LINX
B
TECHNOLOG
IES
---
FC75-08-CA003
FC75-08-CA006
FC75-08-CA012
THESE DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF
CICOIL LLC AND ARE ISSUED IN STRICT CONFIDENCE AND SHALL NOT
BE REPRODUCED OR COPIED OR USED AS THE BASIS FOR THE
MANUFACTURE OR SALE 0F EQUPMENT WITHOUT PERMISSION.
VIEW PROJECTION
STANDARD TOLERANCES
UNLESS OTHERWISE NOTED
DIMENSIONS ARE IN INCHES
.X+/- 0.5
.XX+/-0.05
.XXX+/-0.005
ANGLES +/- 5 DEG
[MM]
}
SIGNATURE
DRAWN:
DATE
24960 AVENUE TIBBITTS, VALENCIA, CA 91355 www.cicoil.com 661-295-1295
rruiz
CHECK
9/5/2013
TITLE
JOHN PALAHNUK
ENGINEER
9/6/2013
9/6/2013
CAGE CODE
A
JOHN PALAHNUK
FLEXIBLE COAX
SIZE
DRAWING NUMBER
REVISION
A
DASH
NO
QTY
REQD
NEXT
ASSEMBLY
FINAL
ASSEMBLY
MATERIAL:
19476
SCALE
FC-75-0X-CAXXX N/C
SHEET 1 OF 3
APPLICATION
DO NOT SCALE DRAWING
FILE: FC-75-0X (C).idw
1
4
3
2
