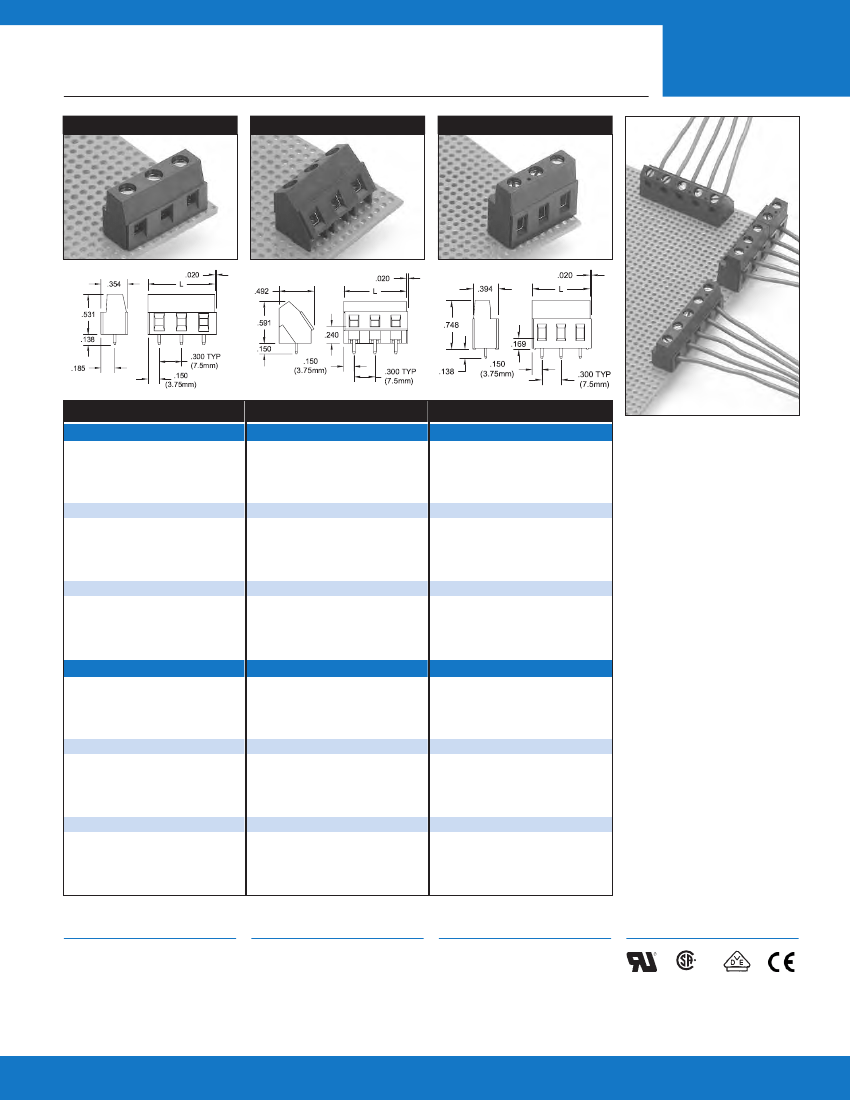

ESGM/ESMM/ESTM Terminal Blocks
Mid, Angled and Tall Profile
ESGM Mid-Profile
ESMM 35º Angled Profile
ESTM Tall Profile
.300"
(7.62mm)
7.5mm
(.295")
Pos
Catalog #
.300" Pitch
L
Pos
Catalog #
.300" Pitch
L
Pos
Catalog #
.300" Pitch
L
2
3
4
5
6
7
8
9
10
11
12
ESGM02400
ESGM03400
ESGM04400
ESGM05400
ESGM06400
ESGM07400
ESGM08400
ESGM09400
ESGM10400
ESGM11400
ESGM12400
7.5mm Pitch
.600"
.900"
1.200"
1.500"
1.800"
2.100"
2.400"
2.700"
3.000"
3.300"
3.600"
2
3
4
5
6
7
8
9
10
11
12
ESMM02430
ESMM03430
ESMM04430
ESMM05430
ESMM06430
ESMM07430
ESMM08430
ESMM09430
ESMM10430
ESMM11430
ESMM12430
7.5mm Pitch
.600"
.900"
1.200"
1.500"
1.800"
2.100"
2.430"
2.700"
3.000"
3.300"
3.600"
2
3
4
5
6
7
8
9
10
11
12
ESTM02400
ESTM03400
ESTM04400
ESTM05400
ESTM06400
ESTM07400
ESTM08400
ESTM09400
ESTM10400
ESTM11400
ESTM12400
7.5mm Pitch
.600"
.900"
1.200"
1.500"
1.800"
2.100"
2.400"
2.700"
3.000"
3.300"
3.600"
Power I/O
Terminal block series on
.300"/7.5mm spacing
offers current ratings up to
24A and is well suited for
power I/O applications. A
variety of configurations are
available. Moving cage
clamp wire termination.
Supplied as 2- and 3-posi-
tion modules with
interlocking dovetails, or
assembled to size
Low profile ESGM is rated
at 17.5A, provides horizon-
tal wire entr y.
ESMM, also rated at
17.5A, offers the flexibility
of angled termination.
High profile ESTM is rated
at 24A. Horizontal entr y.
Available in black only.
2
3
4
5
6
7
8
9
10
11
12
ESGM02300
ESGM03300
ESGM04300
ESGM05300
ESGM06300
ESGM07300
ESGM08300
ESGM09300
ESGM10300
ESGM11300
ESGM12300
15.0mm
22.5mm
30.0mm
37.5mm
45.0mm
52.5mm
60.0mm
67.5mm
75.0mm
82.5mm
90.0mm
2
3
4
5
6
7
8
9
10
11
12
ESMM02330
ESMM03330
ESMM04330
ESMM05330
ESMM06330
ESMM07330
ESMM08330
ESMM09330
ESMM10330
ESMM11330
ESMM12330
15.0mm
22.5mm
30.0mm
37.5mm
45.0mm
52.5mm
60.0mm
67.5mm
75.0mm
82.5mm
90.0mm
2
3
4
5
6
7
8
9
10
11
12
ESTM02300
ESTM03300
ESTM04300
ESTM05300
ESTM06300
ESTM07300
ESTM08300
ESTM09300
ESTM10300
ESTM11300
ESTM12300
15.0mm
22.5mm
30.0mm
37.5mm
45.0mm
52.5mm
60.0mm
67.5mm
75.0mm
82.5mm
90.0mm
INSTALLATION:
MATERIALS:
SPECIFICA TIONS:
APPROVALS:
Wire Range:
14-30 AWG (ESGM)
12-30 AWG (ESMM, ESTM)
Wire Strip Length:
.260 -.280"
Recommended Tightening Torque:
4.4 lb-in. (0.5N-m)
Hole Diameter:
.055" min.
Housing:
Polyamide 6/6, UL 94V-0, black
Contact:
Copper alloy, tin finish
Clamp Screw:
Copper alloy, nickel finish
Wire clamp:
Copper alloy, nickel finish
Current Rating:
17.5A (24A, ESTM only)
Operating Voltage:
300V
Contact Resistance:
<15 milliohms
Insulation Resistance:
>10
3
Megohms
Amphenol Pcd
75
