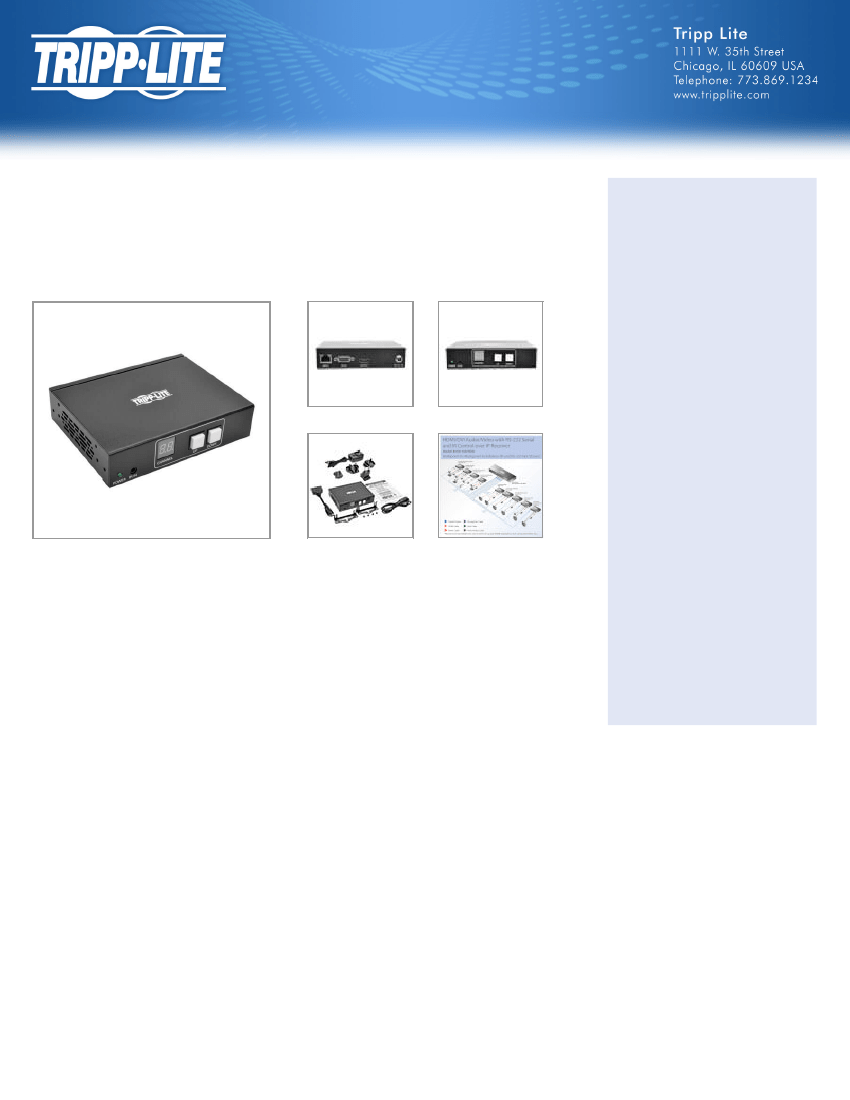

DVI/HDMI over IP Extender Receiver over
Cat5/Cat6, RS-232 Serial and IR Control, 1080p @
60 Hz, 328 ft. (100 m), TAA
MODEL NUMBER:
B160-100-HDSI
Highlights
q
Compatible with Tripp Lite
B160-Series A/V over IP
transmitters
q
Display video from any source,
analog or digital
q
Supports video resolutions up to
1920 x 1080 (1080p) @ 60 Hz
q
Scales up to multi-in, multi-out
installation with network switch
q
Plug and play—no software or
drivers required
Package Includes
q
Receiver unit
External power supply (Input:
100–240V, 50/60 Hz, 0.5A;
q
Receives IP-based audio + video signal transmitted point-to-point from a source 328 ft. away via Cat5e/6
cable or through a dedicated Ethernet network switch.
q
Output: 5V 2A)
Plug adapters for U.S., U.K.,
Europe and Australia
q
Description
The B160-100-HDSI HDMI/DVI over IP Extender Receiver works with a Tripp Lite B160-Series transmitter
(sold separately) to extend and distribute HDMI or DVI audio/video, RS-232 serial and IR (infrared) remote
signals from the source to the display located up to 328 feet (100 meters) away, which is more than 200
feet farther than a traditional Cat5e/6 solution. By adding a chain of low-cost unmanaged network
switches, such as Tripp Lite’s NG5, you can continue extending the distance between source and display
up to 328 feet per switch.
q
IR-In cable
HDMI to DVI adapter cable
Mounting hardware
Owner’s manual
q
q
Create a multi-in, multi-out installation with up to 64 transmitters and 255 receivers* by connecting
dedicated managed Ethernet network switches** with Internet Group Management Protocol (IGMP), such
as Tripp Lite’s NSS-G16D2. With a compatible B160-Series transmitter, this receiver works with any
analog or digital source, including DisplayPort and VGA, allowing you to mix and match technologies and
use existing source devices. An IGMP-enabled switch will let you manage all connections for centralized
control over which sources show on which displays.
The B160-100-HDSI supports video resolutions up to 1920 x 1080 (1080p) at 60 Hz. It extends IR control
signals that control a source, such as a Blu-ray™ player, from a remote display, as well as RS-232 signals
at serial baud rates up to 57600 Bps. It mounts to a wall, rack or pole using the included hardware.
*Unmanaged switch installations are limited to two transmitter units. Number of receivers is limited to
number of ports remaining on unmanaged switch.
**B160-Series designed for use with dedicated network switch. Connecting to a switch used with other
1/4
networking equipment will result in degraded or non-functional performance.
Features
HDMI/DVI A/V, Serial and IR Control Signals over Cat5/6 Cabling
q
Receives IP-based audio/video transmitted point-to-point from a source 328 ft. away
Add low-cost network switches between transmitter and receiver to continue extending distance up to
328 ft. per switch
q
Create a Multi-In, Multi-Out Installation Using B160-Series Transmitters and Receivers
q
Connect up to 64 transmitters and 255 receivers through multiple dedicated managed network switches
IGMP-enabled switches allow centralized control over which sources show on which displays
Displays video from any analog or digital source, so you can mix and match technologies and use
existing sources and monitors
q
q
Enhanced Technical Features
q
Supports video resolutions up to 1920 x 1080 (1080p) @ 60 Hz
Uses H.264 video compression standard
Transmits on 20–60 kHz IR frequency
Extends IR control signals that control a source from a remote display
Supports RS-232 serial baud rates up to 57600 Bps
HDCP and 3D compatible when used with a DisplayPort or HDMI transmitter
q
q
q
q
q
Plug-and-Play Functionality
q
No software or drivers required
Hardware included for mounting on wall, rack or pole
Compatible with all Tripp Lite B160-Series A/V over IP transmitters
q
q
TAA-Compliant
q
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Specifications
OVERVIEW
UPC Code
Technology
037332196712
DVI; HDMI; IR; Serial (RS232); A/V over IP
INPUT
Voltage Compatibility (VAC)
External Power Supply Input Specs
(V / Hz / A)
100; 110; 120; 125; 127; 200; 208; 220; 230; 240
100-240V / 50/60Hz / 1.0A
2/4
External Power Supply Output
Specs (V / A)
External Power Supply Cord Length
(ft.)
External Power Supply Cord Length
(m.)
External Power Supply DC Barrel
Connector Specs
External Power Supply Plug(s)
External Power Supply Certifications
5V / 2A
4.5
1.4
OD: 5.5 x 2.1 x 7.5mm, Positive Pin, Negative Sleeve
AS/NZS 3112 Australia; BS 1363 UK; CEE 7/16 Schuko; NEMA 1-15P North America
BSMI; CB; CE; FCC; GS; PSE; RCM; UL; cUL
USER INTERFACE, ALERTS & CONTROLS
LED Indicators
RJ45 Output (Green / Power, Orange / Signal), Channel Signal (Red), Power (Green)
PHYSICAL
Shipping Dimensions (hwd / in.)
Shipping Weight (lbs.)
Unit Dimensions (hwd / in.)
Unit Weight (lbs.)
Unit Weight (kg)
Material of Construction
Color
Rackmountable
2.10 x 6.30 x 10.00
2.10
1.2 x 5 x 3.9
0.2
0.09
SECC
Black
Yes
ENVIRONMENTAL
Operating Temperature Range
Storage Temperature Range
Relative Humidity
BTUs
Power Consumption (Watts)
14 to 167 F (-10 to 75 C)
-4 to 176 F (-20 to 80 C)
0% to 85%, Non-Condensing
14 BTU/Hr
4.1
COMMUNICATIONS
Signal Range (ft.)
Signal Range (m)
Latency
328
100
2-3 seconds
CONNECTIONS
Ports
Side A - Connector 1
4
HDMI (FEMALE)
3/4
Side B - Connector 1
3.5MM (FEMALE); DB9 (FEMALE); RJ45 (FEMALE)
FEATURES & SPECIFICATIONS
Max Supported Video Resolution
HDMI Specification
HDCP Specification
Audio Specification
Driver Required
Recommended Category Cable
Max Supported Color Depth
IR Remote Extension Support
RS-232 Serial Extension Support
3D Video Supported
1920 x 1080 (1080p) @60Hz
1.4
1.4
2 Channel Surround Sound
No
N202-Series Cat6 Patch Cable
24-bit True Color
Yes
Yes
Yes
CERTIFICATIONS
Certifications
Tested to CE, FCC, RoHS, REACH
WARRANTY
Product Warranty Period
(Worldwide)
1-year limited warranty
© 2018 Tripp Lite. All rights reserved. All product and company names are trademarks or registered trademarks of their respective holders. Use of them does
not imply any affiliation with or endorsement by them. Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.
Tripp Lite uses primary and third-party agencies to test its products for compliance with standards. See a list of Tripp Lite's testing agencies:
https://www.tripplite.com/products/product-certification-agencies
4/4
