2222 085 65109 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> 2222 085 65109

2222 085 65109: DescriptionCAP ALUM 10UF 20% 16V SMD; CategoryPassive components; File Size91KB，8 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric Compare View All

2222 085 65109 Overview

CAP ALUM 10UF 20% 16V SMD

2222 085 65109 Parametric

Parameter Name	Attribute value
capacitance	10µF
Tolerance	±20%
Voltage - Rated	16V
ESR (equivalent series resistance)	32 ohms
Service life at different temperatures	1500 hours at 85°C
Operating temperature	-40°C ~ 85°C
polarization	-
grade	-
application	Universal
Ripple current @ high frequency	24mA @ 10kHz
impedance	12 Ohms
lead spacing	-
size/dimensions	0.469" long x 0.146" wide (11.90mm x 3.70mm)
Height - Installation (maximum)	0.154"（3.90mm）
Surface mount pad dimensions	0.469" long x 0.146" wide (11.90mm x 3.70mm)
Installation type	surface mount
Package/casing	Non-standard SMD

Preview

Download Datasheet

View All

085 CS

Vishay BCcomponents

Aluminum Capacitors

SMD (Chip) Standard

FEATURES

•

Polarized aluminum electrolytic

non-solid electrolyte, self healing

capacitors,

•

Miniaturized, high CV per unit volume, low height

•

Charge and discharge proof

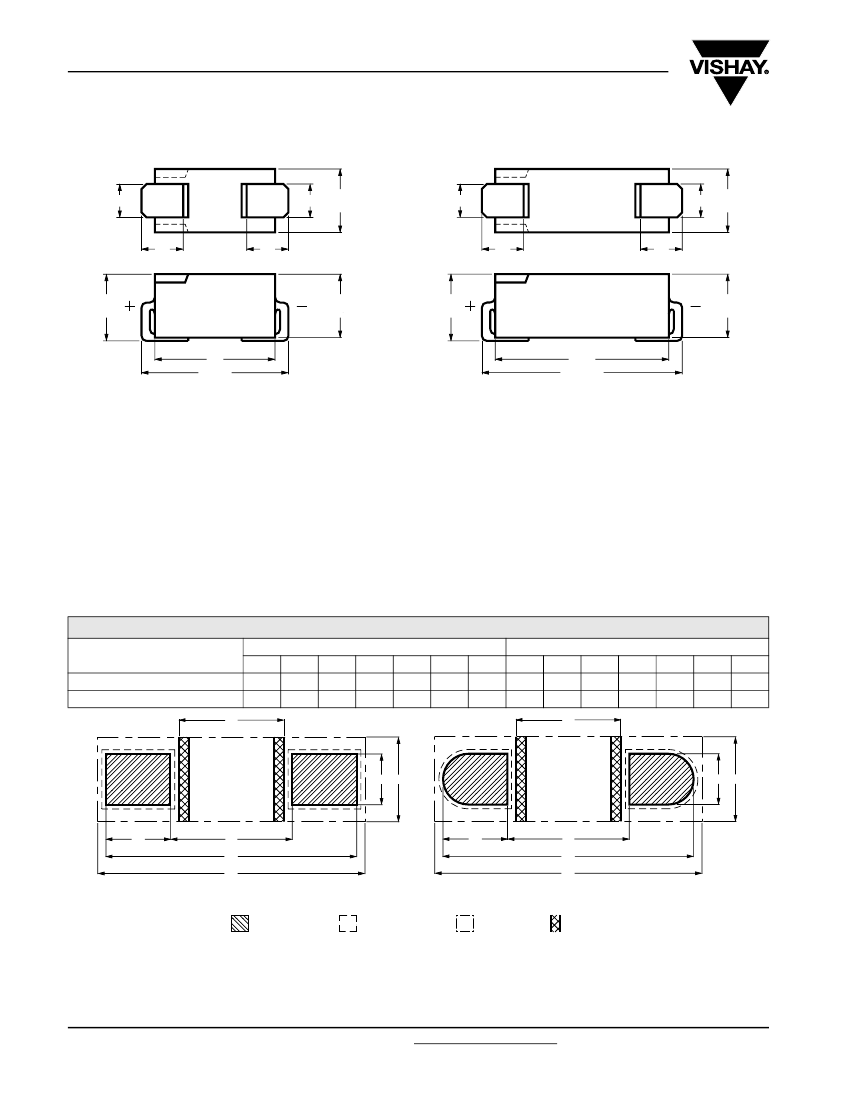

Fig.1 Component outlines

APPLICATIONS

•

SMD technology, boards with restricted mounting height

085 CS

longer

life

139 CLL

•

General applications, consumer electronics, low profile

and lightweight equipment

•

Decoupling, smoothing, filtering and buffering

MARKING

QUICK REFERENCE DATA

DESCRIPTION

Nominal case sizes

(L x W x H in mm)

Rated capacitance range, C

Tolerance on C

Rated voltage range, U

Category temperature range

Endurance test at 85

°C

Useful life at 85 °C

Useful life at 40 °C;

1.4 x l

applied

VALUE

8.8 x 3.7 x 3.9 and

11.9 x 3.7 x 3.9

0.47 to 22 µF

6.3 to 63 V

- 10 to + 50 % or ± 20 %

The capacitors are marked (where possible) with the

following information:

- 40 to + 85 °C

1000 hours

1500 hours

•

Rated capacitance (in µF)

•

Rated voltage code (see Table 1), the U

code letter

indicates the position of the decimal point in the

capacitance value

•

Name of manufacturer

•

‘-’ sign indicating the cathode. The anode is identified by

bevelled edges

Examples

for C

; U

marking:

H22 represents 0.22 µF; 63 V

2G2 represents 2.2 µF; 40 V

22C represents 22 µF; 6.3 V

Table 1

Shelf life at 0 V, 85 °C

40 000 hours

500 hours

Resistance to soldering

heat test

Based on sectional

specification

immersion in solder:

10 s at 260 °Cor 20 s at 215 °C

IEC 60384-18/CECC 32300

40/085/56

(V)

Code letter

RATED VOLTAGE MARKING CODE

6.3

Climatic category IEC 60068

SELECTION CHART FOR C

, U

AND RELEVANT NOMINAL CASE SIZES

(L x W x H in mm)

(µF)

(V)

6.3

8.8 x 3.7 x 3.9

11.9 x 3.7 x 3.9

8.8 x 3.7 x 3.9

11.9 x 3.7 x 3.9

8.8 x 3.7 x 3.9

11.9 x 3.7 x 3.9

8.8 x 3.7 x 3.9

11.9 x 3.7 x 3.9

8.8 x 3.7 x 3.9

11.9 x 3.7 x 3.9

8.8 x 3.7 x 3.9

11.9 x 3.7 x 3.9

0.47

1.0

2.2

3.3

4.7

6.8

•

Supplied in blister tape on reel

•

Flexible terminals, reflow and wave solderable

Document Number: 28300

Revision: 28-May-08

For technical questions, contact: aluminumcaps1@vishay.com

•

SMD-version, rectangular case, insulated

www.vishay.com

2222 085 65109 Related Products

	2222 085 65109	2222 085 63109	2222 085 63229	2222 085 65478	2222 085 66338	2222 085 67228	2222 085 67478	2222 085 68108
Description	CAP ALUM 10UF 20% 16V SMD	CAP ALUM 10UF 20% 6.3V SMD	CAP ALUM 22UF 20% 6.3V SMD	CAP ALUM 4.7UF 20% 16V SMD	CAP ALUM 3.3UF 20% 25V SMD	CAP ALUM 2.2UF 20% 40V SMD	CAP ALUM 4.7UF 20% 40V SMD	CAP ALUM 1UF 20% 63V SMD
capacitance	10µF	10µF	22µF	4.7µF	3.3µF	2.2µF	4.7µF	1µF
Tolerance	±20%	±20%	±20%	±20%	±20%	±20%	±20%	±20%
Voltage - Rated	16V	6.3V	6.3V	16V	25V	40V	40V	63V
ESR (equivalent series resistance)	32 ohms	48 ohms	22 ohms	68 ohms	87 ohms	120 ohms	54 ohms	190 ohms
Service life at different temperatures	1500 hours at 85°C	1500 hours at 85°C	1500 hours at 85°C	1500 hours at 85°C	1500 hours at 85°C	1500 hours at 85°C	1500 hours at 85°C	1500 hours at 85°C
Operating temperature	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C
application	Universal	Universal	Universal	Universal	Universal	Universal	Universal	Universal
Ripple current @ high frequency	24mA @ 10kHz	16.5mA @ 10kHz	30mA @ 10kHz	13.5mA @ 10kHz	14.4mA @ 10kHz	12.6mA @ 10kHz	23.4mA @ 10kHz	15mA @ 10kHz
impedance	12 Ohms	20 Ohms	9 Ohms	26 Ohms	27 Ohms	32 Ohms	15 Ohms	55 Ohms
size/dimensions	0.469" long x 0.146" wide (11.90mm x 3.70mm)	0.346" long x 0.146" wide (8.80mm x 3.70mm)	0.469" long x 0.146" wide (11.90mm x 3.70mm)	0.346" long x 0.146" wide (8.80mm x 3.70mm)	0.346" long x 0.146" wide (8.80mm x 3.70mm)	0.346" long x 0.146" wide (8.80mm x 3.70mm)	0.469" long x 0.146" wide (11.90mm x 3.70mm)	0.346" long x 0.146" wide (8.80mm x 3.70mm)
Height - Installation (maximum)	0.154"（3.90mm）	0.154"（3.90mm）	0.154"（3.90mm）	0.154"（3.90mm）	0.154"（3.90mm）	0.154"（3.90mm）	0.154"（3.90mm）	0.154"（3.90mm）
Surface mount pad dimensions	0.469" long x 0.146" wide (11.90mm x 3.70mm)	0.346" long x 0.146" wide (8.80mm x 3.70mm)	0.469" long x 0.146" wide (11.90mm x 3.70mm)	0.346" long x 0.146" wide (8.80mm x 3.70mm)	0.346" long x 0.146" wide (8.80mm x 3.70mm)	0.346" long x 0.146" wide (8.80mm x 3.70mm)	0.469" long x 0.146" wide (11.90mm x 3.70mm)	0.346" long x 0.146" wide (8.80mm x 3.70mm)
Installation type	surface mount	surface mount	surface mount	surface mount	surface mount	surface mount	surface mount	surface mount
Package/casing	Non-standard SMD	Non-standard SMD	Non-standard SMD	Non-standard SMD	Non-standard SMD	Non-standard SMD	Non-standard SMD	Non-standard SMD
