MOC5007FVM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> MOC5007FVM

MOC5007FVM: DescriptionOPTOCOUP VDE SCHMIT TRIG LP 6SMD; CategoryLED optoelectronic/LED; File Size154KB，6 Pages; ManufacturerON Semiconductor; Websitehttp://www.onsemi.cn

Download Datasheet Parametric View All

MOC5007FVM Overview

OPTOCOUP VDE SCHMIT TRIG LP 6SMD

MOC5007FVM Parametric

Parameter Name	Attribute value
Number of channels	1
Input - input side 1/input side 2	1/0
Voltage - Isolation	7500Vpk
Common-mode transient immunity (minimum)	-
input type	DC
Output type	open collector
Current - Output/Channel	50mA
data rate	1MHz
Propagation delay tpLH/tpHL (maximum)	-
Rise/Fall Time (Typical)	-
Voltage - Forward (Vf) (Typical)	-
Current - DC Forward (If)	1.6mA
Voltage - Power	-
Operating temperature	-
Installation type	surface mount
Package/casing	6-SMD, gull wing
Supplier device packaging	6-SMD

Preview

Download Datasheet

View All

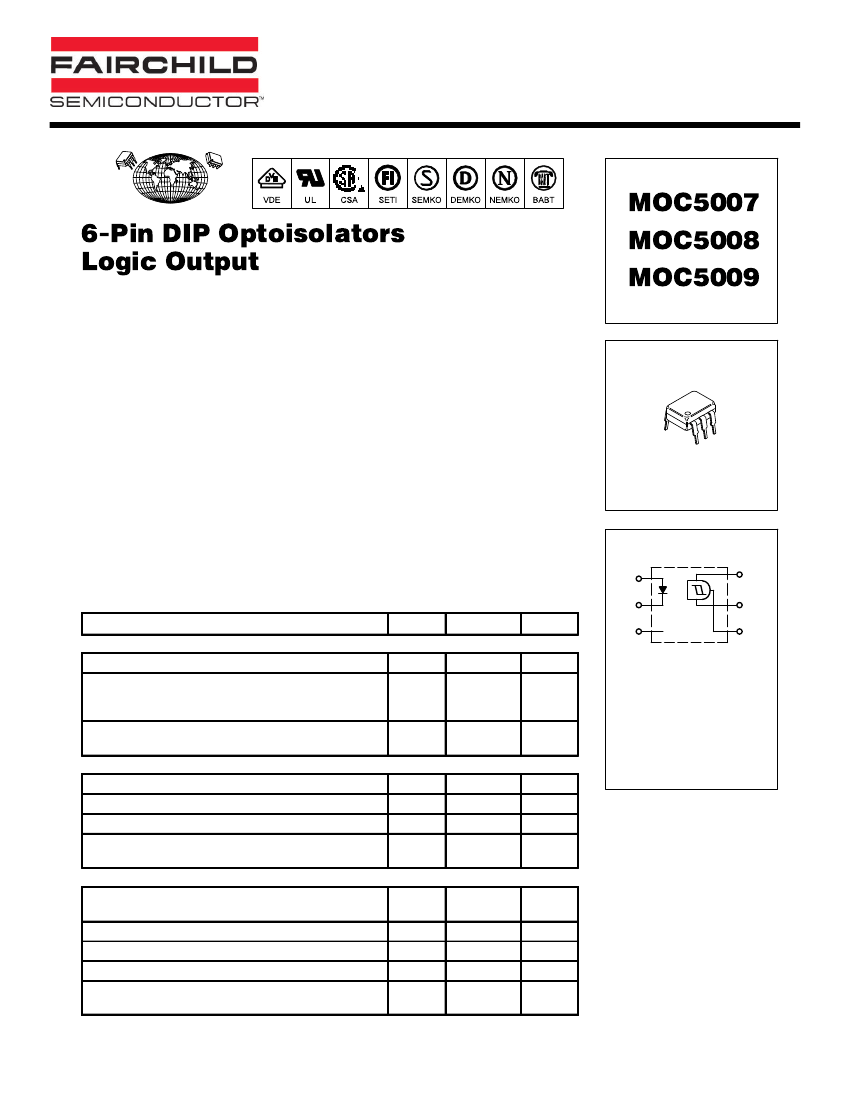

GlobalOptoisolator™

6-Pin DIP Optoisolators

Logic Output

The MOC5007, MOC5008 and MOC5009 have a gallium arsenide IRED

optically coupled to a high–speed integrated detector with Schmitt trigger

output. Ideal for applications requiring electrical isolation, fast response time,

noise immunity and digital logic compatibility.

•

Guaranteed Switching Times — ton, toff 4

< µs

Built–In ON/OFF Threshold Hysteresis

High Data Rate, 1 MHz Typical (NRZ)

Wide Supply Voltage Capability

Microprocessor Compatible Drive

To order devices that are tested and marked per VDE 0884 requirements, the

suffix ”V” must be included at end of part number. VDE 0884 is a test option.

MOC5007

MOC5008

MOC5009

Applications

•

Interfacing Computer Terminals to Peripheral Equipment

•

Digital Control of Power Supplies

•

Line Receiver — Eliminates Noise

•

Digital Control of Motors and Other Servo Machine Applications

•

Logic to Logic Isolator

•

Logic Level Shifter — Couples TTL to CMOS

MAXIMUM RATINGS

(TA = 25°C unless otherwise noted)

Rating

INPUT LED

Reverse Voltage

Forward Current — Continuous

Forward Current —

Peak

Pulse Width = 300

µs,

2% Duty Cycle

LED Power Dissipation @ TA = 25°C

Derate above 25°C

OUTPUT DETECTOR

Output Voltage Range

Supply Voltage Range

Output Current

Detector Power Dissipation @ TA = 25°C

Derate above 25°C

TOTAL DEVICE

Total Device Power Dissipation @ TA = 25°C

Derate above 25°C

Maximum Operating Temperature

Storage Temperature Rang

Soldering Temperature (10 s)

Isolation Surge Voltage(1)

(Peak ac Voltage, 60 Hz, 1 Second Duration)

Tstg

VISO

250

2.94

– 40 to + 85

– 55 to +150

260

7500

mW/°C

°C

Vac(pk)

VCC

0 –16

3 –16

150

1.76

Volts

mW/°C

1.2

120

1.41

Volts

Amp

mW/°C

Symbol

Value

Unit

STANDARD THRU HOLE

SCHEMATIC

PIN 1.

ANODE

CATHODE

OPEN COLLECTOR

OUTPUT

5. GROUND

6. VCC

1. Isolation surge voltage is an internal device dielectric breakdown rating.

For this test, Pins 1 and 2 are common, and Pins 4, 5 and 6 are common.
