FEATURES AND SPECIFICATIONS
Features and Benefits
s
Sizes 2 to 28 circuits
s
High performance flex life alloy prevents conductor
s
s
s
s
fracture at solder joints
Increased cable flexibility
Tin topcoat provides easy PC board direct termination
Bulk cable available on 100, 300 and 500’ reels
To order notched bulk cable, jumpers cut to length or
complete assemblies, contact Molex
Electrical
Voltage: 300V
See Electrical Specifications Table
on Page H-29 for More Information
Physical
Flammability: VW-1
Operating Temperature: -20 to +105˚C
Insulation: Dark gray PVC
Edge Mark: Blue
2.00mm (.079") Pitch
Flextran
™
High Flex Life Cable
24463
26 AWG (19 x 38) Stranded, Topcoat
24473
24 AWG (19 x 36) Stranded, Topcoat
H
Ribbon Cable Systems
Reference Information
UL File No.: E61522
UL Style No.: 2651
Use With.: 30452 and
52484
IDT connectors
Designed In: Millimeters

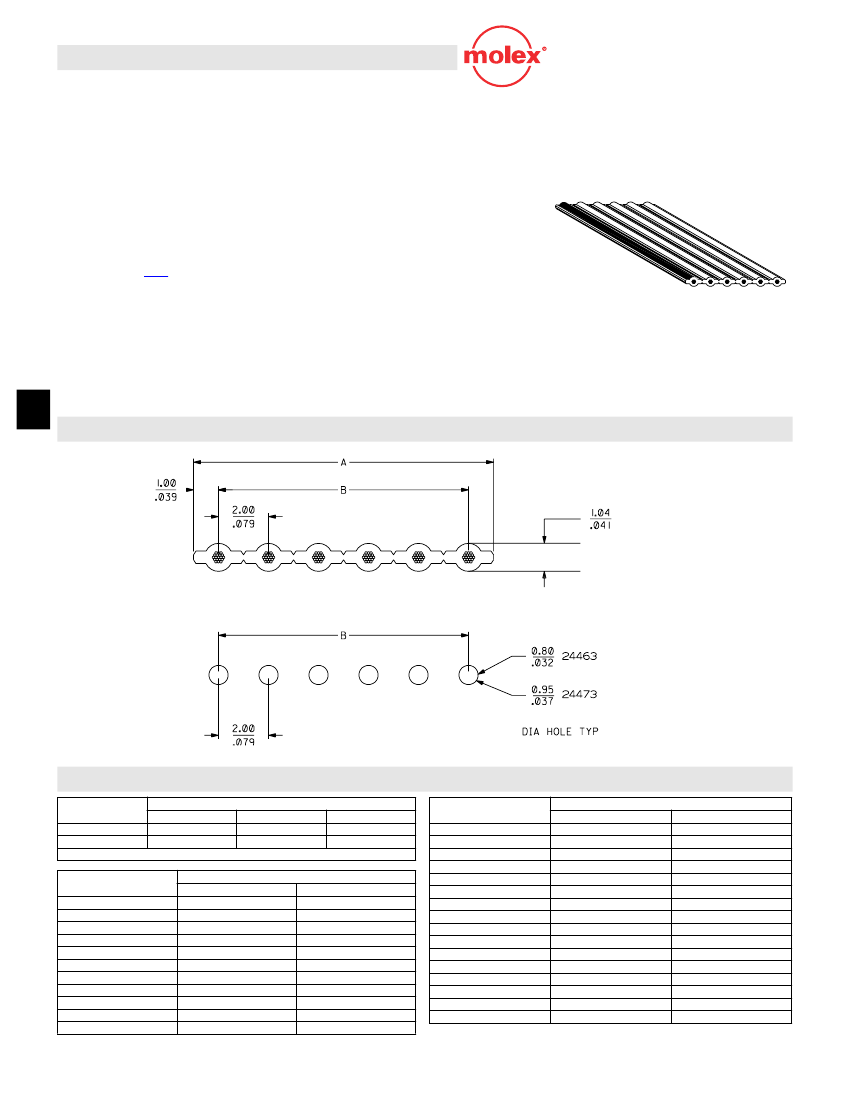

CATALOG DRAWING (FOR REFERENCE ONLY)
ORDERING INFORMATION AND DIMENSIONS
For Cable Series No.
24463-XX
24473-XX
Order No.
100’ Reel
300’ Reel
• 82-26-30XX
• 82-26-31XX
• 82-24-34XX
• 82-24-35XX
Replace "XX" with number of circuits, 02-28
Dimension
A
4.00 (.157)
6.00 (.236)
8.00 (.315)
10.00 (.394)
12.00 (.472)
14.00 (.551)
16.00 (.630)
18.00 (.709)
20.00 (.787)
22.00 (.866)
24.00 (.945)
2.00
4.00
6.00
8.00
10.00
12.00
14.00
16.00
18.00
20.00
22.00
B
(.079)
(.157)
(.236)
(.315)
(.394)
(.472)
(.551)
(.630)
(.709)
(.787)
(.866)
500’ Reel
• 82-26-32XX
• 82-24-36XX
Circuits
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
26.00
28.00
30.00
32.00
34.00
36.00
38.00
40.00
42.00
44.00
46.00
48.00
50.00
52.00
54.00
56.00
Dimension
A
(1.024)
(1.102)
(1.181)
(1.260)
(1.339)
(1.417)
(1.496)
(1.575)
(1.654)
(1.732)
(1.811)
(1.890)
(1.969)
(2.047)
(2.126)
(2.205)
24.00
26.00
28.00
30.00
32.00
34.00
36.00
38.00
40.00
42.00
44.00
46.00
48.00
50.00
52.00
54.00
B
(.945)
(1.024)
(1.102)
(1.181)
(1.260)
(1.339)
(1.417)
(1.496)
(1.929)
(1.654)
(1.732)
(1.811)
(1.890)
(1.969)
(2.047)
(2.126)
Circuits
2
3
4
5
6
7
8
9
10
11
12
• US Standard Product, available through Molex franchised distributors
H-36
MX01
