B82733V2112B001 datasheet, PDF

Datasheet> All Categories > semiconductor> Analog mixed-signal IC> B82733V2112B001

B82733V2112B001: DescriptionCMC 47MH 1.1A 2LN TH; Categorysemiconductor Analog mixed-signal IC; File Size676KB，7 Pages; ManufacturerEPCOS (TDK); Environmental Compliance

Download Datasheet Parametric Compare View All

B82733V2112B001 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	B82733V2112B001	-	-	View	Buy Now

B82733V2112B001 Overview

CMC 47MH 1.1A 2LN TH

B82733V2112B001 Parametric

Parameter Name	Attribute value
filter type	power cable
Number of lines	2
Inductance @ frequency	47mH @ 10kHz
Rated current (maximum)	1.1A
DC Resistance (DCR) (Max)	804 milliohms (standard)
Rated voltage - DC	-
Rated voltage - AC	300V
Operating temperature	-40°C ~ 125°C
grade	-
Approval	ENEC， UR， VDE
characteristic	-
Installation type	Through hole
size/dimensions	1.142" long x 0.610" wide (29.00mm x 15.50mm)
Height (maximum value)	1.063"（27.00mm）
Package/casing	Vertical, 4 PC pins

Preview

Download Datasheet

View All

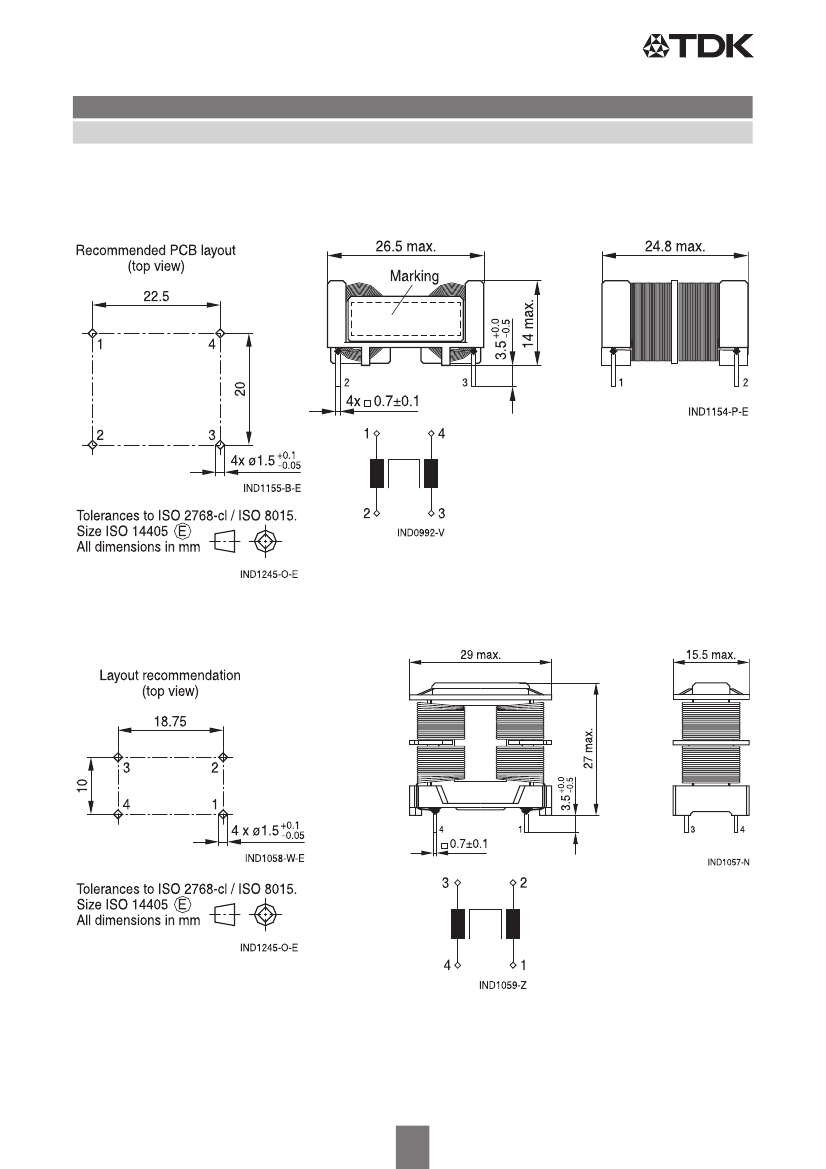

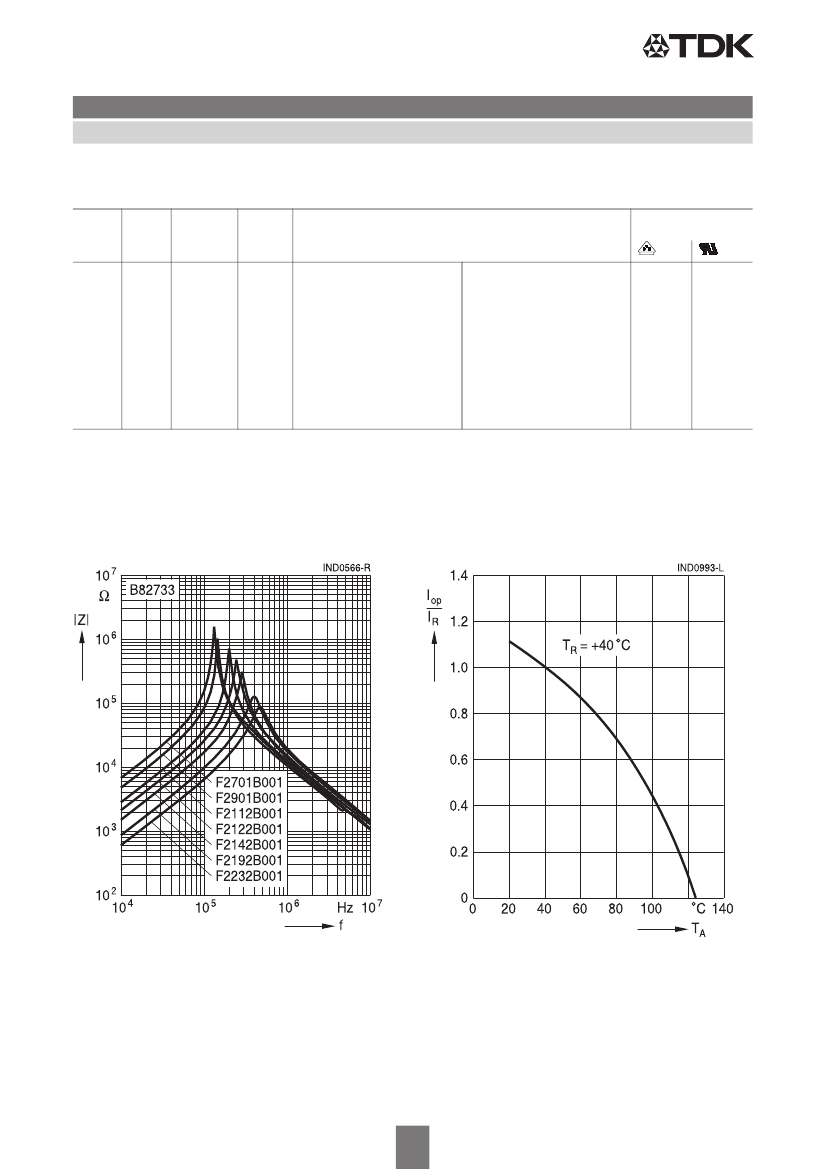

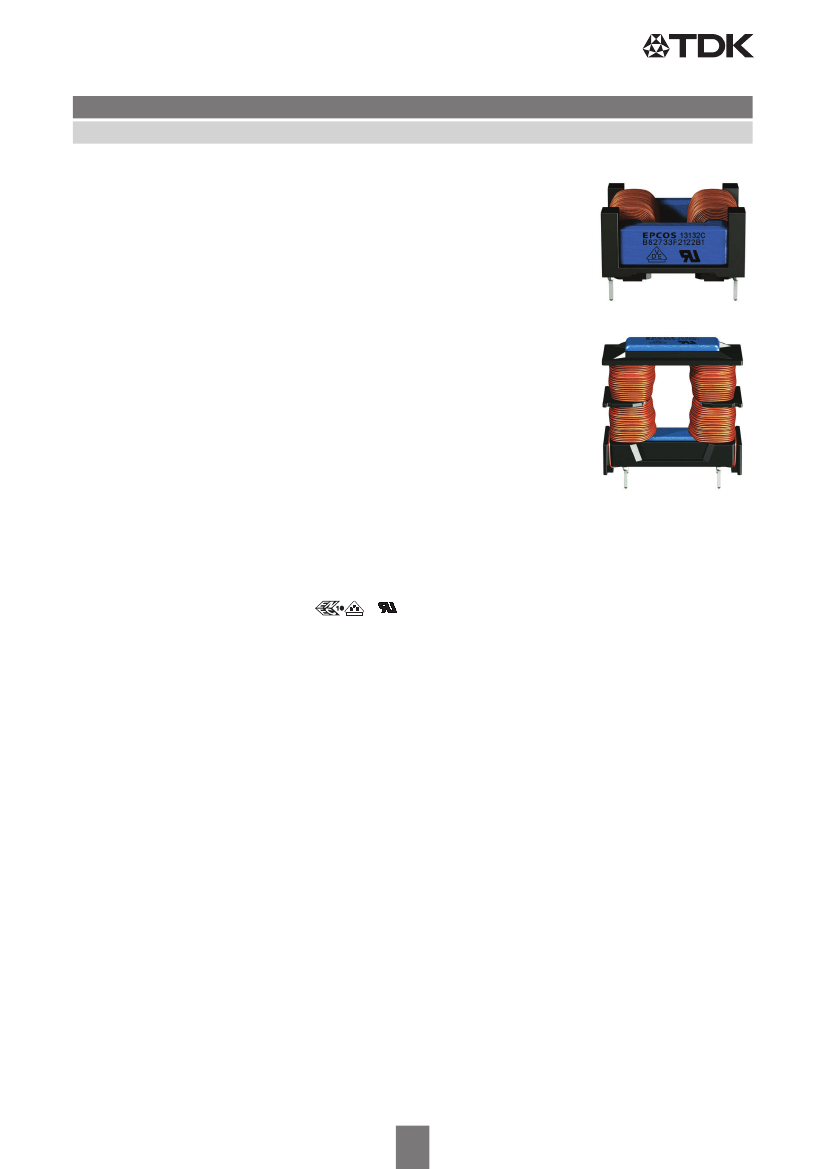

Power line chokes

Current-compensated frame core double chokes

300 V AC, 0.7 … 2.3 A, 10 … 100 mH, +40 °C

Series/Type:

B82733F/V

May 2015

a~í~=pÜÉÉí

Date:



EPCOS AG 2015. Reproduction, publication and dissemination of this publication, enclosures hereto and the information

contained therein without EPCOS' prior express consent is prohibited.

EPCOS AG is a TDK Group Company.

B82733V2112B001 Related Products

	B82733V2112B001	B82733F	B82733V2701B001	B82733V2901B001	B82733V2232B001	B82733V2192B001	B82733V2142B001	B82733X0001	B82733V2122B001
Description	CMC 47MH 1.1A 2LN TH	2 ELEMENT, 39000 uH, GENERAL PURPOSE INDUCTOR	CMC 100MH 700MA 2LN TH	CMC 68MH 900MA 2LN TH	CMC 10MH 2.3A 2LN TH	CMC 15MH 1.9A 2LN TH	CMC 27MH 1.4A 2LN TH	KIT CHOKE POWER LINE FRAME CORE	CMC 39MH 1.2A 2LN TH
filter type	power cable	-	power cable	power cable	power cable	power cable	power cable	-	power cable
Number of lines	2	-	2	2	2	2	2	-	2
Inductance @ frequency	47mH @ 10kHz	-	100mH @ 10kHz	68mH @ 10kHz	10mH @ 10kHz	15mH @ 10kHz	27mH @ 10kHz	-	39mH @ 10kHz
Rated current (maximum)	1.1A	-	700mA	900mA	2.3A	1.9A	1.4A	-	1.2A
DC Resistance (DCR) (Max)	804 milliohms (standard)	-	1.81 ohms (standard)	1.1 ohms (standard)	188 milliohms (standard)	279 milliohms (standard)	440 milliohms (standard)	-	696 milliohms (standard)
Rated voltage - AC	300V	-	300V	300V	300V	300V	300V	-	300V
Operating temperature	-40°C ~ 125°C	-	-40°C ~ 125°C	-40°C ~ 125°C	-40°C ~ 125°C	-40°C ~ 125°C	-40°C ~ 125°C	-	-40°C ~ 125°C
Approval	ENEC， UR， VDE	-	ENEC， UR， VDE	ENEC， UR， VDE	ENEC， UR， VDE	ENEC， UR， VDE	ENEC， UR， VDE	-	ENEC， UR， VDE
Installation type	Through hole	-	Through hole	Through hole	Through hole	Through hole	Through hole	Through hole	Through hole
size/dimensions	1.142" long x 0.610" wide (29.00mm x 15.50mm)	-	1.142" long x 0.610" wide (29.00mm x 15.50mm)	1.142" long x 0.610" wide (29.00mm x 15.50mm)	1.142" long x 0.610" wide (29.00mm x 15.50mm)	1.142" long x 0.610" wide (29.00mm x 15.50mm)	1.142" long x 0.610" wide (29.00mm x 15.50mm)	-	1.142" long x 0.610" wide (29.00mm x 15.50mm)
Height (maximum value)	1.063"（27.00mm）	-	1.063"（27.00mm）	1.063"（27.00mm）	1.063"（27.00mm）	1.063"（27.00mm）	1.063"（27.00mm）	-	1.063"（27.00mm）
Package/casing	Vertical, 4 PC pins	-	Vertical, 4 PC pins	Vertical, 4 PC pins	Vertical, 4 PC pins	Vertical, 4 PC pins	Vertical, 4 PC pins	-	Vertical, 4 PC pins
