1510110201 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 1510110201

1510110201: Description2MM SR2P HDR SMT WOPEG BKAWAY TR; CategoryThe connector; File Size223KB，2 Pages; ManufacturerMolex Premise Network; Environmental Compliance

Download Datasheet Parametric View All

1510110201 Overview

2MM SR2P HDR SMT WOPEG BKAWAY TR

1510110201 Parametric

Parameter Name	Attribute value
Connector type	Needle hub, separate
Contact type	Male pin
Spacing - Mating	-
Number of pins	2
Number of rows	2
Line spacing - patching	-
Number of pins loaded	all
style	Board to cable/wire
shield	Uncovered
Installation type	Surface mount, right angle
Termination	welding
Fastening type	push-pull
Contact Length - Mating	0.130"（3.30mm）
Contact length - terminal	-
Overall contact length	-
Insulation height	0.079"（2.00mm）
Contact shape	Square
Contact surface treatment - mating	tin
Contact Surface Treatment Thickness - Mating	98.4µin（2.50µm）
Contact Surface Preparation - Column	tin
Contact material	copper alloy
Insulation Materials	Liquid crystal polymer (LCP), glass fiber reinforced
characteristic	Pick and place
Operating temperature	-
Intrusion protection	-
Material flammability rating	UL94 V-0
Insulation color	black
Rated current	-
Rated voltage	-
Joint stack height	-
Contact Surface Treatment Thickness - Column	98.4µin（2.50µm）
application	-

Preview

Download Datasheet

View All

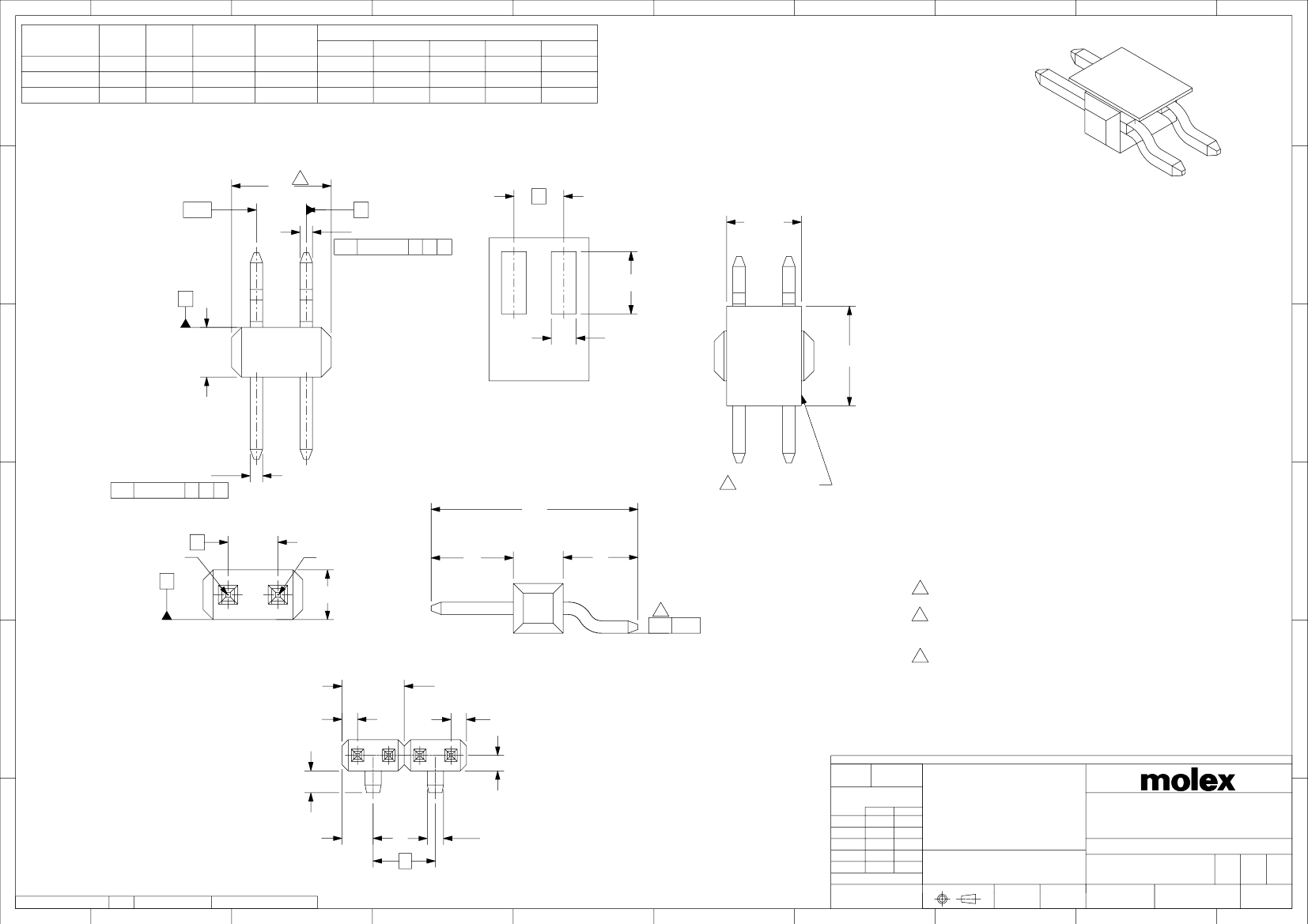

ASSEMBLY

CKT

PEG

VOID

POSITION

PLATING

4.00

12.00

DIMENSIONS

2.00

3.30

2.00

3.20

10.00

3.20

3.00

2.80

2.85

8.30

8.00

8.05

151011-0201

151011-0202

151011-0600

3&4

2.00

ISO VIEW WITH KAPTON TAPE

0.50

0.05

TYP

⌖

⌀

0.30

Ⓜ

X Y

2.50

0.05

TYP

3.00

2.00

1.00

0.05

TYP

4.00

RECOMMENDED PCB LAYOUT

0.50

0.05

TYP

⌖

⌀

0.30

Ⓜ

X Y

KAPTON TAPE

PART WITH KAPTON TAPE

2CKT SHOWN FOR ILLUSTRATION ONLY

CKT 1

CKT 2

2.00

HOUSING WITHOUT PEG

⌓

0.30

1.00

4.00

BREAKAWAY

SEGMENT TYP.

1.00

NOTES

1. MATERIAL:

HSG: LCP, GLASS-FILLED, UL94V-0 COLOR: BLACK

PIN: 0.50MM SQ, COPPER ALLOY

2. PLATING TYPE:

(1) GOLD FLASH ON CONTACT AND

2.50µm MIN. TIN ON SOLDERTAIL OVER

1.25µm MIN. NICKEL OVERALL.

(2) 0.38µm MIN. GOLD PLATE ON CONTACT AND

2.50µm MIN. TIN ON SOLDERTAIL OVER

1.25µm MIN. NICKEL OVERALL.

(3) 0.75µm MIN. GOLD PLATE ON CONTACT AND

2.50µm MIN. TIN ON SOLDERTAIL OVER

1.25µm MIN. NICKEL OVERALL.

(4) 2.50µm MIN TIN OVERALL

1.25µm NICKEL OVERALL

3. PRODUCT SPECIFICATION: PS-87761-100

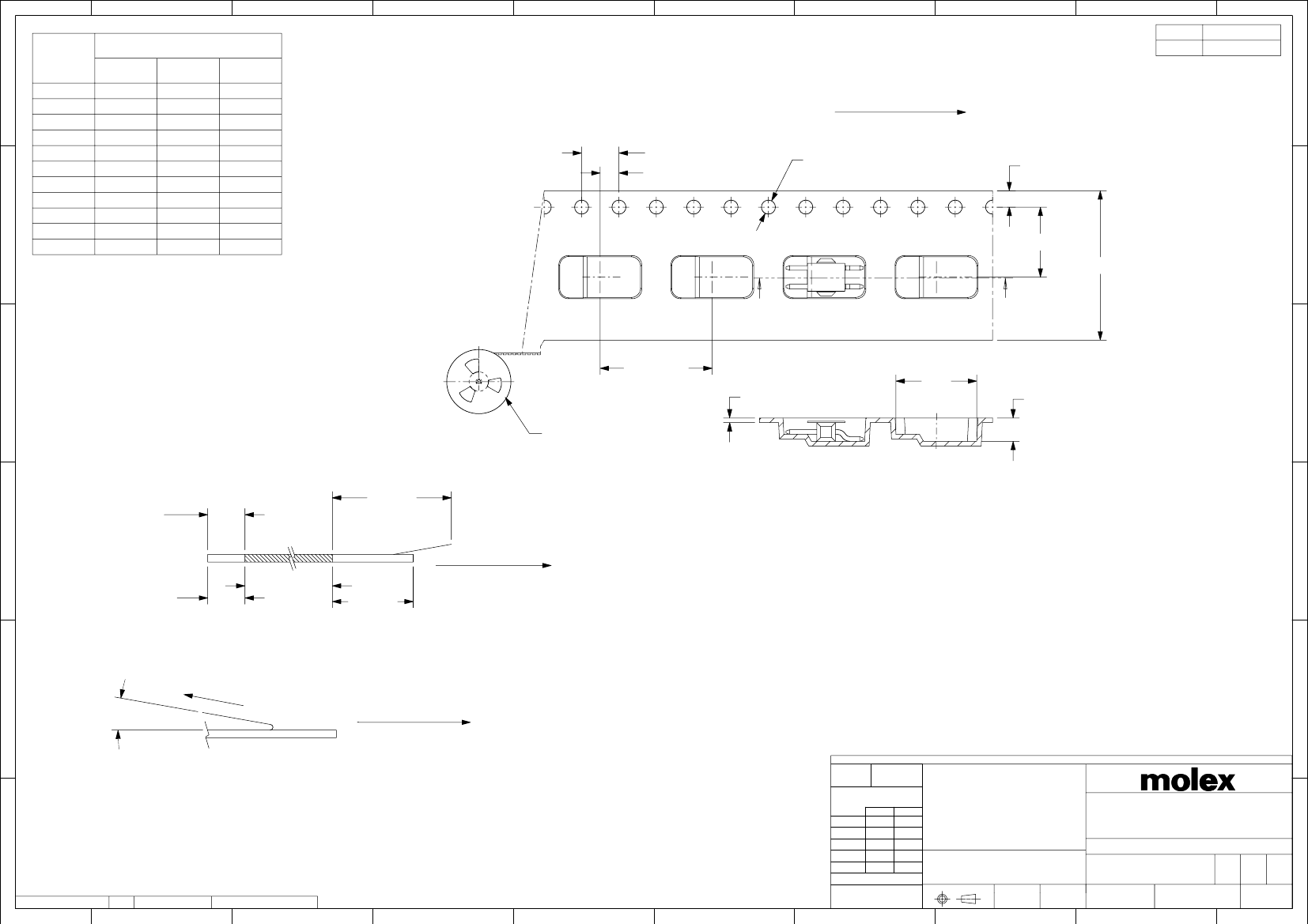

4. PACKAGING TYPE: TAPE AND REEL, : PK-87858-300

. KAPTON TAPE IS CENTERED ALONG THE PART AS SHOWN.

6. RECOMMENDED PCB THICKNESS IS 1.60mm

0.10

. IRREGULAR CIRCUIT CUTOFF WITHIN BREAKAWAY SECTION IS

PERMISSIBLE.CUTTING OR CHIPPING OF THE MAIN BODY IS

NOT ACCEPTABLE.

. COPLANARITY IS TO BE MEASURED BY RESTING THE SOLDER TAIL

ON A FLAT SURFACE.

9. THE ABOVE CKT 2 IS FOR ILLUSTRATION PURPOSE ONLY

1.00

1.40

THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION

DIMENSION UNITS

SCALE

CURRENT REV DESC: P/N 151011-0202 ADD

NTS

INCH

GENERAL TOLERANCES

(UNLESS SPECIFIED)

EC NO:

173949

4 PLACES

2.00

HOUSING WITH PEG

DOCUMENT STATUS

FORMAT: Met-lega-master-tb-prod-A3

REVISION: D

DATE: 2018/01/18

⌀

1.04

0.05

3 PLACES

2 PLACES

1 PLACE

0.2

3.0 °

0 PLACES

ANGULAR TOL

DRWN: PKH

CHK'D: MRAMAKRISHNA

APPR:

ISHWARG

INITIAL REVISION:

DRWN:

ATSEE

APPR: LBLEE

THIRD ANGLE PROJECTION

DRAWING

2016/12/21

2018/03/21

2018/04/19

2014/09/04

2014/10/03

SERIES

CUSTOM HEADER

2.00MM PITCH SINGLE ROW SINGLE WAFER SMT

PRODUCT CUSTOMER DRAWING

DOCUMENT NUMBER

DOC TYPE

DOC PART

REVISION

SD-151011-0201

MATERIAL NUMBER

CUSTOMER

PSD

000

RELEASE DATE

2018/04/19

08:23:35

DRAFT WHERE APPLICABLE

MUST REMAIN

WITHIN DIMENSIONS

SHEET NUMBER

A3-SIZE

151011

SEE TABLE

GENERAL MARKET

1 OF 2
