WP3 WinPath3
Next Generation Access Systems
Packet Processor
Released Product Brief
Product Overview
The WinPath3, with its enhanced carrier-grade software, is the third
generation of WinPath products. Building on hundreds of successful
communications systems deployments, the WinPath3 extends PMC’s
proven formula of complete protocol solutions to a significantly
higher level of performance.
The WinPath3 integrates control plane and enhanced data plane
processing components. Control plane processing is based on two
high-performance MIPS 34K multi-threaded processors. Data plane
processing uses new hardware accelerators for packet classification,
hierarchical shaping, additional security standards and more to off-
load common processing tasks. The accelerators are flexibly
combined with a field-proven, fully-programmable, high-perfor-
mance multi-threaded multi-core data path processor subsystem. 12
cores are available (up from 6 in the WinPath2) and operating speed
has increased.
The WinPath3 leverages a broad set of supplied protocols developed
for WinPath1 and WinPath2, including support for L2 and L3 termi-
nation (Ethernet, ML-PPP, IMA, CES), PWE3 (Ethernet, TDM, HDLC,
ATM), Packet Network Synchronization (IEEE 1588v2, Synchronous
Ethernet, adaptive and differential clock recovery), interworking
(MPLS, IPv4/IPv6 Routing, VLAN-aware bridging), OAM (Ethernet,
ATM), QoS (policing, shaping, per-flow queuing, WRED) and more.
Product Highlights
•
Third generation family of communication processors provided with
•
•
carrier-class IP protocol and interworking software
5x performance, higher integration than 2nd-generation WinPath2
Extensive set of interfaces supports IP up to 10 GbE and TDM/SDH
up to OC-48 unchannelized or channelized (via companion
UFE412/448 device)
System bus interfaces include PCIe, integrated SERDES
Highly flexible integrated DDR and Flash memory controllers
Powerful multi-threaded, multi-core acceleration with RAM-based
code store supports evolving standards in Wireline (Carrier
Ethernet, Enterprise Access, Mobile Backhaul, GPON, DSLAM) and
Wireless (LTE, WiMAX, Fixed Wireless Access) systems
Data path software is royalty-free and carrier-class supported with
a C-language API for rapid system integration for over 60 protocols
Available data path software supports networking at Layer 2 and
above, interworking, QoS, and protocols such as MPLS, MPLS-TP,
PB, PBB, EFM G.Bond, PWE3-SATOP, Link Aggregation, GRE,
WRED, WFQ, VLAN-aware bridging and many others
Rich suite of development tools and source code licensing options
supports customer-specific requirements
Benefits
•
Enhanced interfaces with on-chip SERDES and the latest memory
•
•
•
•
interfaces for lowered BOM costs and simple system integration
Straightforward upgrade of WinPath2 applications for improved
performance and capability of next-generation access systems
Minimum design risk, short time-to-market, and lowered costs for
new or migrated systems
Production-hardened protocols supplied royalty-free
LTE Access and Transport protocols and WiMAX, which generally
require significant OEM and deployment customization, fully
supported by royalty-free source licensing
•
•
•
•
•
•

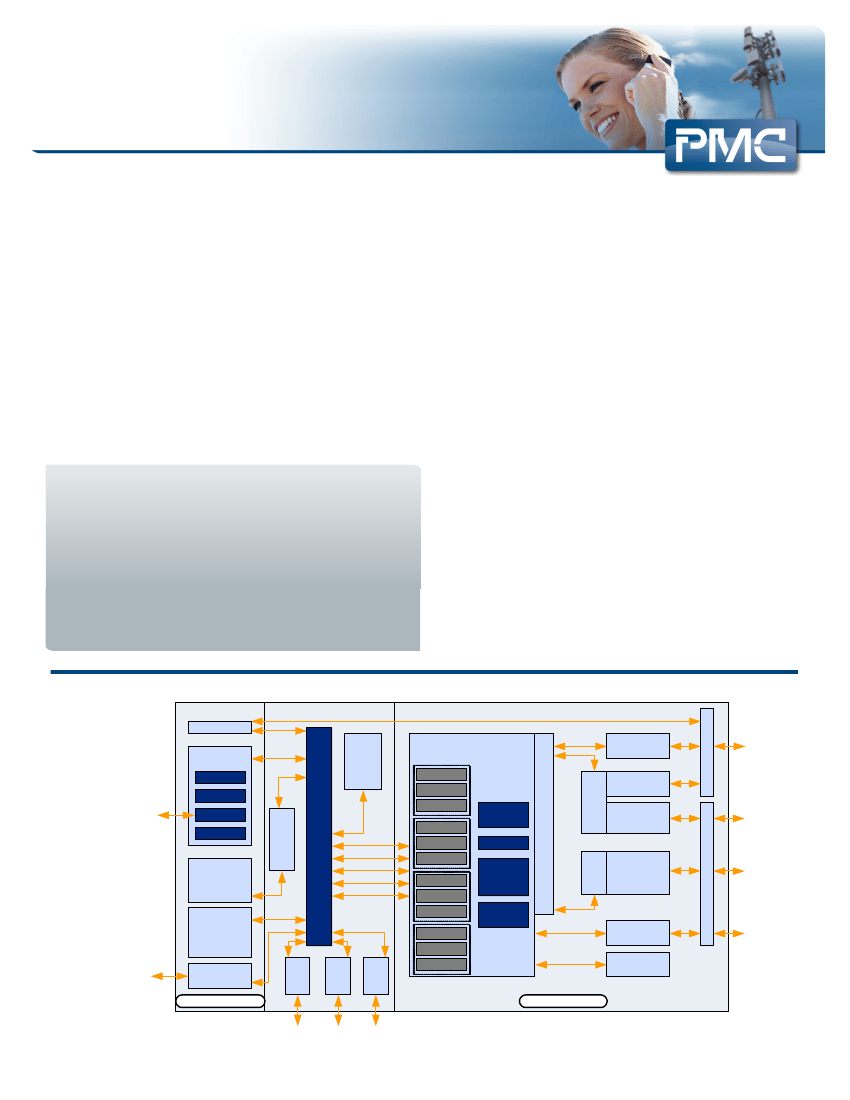

Block Diagram
14 Lane SERDES Mux
PCIe
WinComm
System
Functions
UART
8x WinNet
I2C
CFU
Debug/Boot/
Management
Mgmt ENET
Timers
512K
L2
Cache
Con-
troller
Classifier
Parser
Fabric
Policer
2x SPi3 32 bit
3x SPi3 8 bit
3x UL2/3x PL2
EMPHY
UTOPIA L2/3
POS L2
SPI.3
EMPHY
Pin Mux
3x UPI
SRAM
12x WinGines
16x SGMII or
8x 2.5SGMII
8x RMII
12x RGMII
72x SS-SMII
2x 10GbE
XAUI
PCIe
SGMII or
2.5SGMII
GMII
RGMII
SMII
SS-SMII
MIPS 34K
64K I- / 32K D-
L1 Cache
Controller
MIPS 34K
64K I- / 32K D-
L1 Cache
Controller
Shaper
Security
16 TDI
Serial
DDR 2/3
32 Bits
DDR 2/3
32 Bits
DDR 2/3
32 Bits
Timing/
Synch
T1/E1
CT Bus
H-MVIP
Flash/
Peripheral
Bus
Async I/F
Control Path
Data Path
App Bus/Packet Bus/
Parameter Bus (Optional)
PMC-2110882, Issue 2
Copyright © 2012 PMC-Sierra, Inc.
All rights reserved. Proprietary and Confidential to PMC-Sierra and for its customers’ internal use.
WP3 WinPath3 Next Generation Access Systems Packet Processor
RISC Control Processors
•
Integrated dual multi-threaded MIPS 34Kc cores at 650 MHz with
individual 64K-I/32K-D caches and a 256-KByte or 512-Kbyte L2
cache for one core
•
Control processor can be disabled or processing can be shared with
external core
Host Serial Interfaces
•
UART ART, I2C, RMII Management Ethernet Port
Physical
•
31mm x 31mm 896 FCBGA with 1mm ball pitch
•
Low power consumption: 4.5–9.5 W nominal, depending on
configuration
Data Path Processors
•
Up to 12 RISC processors and 64 concurrent hardware threads
processing at up to 450 MHz
•
Provides up to 10 Gbit/s simplex Ethernet based Routing/Bridging
application performance for 64-Byte minimum-sized packets, (15M
packets per second), including classification, policing and shaping
Reference Boards
The WinPath3 family is supported with WDS3 reference boards for
early software development while a customer’s own board is being
developed. WDS3 boards are also valuable for verifying functionality
when migrating to new software releases and for duplicating system
conditions for support purposes. WDS3 boards are offered standalone
and in standard ATCA form factors, so they can be used with any ATCA
chassis. They are available with various I/O options and adapter cards
to provide equivalent configurations for a range of applications.
New Hardware Accelerators
•
Packet classifier (wire speed classification on all interfaces) with 32K
rules, including bridging support with up to 16K forwarding rules; up
to 450M classification searches per second
Policing accelerator supporting dual leaky bucket for up to 64K flows
3-level hierarchical shaper with 16K Flows with WRED accelerators
Two Security Accelerators (AES, 3xDES , Kasumi, Snow-3G, H-MAC
SHA-1/2, MD5, etc.) with True RNG
Synchronization over packet networks: adaptive, differential,
IEEE 1588v2, Synchronous Ethernet
•
•
•
•
WinPath3 Software
Layer 2 and 3 Interworking
MPLS
Bridging
IPv4 Routing
Fast Re-Route
IEEE 1588v2
Multicast
GTP
PB (VLAN Stacking)
IPv6 Routing
Dynamic Field Classifier
Synchronous Ethernet
PWE3
L2TP
PBB (MAC in MAC)
Packet/Switching
PPPoA/PPPoE
NAT/PAT
GRE
Bus and Memory Interfaces
•
•
•
•
•
3x 16-bit/32-bit DDR2/3 @1200 Mbit/s per pin, (600 MHz, 1200 MTps)
2.5 MB internal memory
NAND, I2C, NOR Flash memory support
Asynchronous peripheral bus
One PCIe v1.1 interface
WinComm Serial Interfaces
•
8 WinNet, supporting combinations of:
16x GbE (SGMII or RGMII or GMII or RTBI)
•
8x 2.5GbE (Over-clocked SGMII @ 3.125 Gbit/s)
•
72x ENET ENET 10/100 (SMII/SS-SMII), or 8x RGMII II
Two 10GbE MACs (XAUI interface)
Three UPI supporting 3x UL2/PL2, 3x/2x SPI3/UL3 (8-/32-bit) and
EMPHY (16-/32-bit for connection to UFE FPGA)
16 TDI supporting T1/E1/T3/E3 or CTCT/MVIP bus
14 multi-standard SERDES lanes shared between SGMII, over-
clocked SGMII, XAUI, and PCIe can directly drive backplane busses
•
Programmable Header Manipulation (Remarking, Editing)
Quality of Service (QoS)
Ethernet OAM
Per-flow Queuing
Packet Policing
Tail Drop
BFD/CCV
Weighted Fair Queuing
2 Rate – 3 Color Marking
WRED
Layer 2 Protocols
Ethernet
PWE3 - CESoPSN
PWE3 - SATOP
MPoTDM (IMA, MC/ML-PPP, ATM, PPP/HDLC)
RFC2507/8/9
EFM G.Bond
IEEE 802.3ad LAG
Packet Classification
Hierarchical Shaping
Host Termination
Statistics/Billing
•
•
•
•
Further Resources
Technology Webpage
www.pmcs.com/products/mobile_network/
About PMC
PMC (Nasdaq:PMCS) is the semiconductor innovator transforming
networks that connect, move and store digital content. Building on a
track record of technology leadership, we are driving innovation
across storage, optical and mobile networks. Our highly integrated
solutions increase performance and enable next generation services
to accelerate the network transformation. For more information visit
www.pmcs.com.
Technical Documentation
www.pmcs.com/resources/downloads_support.html
