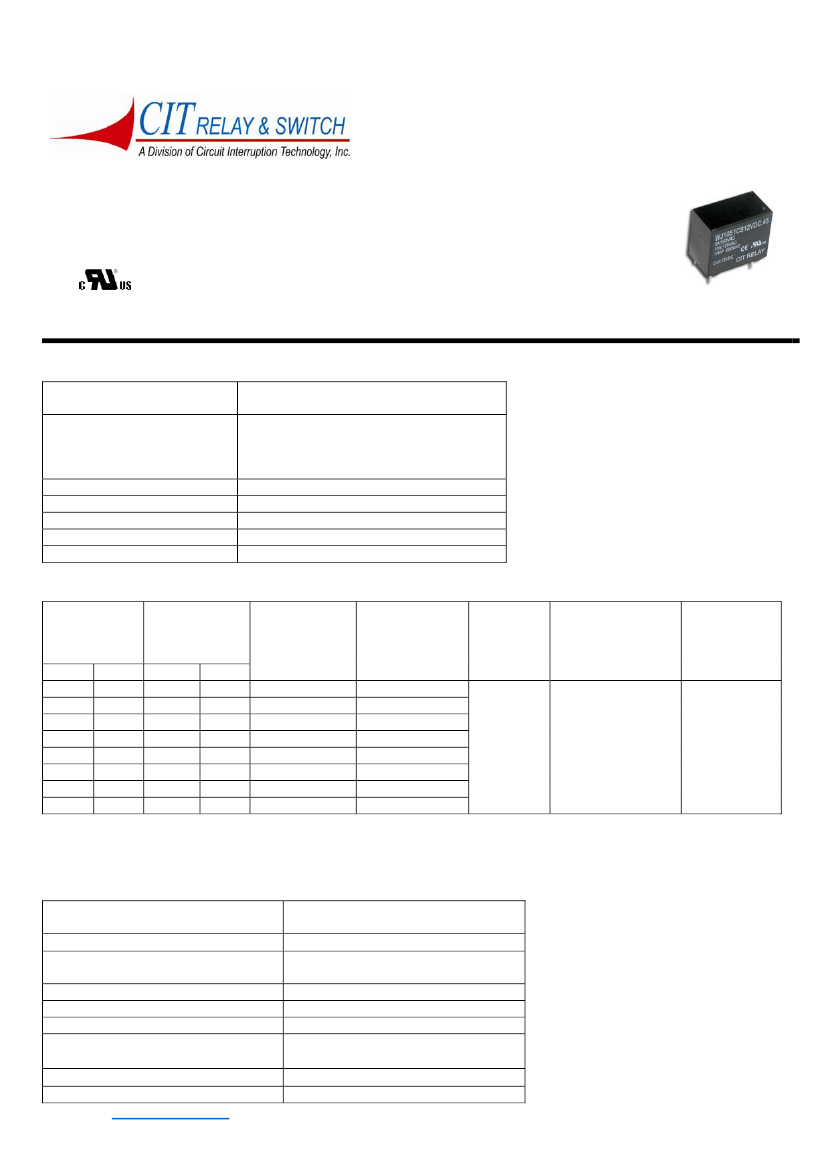

WJ105
Distributor: Electro-Stock www.electrostock.com Tel: 630-682-1542 Fax: 630-682-1562
FEATURES:
•
Switching capacity up to 10A
•
Small size and light weight
•
Low coil power consumption
•
High contact load
E197852
18.2 x 10.6 x 14.7 mm
CONTACT DATA
Contact Arrangement
Contact Rating
1A = SPST N.O
1C = SPDT
4.2A @ 277VAC; 5A @ 250VAC
10A @ 125VAC Resistive
¼ hp, 120/250/277VAC
TV-5, 120VAC; Pilot Duty: C150
< 50 milliohms initial
AgCdO
150W 1250VA
277VAC, 30VDC
10A
Contact Resistance
Contact Material
Maximum Switching Power
Maximum Switching Voltage
Maximum Switching Current
COIL DATA
Coil Voltage
VDC
Coil Resistance
Ω ±
10%
Pick Up Voltage
VDC (max)
75%
of rated voltage
Release Voltage
VDC (min)
10%
of rated voltage
Coil Power
W
Operate Time
ms
Release Time
ms
Rated
Max.
3
3.9
2.25
0.3
5
6.5
3.75
0.5
6
7.8
4.50
0.6
.20
10
10
9
11.7
6.75
0.9
.45
12
15.6
9.00
1.2
18
22.8
13.50
1.8
24
31.2
18.00
2.4
48
62.4
36.00
4.8
CAUTION:
1. The use of any coil voltage less than the rated coil voltage may compromise the operation of the relay.
2. Pickup and release voltages are for test purposes only and are not to be used as design criteria.
.20W
45
125
180
400
720
1620
2800
11520
.45W
20
55
80
180
320
720
1280
5120
GENERAL DATA
Electrical Life @ rated load
Mechanical Life
Insulation Resistance
Dielectric Strength, Coil to Contact
Contact to Contact
Shock Resistance
Vibration Resistance
Terminal (Copper Alloy) Strength
Operating Temperature
Storage Temperature
Solderability
Weight
100K cycles, typical
10M cycles, typical
100MΩ min @ 500VDC
1000V rms min. @ sea level
4000V rms min. @ sea level
100m/s
2
for 11ms
1.50mm double amplitude 10-40Hz
10N
-40
°C
to + 85
°C
-40
°C
to + 155
°C
230
°C ±
2
°C
for 10
±
0.5s
9.5g
WJ105
Distributor: Electro-Stock www.electrostock.com Tel: 630-682-1542 Fax: 630-682-1562
ORDERING INFORMATION
1. Series:
WJ105
WJ105
2. Contact Arrangement:
1A = SPST N.O.
1C = SPDT
3. Coil Voltage:
3VDC
5VDC
6VDC
9VDC
12VDC
18VDC
24VDC
48VDC
4. Coil Power:
.20 = .20W (only available with 1A contacts)
.45 = .45W
1C
9VDC
.45

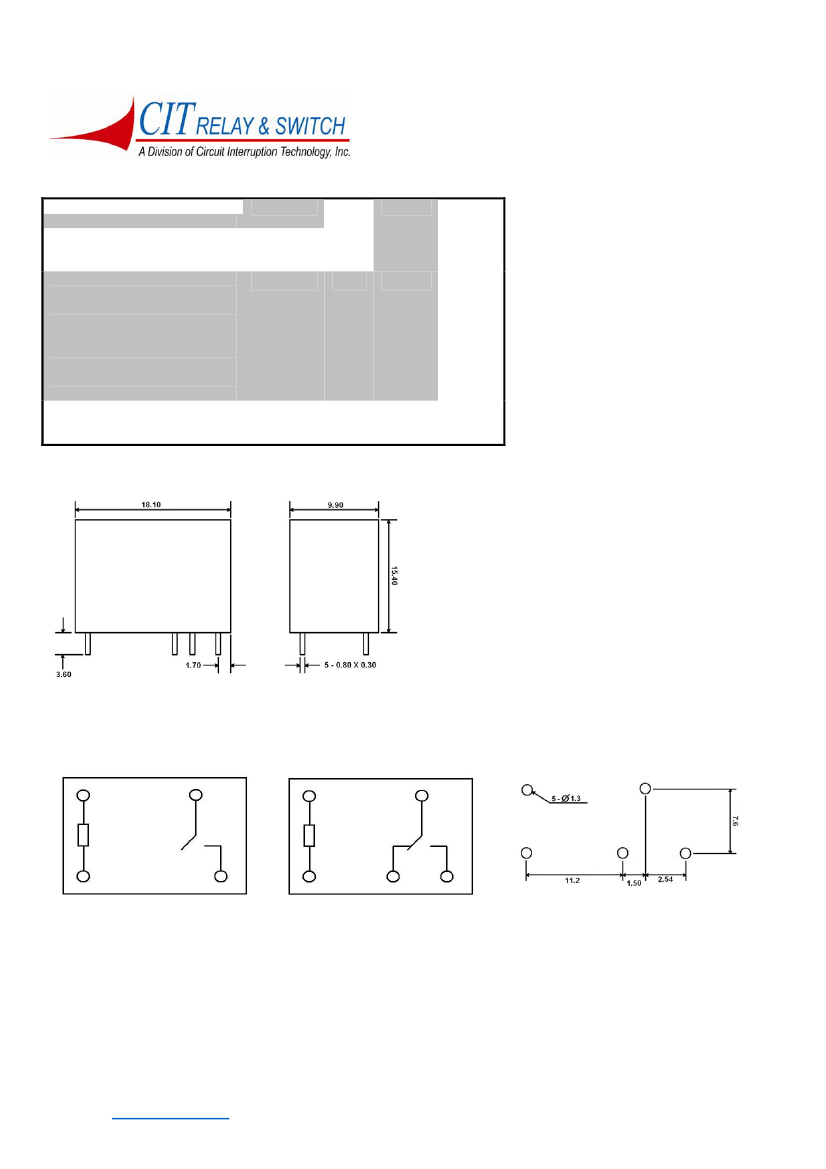

DIMENSIONS (Units = mm)
SCHEMATICS & PC LAYOUTS (BOTTOM VIEWS)
1A
1C
