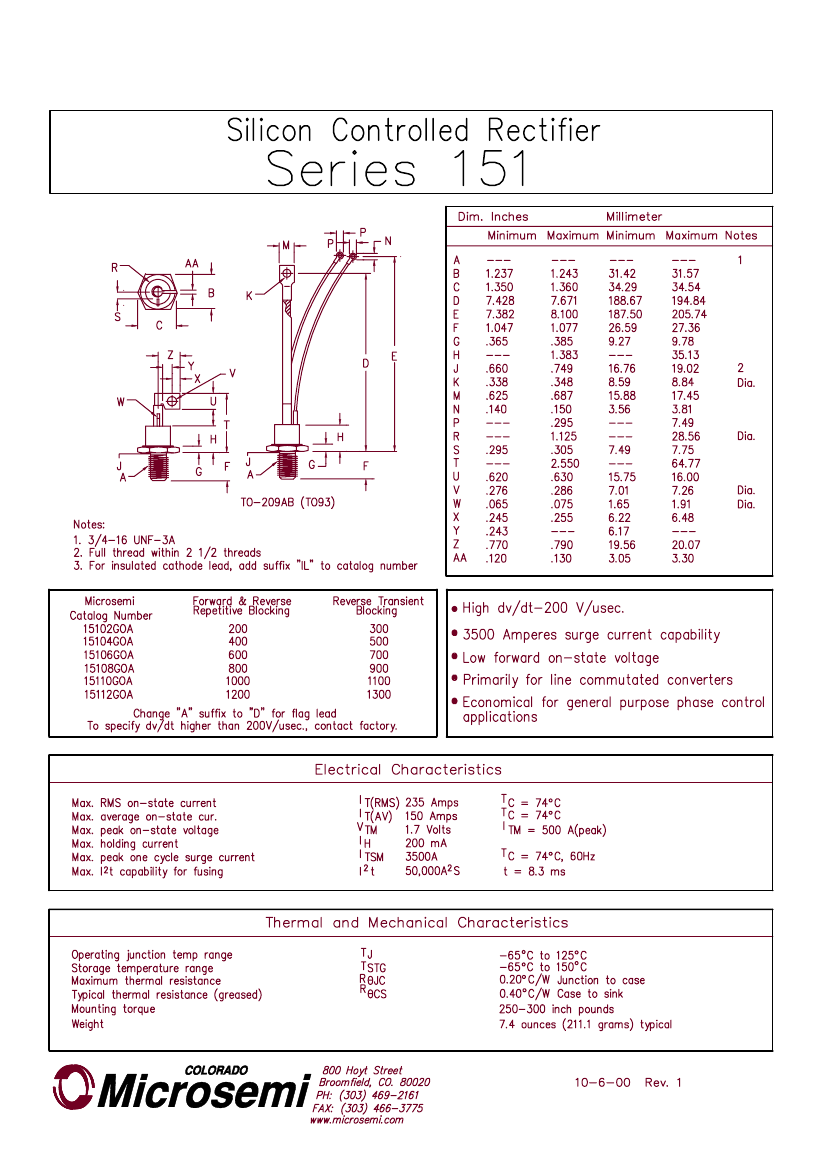

15106GOA datasheet, PDF - EEWORLD Datasheet

15106GOA: DescriptionSILICON CONTROLLED RECTIFIER,200V V(DRM),235A I(T),TO-209AB; CategoryAnalog mixed-signal IC Trigger device; File Size169KB，3 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

15106GOA Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	15106GOA	-	-	View	Buy Now

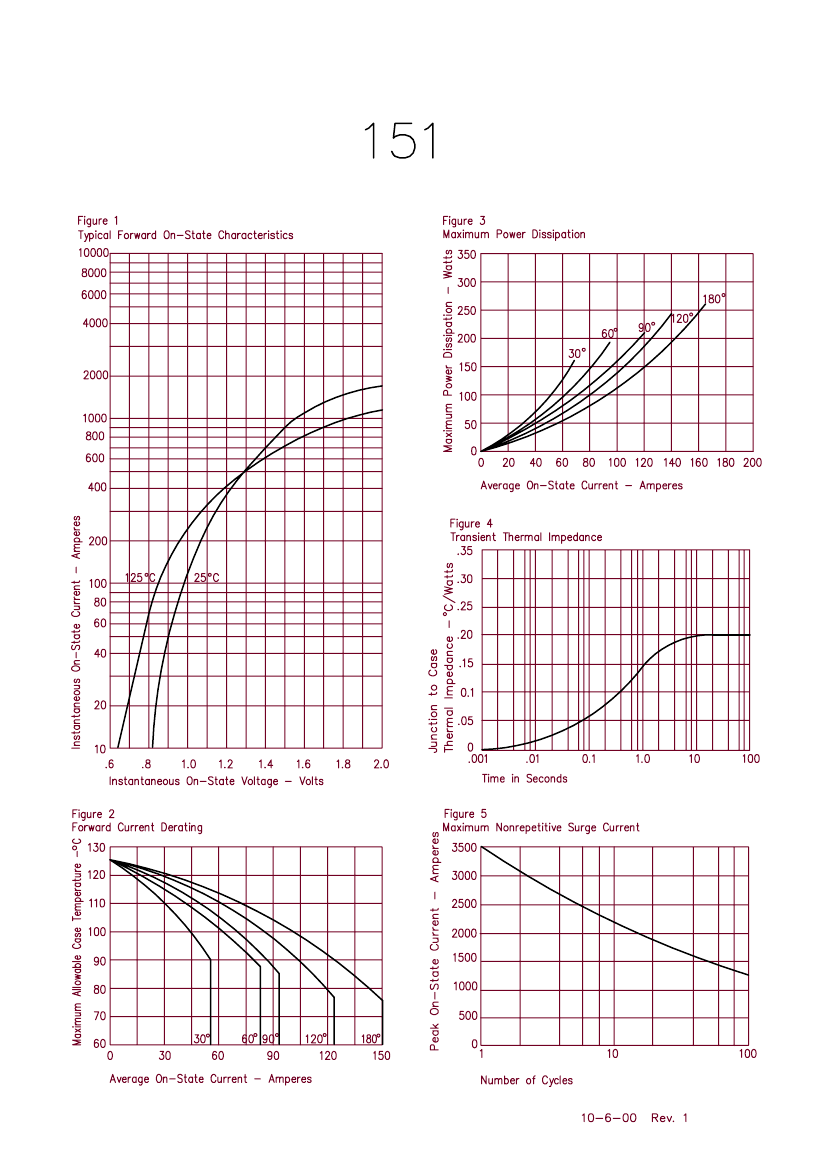

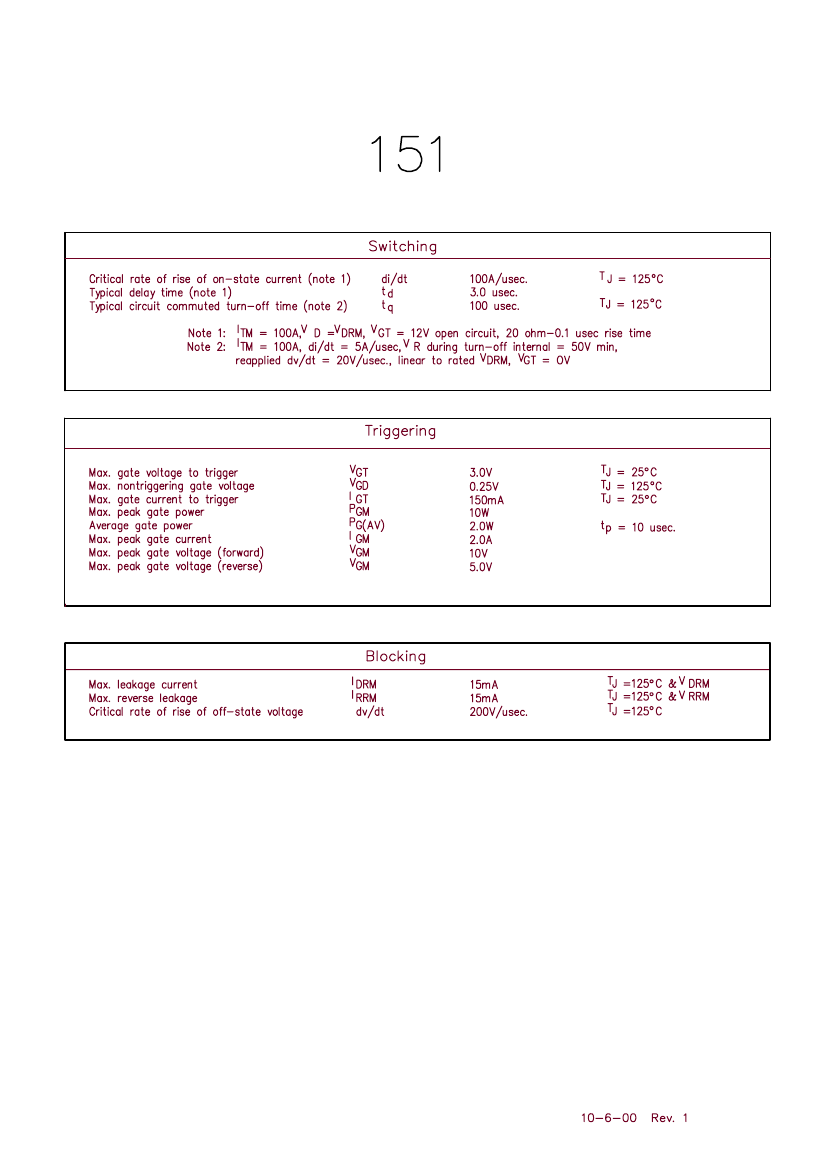

SILICON CONTROLLED RECTIFIER,200V V(DRM),235A I(T),TO-209AB

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Parts packaging code	TO-93
package instruction	POST/STUD MOUNT, O-MUPM-H3
Contacts	3
Reach Compliance Code	unknown
Is Samacsys	N
Nominal circuit commutation break time	100 µs
Configuration	SINGLE
Critical rise rate of minimum off-state voltage	200 V/us
Maximum DC gate trigger current	150 mA
Maximum DC gate trigger voltage	3 V
Maximum holding current	200 mA
JEDEC-95 code	TO-209AB
JESD-30 code	O-MUPM-H3
JESD-609 code	e0
Number of components	1
Number of terminals	3
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum rms on-state current	235 A
Maximum repetitive peak off-state leakage current	15000 µA
Off-state repetitive peak voltage	600 V
Repeated peak reverse voltage	600 V
surface mount	NO
Terminal surface	TIN LEAD
Terminal form	HIGH CURRENT CABLE
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger device type	SCR
Base Number Matches	1

	15106GOA	15110GOA
Description	SILICON CONTROLLED RECTIFIER,200V V(DRM),235A I(T),TO-209AB	SILICON CONTROLLED RECTIFIER,200V V(DRM),235A I(T),TO-209AB
Is it lead-free?	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible
Parts packaging code	TO-93	TO-93
package instruction	POST/STUD MOUNT, O-MUPM-H3	POST/STUD MOUNT, O-MUPM-H3
Contacts	3	3
Reach Compliance Code	unknown	unknown
Is Samacsys	N	N
Nominal circuit commutation break time	100 µs	100 µs
Configuration	SINGLE	SINGLE
Critical rise rate of minimum off-state voltage	200 V/us	200 V/us
Maximum DC gate trigger current	150 mA	150 mA
Maximum DC gate trigger voltage	3 V	3 V
Maximum holding current	200 mA	200 mA
JEDEC-95 code	TO-209AB	TO-209AB
JESD-30 code	O-MUPM-H3	O-MUPM-H3
JESD-609 code	e0	e0
Number of components	1	1
Number of terminals	3	3
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-65 °C	-65 °C
Package body material	METAL	METAL
Package shape	ROUND	ROUND
Package form	POST/STUD MOUNT	POST/STUD MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified
Maximum rms on-state current	235 A	235 A
Maximum repetitive peak off-state leakage current	15000 µA	15000 µA
Off-state repetitive peak voltage	600 V	1000 V
Repeated peak reverse voltage	600 V	1000 V
surface mount	NO	NO
Terminal surface	TIN LEAD	TIN LEAD
Terminal form	HIGH CURRENT CABLE	HIGH CURRENT CABLE
Terminal location	UPPER	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
Trigger device type	SCR	SCR
Base Number Matches	1	1
