CTH7-183K datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > inductor> Fixed inductance> CTH7-183K

Preview

CTH7-183K: DescriptionGeneral Purpose Inductor, 18000uH, 10%, 1 Element, AXIAL LEADED; Categoryinductor Fixed inductance; File Size71KB，1 Pages; ManufacturerCT [ Central Technologies ]

Download Datasheet Parametric View All

CTH7-183K Overview

General Purpose Inductor, 18000uH, 10%, 1 Element, AXIAL LEADED

CTH7-183K Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	CT [ Central Technologies ]
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
structure	Tubular
DC Resistance	48 Ω
Nominal inductance(L)	18000 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e0
Lead diameter	0.813 mm
Lead length	23.9 mm
Manufacturer's serial number	CTH7
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
Package diameter	7.37 mm
Package length	15.3 mm
Package form	Axial
method of packing	TR
Maximum rated current	0.04 A
self resonant frequency	0.3 MHz
series	CTH7F SERIES
Shape/Size Description	TUBULAR PACKAGE
shield	NO
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal location	AXIAL
Terminal shape	WIRE
Test frequency	0.001 MHz
Tolerance	10%
Base Number Matches	1

Preview

Download Datasheet

View All

Ver. 8.3

Power Line Chokes - Axial

ctparts.com

CTH7 Series

From 3.9 µH to 18,000 µH

ENGINEERING KIT #2

Not shown at actual size.

Part

Number

CTH7-3R9K

CTH7-4R7K

CTH7-5R6K

CTH7-6R8K

CTH7-8R2K

CTH7-100K

CTH7-120K

CTH7-150K

CTH7-180K

CTH7-220K

CTH7-270K

CTH7-330K

CTH7-390K

CTH7-470K

CTH7-560K

CTH7-680K

CTH7-820K

CTH7-101K

CTH7-121K

CTH7-151K

CTH7-181K

CTH7-221K

CTH7-271K

CTH7-331K

CTH7-391K

CTH7-471K

CTH7-561K

CTH7-681K

CTH7-821K

CTH7-102K

CTH7-122K

CTH7-152K

CTH7-182K

CTH7-222K

CTH7-272K

CTH7-332K

CTH7-392K

CTH7-472K

CTH7-562K

CTH7-682K

CTH7-822K

CTH7-103K

CTH7-123K

CTH7-153K

CTH7-183K

SPECIFICATIONS

Parts are marked to indicate tolerance available.

K = ±10%

Inductance

(µH)

3.9

4.7

5.6

6.8

8.2

10

12

15

18

22

27

33

39

47

56

68

82

100

120

150

180

220

270

330

390

470

560

680

820

1000

1200

1500

1800

2200

2700

3300

3900

4700

5600

6800

8200

10000

12000

15000

18000

L Test

Freq.

(kHz)

1.0

SRF

Min.

(MHz)

38

26

25

22

17

16

12

11

10

7.0

6.0

7.0

4.0

3.0

2.0

1.0

.85

.67

.65

.60

.50

.60

.40

.35

.30

.25

.30

DCR

Max.

Ω

(Ω)

.02

.03

.04

.05

.06

.08

.09

.11

.13

.14

.15

.21

.28

.34

.36

.43

.56

.67

.77

1.2

1.3

1.6

2.0

2.3

2.7

3.5

4.0

4.5

5.4

6.6

8.6

9.7

14

16

21

26

30

43

48

Saturation

DC

(A)

7.3

6.3

5.6

5.3

4.5

4.1

3.6

3.3

3.0

2.7

2.5

2.2

2.0

1.8

1.7

1.5

1.4

1.2

1.1

1.0

.95

.86

.77

.70

.64

.59

.54

.49

.44

.40

.35

.33

.29

.27

.24

.22

.20

.18

.16

.15

.13

.12

.11

.10

.09

Rated

AC

(A)

1.3

1.0

.80

.63

.51

.40

.32

.25

.20

.16

.13

.10

.08

.07

.05

.04

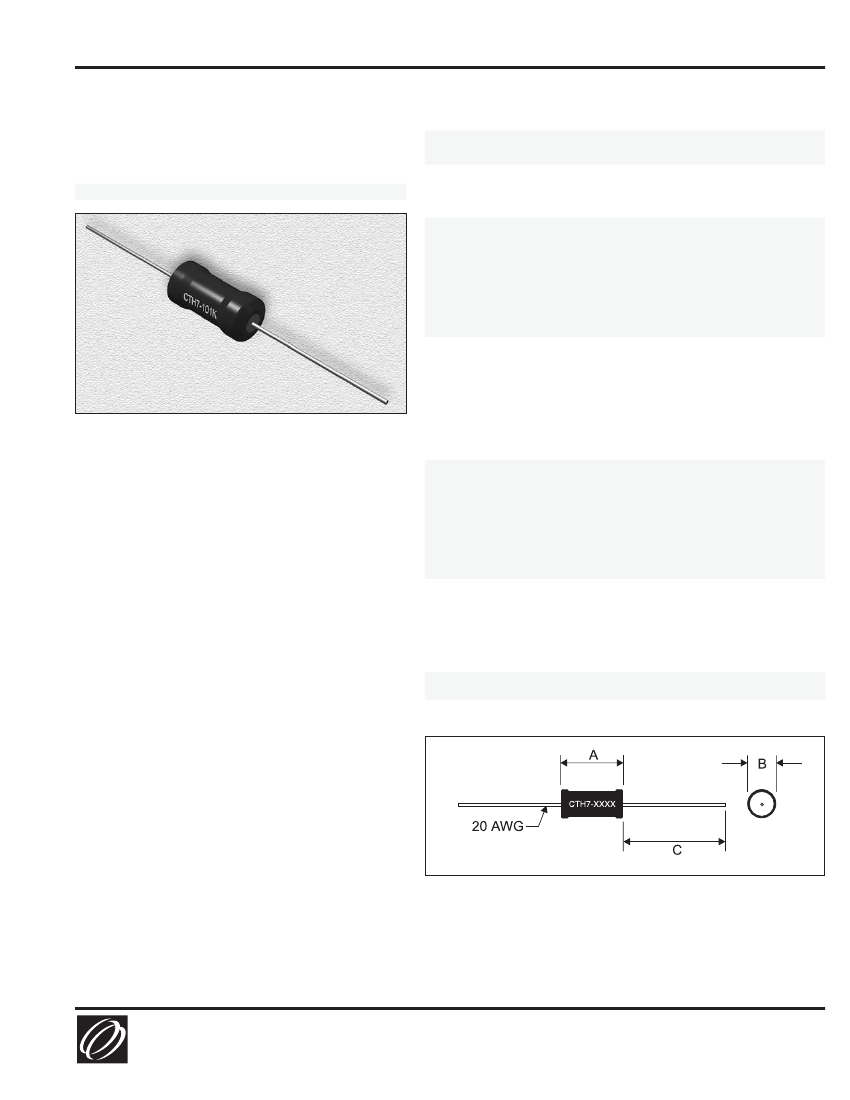

CHARACTERISTICS

Description:

Axial leaded power line inductor (UL sleeved)

Applications:

Used in switching regulators, power amplifiers,

power supplies, SCR and Triac controls, speaker crossover

networks, RFI suppression and filters. Various applications

Operating Temperature:

-55°C to +100°C

Inductance Tolerance:

±10%

Testing:

Inductance is tested on an HP4284A at 1.0 kHz

Packaging:

Bulk pack standard, Tape & Reel available

Marking:

Coils are sleeved in heat resistant polyolefin and

labeled with the part number

Saturation Current:

Lowers inductance by 10%

Bobbin:

High saturation, allows for high inductance with low

DC resistance

Miscellaneous:

Higher current parts available

Additional Information:

Additional electrical & physical

information available upon request

Samples available. See website for ordering information.

PHYSICAL DIMENSIONS

Size

mm

inches

Max.

15.3

0.6

A

Max.

6.85

0.27

B

Typ.

29.2

1.15

C

20 AWG

Nom.

0.813

0.319

11.13.02

Technologies

Manufacturer of Inductors, Chokes, Coils, Beads, Transformers & Toroids

800-684-5322

Inside US

949-453-1811

Outside US

CT Magnetics reserves the right to make improvements or change specifications without notice

CENTRAL

163
