3239-18-1-0500-001-1-TS datasheet, PDF

Datasheet> All Categories > Wire/cable> 3239-18-1-0500-001-1-TS

3239-18-1-0500-001-1-TS: DescriptionHOOK-UP STRND 18AWG BLACK 500'; CategoryWire/cable; File Size168KB，1 Pages; ManufacturerCNC Tech; Environmental Compliance

Download Datasheet Parametric Compare View All

3239-18-1-0500-001-1-TS Overview

HOOK-UP STRND 18AWG BLACK 500'

3239-18-1-0500-001-1-TS Parametric

Parameter Name	Attribute value
Cable type	electronic wire
Wire gauge	18 AWG
Number of wire strands	34/0.0071"
conductor material	Copper, tin plated
Sheath (insulation) material	silicone rubber
Sheath (insulation) diameter	0.083"（2.11mm）
Sheath (insulation) thickness	0.022"（0.55mm）
length	500.0'（152.4m）
Voltage	3000V
Operating temperature	-50°C ~ 150°C
Casing color	black
grade	UL type 3239
characteristic	-

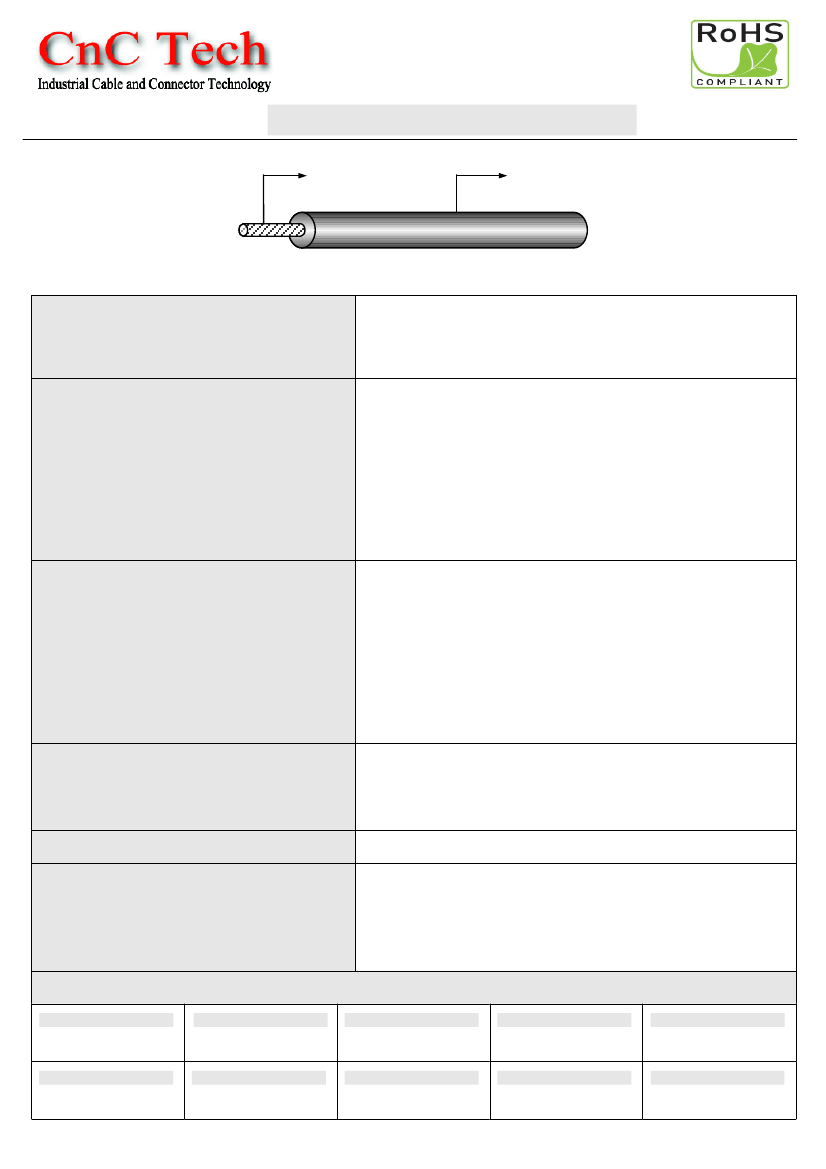

Preview

Download Datasheet

View All

P/N 3239-18-1-0500-0XX-1-TS

(Conductor: Tinned strands)

(Insulation: Silicone Rubber)

UL3239 -

Silicone Rubber Wire 150°C 3KV

(18 AWG)

CONSTRUCTION:

Tinned Strands, copper conductor, 34/0.18mm strands.

Overall Diameter = 2.10mm + 0.10mm – 0.03mm

Insulation Thickness: 0.55mm

DUAL-RATED AWM: Can be used in USA and Canada

UL Subject 758 UL FILE NO:E108485

CSA Standard CSA FILE NO:LL84687

Printed Markings:

“

AWM 3239 150℃ 3KV E108485-S 18AWG REIHSING CSA I

A 150

℃

3KV LL84687 18AWG FT1

”

CERTIFICATION & APPROVALS:

Passes UL VW-1 & CSA FT1 Vertical Flame Test.

Rated Temperature: 150

℃

~ -50

℃

Rated Voltage: 3KV

Insulation Potential Strength: 6000 VAC/min

High flexibility: Soft silicone rubber material.

Maximum Conductor Resistance: 24.4Ω/km

Resistant to: Oil, extremes of hot & cold, flexing, high

Voltage spikes.

Silicone rubber wire, has high temperature resistance and

high flexibility in confined spaces. Suitable for use in LED

TVs, Laptops, Microwaves, Photocopiers, Scanners.

500ft per reel.

Conforms to all current RoHS directives as laid out in EU

Directive 2011/65/EC

Current SGS reports for this wire are available upon

request.

P/N's & COLORS

3239-18-1-0500-001-1-TS

3239-18-1-0500-002-1-TS

3239-18-1-0500-003-1-TS

3239-18-1-0500-004-1-TS

3239-18-1-0500-005-1-TS

PHYSICAL

ELECTRICAL PROPERTIES:

APPLICATIONS:

PACKAGING:

ENVIRONMENTAL APPROVALS:

BLACK

3239-18-1-0500-006-1-TS

WHITE

3239-18-1-0500-007-1-TS

YELLOW

3239-18-1-0500-008-1-TS

RED

3239-18-1-0500-010-1-TS

BLUE

3239-18-1-0500-011-1-TS

BROWN

GREEN

ORANGE

VIOLET

GREEN + YELLOW

3239-18-1-0500-001-1-TS Related Products

	3239-18-1-0500-001-1-TS	3239-18-1-0500-010-1-TS	3239-18-1-0500-011-1-TS	3239-18-1-0500-006-1-TS	3239-18-1-0500-007-1-TS	3239-18-1-0500-008-1-TS	3239-18-1-0500-003-1-TS	3239-18-1-0500-002-1-TS	3239-18-1-0500-004-1-TS	3239-18-1-0500-005-1-TS
Description	HOOK-UP STRND 18AWG BLACK 500'	HOOK-UP STRND 18AWG VIOLET 50'	HOOK-UP STRND 18AWG GRN/YEL 50'	HOOK-UP STRND 18AWG BROWN 50'	HOOK-UP STRND 18AWG GREEN 500'	HOOK-UP STRND 18AWG ORANGE 500'	HOOK-UP STRND 18AWG YELLOW 500'	HOOK-UP STRND 18AWG WHITE 500'	HOOK-UP STRND 18AWG RED 500'	HOOK-UP STRND 18AWG BLUE 250'
Cable type	electronic wire	electronic wire	electronic wire	electronic wire	electronic wire	electronic wire	electronic wire	electronic wire	electronic wire	electronic wire
Wire gauge	18 AWG	18 AWG	18 AWG	18 AWG	18 AWG	18 AWG	18 AWG	18 AWG	18 AWG	18 AWG
Number of wire strands	34/0.0071"	34/0.0071"	34/0.0071"	34/0.0071"	34/0.0071"	34/0.0071"	34/0.0071"	34/0.0071"	34/0.0071"	34/0.0071"
conductor material	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated
Sheath (insulation) material	silicone rubber	silicone rubber	silicone rubber	silicone rubber	silicone rubber	silicone rubber	silicone rubber	silicone rubber	silicone rubber	silicone rubber
Sheath (insulation) diameter	0.083"（2.11mm）	0.083"（2.11mm）	0.083"（2.11mm）	0.083"（2.11mm）	0.083"（2.11mm）	0.083"（2.11mm）	0.083"（2.11mm）	0.083"（2.11mm）	0.083"（2.11mm）	0.083"（2.11mm）
Sheath (insulation) thickness	0.022"（0.55mm）	0.022"（0.55mm）	0.022"（0.55mm）	0.022"（0.55mm）	0.022"（0.55mm）	0.022"（0.55mm）	0.022"（0.55mm）	0.022"（0.55mm）	0.022"（0.55mm）	0.022"（0.55mm）
length	500.0'（152.4m）	50.00'（15.24m）	50.00'（15.24m）	50.00'（15.24m）	500.0'（152.4m）	500.0'（152.4m）	500.0'（152.4m）	500.0'（152.4m）	500.0'（152.4m）	250.0'（76.2m）
Voltage	3000V	3000V	3000V	3000V	3000V	3000V	3000V	3000V	3000V	3000V
Operating temperature	-50°C ~ 150°C	-50°C ~ 150°C	-50°C ~ 150°C	-50°C ~ 150°C	-50°C ~ 150°C	-50°C ~ 150°C	-50°C ~ 150°C	-50°C ~ 150°C	-50°C ~ 150°C	-50°C ~ 150°C
Casing color	black	Purple	green,yellow	brown	green	orange color	yellow	White	red	blue
grade	UL type 3239	UL type 3239	UL type 3239	UL type 3239	UL type 3239	UL type 3239	UL type 3239	UL type 3239	UL type 3239	UL type 3239
