Part Number

Search

8690050000

Description
RELAY GEN PURPOSE 3PDT 10A 24V
CategoryMechanical and electronic products    relay
File Size246KB,5 Pages
ManufacturerWeidmuller
Websitehttp://www.weidmuller.com/
Download Datasheet Parametric View All

8690050000 Online Shopping

Suppliers Part Number Price MOQ In stock
8690050000 - - View Buy Now

8690050000 Overview

RELAY GEN PURPOSE 3PDT 10A 24V

8690050000 Parametric

Parameter NameAttribute value
MakerWeidmuller
package instructionCADMIUM FREE
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time10 weeks
Other featuresWITH TEST BUTTON AND LED
body width22.5 mm
body height29 mm
Body length or diameter28 mm
Maximum coil current (DC)0.031 A
Coil operating voltage (DC)18 V
Coil power750 mW
Coil release voltage (DC)2.4 V
Coil resistance766.77 Ω
Maximum coil voltage (DC)24 V
Coil/Input Power TypeDC
Contact (AC) maximum rated R load10A@250VAC
Maximum contact current (AC)10 A
Maximum contact voltage (AC)250 V
Contact/Output Power TypeAC
Installation featuresPANEL MOUNT
operating hours15 ms
Maximum operating temperature70 °C
Minimum operating temperature-40 °C
physical size28mm x 22.5mm x 29mm
GuidelineUL; VDE
Relay actionMOMENTARY
Relay function3PDT
Relay typePOWER/SIGNAL RELAY
release time10 ms
sealIP20
surface mountNO
Termination typeSOLDER
Base Number Matches1

Data sheet...

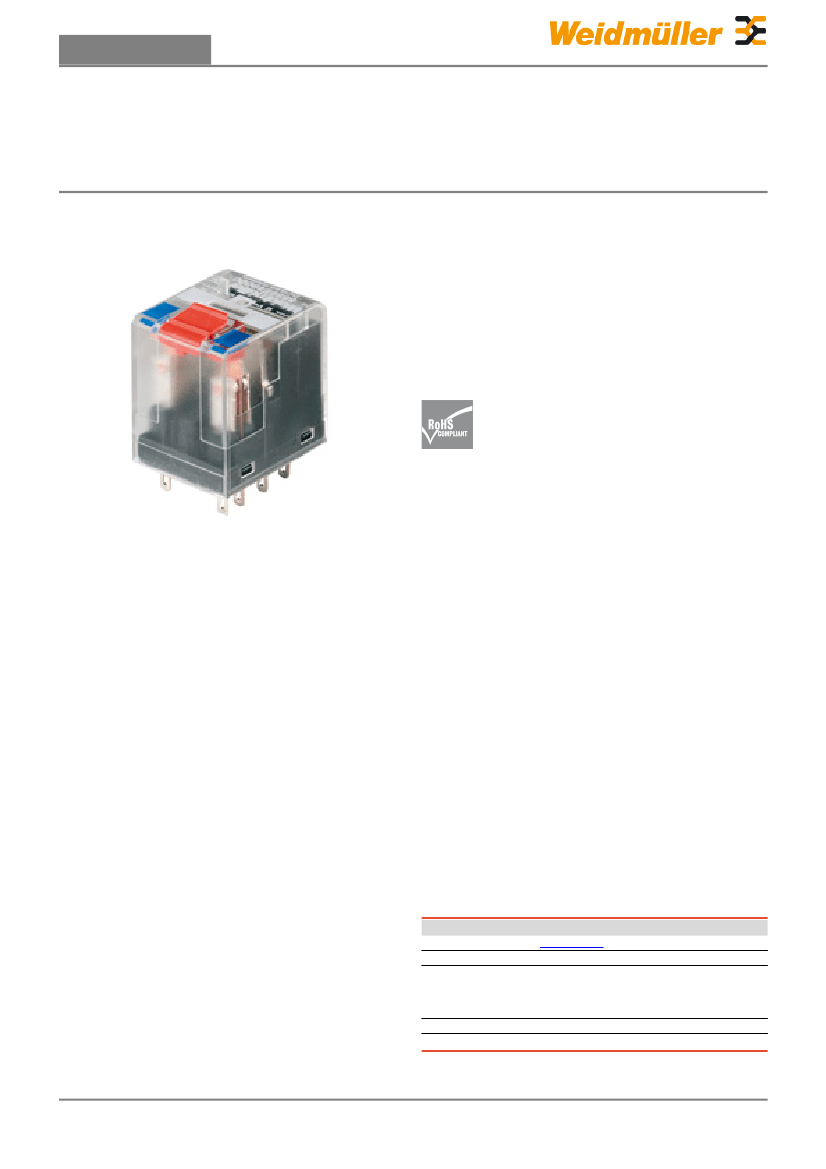

RIDERSERIES
RCM370L24
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com


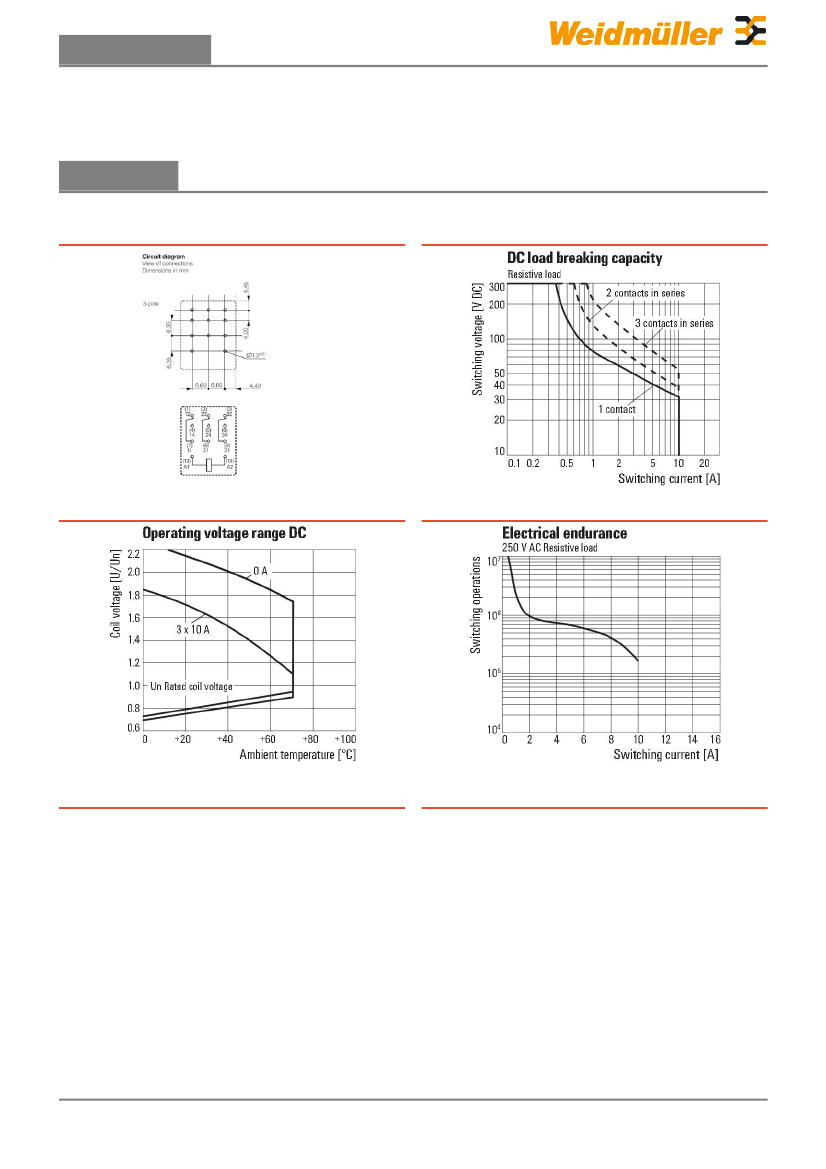

Standard relays in the RIDERSERIES RCM
• 3 CO contacts
• Optionally AC or DC coils
• with test button
• Comes optionally with integrated status display
and/or free-wheel diode

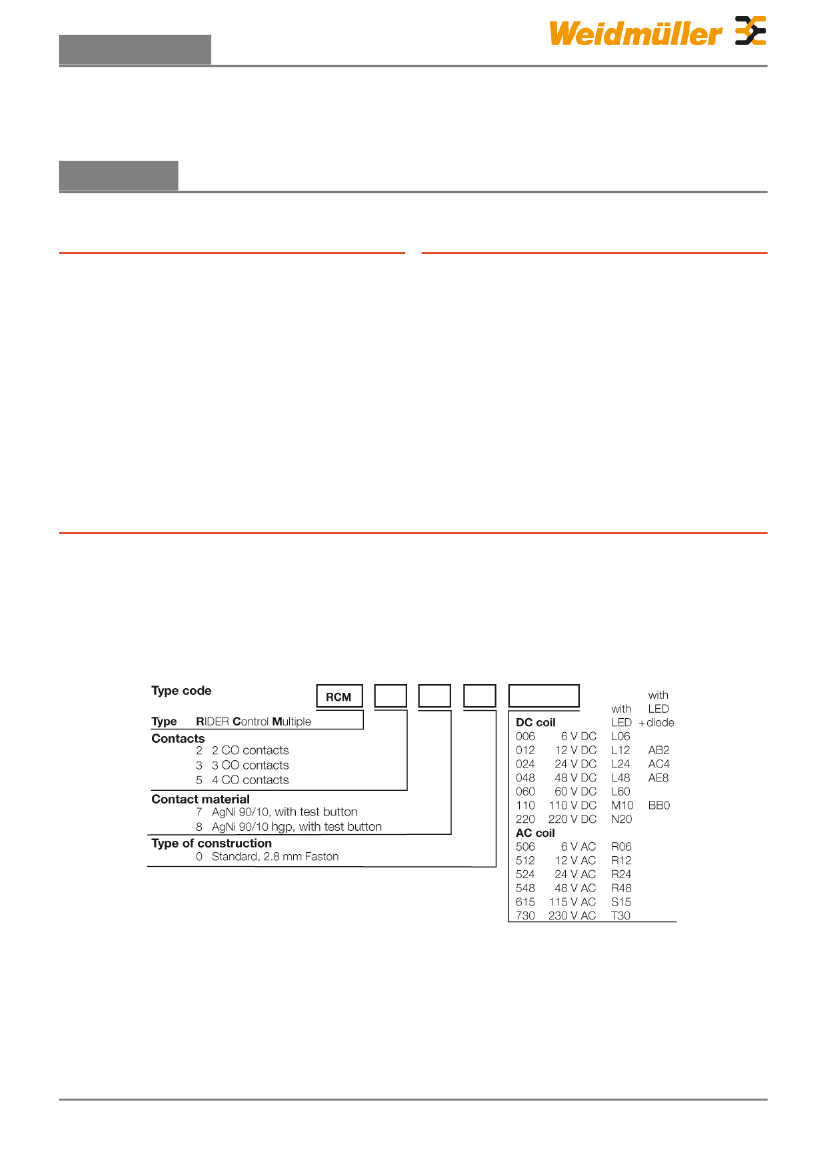

General ordering data

Order No.
Type
Version
GTIN (EAN)
Qty.

8690050000
RCM370L24
RIDERSERIES, Relais, No. of contacts: 3, CO
contact with test button, AgNi 90/10, Rated
control voltage: 24 V DC, Continuous current: 10
A, Plug-in connection
4032248360727
10 pc(s).
Creation date March 11, 2013 5:48:35 PM CET


Catalogue status 20.12.2012 / We reserve the right to make technical changes.
